Description

The Air IL Next Gen shock packs class-leading performance in a smaller and stronger package, featuring a thicker inner damper tube for increased strength and a 17mm reduction in overall width on the valve body to increase fitment possibilities on tight frames. The Class-leading externally adjustable DB Twin Tube technology provides the widest range of 4-way damping adjustability on the market - designed to bring a new level of control to XC and Trail Bikes.

  • 6mm reduction in the outer diameter of the Air spring to further increase the likelihood of fitment while increasing the max psi pressure up to 350psi (Up from 300psi)
  • 4-Way independent adjustment - high and low speed compression, high and low speed rebound
  • Twin-tube damping for unparalleled small bump compliance
  • Climb switch lessens low-speed compression and rebound damping at the same time for improved climbing traction
  • Hand assembled and Individually dyno-tested

Specifications

These are the specifications for Item ID: RS0494

Weight: 280
Stroke mm: 42.5
Metric: Yes
Lockout switch: Climb Switch
Eyelet diameter mm: Trunnion","12.7
External adjustments: High Speed Compression Damping","Low Speed Compression Damping","Rebound Damping","Coil Preload
Positive spring: Coil
Eye to eye length mm: 165

Cane Creek

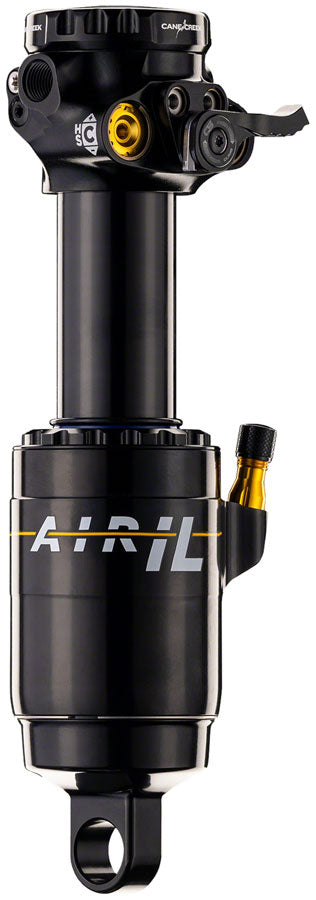

Cane Creek Air IL Next Gen Rear Shock - 165 x 42.5mm, Black, Trunnion

Cane Creek Air IL Next Gen Rear Shock - 165 x 42.5mm, Black, Trunnion

Regular price $599.99
Regular price $599.99 Sale price $599.99

Item ID: RS0494
