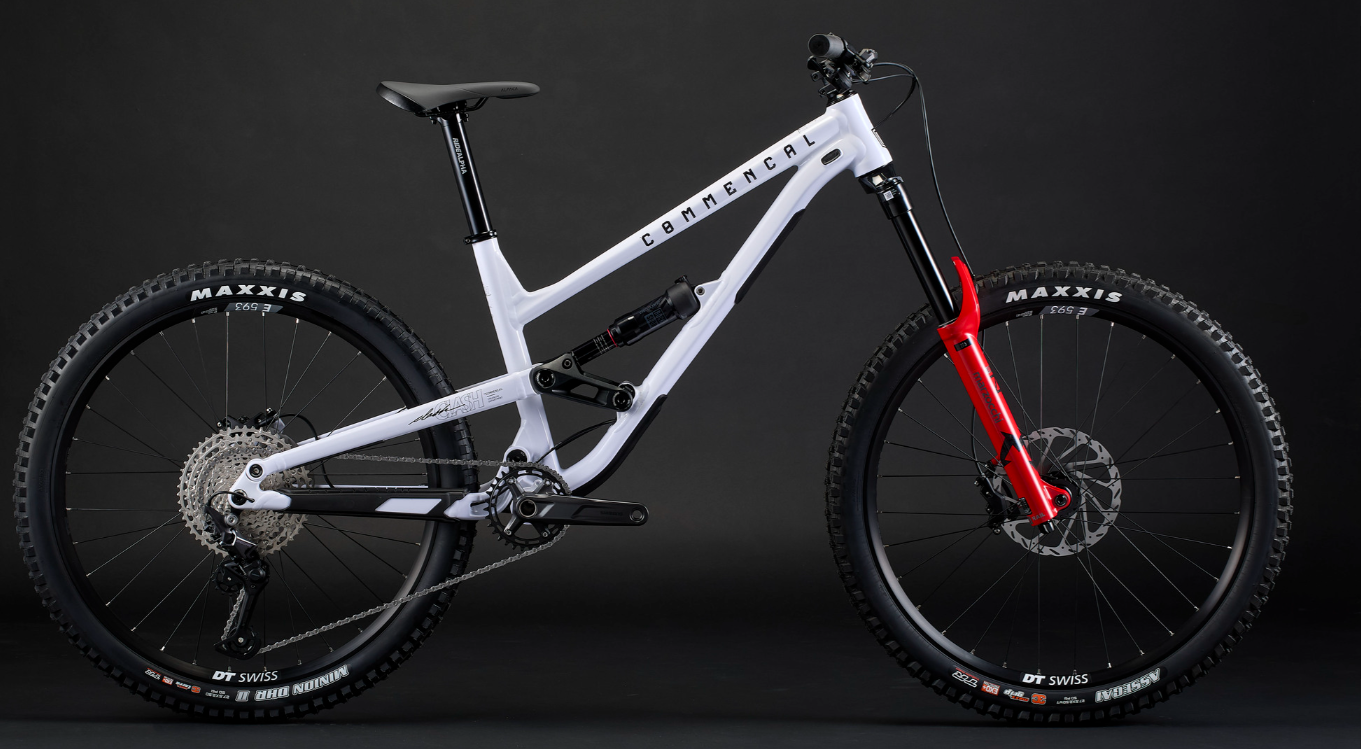

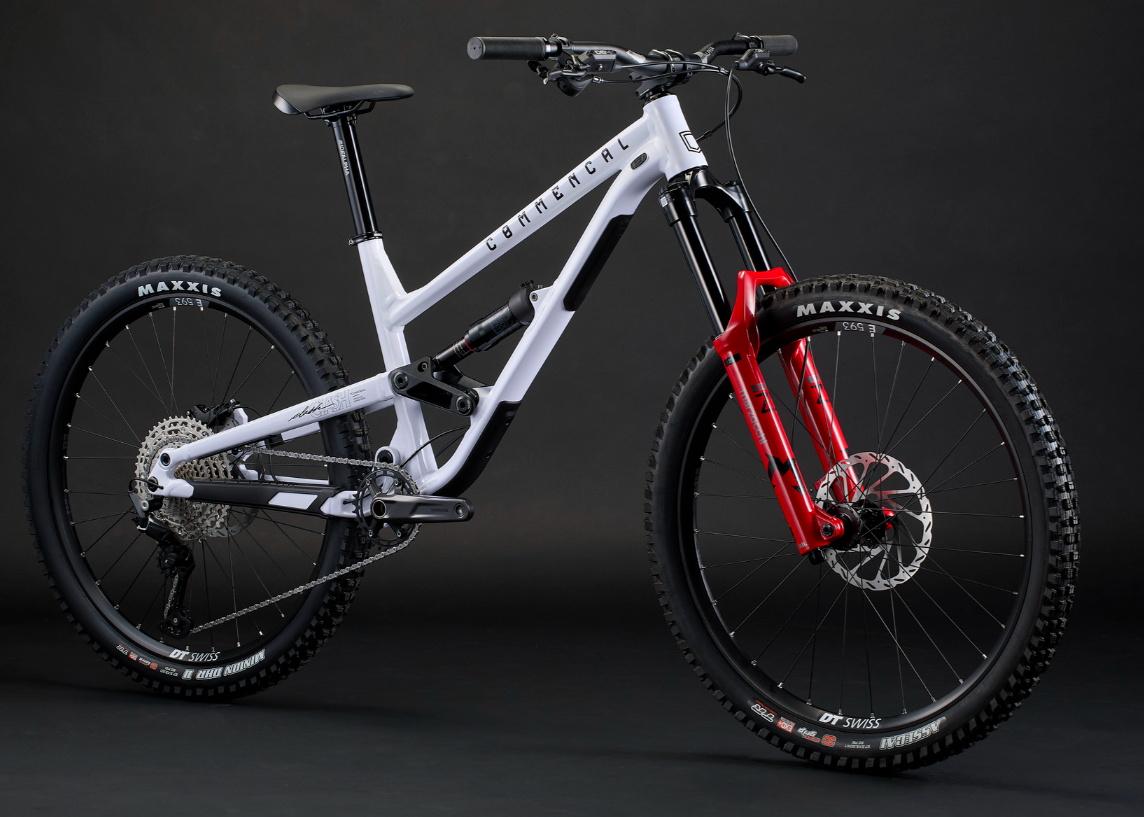

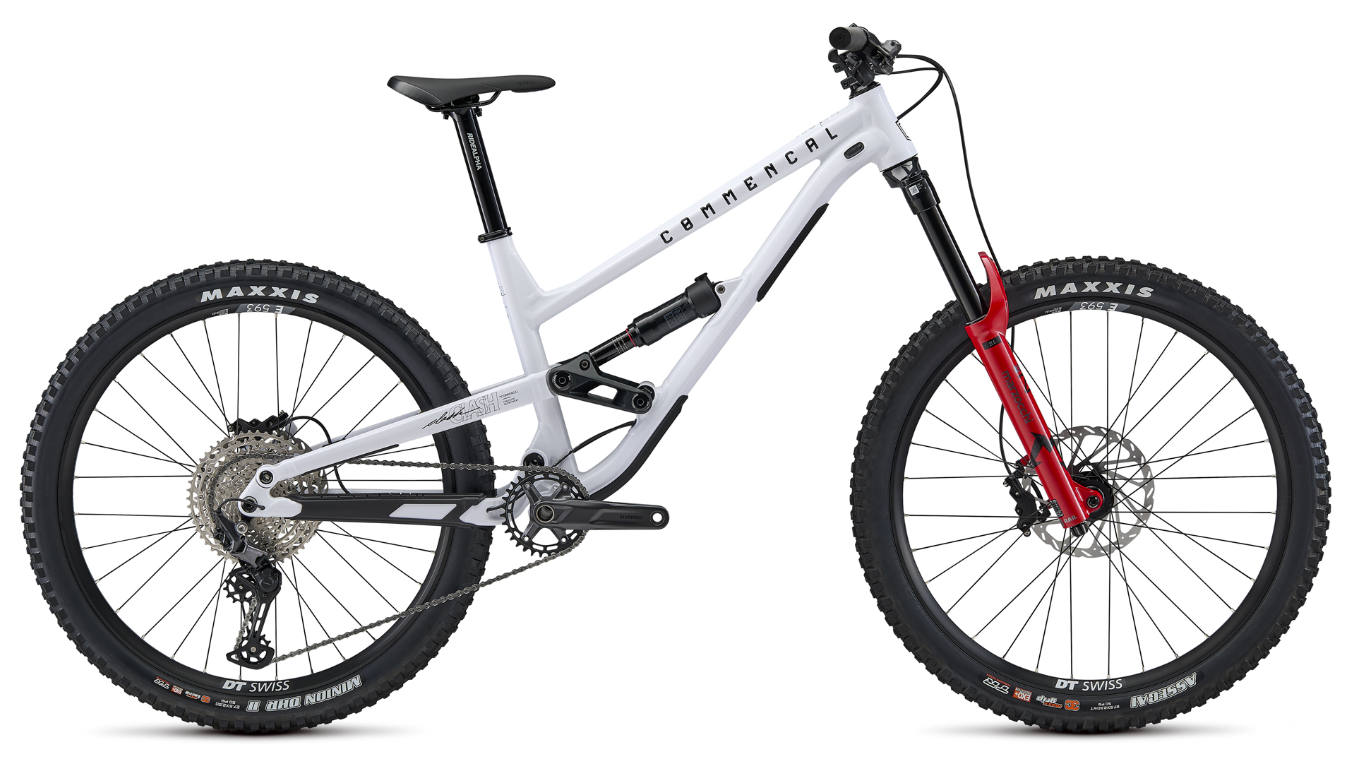

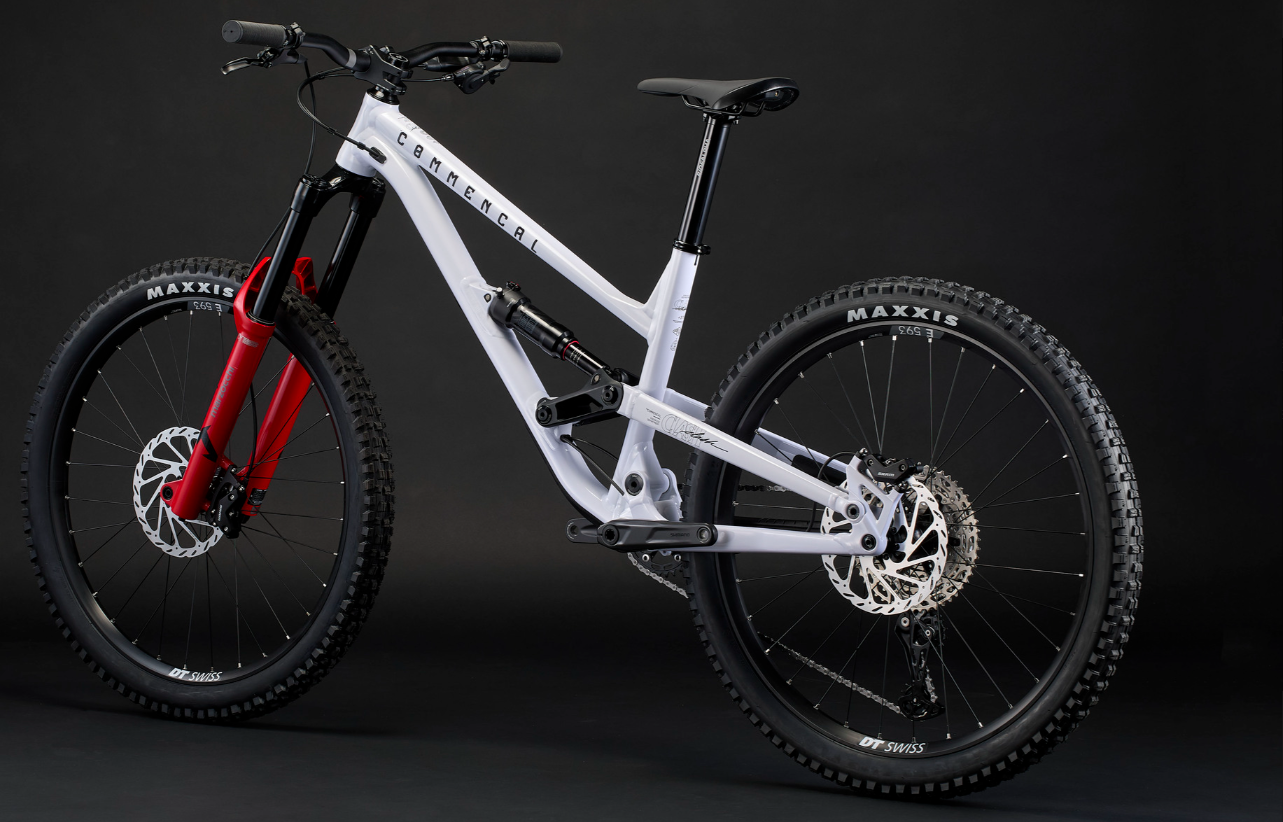

Commencal Clash Mazro 27.5

The CLASH is built to push your limits. Whether on your local trails, at the bike park, or on enduro loops, it’s your best ally for the season. The adjustable kinematics allow you to tune its performance and suspension to the terrain.

The new CLASH ORIGIN is made to play.

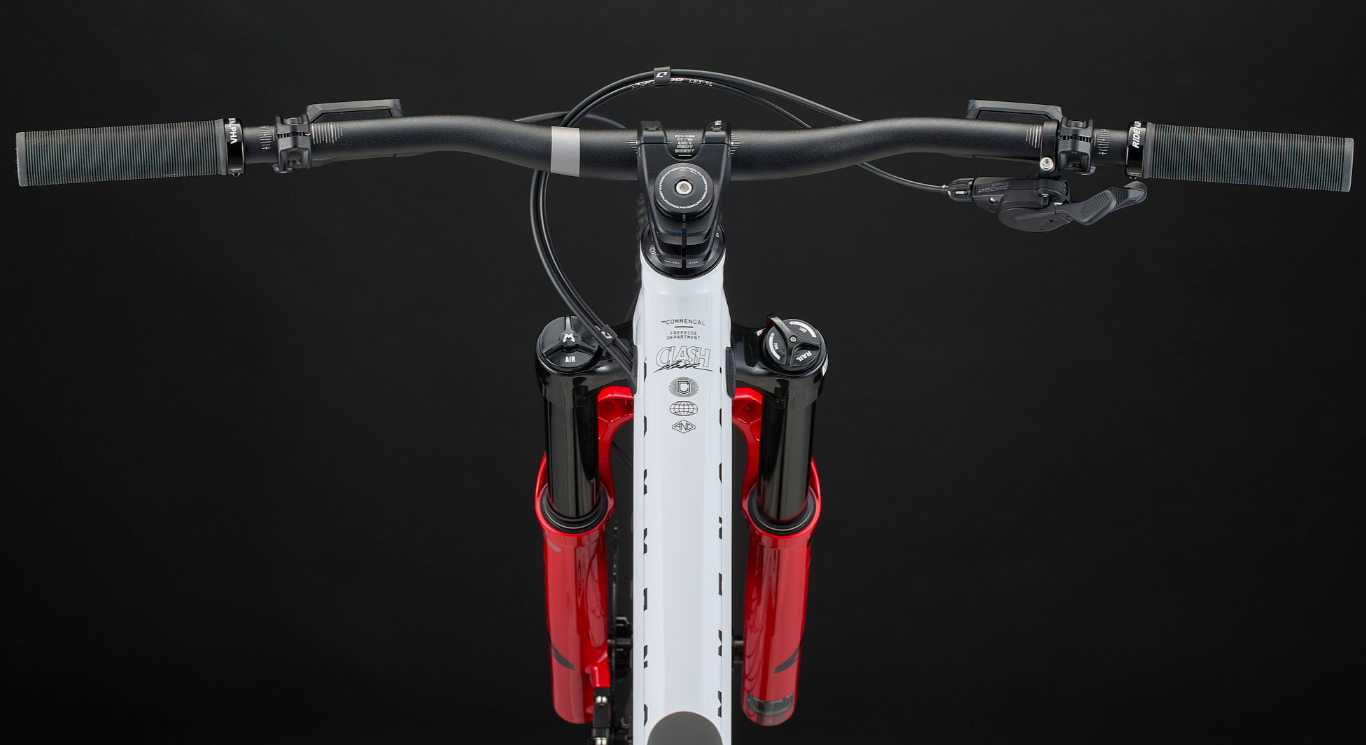

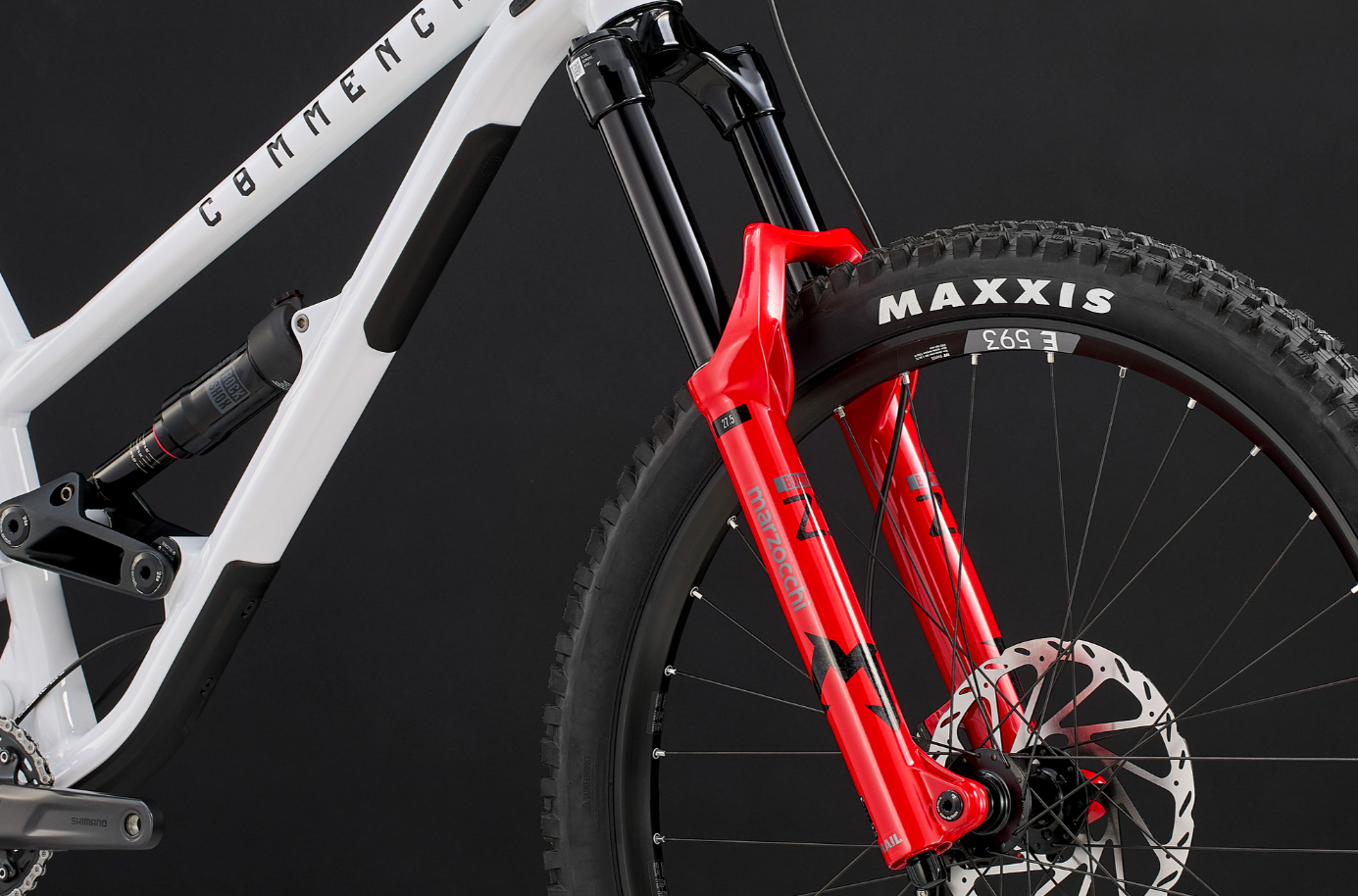

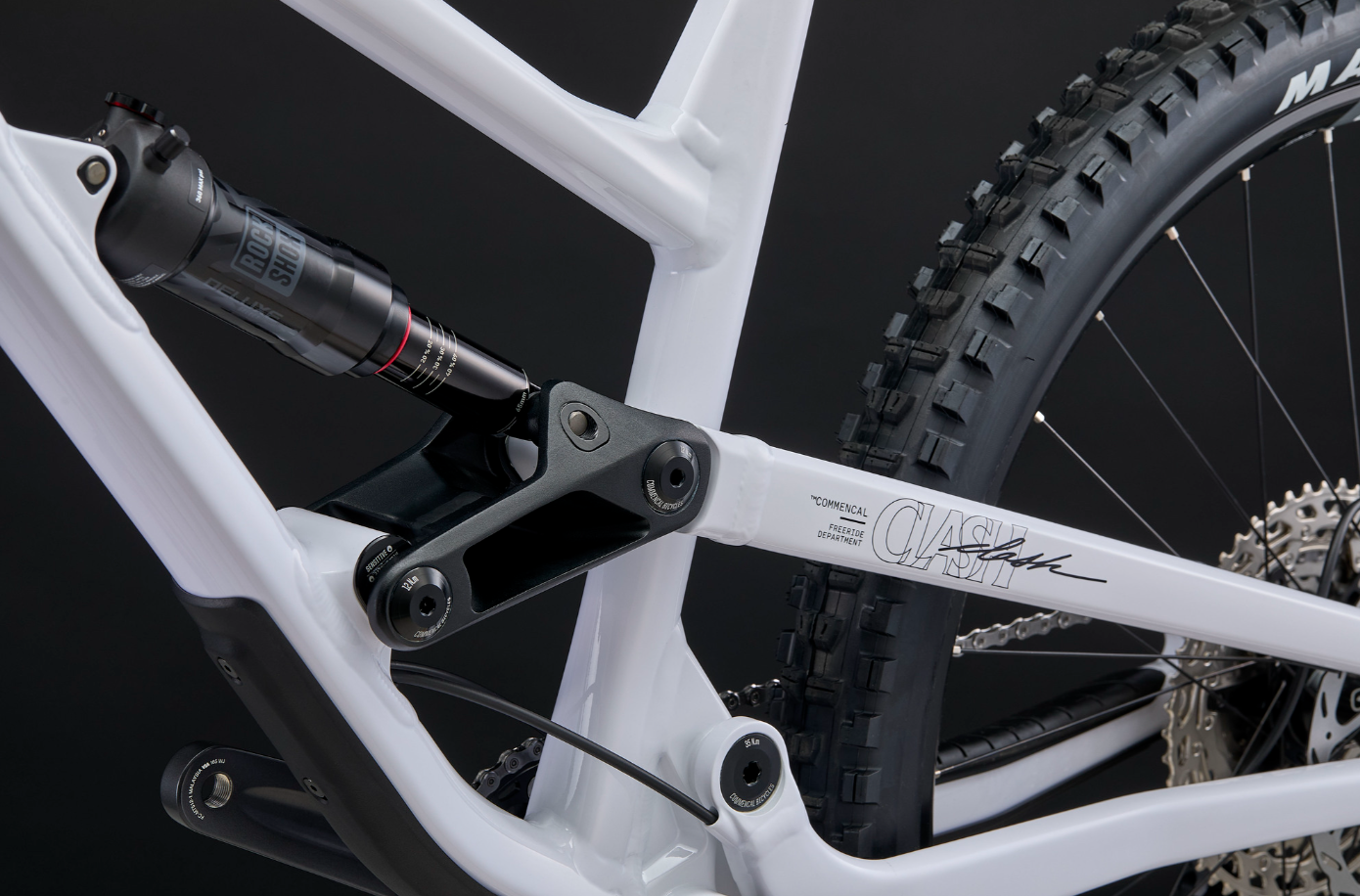

• The MARZOCCHI Bomber Z1 fork which is popular with freeride enthusiasts is a safe bet. With an aggressive look and proven technology, it guarantees fluidity and reliability in all circumstances. The new ROCKSHOX Deluxe Select shock is efficient and provides a lot of control. You can adapt it to your tastes by playing with the air volume and rebound.

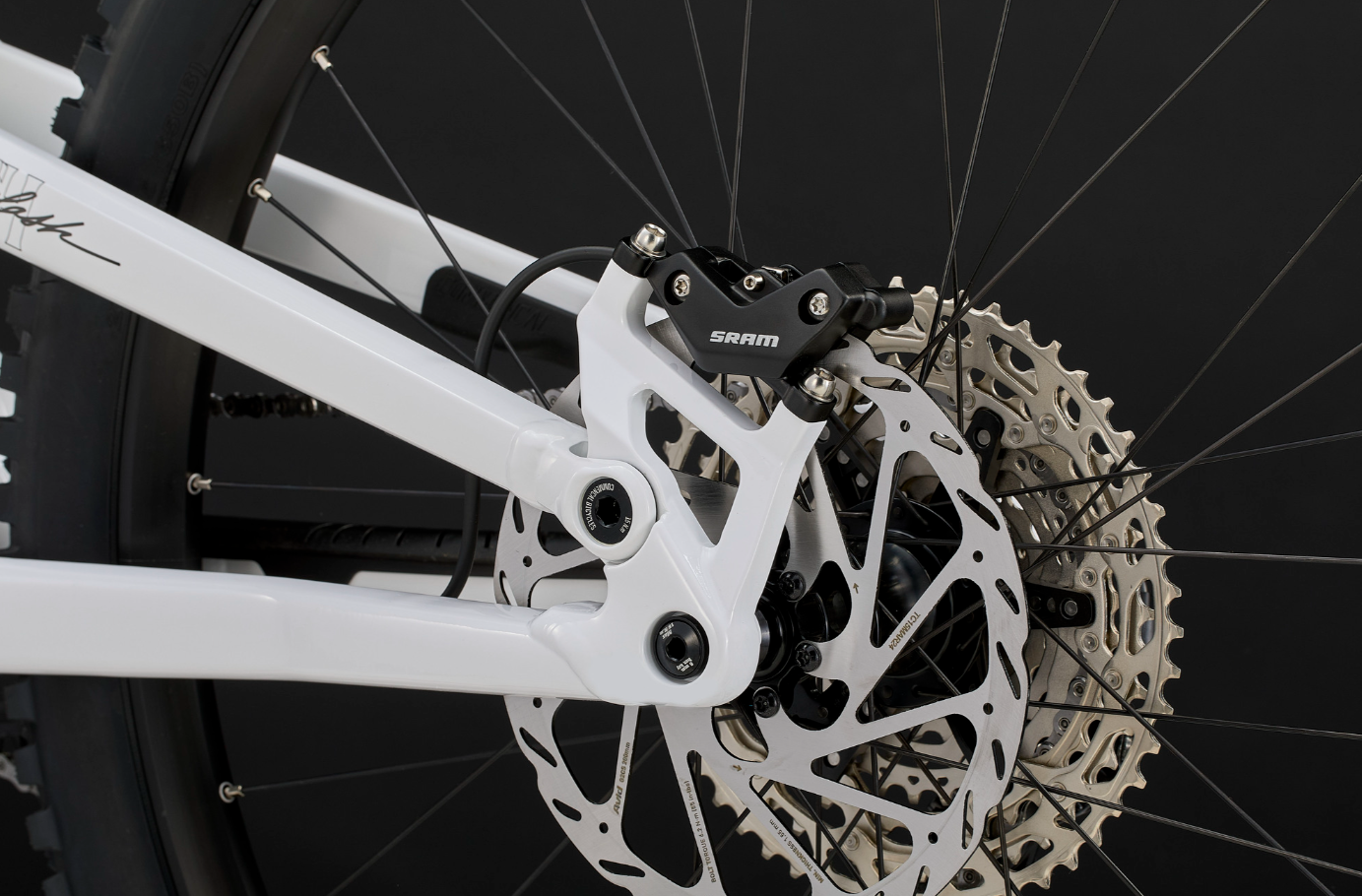

• SRAM DB4 4-piston brakes are paired with 200mm discs, and provide confidence and assurance on descents.
• The new DT SWISS E593 rims shine with their solidity.

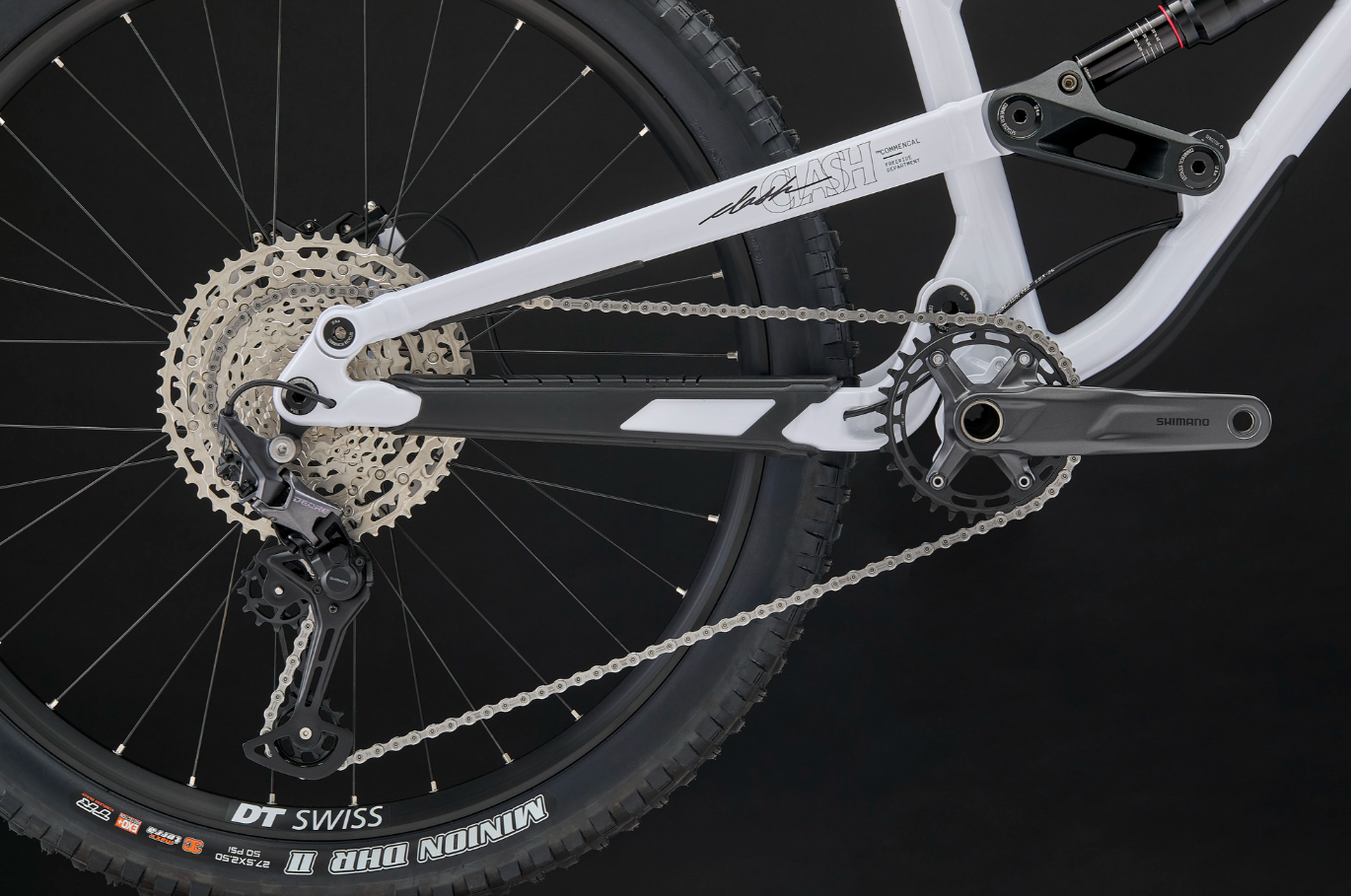

• The SHIMANO Deore 12-speed drivetrain allows easy climbing.

Specifications

Frame		CLASH, 170 mm travel
Wheels	27.5'', Alloy 6066, triple butted tubes, T4, T6, Bolu bearings	Shock	ROCKSHOX Deluxe Select, 230 x 65 mm, R damper, rebound
Fork	MARZOCCHI Bomber Z1, 170 mm, RAIL 2.0, Sweep-Adj, rebound, Boost (15 x 110 mm), 3 pos, 44 mm offset, 0 token	Headset	ACROS ZS44 / ZS56, alloy cups, sealed bearings

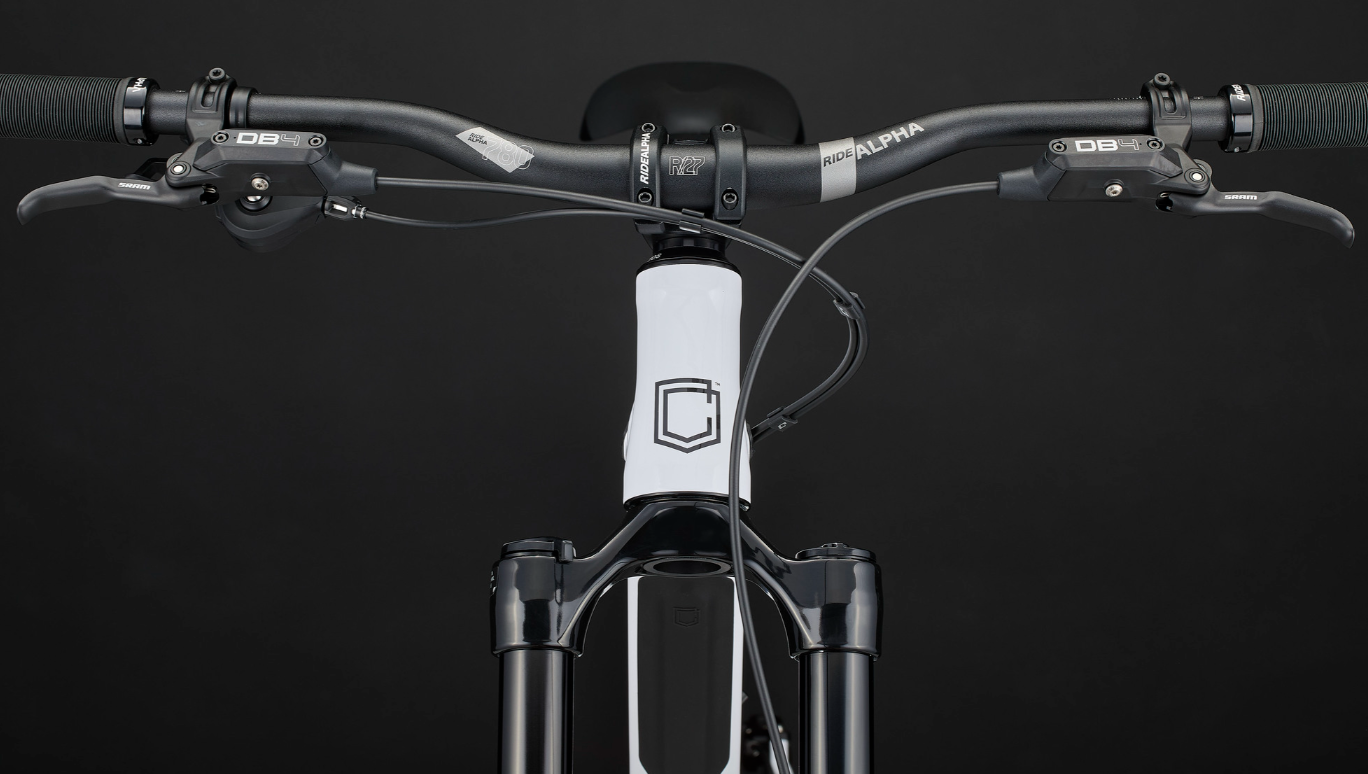

Stem	RIDE ALPHA 40, 40 mm extension, 31.8 mm	Handlebar	RIDE ALPHA R27, 31.8 mm, 760 mm, 20 mm rise, alloy 6061
Grips	RIDE ALPHA Mushroom, ultra-soft, single clamp, black	Brakes	SRAM DB4, 4 pistons, resin pads, 200 mm rotors
Shifters & Derailleur	SHIMANO Deore 12s	Bottom Bracket	SHIMANO SM-BB-71, Pressfit
Crankset	SHIMANO MT512, 165 mm, 32t chainring	Chain	SHIMANO Deore 12s
Cassette	SHIMANO Deore 12s, 10-51t	Rims	DT SWISS E593, 27.5'', 32h, 30 mm inner width
Hubs	Rear: FORMULA MSL-148A, Front: FORMULA DC-611, sealed bearings	Spokes	SAPIM Race, 2.0-1.8-2.0 mm, stainless, black
Tyres	Rear: MAXXIS Minion DHR II, Front: MAXXIS Assegai, 27.5" x 2.5"	Seat Post	RIDE ALPHA, 34.9 mm, 400/450 mm
Saddle	FIZIK Terra Alpaca X5, 145 mm, alloy rails	Weight	15.5 kg / 34.17 lb
Other	No pedals, Pure White, shiny finish, accessories included	-	Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender

Additional Info

General		Enduro / Freeride
Frame Material	AL 6069 T4, T6	Frame Weight	4.1 kg / 9.03 lb
Rear Travel	155mm / 170mm	Shock Length/Stroke	230x65mm
Recommended SAG	26-30% / 17-20mm	Piggy Back Shock	Yes
Shock Bushings	20x8mm / 30x10mm	Recommended Fork Height	572mm / 586mm
Headset Type	ZS44 / ZS56	ICR Compatible	No
Wheels Size	27.5’’ - 27.5’’	Max Rear Tyre (ETRTO)	65mm - Ø584mm
Rear Brake Mounting	Postmount 200mm	Max Rotor Size	223mm
Seatpost/Clamp Diameter	34.9mm / 38.5mm	Seatpost Insertion Max.	S: 250mm / M-L-XL: 275mm
Bottom Bracket Type	Press Fit BB 92mm	Chain Guide	ISCG 05
Max Chainring Teeth	32T / 34T	Chain Line	55
Rear Hub Dimension	148x12mm	Rear Axle Dimension	Maxle, 180mm, M12, P1.75mm

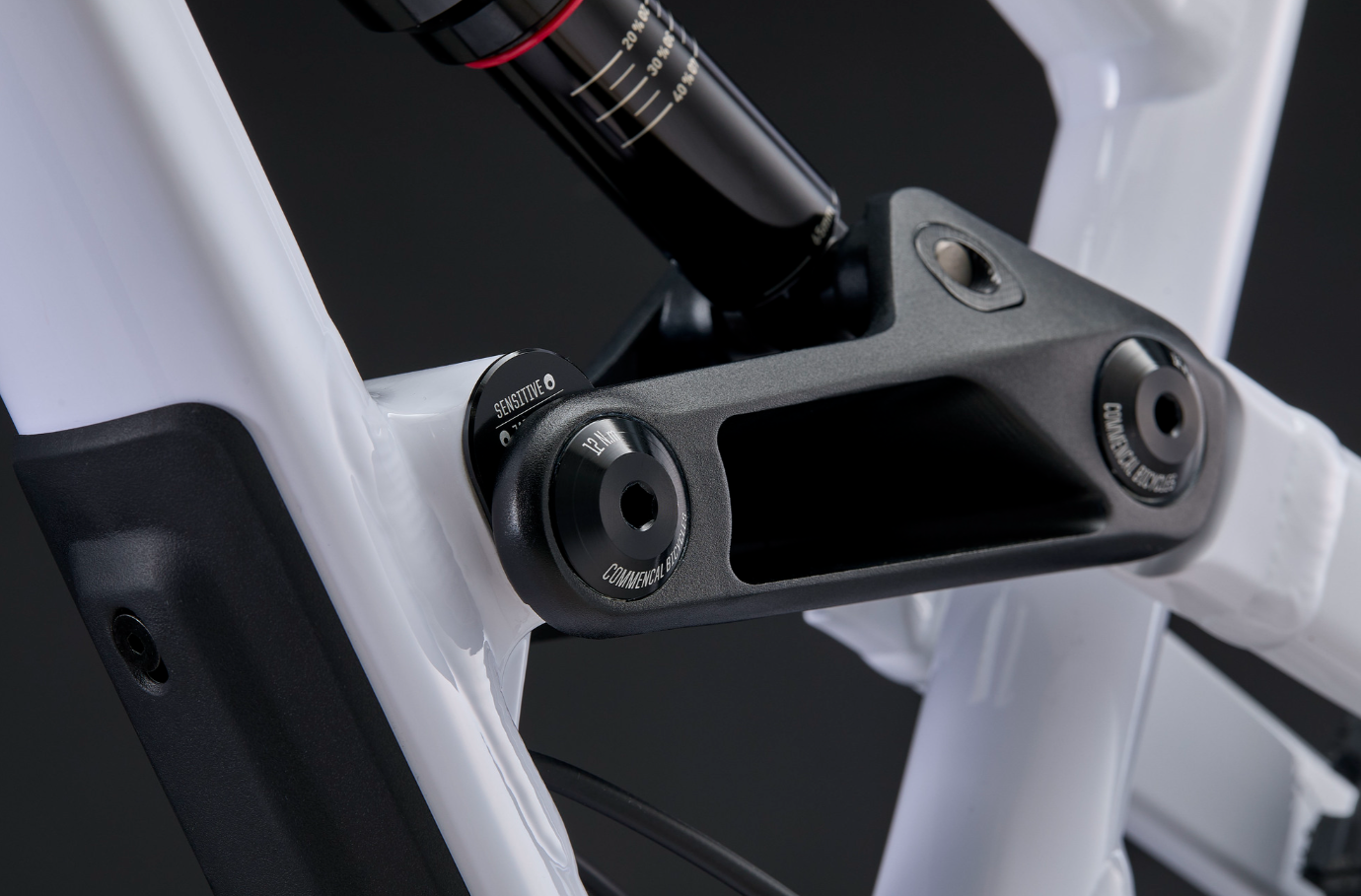

UDH Hanger	No	Shock Anchor Adjustment	2 positions
