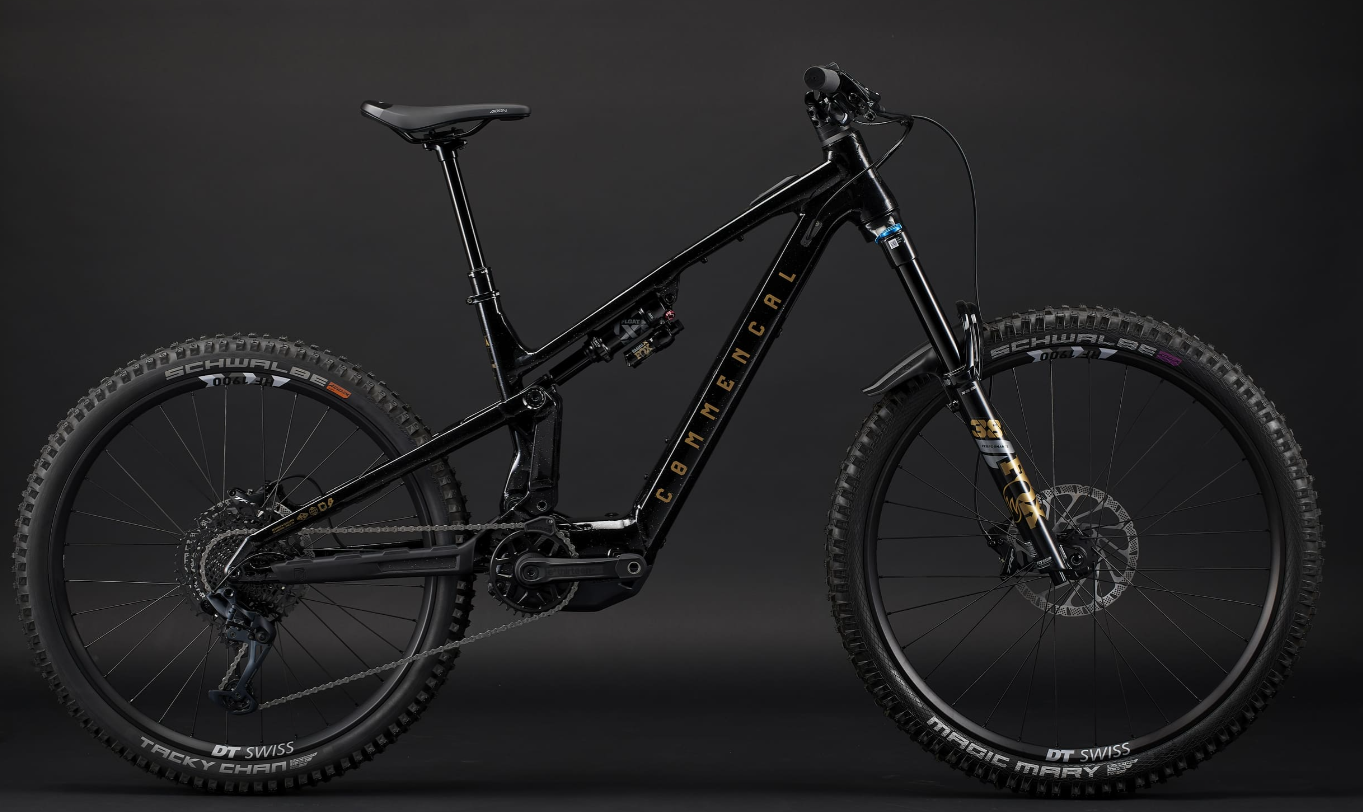

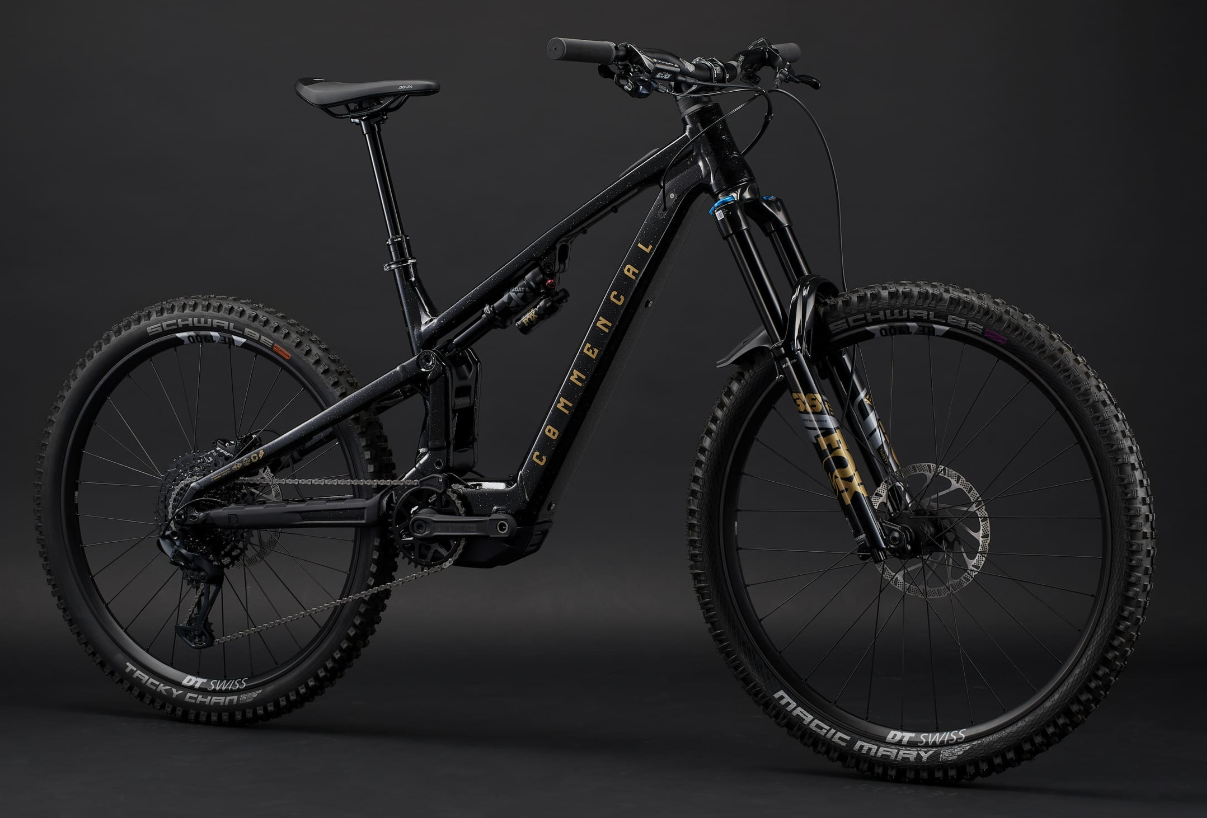

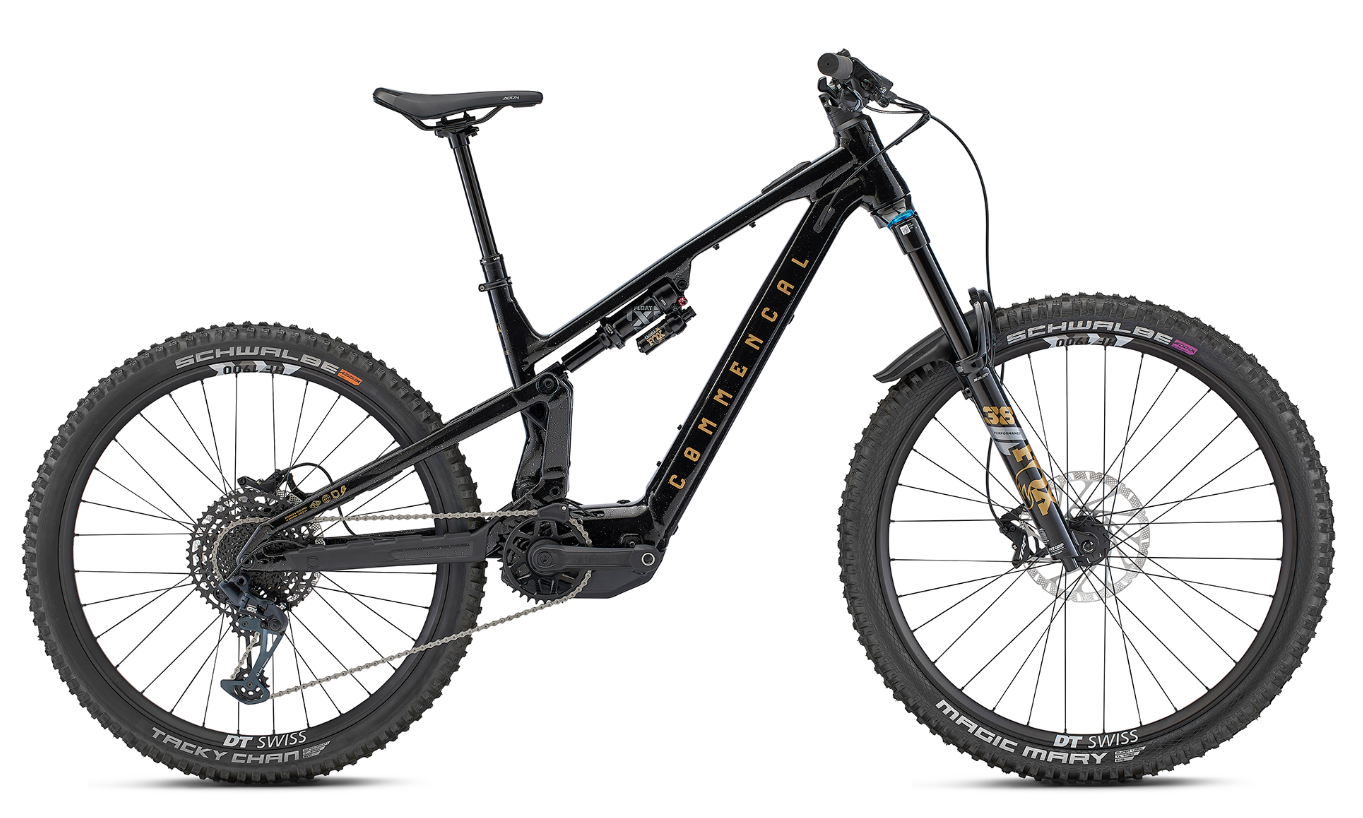

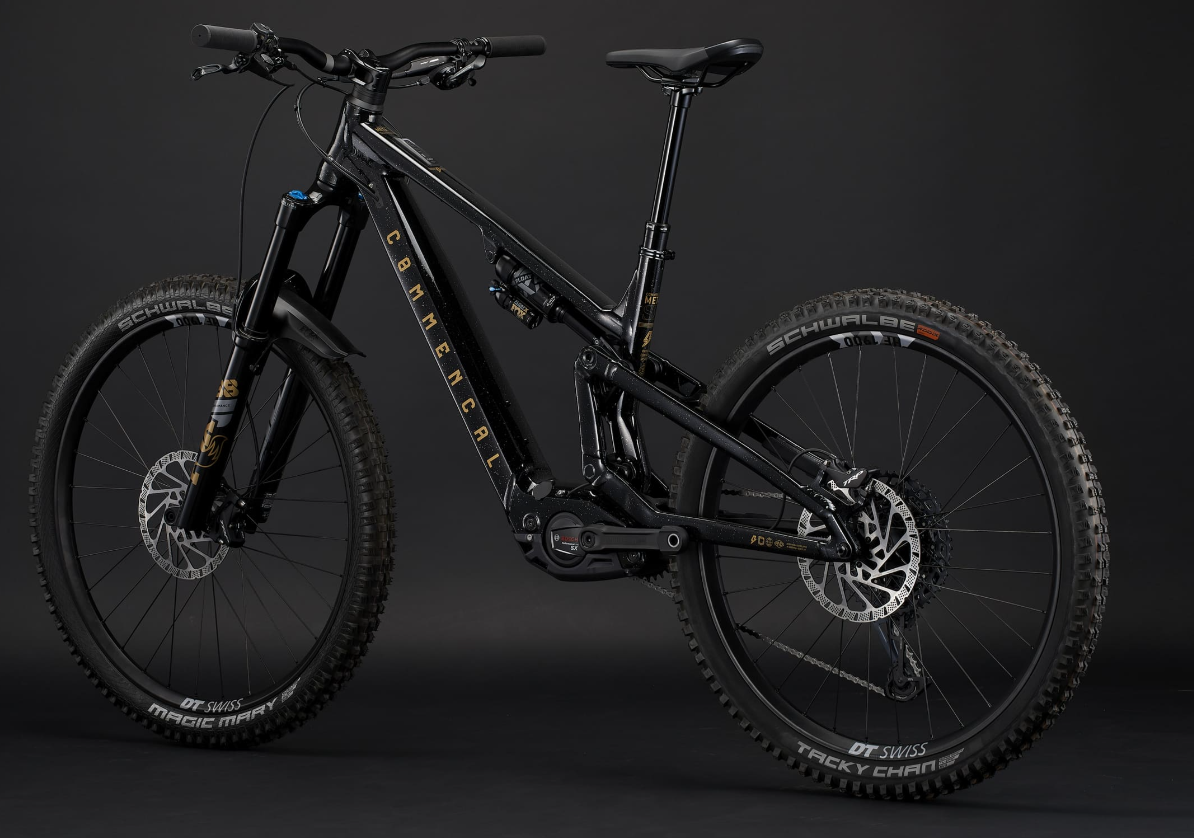

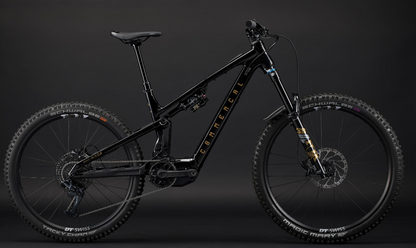

Commencal Meta Power SX 400 MX - Essential Eagle 90
The META POWER SX 400 brings maximum grip and confidence to tackle any slope. From your favourite DH track to the techiest natural trails, it's the eBike for riders who want the same feeling as riding their DH bike.
The META POWER SX 400 ESSENTIAL is built to go the distance. Components are selected for reliability to let you stack up the runs.
• FOX 38 Performance fork offers flawless performance. Easy to tune with a Grip cartridge and precise e-bike chassis. The Float X shock is dynamic and comfortable with a lockout for easier climbs.
• Stopping power is managed by the progressive and consistent TRP DH-R EVO PRO brakes.
• The combo of DT SWISS HF 1900 wheels and DT 370 hubs is reliable and ready for anything. Hand-built in Switzerland.
• Built on the T-Type platform, the new SRAM Eagle 90 drivetrain is indestructible. It’s super versatile with a 520% gear range.
Specifications
| Category | Details |
|---|---|
| Frame | META POWER SX 400, 170mm travel, 29''-27.5'', Alloy 6066, triple butted tubes, T4, T6, Bolu bearings |

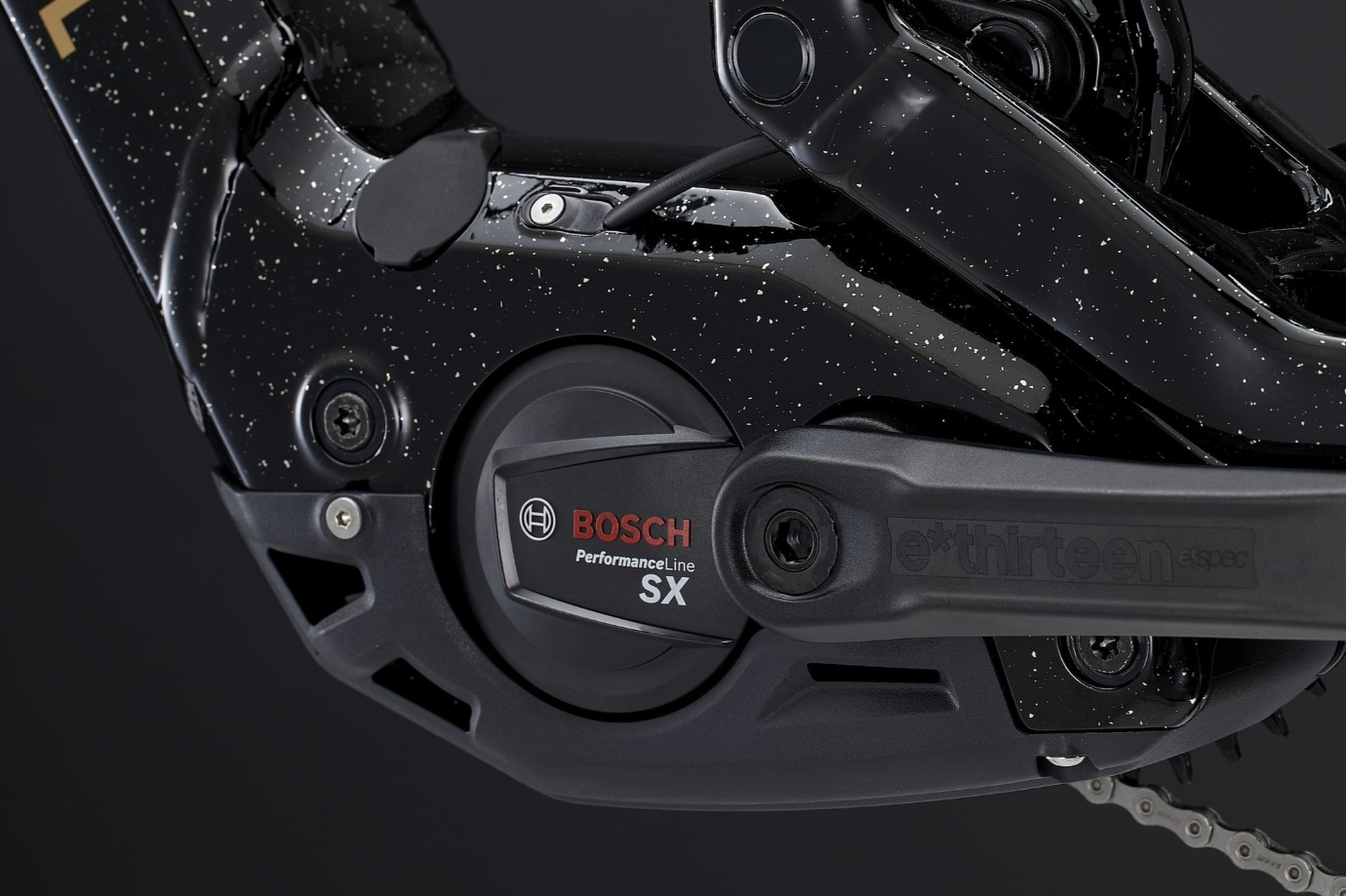

| Motor | BOSCH Performance Line SX, Max. torque: 60 N.m, 250 W |
| Battery | BOSCH Compact Powertube 400, Fully integrated 400 Wh, BOSCH 4A Charger |

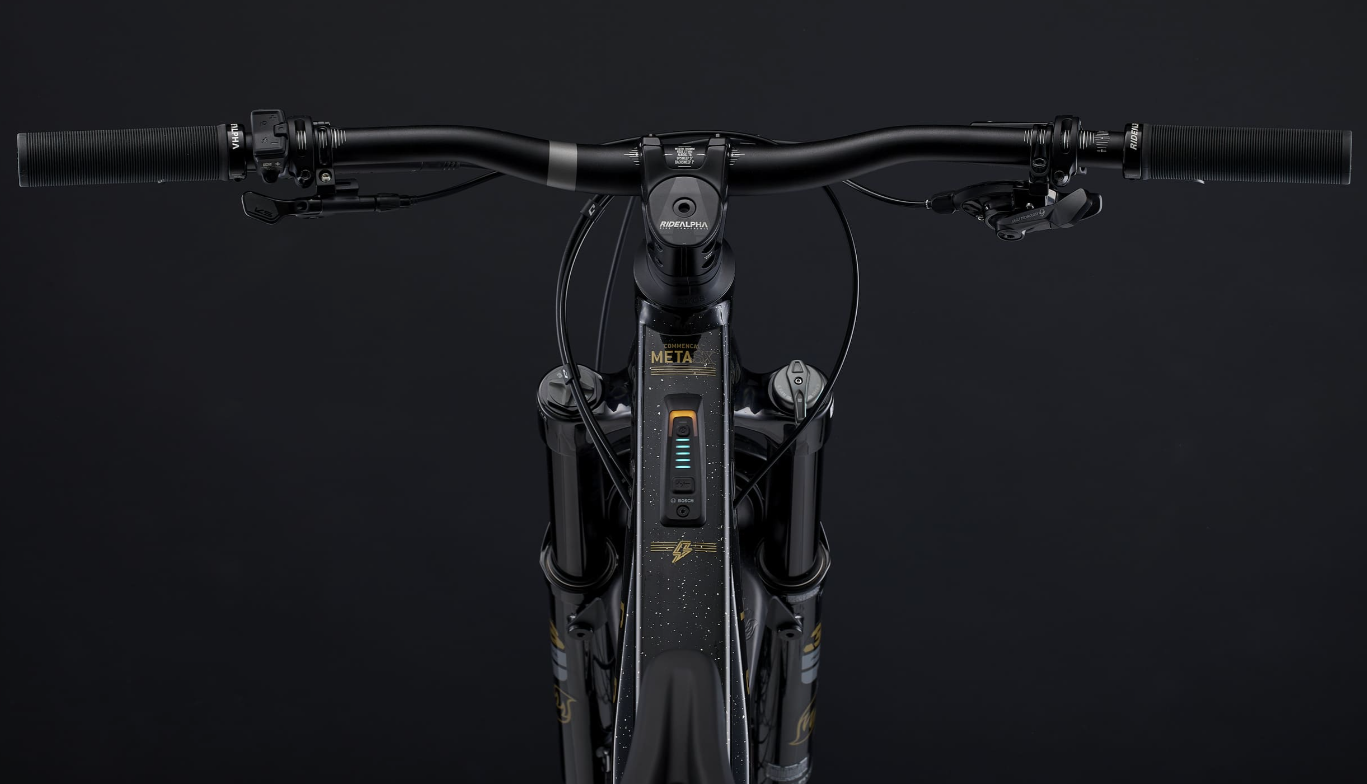

| Display | BOSCH System Controller, ON/OFF, assist mode, battery charge level |

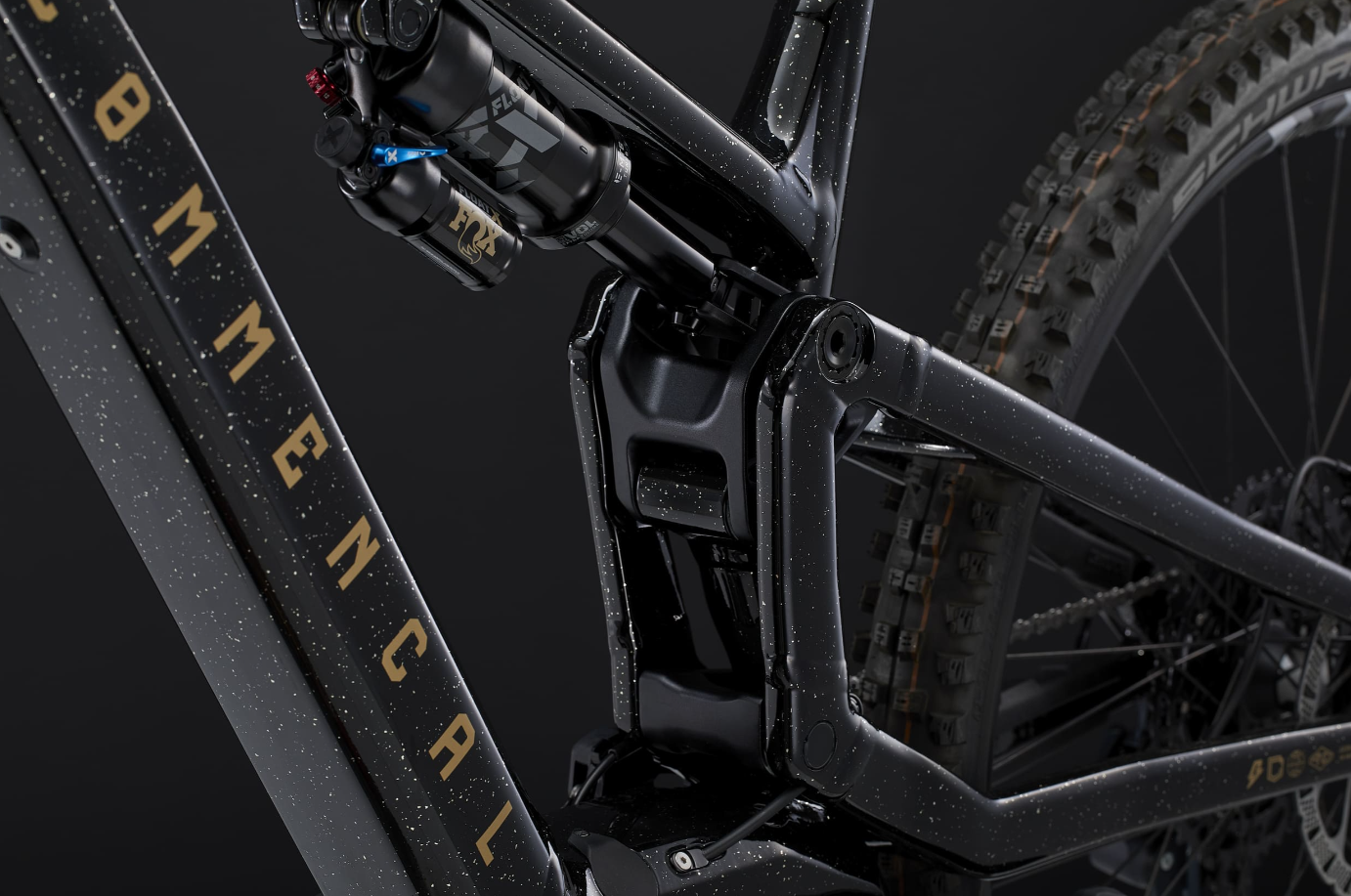

| Shock | FOX Float X Performance, 230x65mm, 2-position lever, LSR, LSC, spacers |

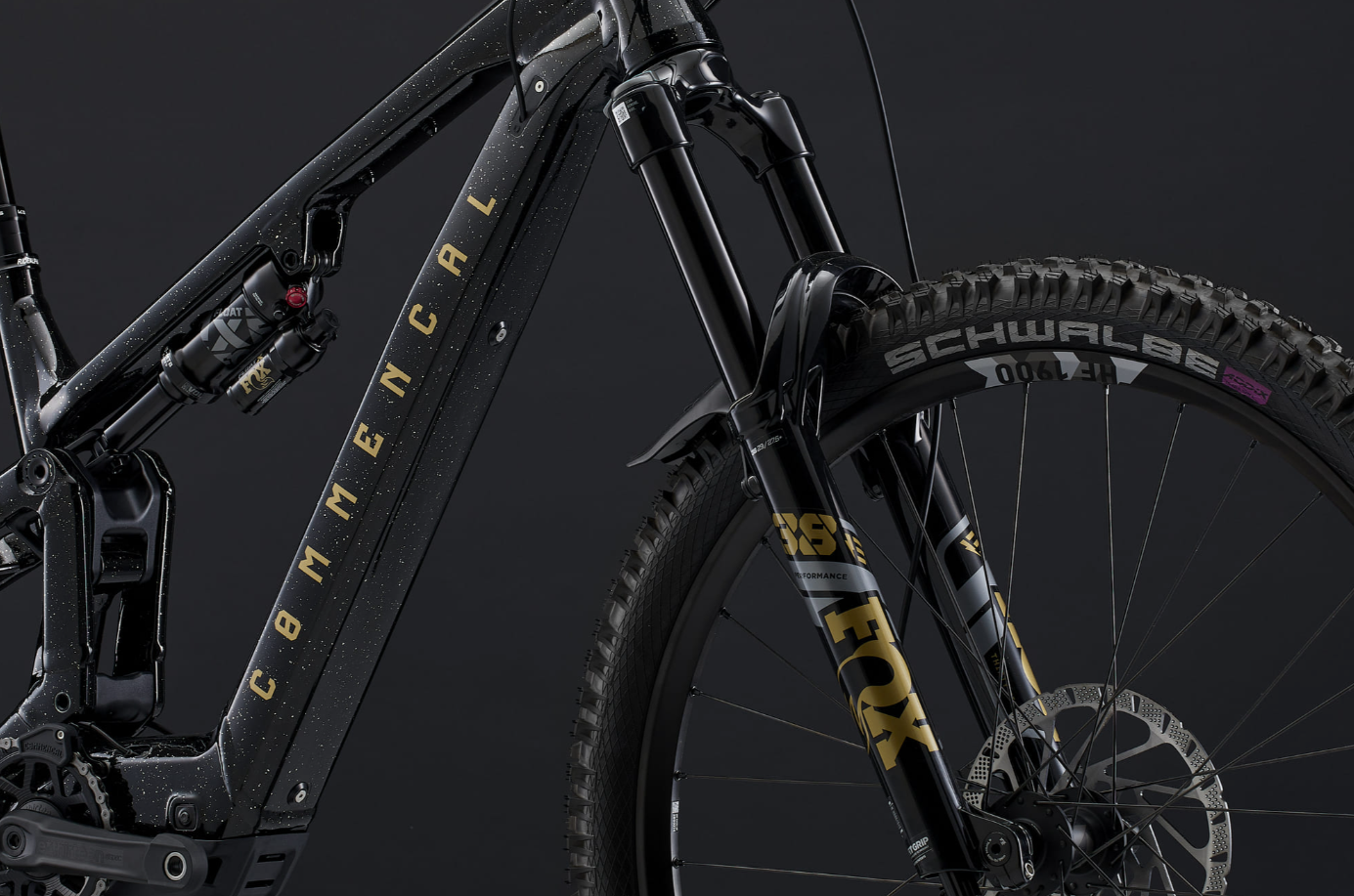

| Fork | FOX 38 Performance E-Bike, 170mm, 29", Fit Grip damper, 3 positions, Boost 15x110mm, 44mm offset, 3 spacers |
| Headset | ACROS ZS56 / ZS66, alloy cups, sealed bearings |
| Stem | RIDE ALPHA 40, 40mm extension, 31.8mm |

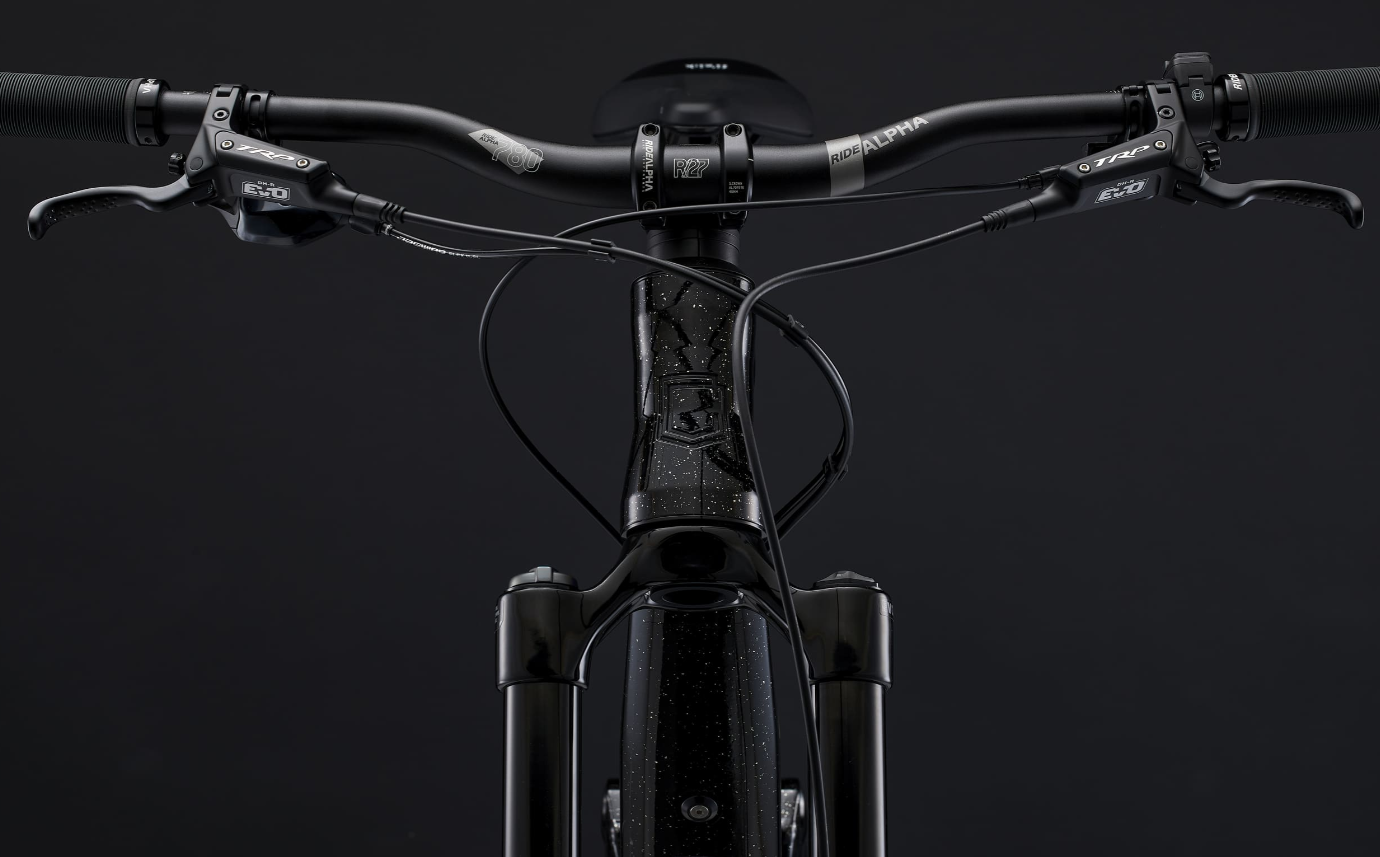

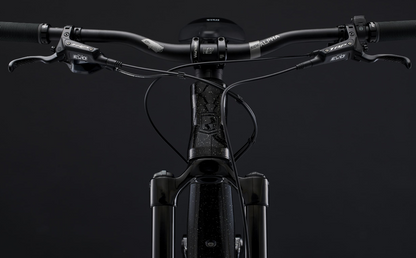

| Handlebar | RIDE ALPHA R20 760 / R27 780 / R27 800, 31.8mm, widths 760-800mm, 20-27mm rise, Alloy 6061 |
| Grips | RIDE ALPHA Mushroom, soft compound, single clamp, 132mm, black |
| Brakes | TRP DH-R EVO PRO, 4 pistons, resin pads; Rotors: TRP R2 203mm, 6-bolt, 2.3mm width |
| Shifters | SRAM Eagle 90, 12s |
| Chain Guide | RIDE ALPHA, 32-34t |

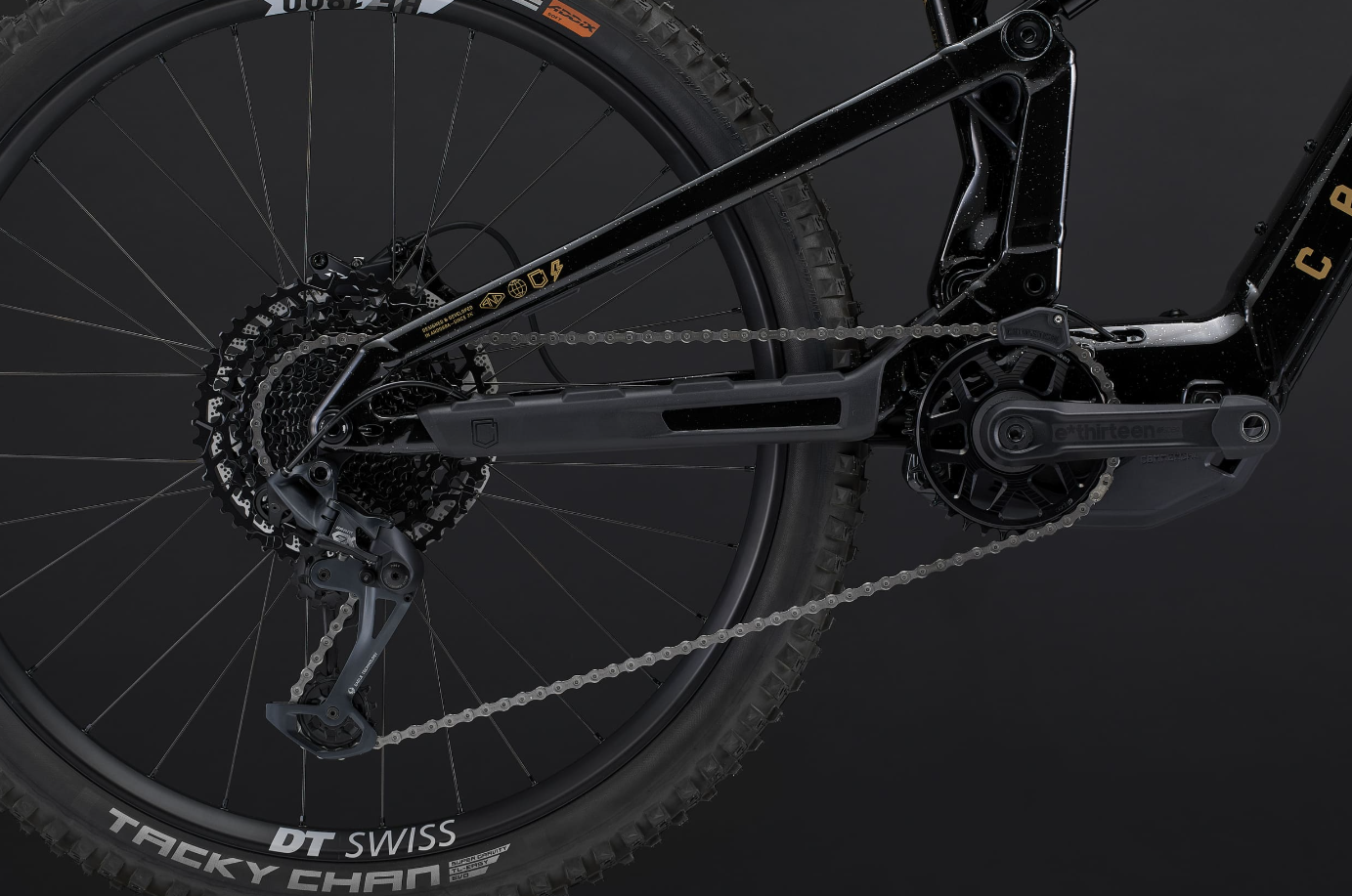

| Rear Derailleur | SRAM Eagle 90, 12s |
| Crankset | E13 Helix Core E*Spec, 155mm, Bosch Gen4, 34t, direct mount |
| Chain | SRAM GX T-Type, 12s |
| Cassette | SRAM XS 1270 T-Type, 12s, 10-52t |
| Rims | DT SWISS HF1900, Rear: 27.5'', 32h, 30mm inner width; Front: 29'', 32h, 30mm inner width |
| Hubs | DT SWISS 370, Rear: 32h, sealed, 12x148mm, 18t, Sram XD; Front: 32h, sealed, 15x110mm |
| Spokes/Nipples | Included with wheelset |
| Tyres | Rear: MAXXIS Minion DHRII 27.5'' - 27.5 x 2.50 WT, Tubeless Ready, 3C MaxxTerra, Double Down; Front: MAXXIS Assegai 29'' - 29 x 2.50 WT, Tubeless Ready, 3C MaxxGrip, EXO+ |
| Seat Post | KS Rage-I, 34.9mm, 125mm (S), 170mm (M), 190mm (L/XL) |
| Saddle | FIZIK Terra Aidon X5, 145mm width, Kium Mobius rails |
| Weight | 22.0 kg / 48.50 lbs |
| Pedals Included | CRANKBROTHERS Stamp 1 |
| Color | Pure Black, Shiny Finish |
| Accessories | Down tube protector, chainstay protector, seatstay protector, FOX 38 fender, FIDLOCK base |
Additional Info
| Category | Details |
|---|---|
| Bicycle Type | E-bike - Enduro / Downhill |
| Frame Material | AL 6066 T6 |
| Frame Weight | 4.76 kg / 10.49 lb |
| Rear Travel | 170mm |
| Shock Length/Stroke | 230x65mm |
| Recommended SAG | 27-31% / 17-20mm |
| Piggy Back Shock Compatible | Yes |
| Shock Bushings | 20x10mm / no bushing needed on clevis |
| Recommended / Max Fork Height | 588mm / 598mm |
| Headset Type | ZS56 / ZS66 |
| ICR Compatible | Yes |
| Wheels Size | 29'' - 27.5'' |
| Max Rear Tyre Dimension (ETRTO) | 65mm - Ø584mm |
| Rear Brake Mounting Type | Postmount 200mm |
| Rear Brake Rotor Max Size | 223mm |
| Seatpost / Clamp Diameter | 34.9mm / 38.5mm |
| Seatpost Max Insertion | S: 180mm, M: 220mm, L: 240mm, XL: 260mm |
| Motor Crankarms Interface | BOSCH SX |
| Chain Guide | Custom upper guide |
| Recommended / Max Chainring Teeth | 34T / 34T |
| Chain Line | 55 |
| Rear Hub Dimension | 148x12mm |
| Rear Axle Dimension | UDH standard, 180mm, M12, P1.0mm |
| UDH Hanger | Yes |
