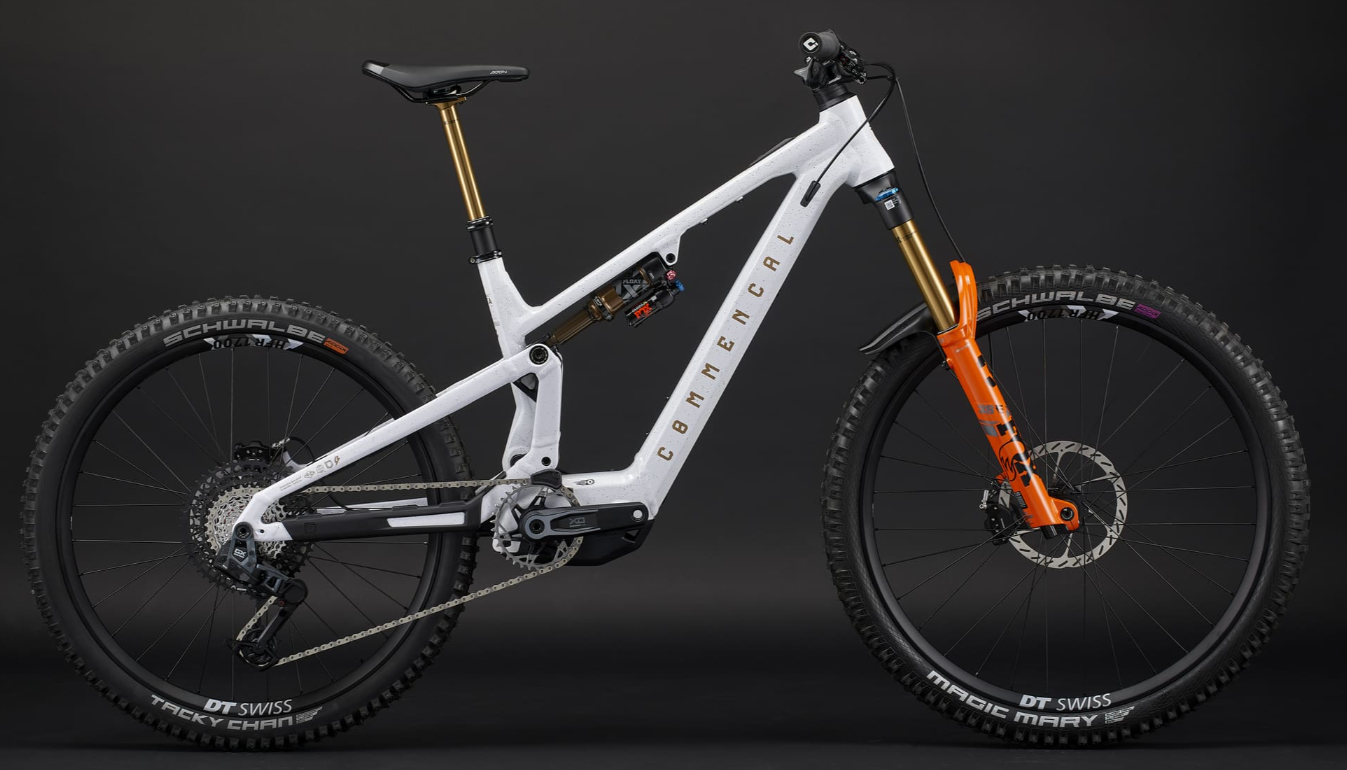

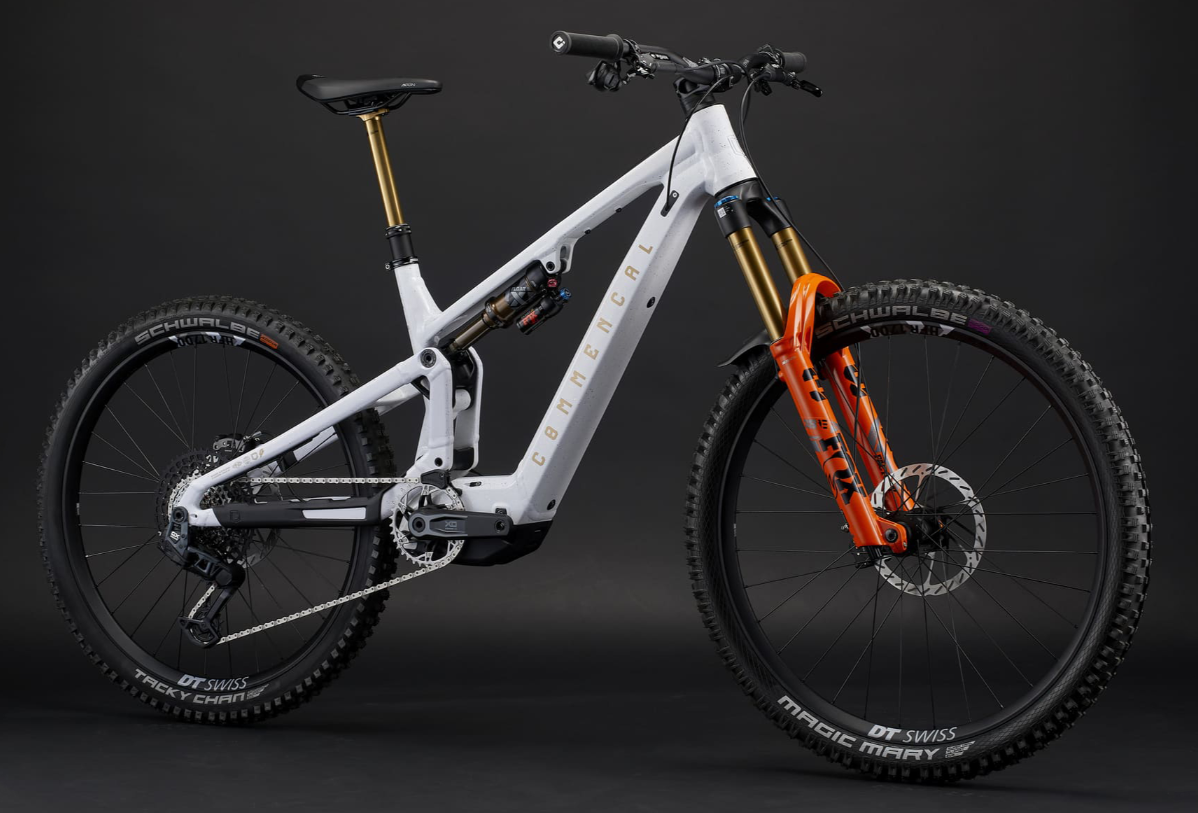

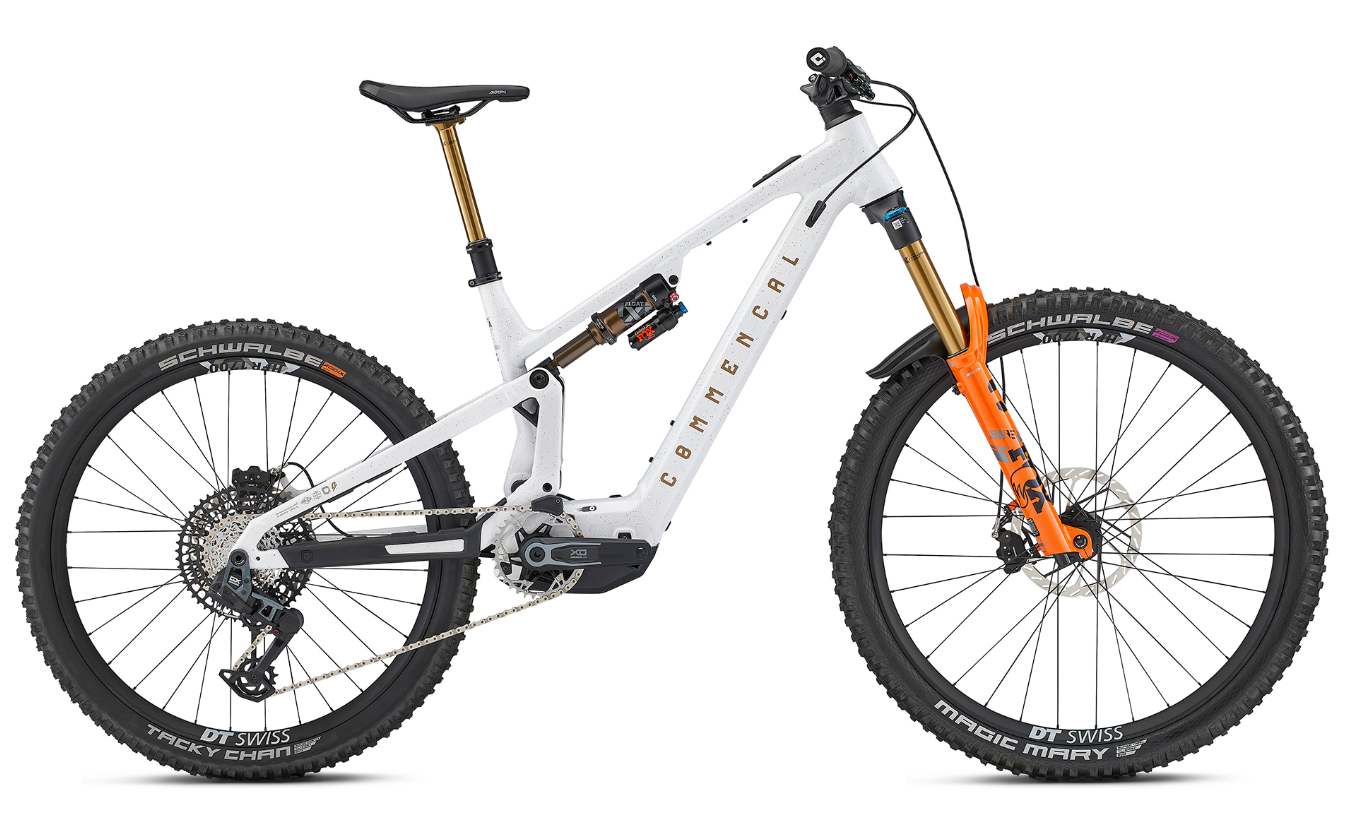

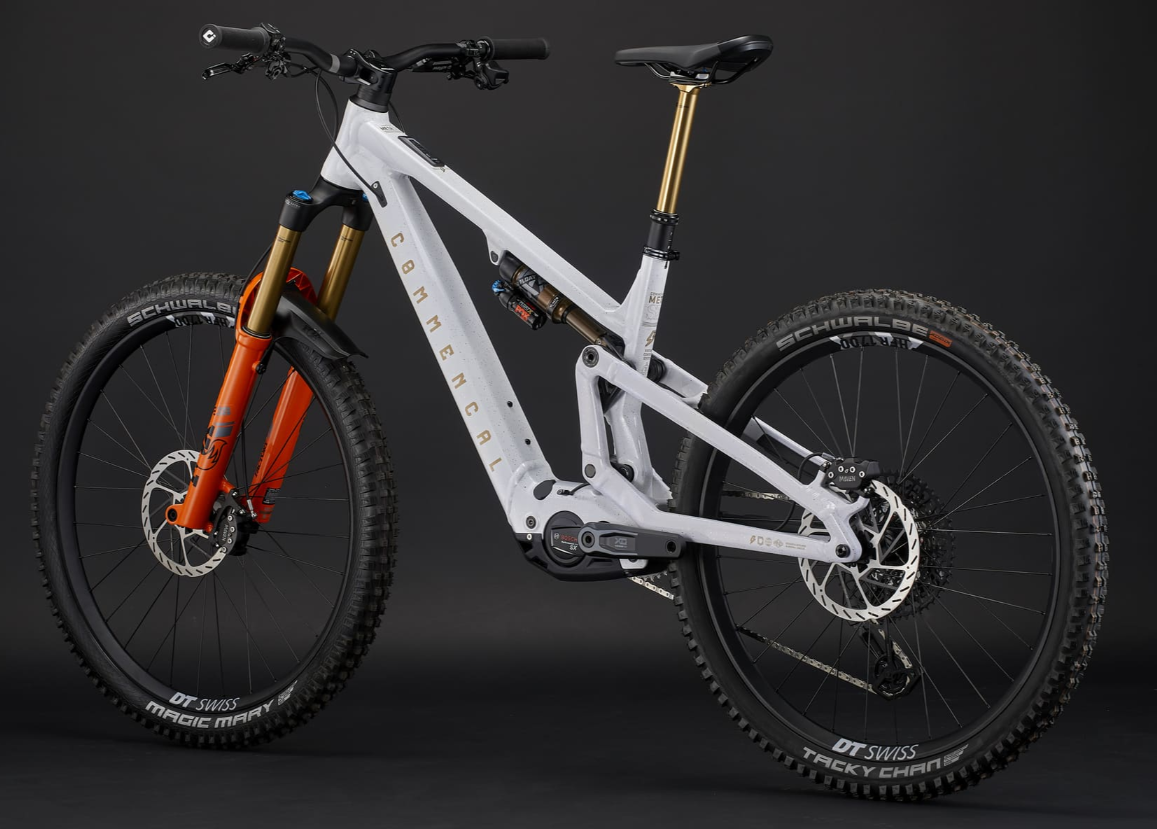

Commencal Meta Power SX 400 MX - Signature AXS
The META POWER SX 400 brings maximum grip and confidence to tackle any slope. From your favourite DH track to the techiest natural trails, it's the eBike for riders who want the same feeling as riding their DH bike.
The META POWER SX 400 SIGNATURE AXS is an ultra-playful and agile e-bike and is an exclusive FOX Factory plus wireless drivetrain build. Made for lapping run after run.

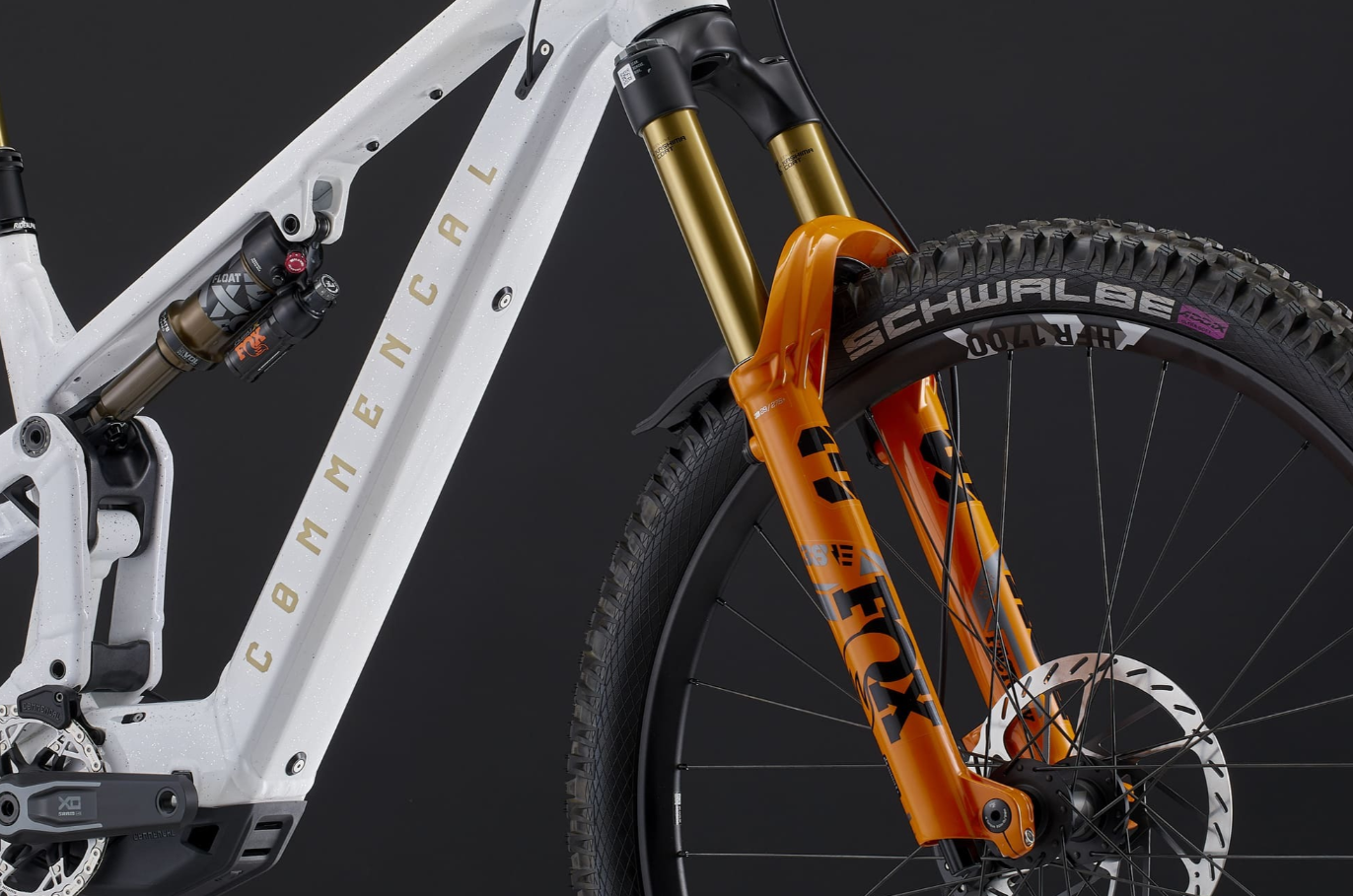

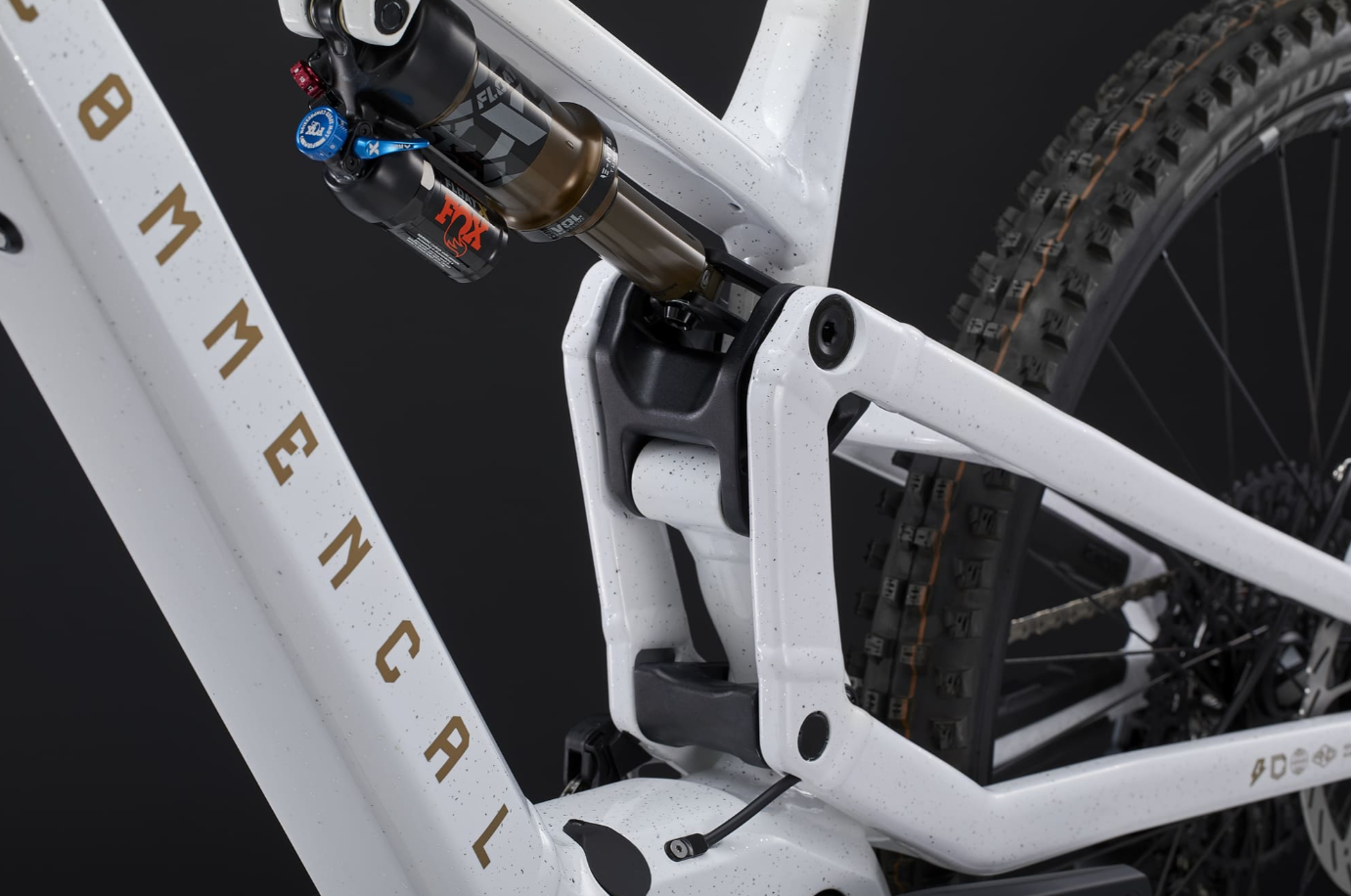

• Equipped with a FOX 38 Factory fork with Kashima coated stanchions: precise and dynamic thanks to the new Grip X2 cartridge. Rear suspension is handled by the Float X Factory shock. It strikes the perfect balance between grip and comfort.
• SRAM handles braking with a pair of Maven brakes and 200mm HS2 rotors. Loved at DH World Cups, they’re the most powerful brakes on the market.
• Hand-built DT SWISS HFR 1700 wheels raise the bar for reliability. Paired with DT 350 hubs, the rolling gear is ready for anything.

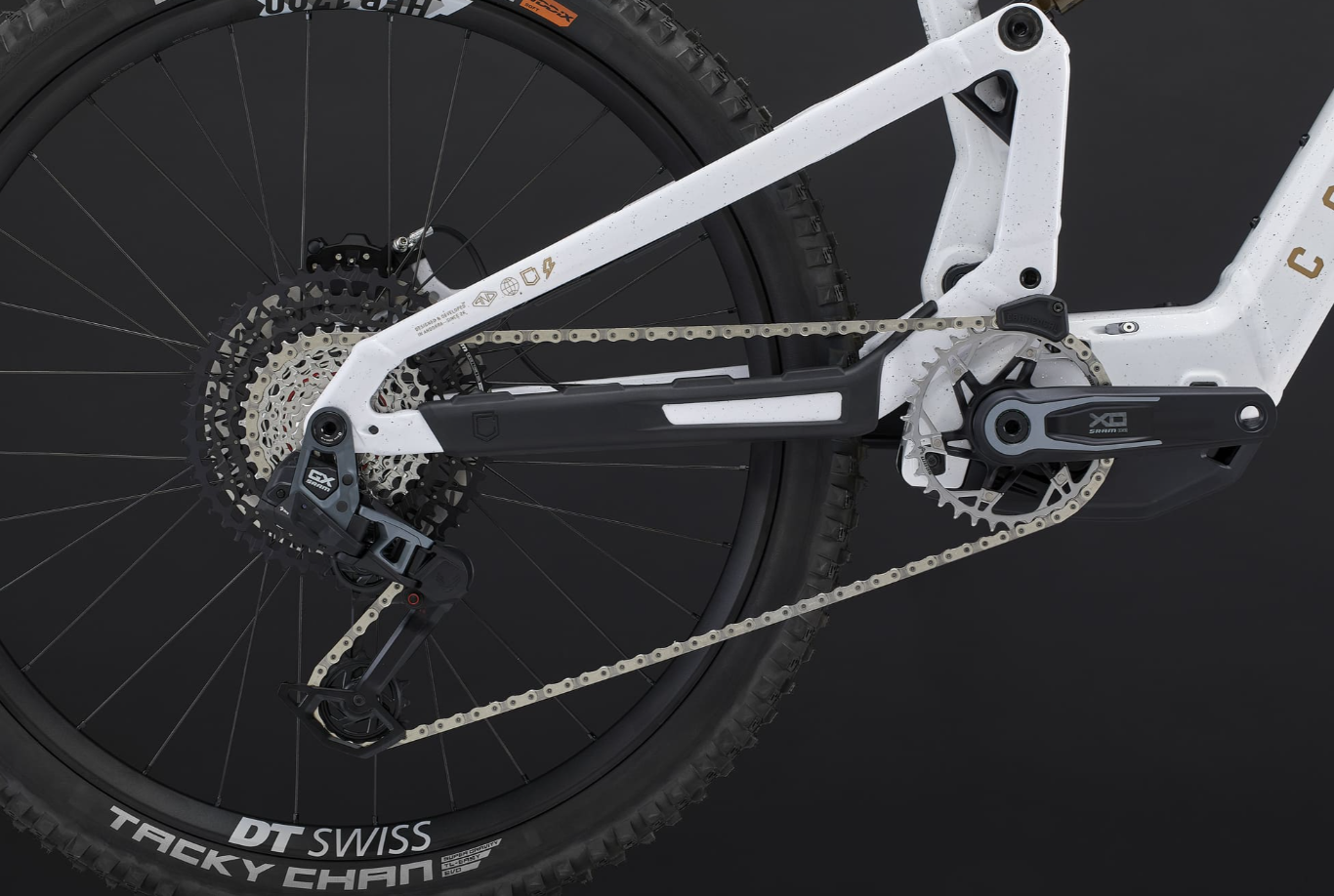

• The new SRAM GX Eagle T-Type drivetrain is solid, reliable, and versatile with a 520% gear range.
Specifications
| Category | Details |
|---|---|

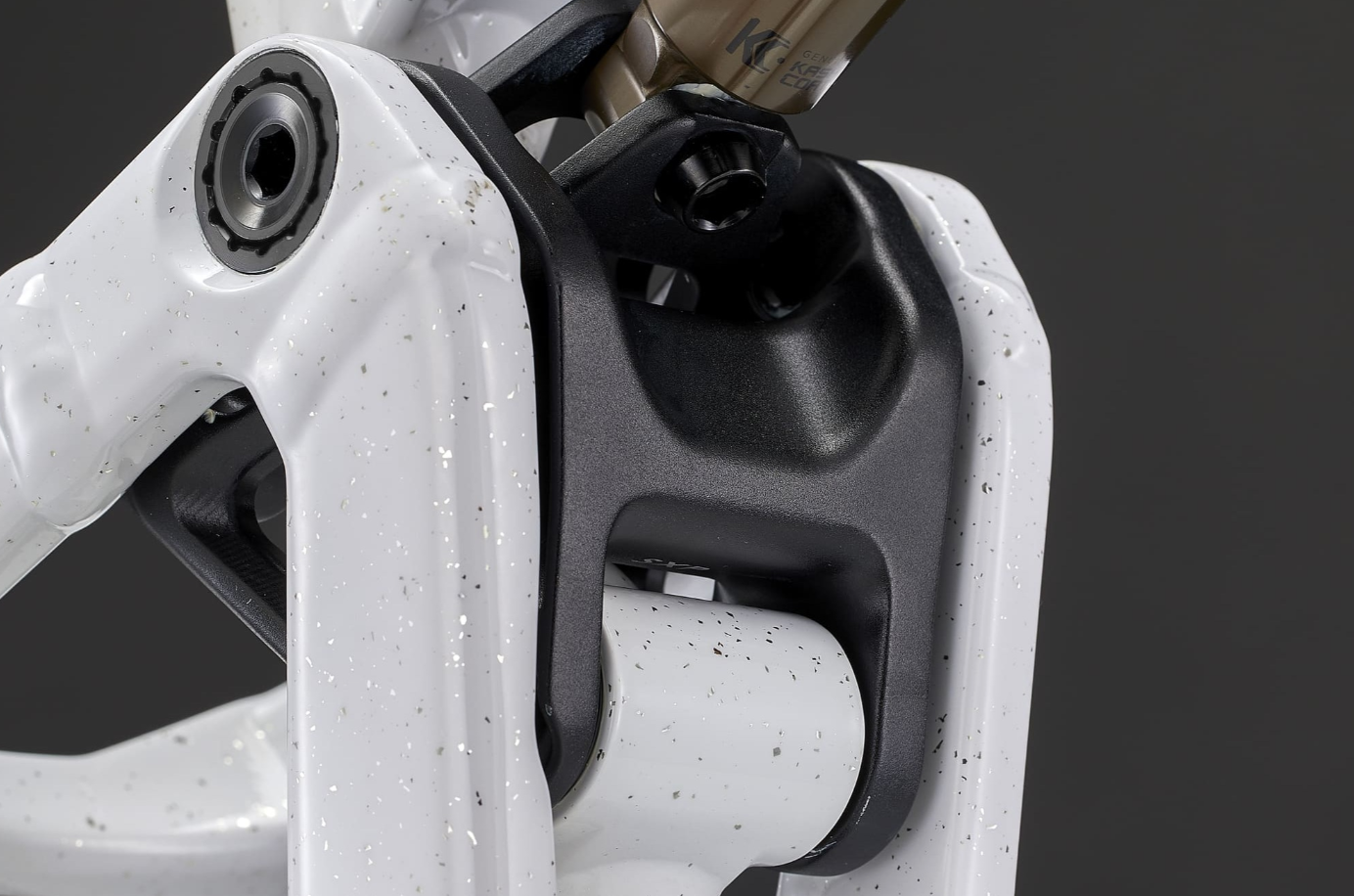

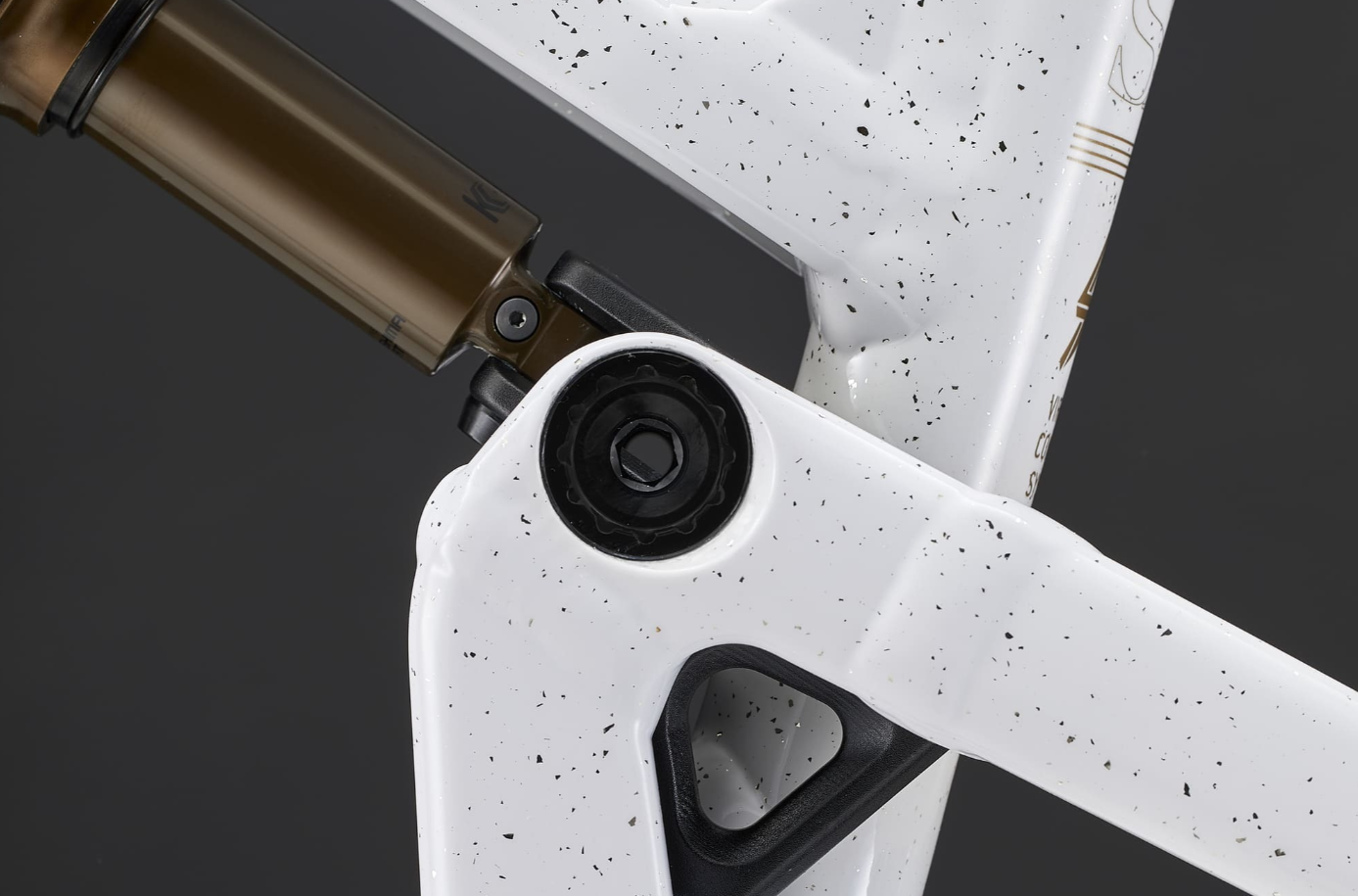

| Frame | META POWER SX 400, 170mm travel, 29''-27.5'', Alloy 6066, triple butted tubes, T4, T6, Bolu Bearings |

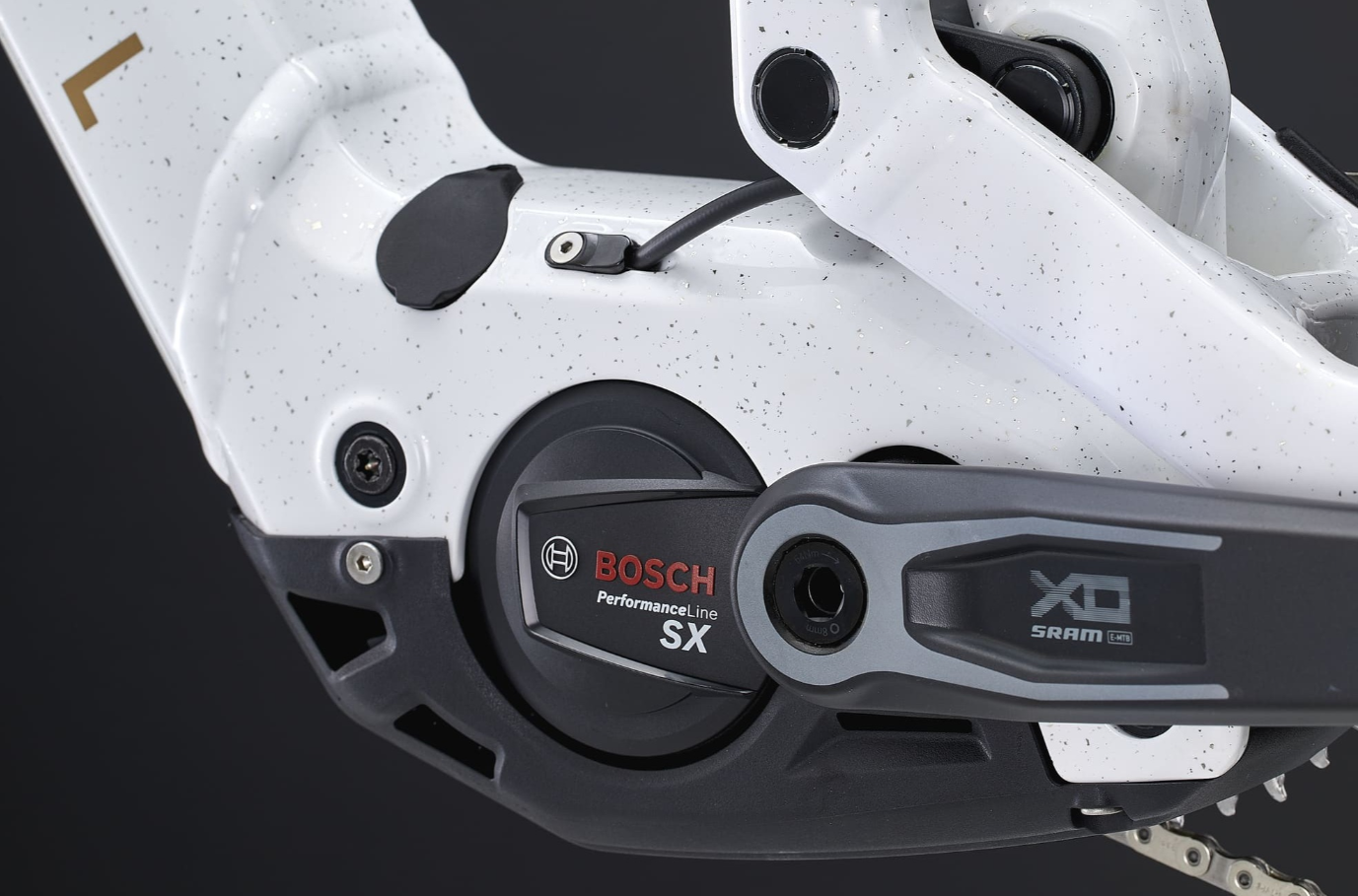

| Motor | BOSCH Performance Line SX, Max. torque: 60 N.m, 250 W |
| Battery | BOSCH Compact Powertube 400, Fully integrated 400 Wh, BOSCH 4A Charger |

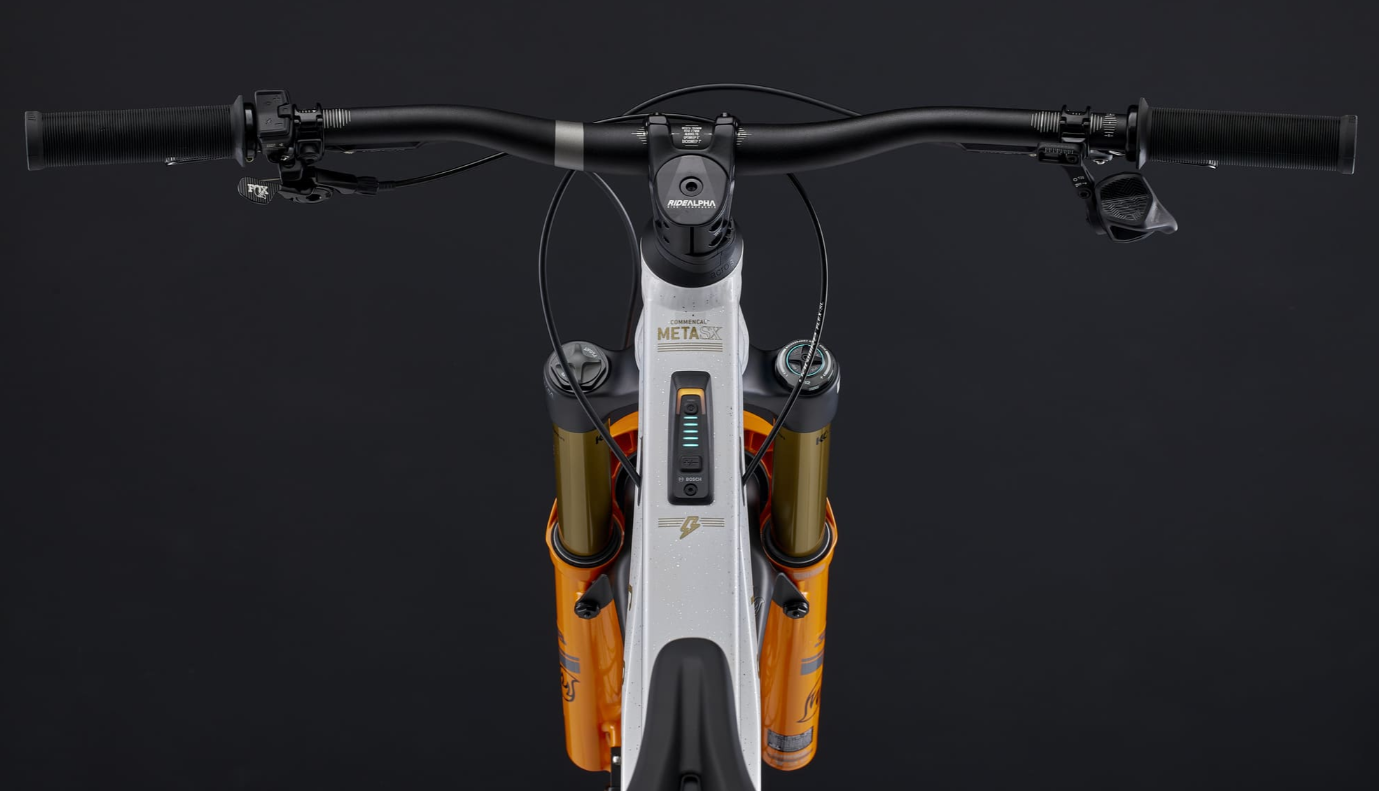

| Display | BOSCH System Controller, ON/OFF, assist mode, battery level |
| Shock | FOX Float X Factory, 230x65mm, 2-position lever, LSC, LSR, spacers |
| Fork | FOX 38 Factory E-Bike, 170mm, 29", Grip X2 damper, Boost 15x110mm, 44mm offset |
| Headset | ACROS ZS56 / ZS66, Alloy cups, sealed bearings |
| Stem | RIDE ALPHA 40, 40mm extension, 31.8mm |

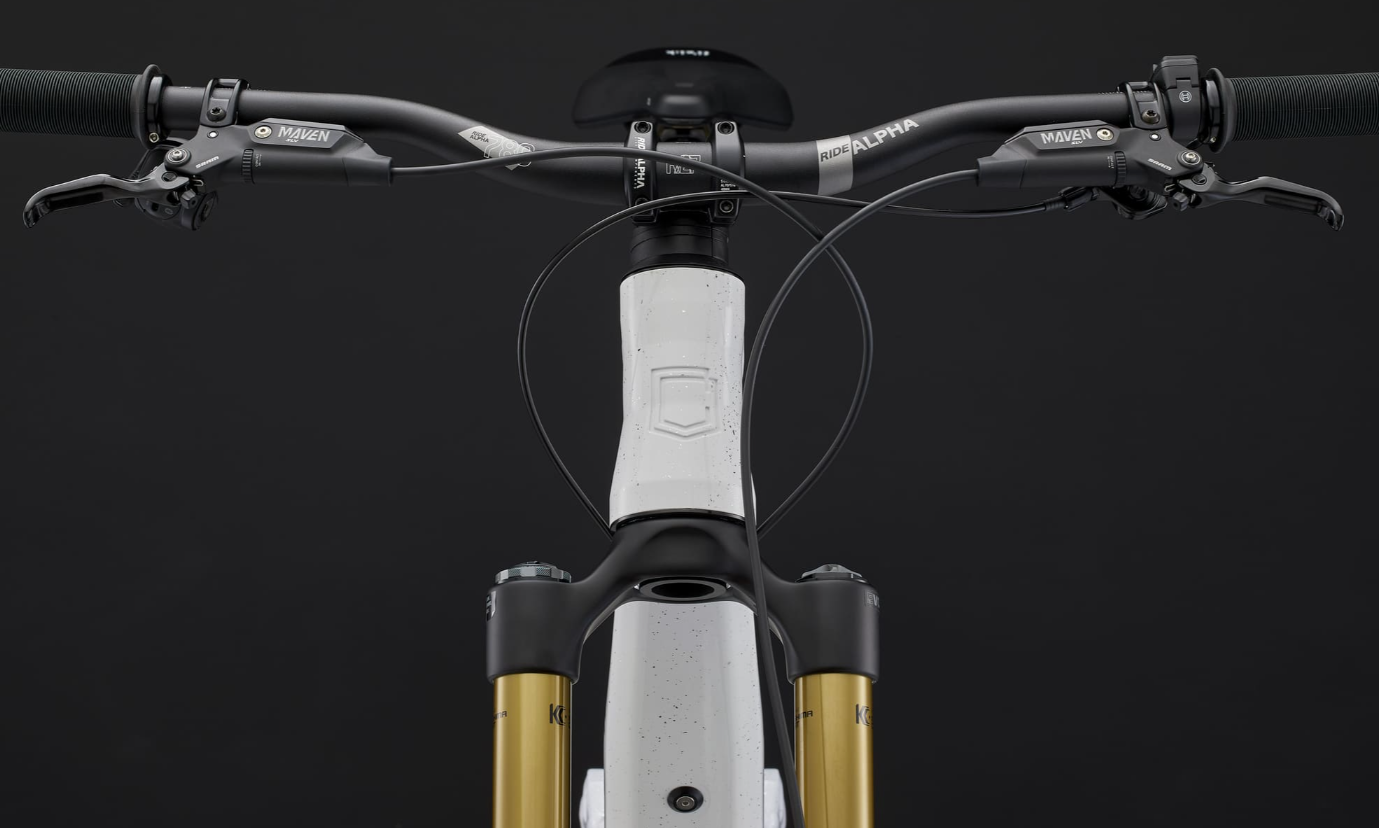

| Handlebar | RIDE ALPHA R20 760 / R27 780 / R27 800, 31.8mm, widths 760-800mm, 20-27mm rise, Alloy 6061 |
| Grips | ODI Longneck 2.1, Soft, single clamp, black |
| Brakes | SRAM MAVEN Silver, 4 pistons, steel-backed pads, 200mm rotors |
| Shifters | SRAM AXS POD Controller, 12-speed |
| Chain Guide | RIDE ALPHA, 32-34t |
| Rear Derailleur | SRAM GX Eagle T-Type, 12s, AXS |
| Crankset | SRAM X0 Eagle E-MTB, 155mm, Bosch, 34t chainring |
| Chain | SRAM GX Eagle T-Type, 12s, Flattop |
| Cassette | SRAM GX Eagle, 12s, 10-52t |
| Rims | DT SWISS HFR1700, 27.5'' Rear, 29'' Front, 32h, 30mm inner width |
| Hubs | DT SWISS 350, Rear: 12x148mm, sealed, 24t, Sram XD; Front: 15x110mm, sealed |
| Spokes/Nipples | DT SWISS Hybrid 3, stainless, double butted, black |
| Tyres | Rear: SCHWALBE Tacky Chan 27.5'' x 2.4'', Super Gravity, Addix Soft, Tubeless Easy; Front: SCHWALBE Magic Mary 29'' x 2.4'', Super Trail, Addix Ultra Soft, Tubeless Easy |
| Seat Post | FOX Transfer Factory, 34.9mm, 150mm (S), 180mm (M), 210mm (L/XL) |
| Saddle | FIZIK Terra Aidon X5, 145mm, Alloy Mobius rails |
| Weight | 21.9kg / 48.28 lbs |
| Pedals | CRANKBROTHERS Stamp 1 |
| Color | Glittery White, Shiny Finish |
| Accessories | Down tube protector, chainstay, seatstay, FOX 38 fender, FIDLOCK bases, film protector |
Additional Info
| Category | Details |
|---|---|
| Bicycle Type | E-bike - Enduro / Downhill |
| Frame Material | AL 6066 T6 |
| Frame Weight | 4.76 kg / 10.49 lb |
| Rear Travel | 170mm |
| Shock Length/Stroke | 230x65mm |
| Recommended SAG | 27-31% / 17-20mm |
| Piggy Back Shock Compatible | Yes |
| Shock Bushings | 20x10mm / no bushing on clevis |
| Recommended/Max Fork Height | 588mm / 598mm |
| Headset Type | ZS56 / ZS66 |
| ICR Compatible | Yes |
| Wheels Size | 29'' - 27.5'' |
| Max Rear Tyre Dimension (ETRTO) | 65mm - Ø584mm |
| Rear Brake Mounting Type | Postmount 200mm |
| Rear Brake Rotor Max Size | 223mm |
| Seatpost/Clamp Diameter | 34.9mm / 38.5mm |
| Seatpost Max Insertion | S: 180mm, M: 220mm, L: 240mm, XL: 260mm |
| Motor Crankarms Interface | BOSCH SX |
| Chain Guide | Custom upper guide |
| Recommended/Max Chainring Teeth | 34T / 34T |
| Chain Line | 55 |
| Rear Hub Dimension | 148x12mm |
| Rear Axle Dimension | UDH, 180mm, M12, P1.0mm |
| UDH Hanger | Yes |
