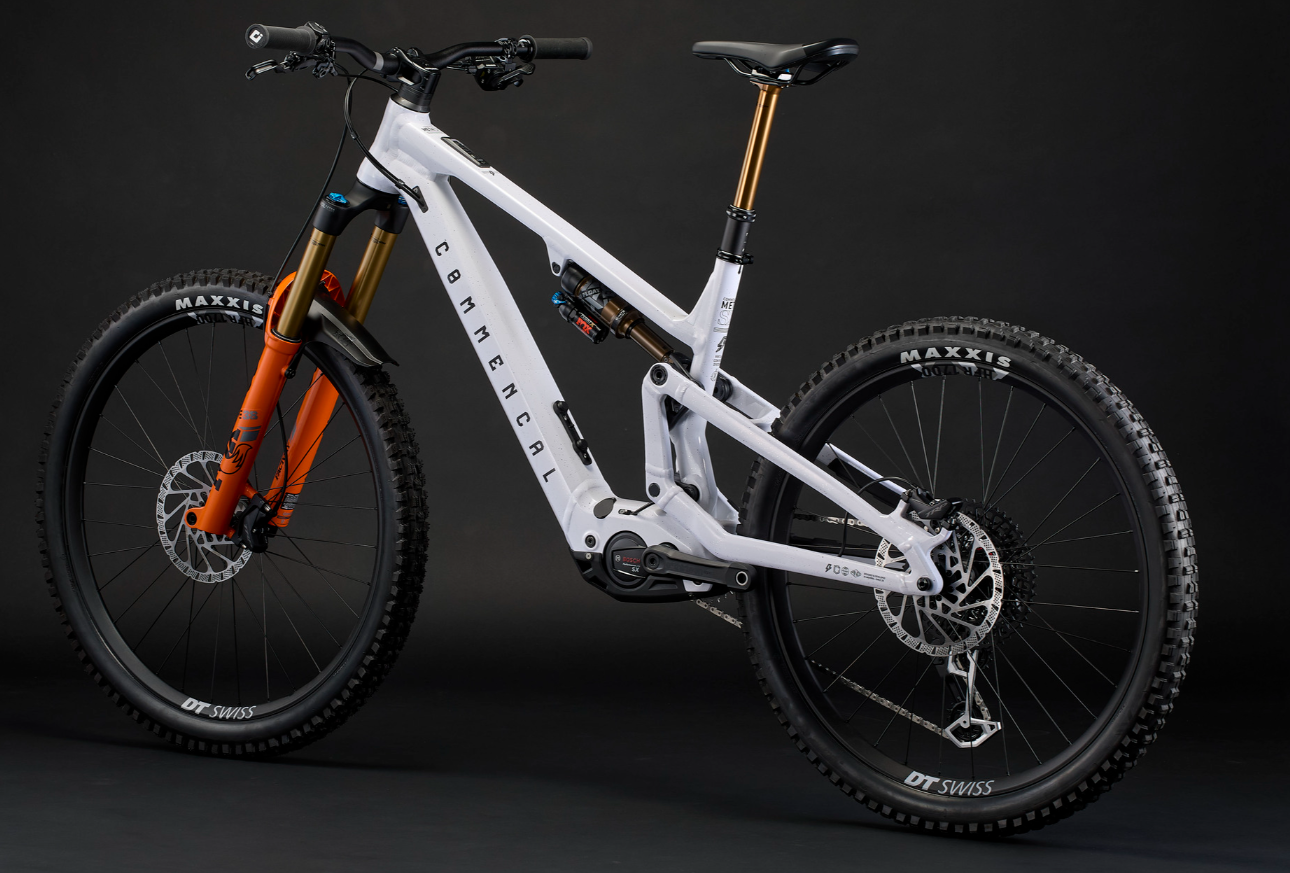

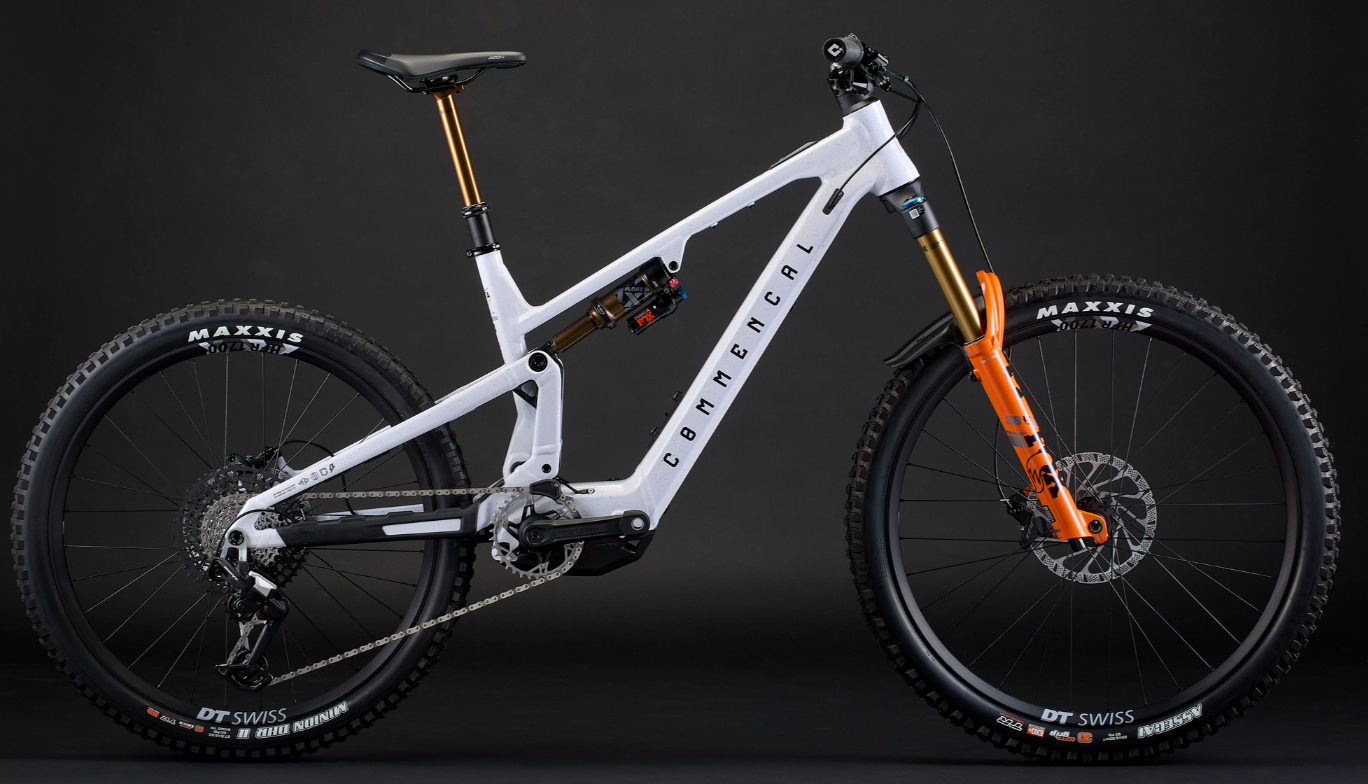

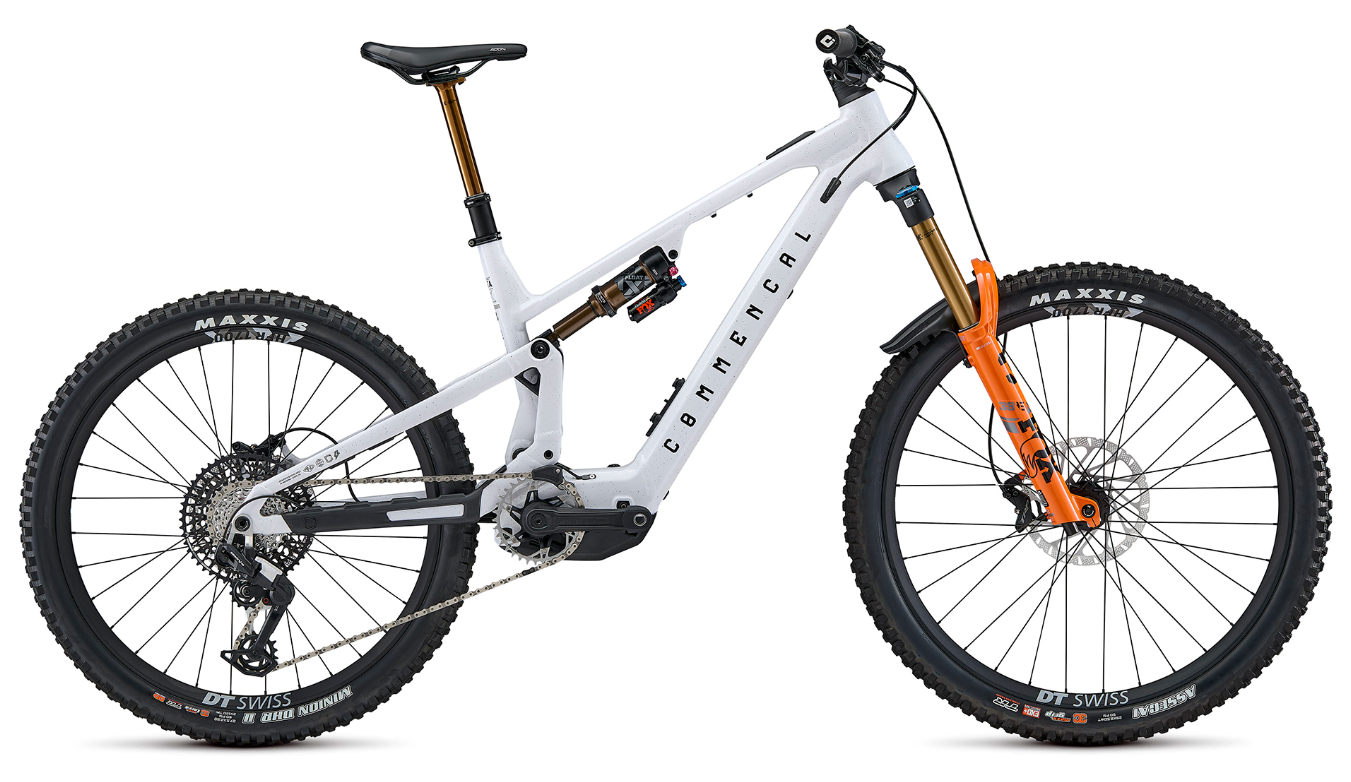

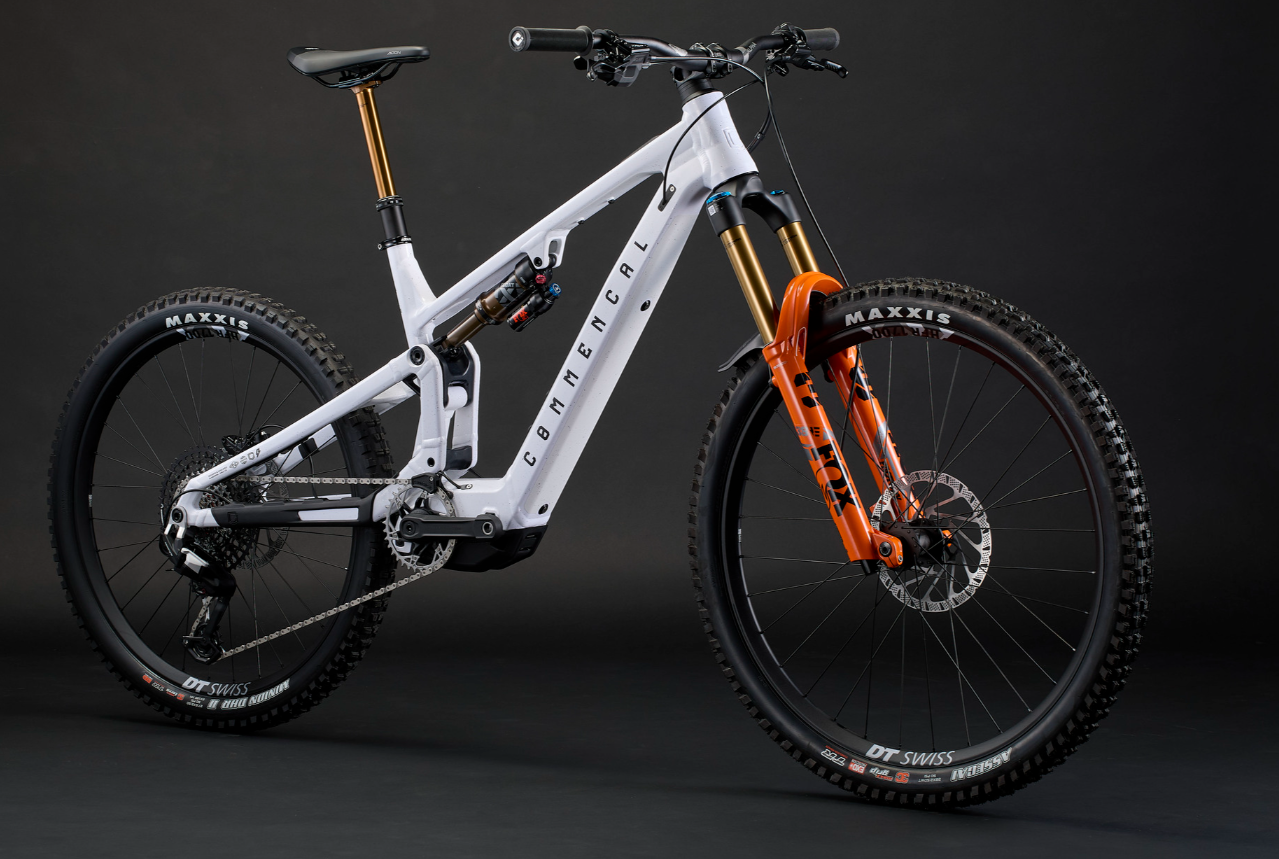

Commencal Meta Power SX 400 MX - Signature Eagle 90
The META POWER SX 400 brings maximum grip and confidence to tackle any slope. From your favourite DH track to the techiest natural trails, it's the eBike for riders who want the same feeling as riding their DH bike.
The META POWER SX 400 SIGNATURE Eagle 90 is the ideal bike for tackling steep terrain. Equipped with a robust T-Type drivetrain, your potential is unlocked.
• FOX 38 Factory fork with Kashima stanchions: precise and dynamic with the new Grip X2 cartridge and Float X Factory shock for optimal grip and comfort.
• Braking comes in the form of the TRP DH-R EVO PRO. Born from DH; the rider can brake later and still maintain full control.
• Hand-built DT SWISS HFR 1700 wheels raise the bar for reliability. Paired with DT 350 hubs, the rolling gear is ready for anything.

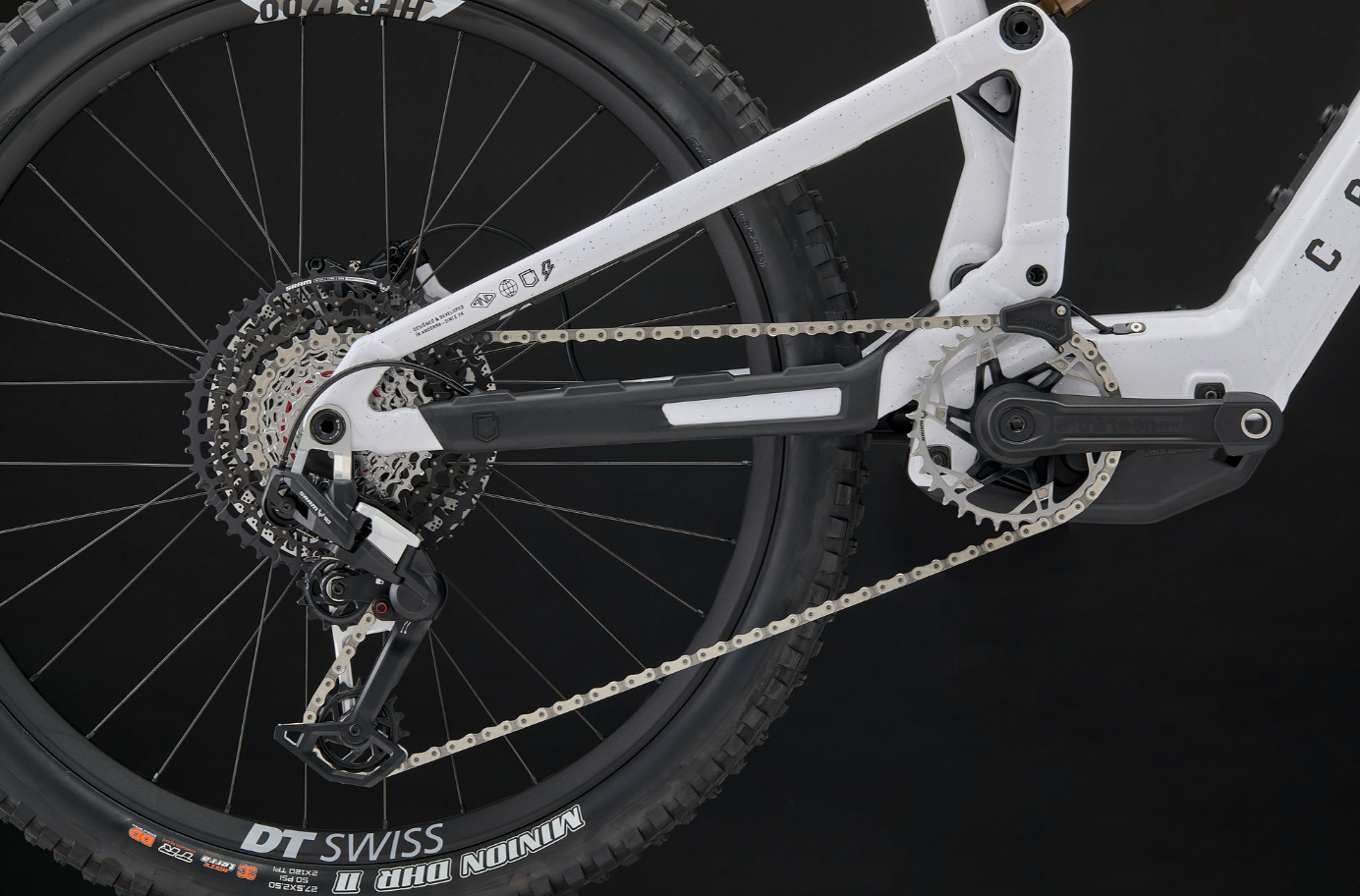

• The new SRAM Eagle 90 drivetrain features the tough and reliable T-Type system. It is super versatile with a 520% gear range.
Specifications
| Category | Details |
|---|---|

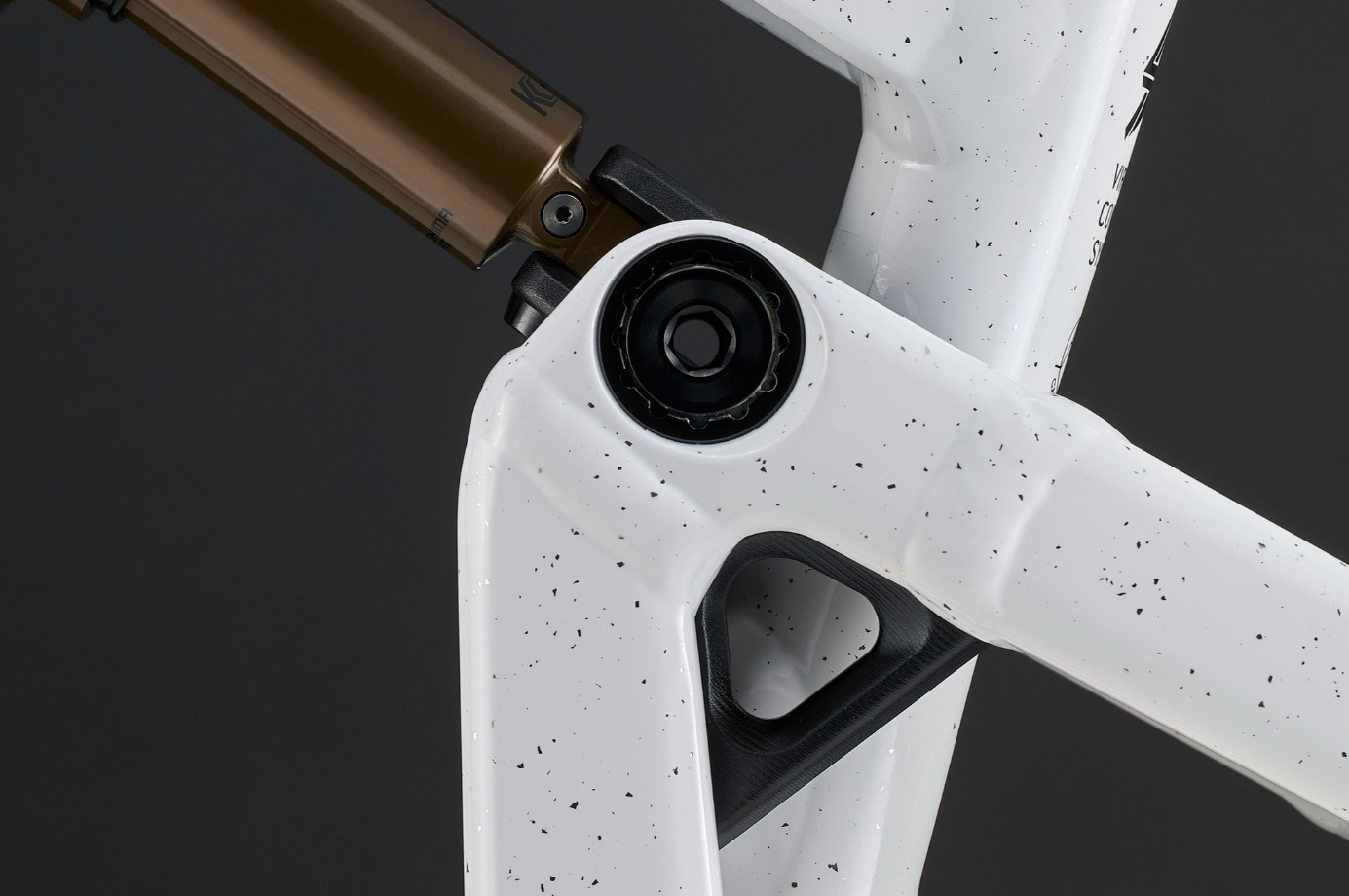

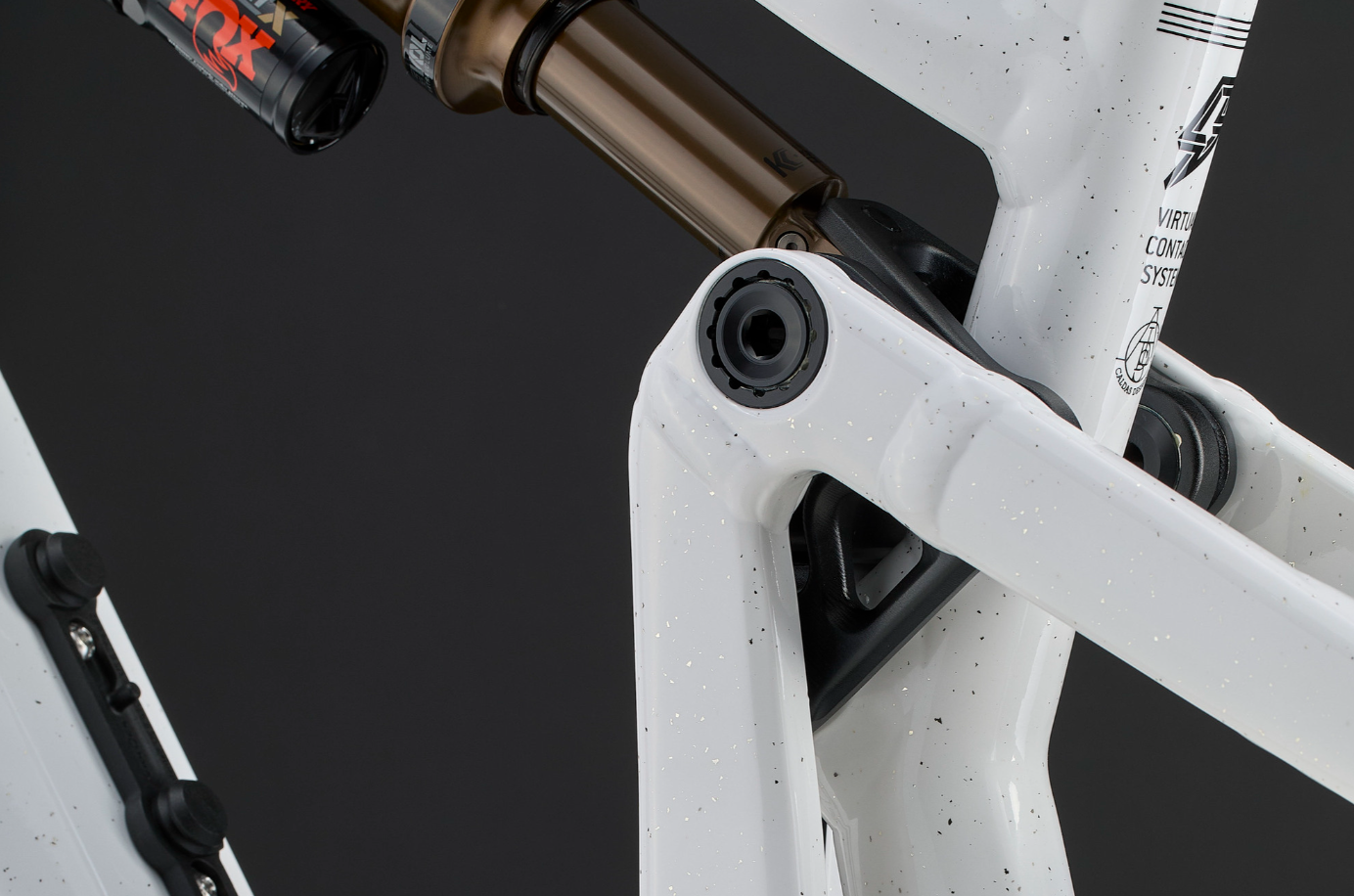

| Frame | META POWER SX 400, 170mm travel, 29''-27.5'', Alloy 6066, triple butted tubes, T4, T6, Bolu Bearings |
| Motor | BOSCH Performance Line SX, Max. torque: 60 N.m, 250 W |
| Battery | BOSCH Compact Powertube 400, Fully integrated 400 Wh, BOSCH 4A Charger |

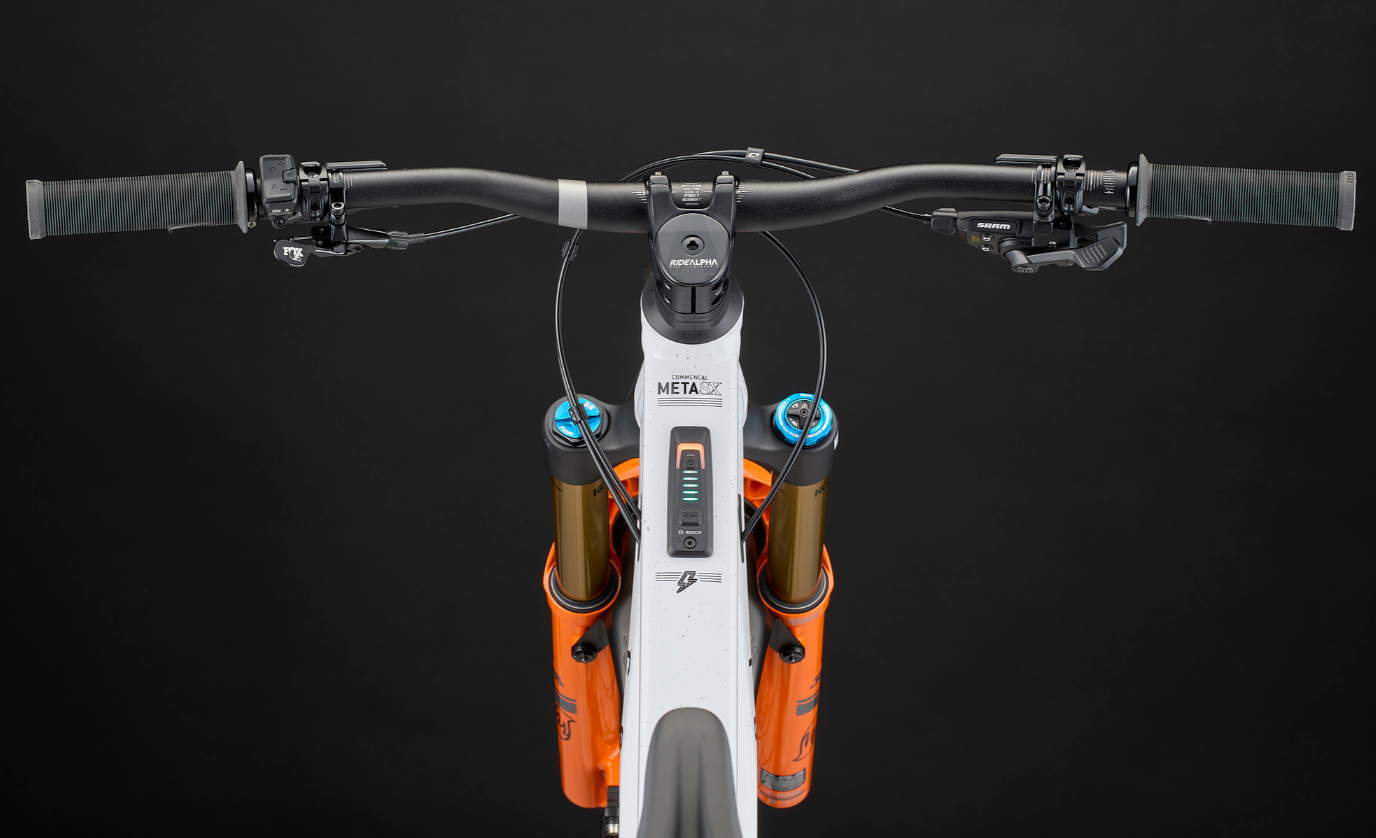

| Display | BOSCH System Controller, ON/OFF, assist mode, battery charge level |

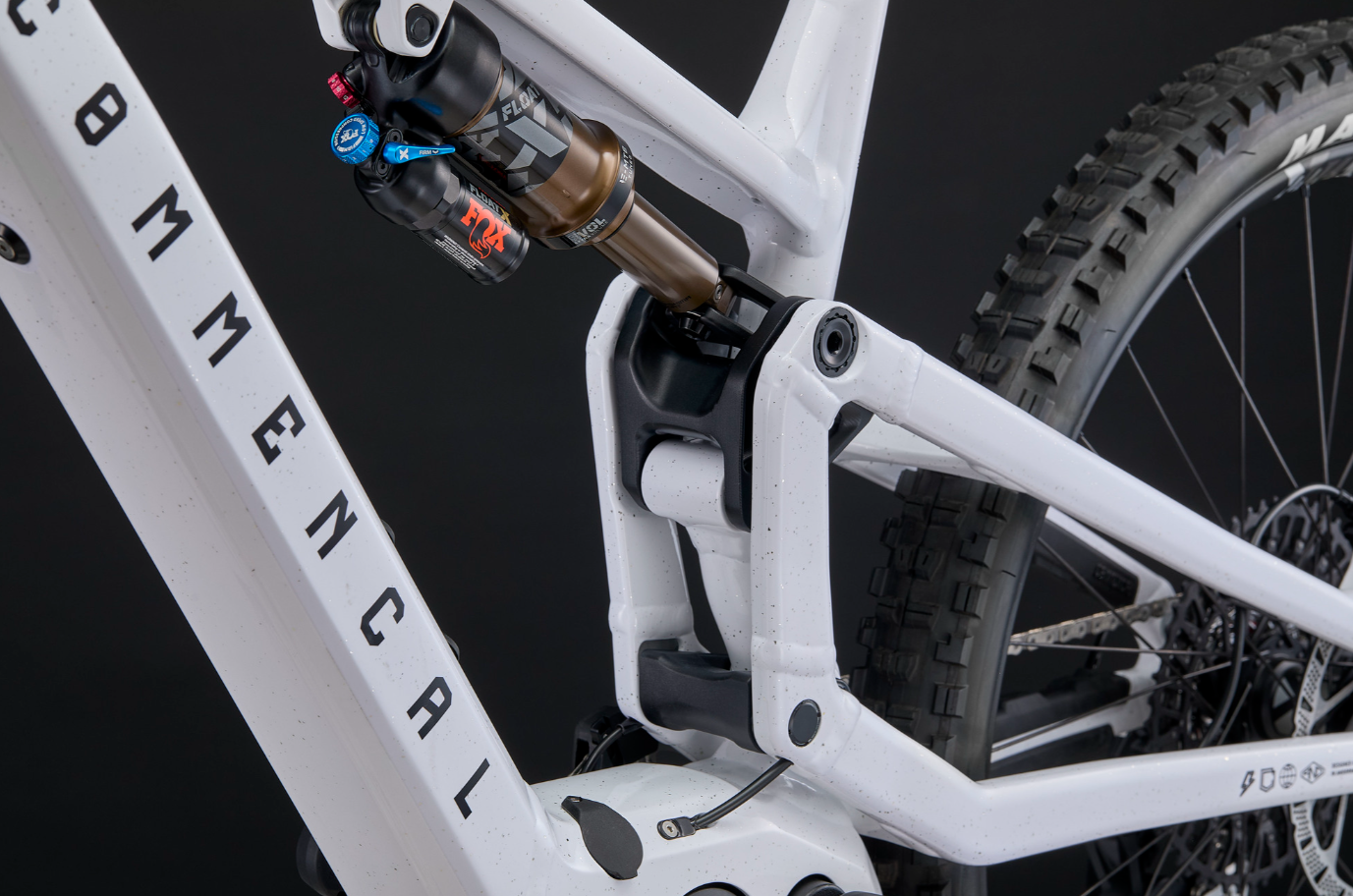

| Shock | FOX Float X Factory, 230x65mm, 2-position lever, LSC, LSR, spacers |

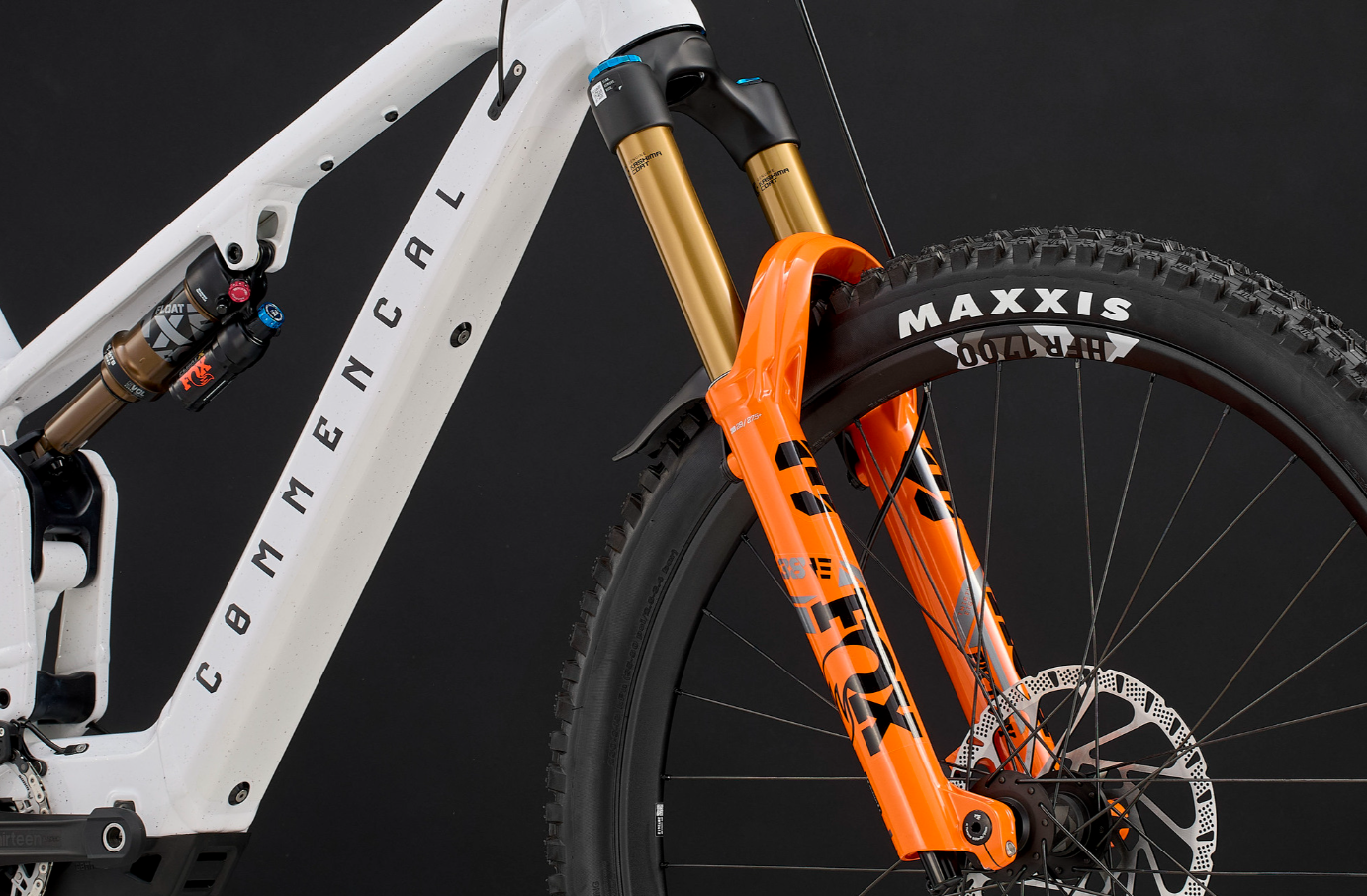

| Fork | FOX 38 Factory E-Bike, 170mm, 29'', Grip X2 damper, Boost 15x110mm, 44mm offset, 3 spacers |
| Headset | ACROS ZS56/ZS66, Alloy cups, sealed bearings |
| Stem | RIDE ALPHA 40, 40mm extension, 31.8mm |

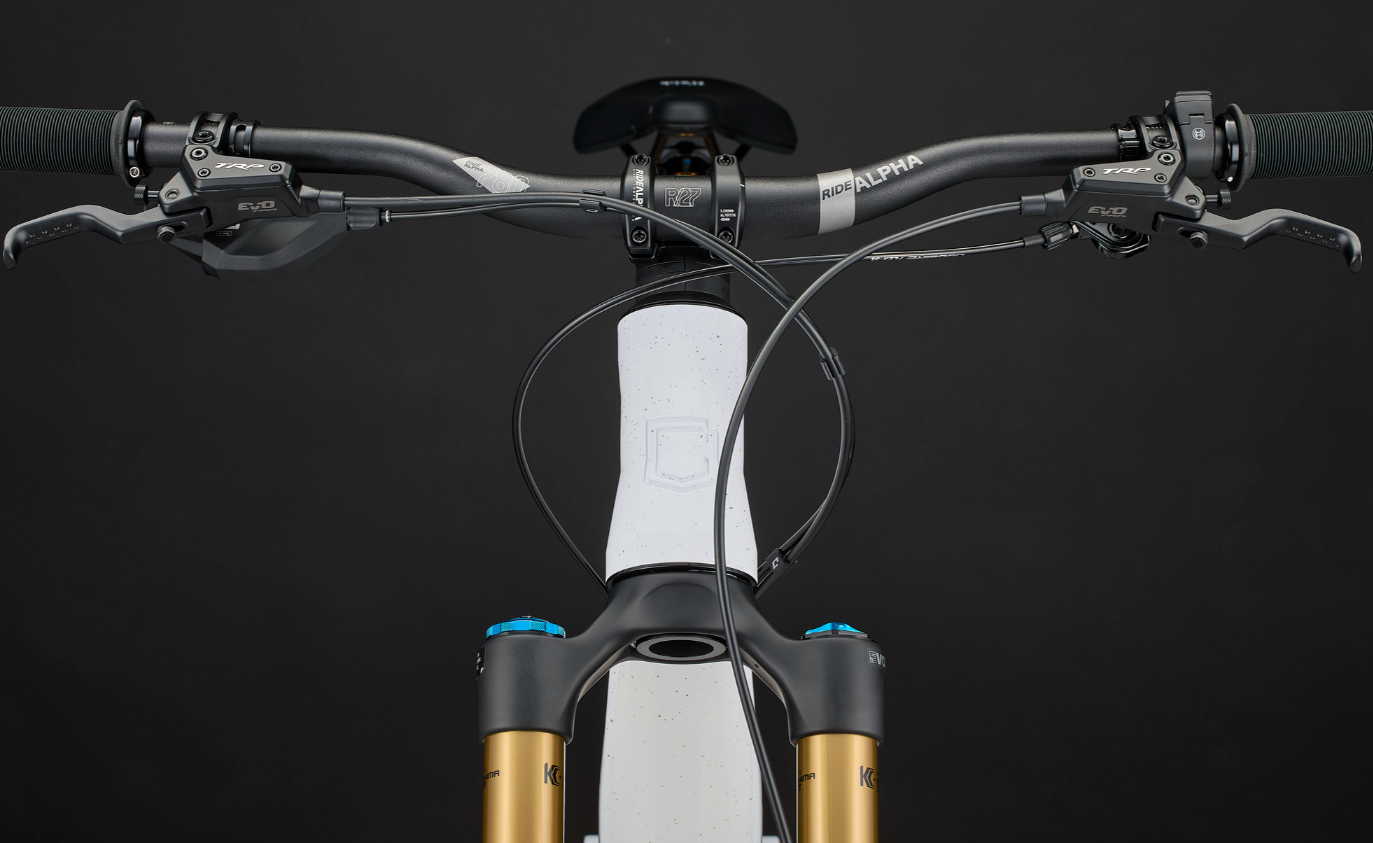

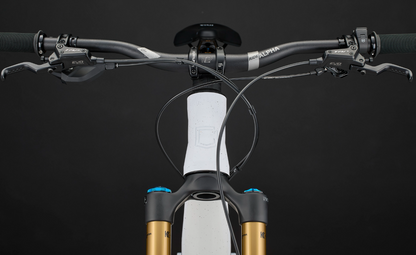

| Handlebar | RIDE ALPHA R20 760 / R27 780 / R27 800, 31.8mm, widths 760-800mm, 20-27mm rise, Alloy 6061 |
| Grips | ODI Longneck 2.1, Soft, single clamp, black |
| Brakes | TRP DH-R EVO PRO, 4 pistons, resin pads; Rotors: TRP RS05E 203mm, 6-bolt, 2.3mm width |
| Shifters | SRAM Eagle 90, 12s |
| Chain Guide | RIDE ALPHA, 32-34t |
| Rear Derailleur | SRAM Eagle 90, 12s |
| Crankset | E13 Helix Core E*Spec, 155mm, Bosch Gen4, 34t chainring |
| Chain | SRAM GX T-Type, 12s, Flattop |
| Cassette | SRAM GX T-Type, 12s, 10-52t |
| Rims | DT SWISS HFR1700, 27.5'' Rear, 29'' Front, 32h, 30mm inner width |
| Hubs | DT SWISS 350, Rear: 12x148mm, sealed, 24t, Sram XD; Front: 15x110mm, sealed |
| Spokes/Nipples | Included with wheelset |
| Tyres | Rear: MAXXIS Minion DHRII 27.5'' - 27.5 x 2.50 WT, Tubeless Ready, 3C MaxxTerra, Double Down; Front: MAXXIS ASSEGAI 29'' - 29 x 2.50 WT, Tubeless Ready, 3C MaxxGrip, EXO+ |
| Seat Post | FOX Transfer Factory, 34.9mm, 150mm (S), 180mm (M), 210mm (L/XL) |
| Saddle | FIZIK Terra Aidon X5, 145mm, Kium Mobius rails |
| Weight | 21.9 kg / 48.28 lbs |
| Pedals Included | CRANKBROTHERS Stamp 1 |
| Color | Glittery White, Shiny Finish |
| Accessories | Down tube protector, chainstay, seatstay protector, FOX 38 fender, FIDLOCK base |
Additional Info
| Category | Details |
|---|---|
| Bicycle Type | E-bike - Enduro / Downhill |
| Frame Material | AL 6066 T6 |
| Frame Weight | 4.76 kg / 10.49 lb |
| Rear Travel | 170mm |
| Shock Length/Stroke | 230x65mm |
| Recommended SAG | 27-31% / 17-20mm |
| Piggy Back Shock Compatible | Yes |

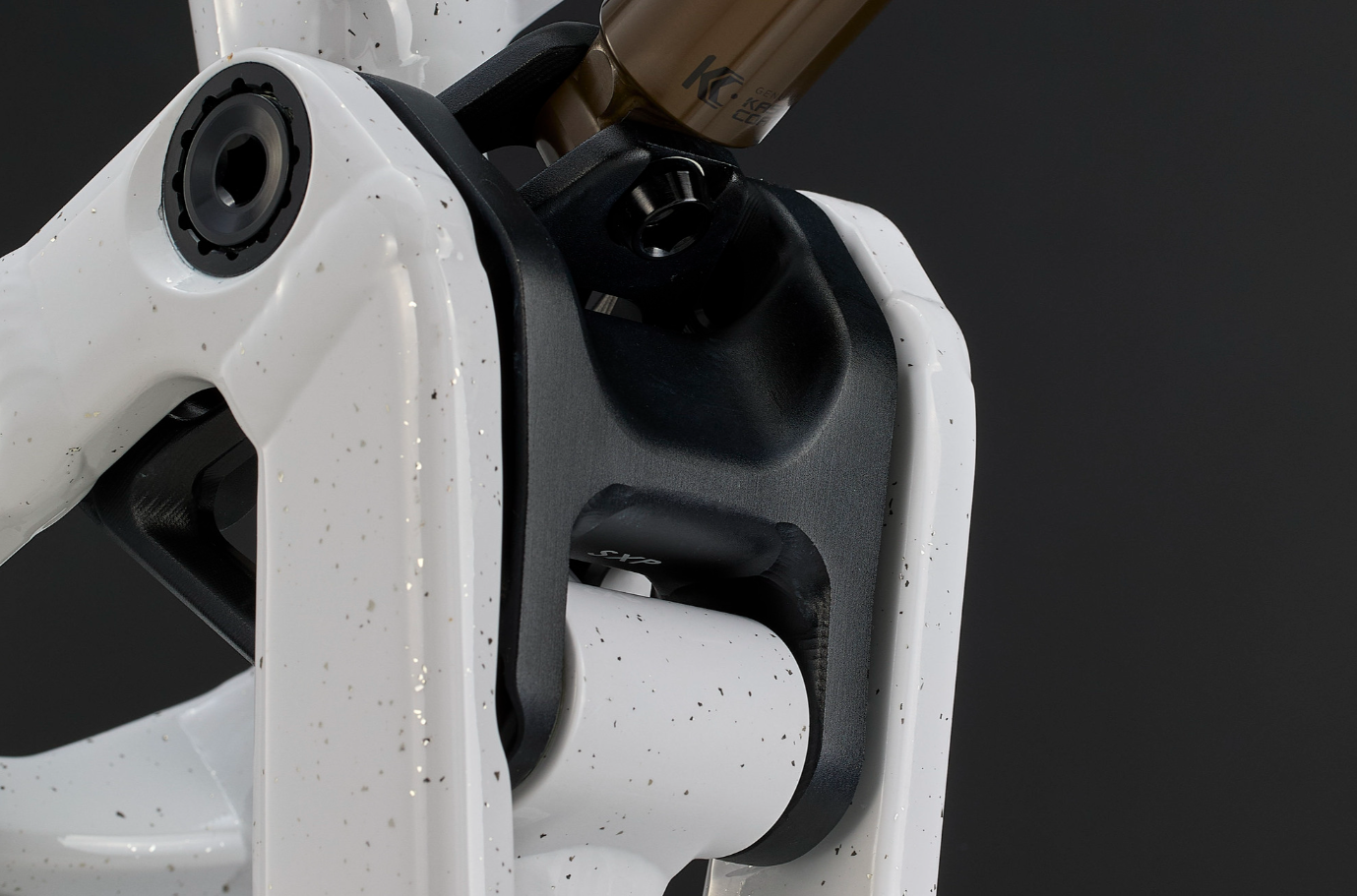

| Shock Bushings | 20x10mm / no bushing needed on clevis |
| Recommended / Max Fork Height | 588mm / 598mm |
| Headset Type | ZS56 / ZS66 |
| ICR Compatible | Yes |
| Wheels Size | 29'' - 27.5'' |
| Max Rear Tyre Dimension (ETRTO) | 65mm - Ø584mm |
| Rear Brake Mounting Type | Postmount 200mm |
| Rear Brake Rotor Max Size | 223mm |
| Seatpost / Clamp Diameter | 34.9mm / 38.5mm |
| Seatpost Max Insertion | S: 180mm, M: 220mm, L: 240mm, XL: 260mm |
| Motor Crankarms Interface | BOSCH SX |
| Chain Guide | Custom upper guide |
| Recommended / Max Chainring Teeth | 34T / 34T |
| Chain Line | 55 |
| Rear Hub Dimension | 148x12mm |
| Rear Axle Dimension | UDH standard, 180mm, M12, P1.0mm |
| UDH Hanger | Yes |
