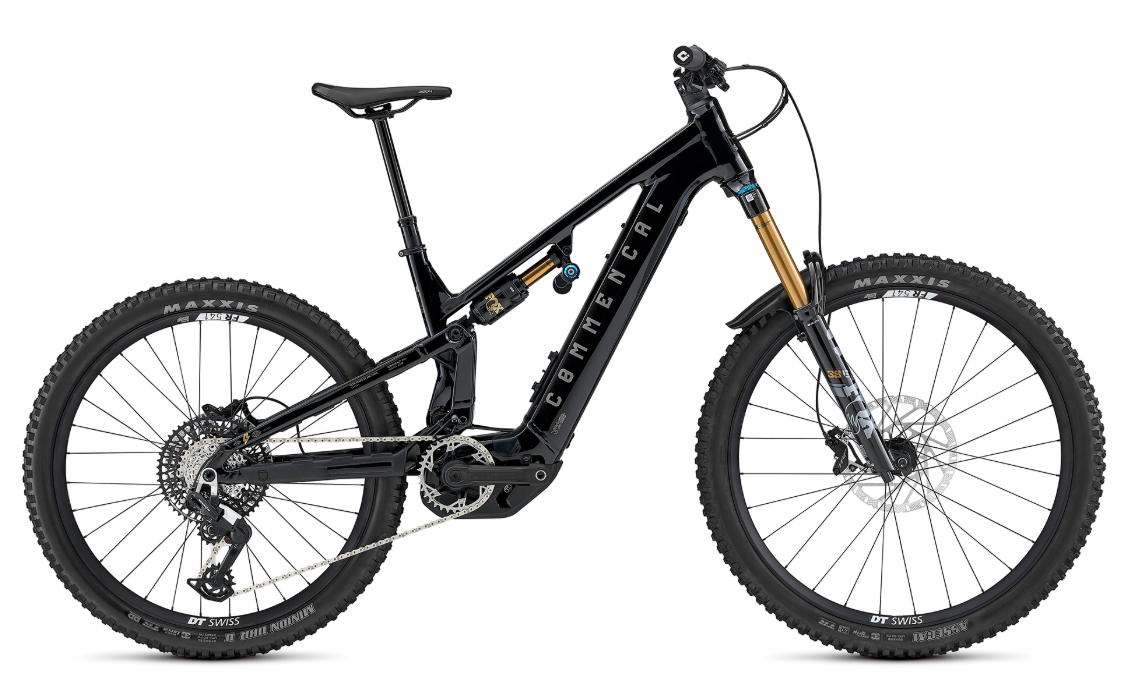

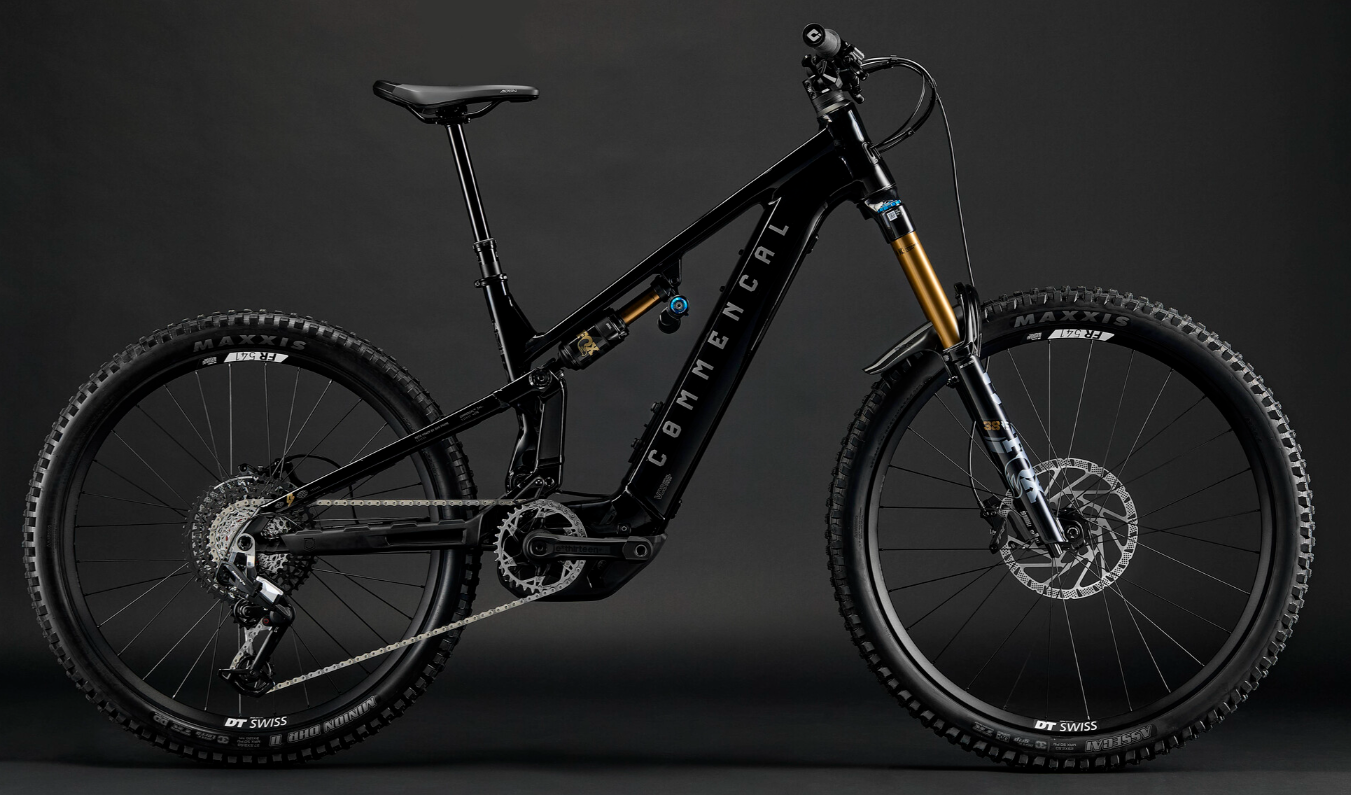

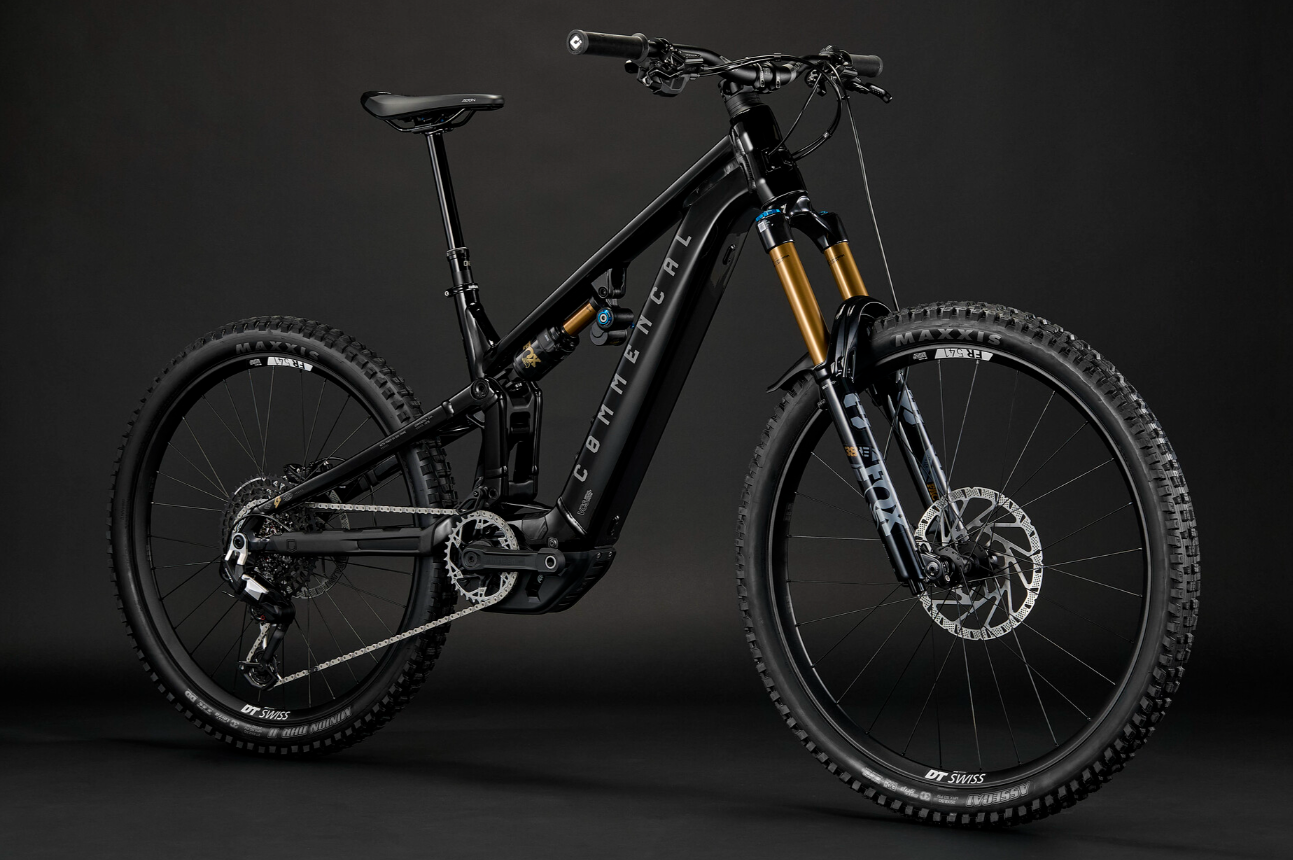

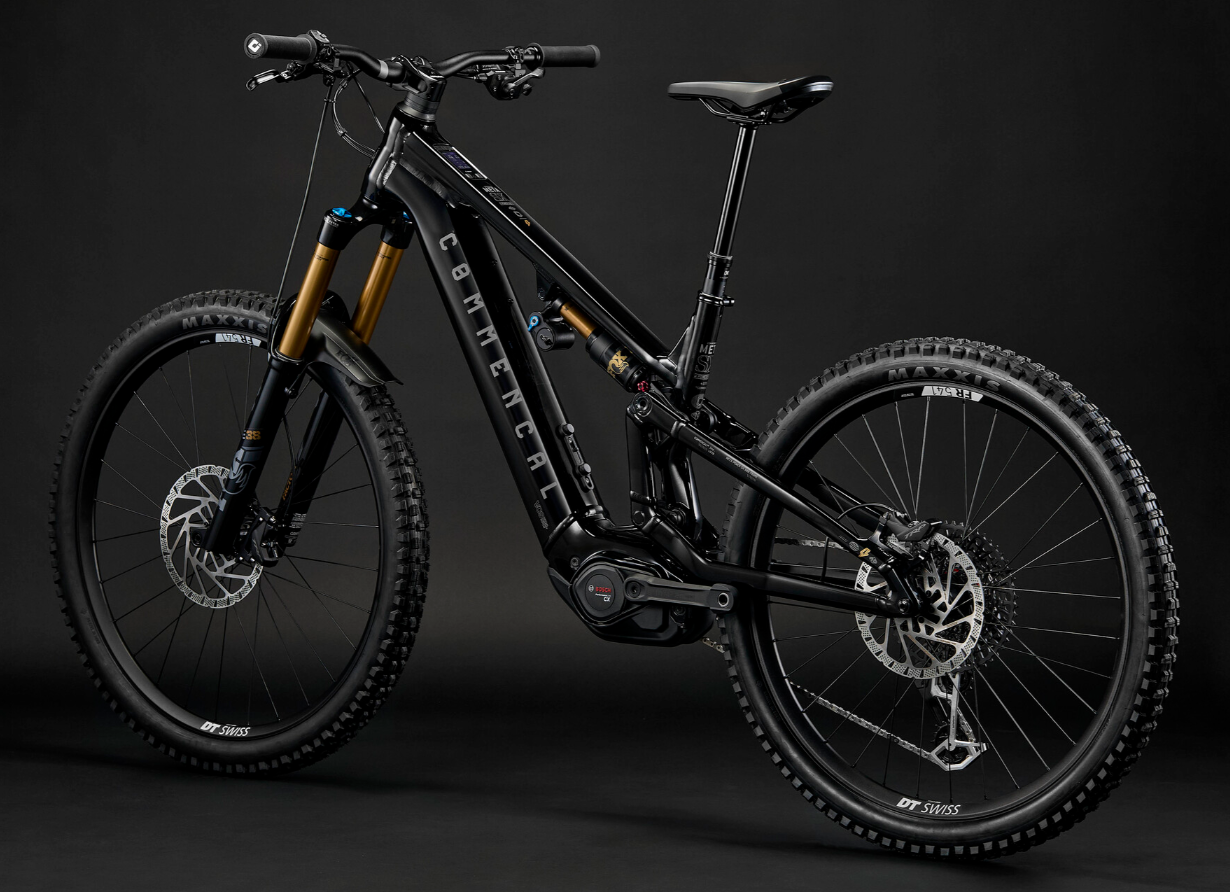

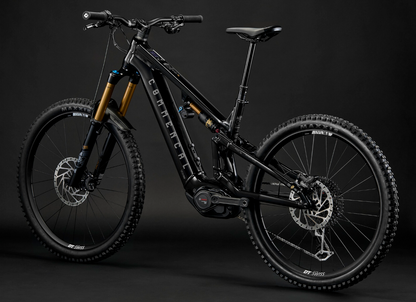

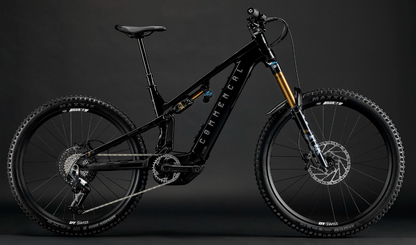

Commencal Meta Power SX 800 MX - Signature
The META POWER SX 800 is designed for riders who want to venture further and explore more. Featuring the BOSCH Performance CX Gen5 motor and 800Wh battery, it delivers the perfect blend of power and range. Designed for challenging natural trails, it tackles steep climbs and descents with ease and comfort.
The META POWER SX 800 SIGNATURE is the ideal bike for performance and exploring.
• The FOX 38 Factory fork and Float X2 shock deliver unmatched support and precision.

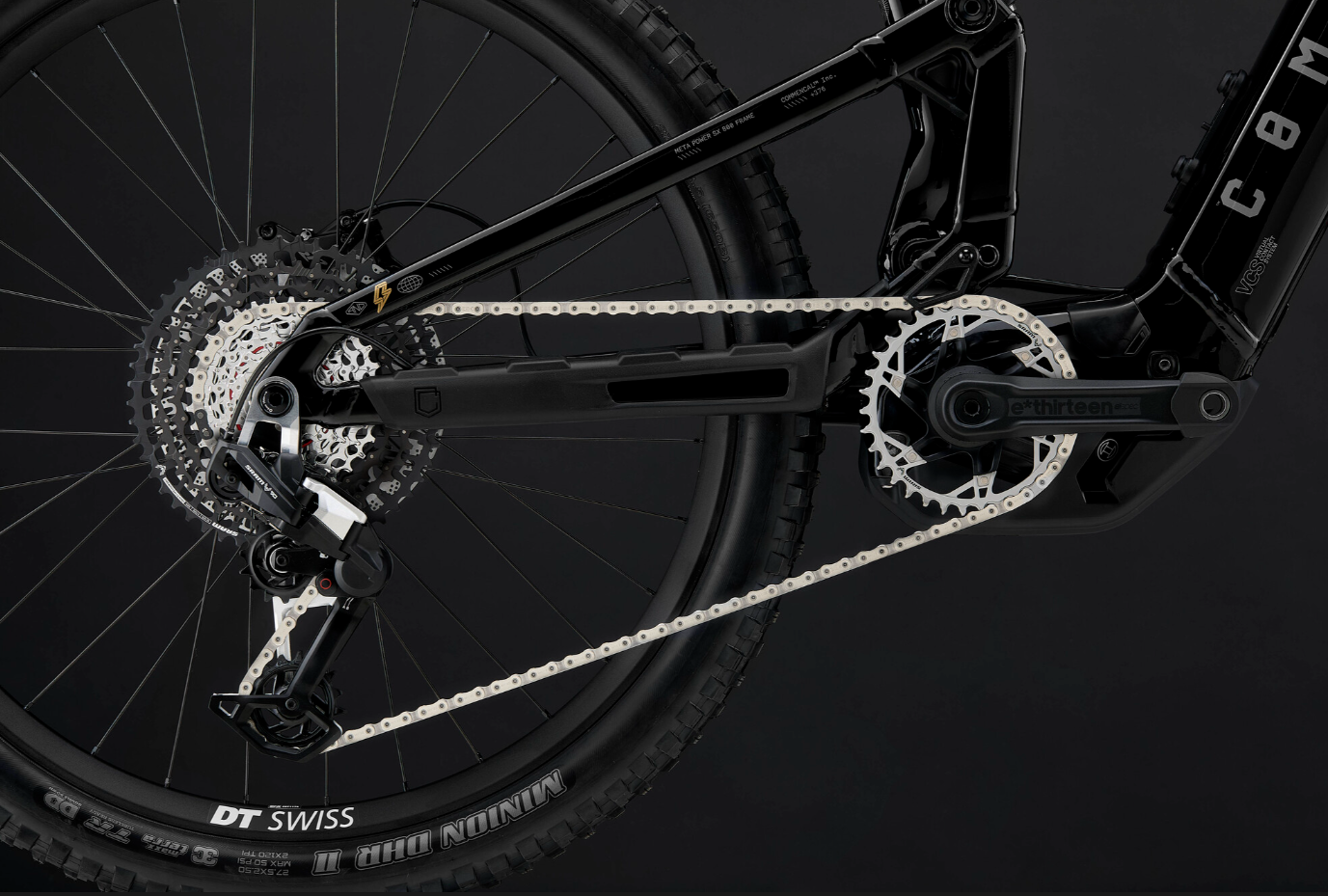

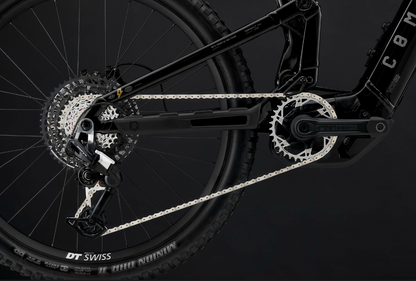

• New SRAM Eagle 90 mechanical T-Type drivetrain is reliable and responsive.
• DT SWISS FR 541 rims, hand-built on 370 Hybrid hubs.
• Stopping power in the form of TRP DHR EVO PRO brakes for power and consistency in all situations.
Specifications
| Component | Details |
|---|---|

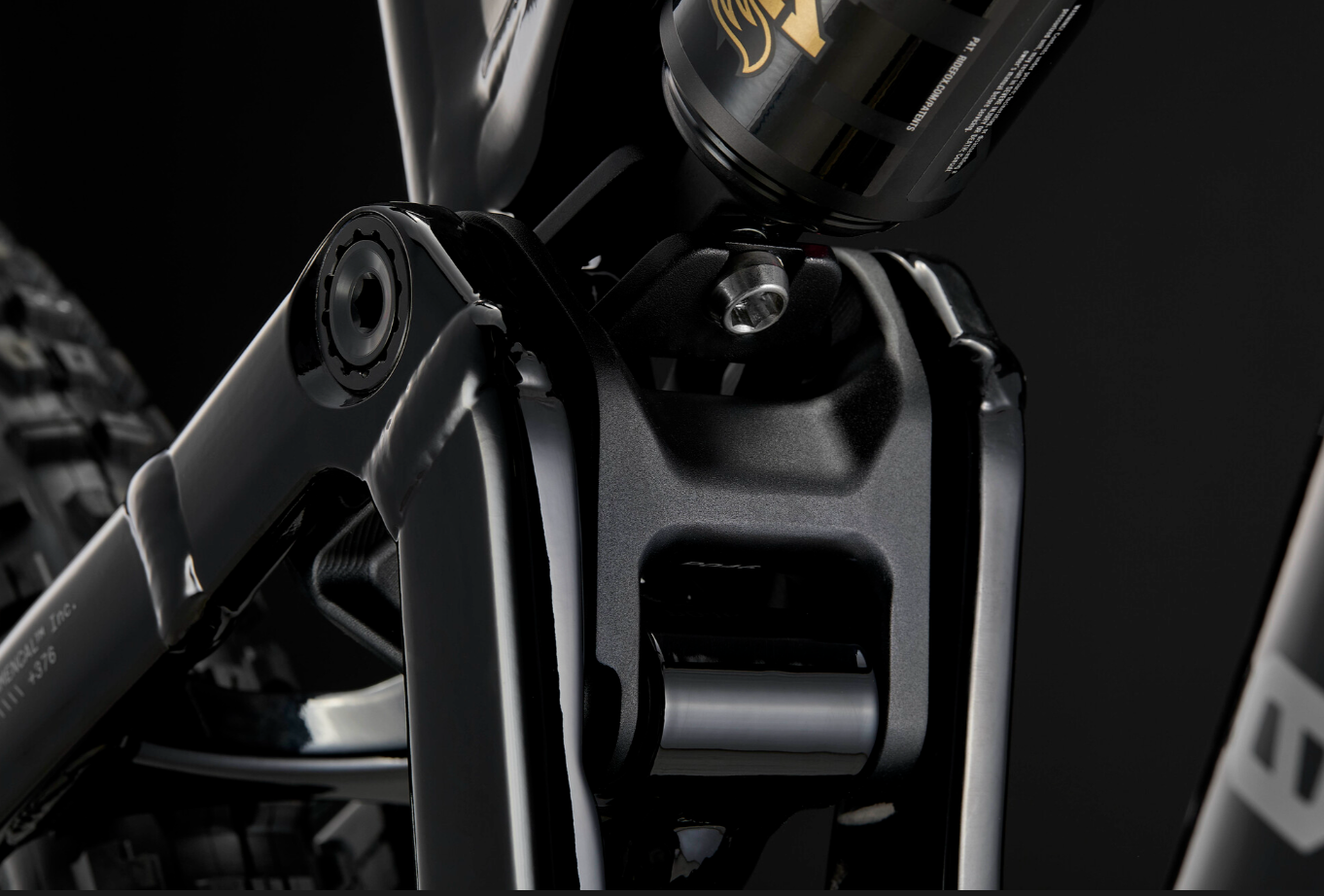

| Frame | META POWER SX 800, 180mm travel, 29''-27.5'', Alloy 6066, triple butted, T4/T6, Bolu bearings |

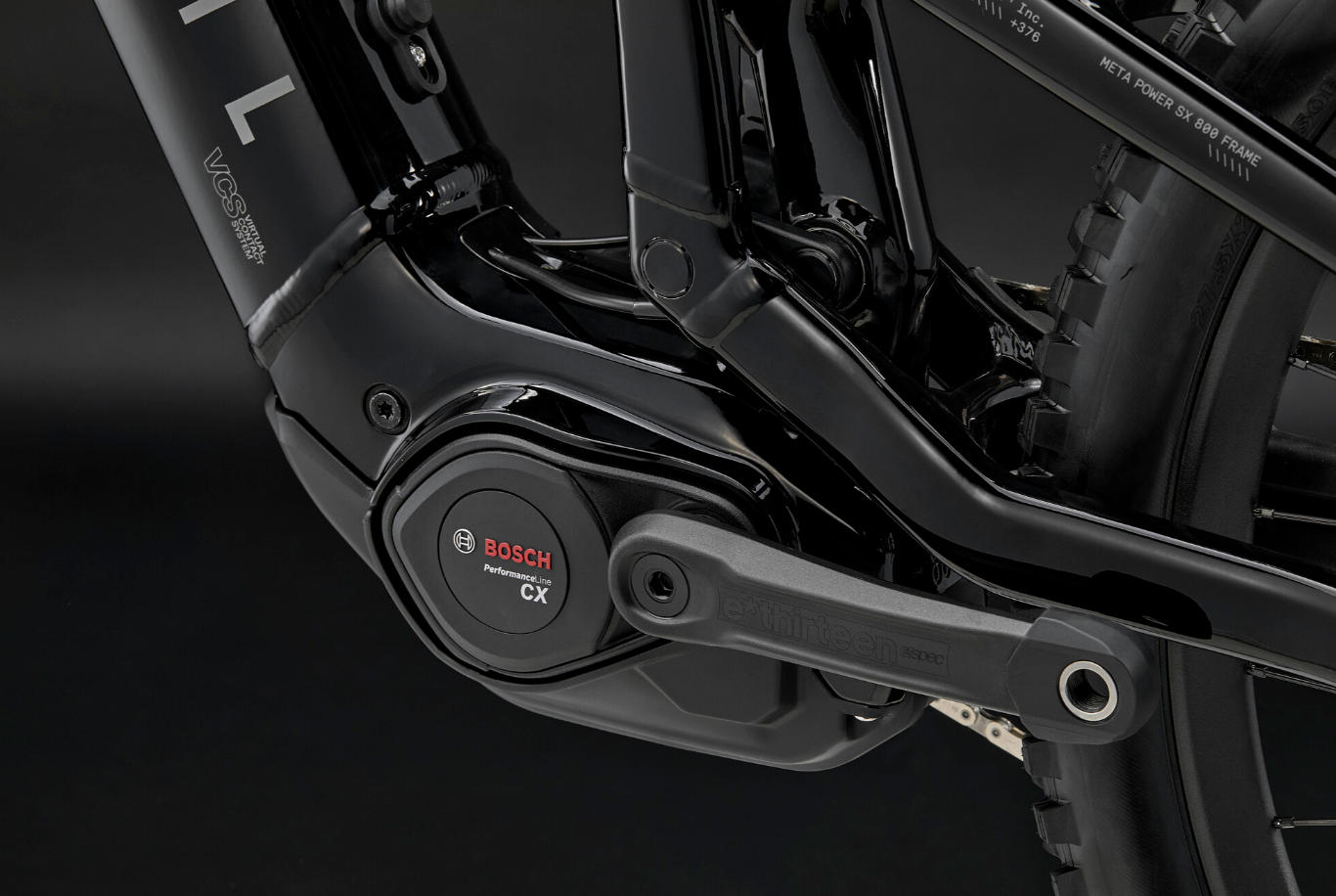

| Motor | BOSCH Performance Line CX Gen5, 120 Nm |
| Battery | BOSCH Powertube 800, integrated 800Wh, BOSCH 4A Charger |

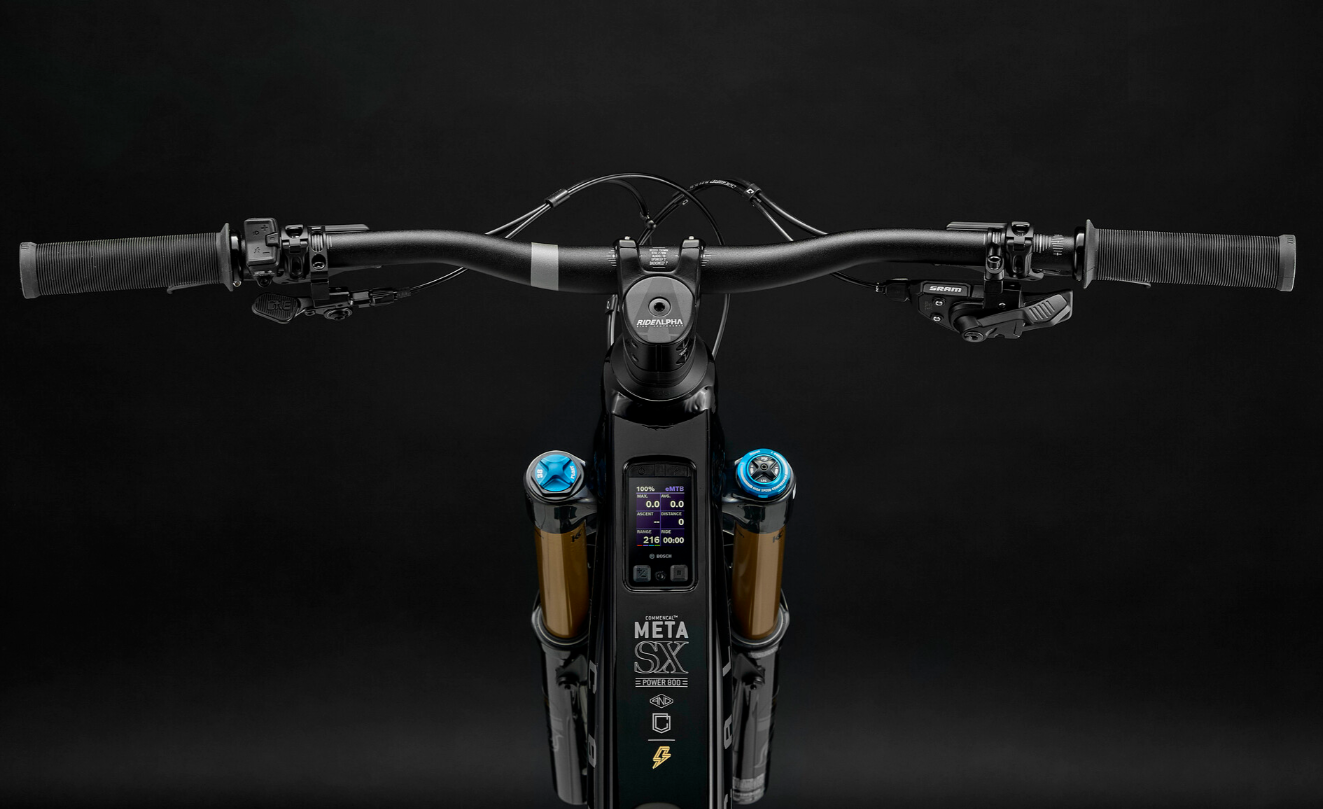

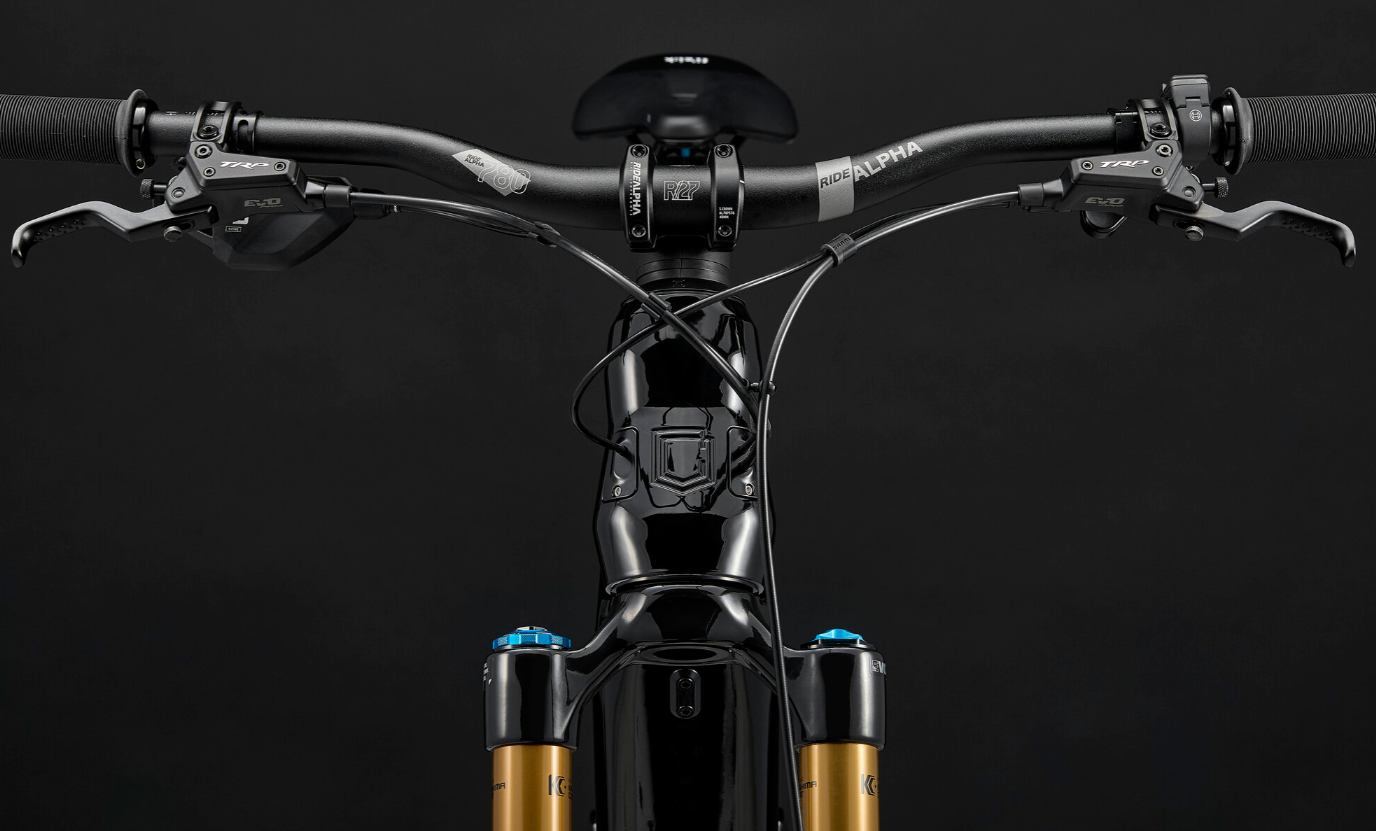

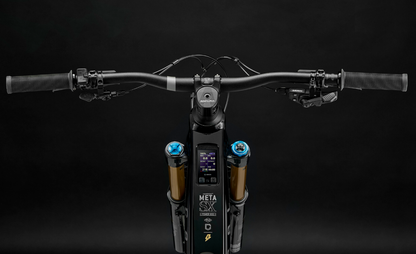

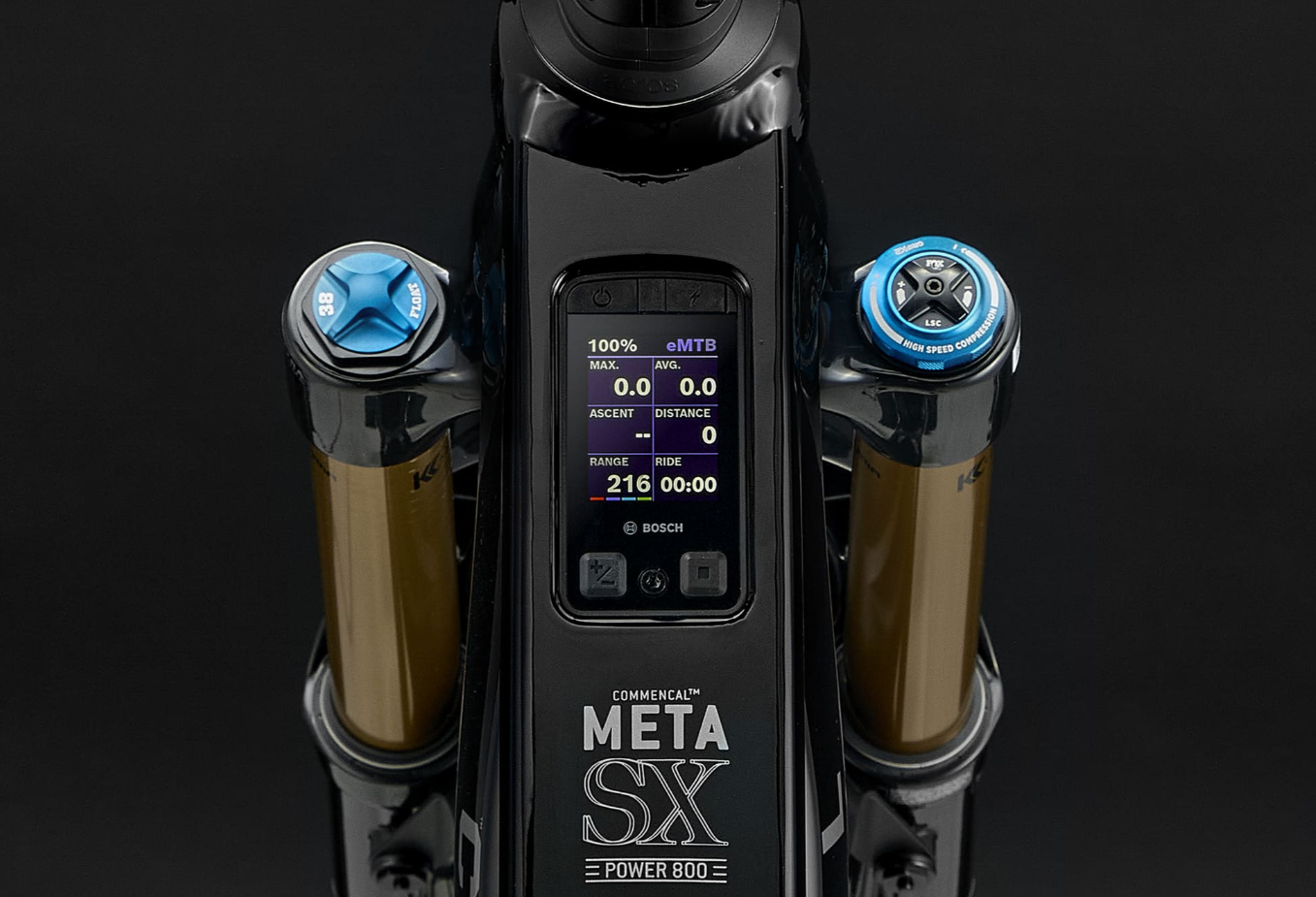

| Display | BOSCH Kiox 400C + System Controller + Mini Remote (mode, walk assist, light) |

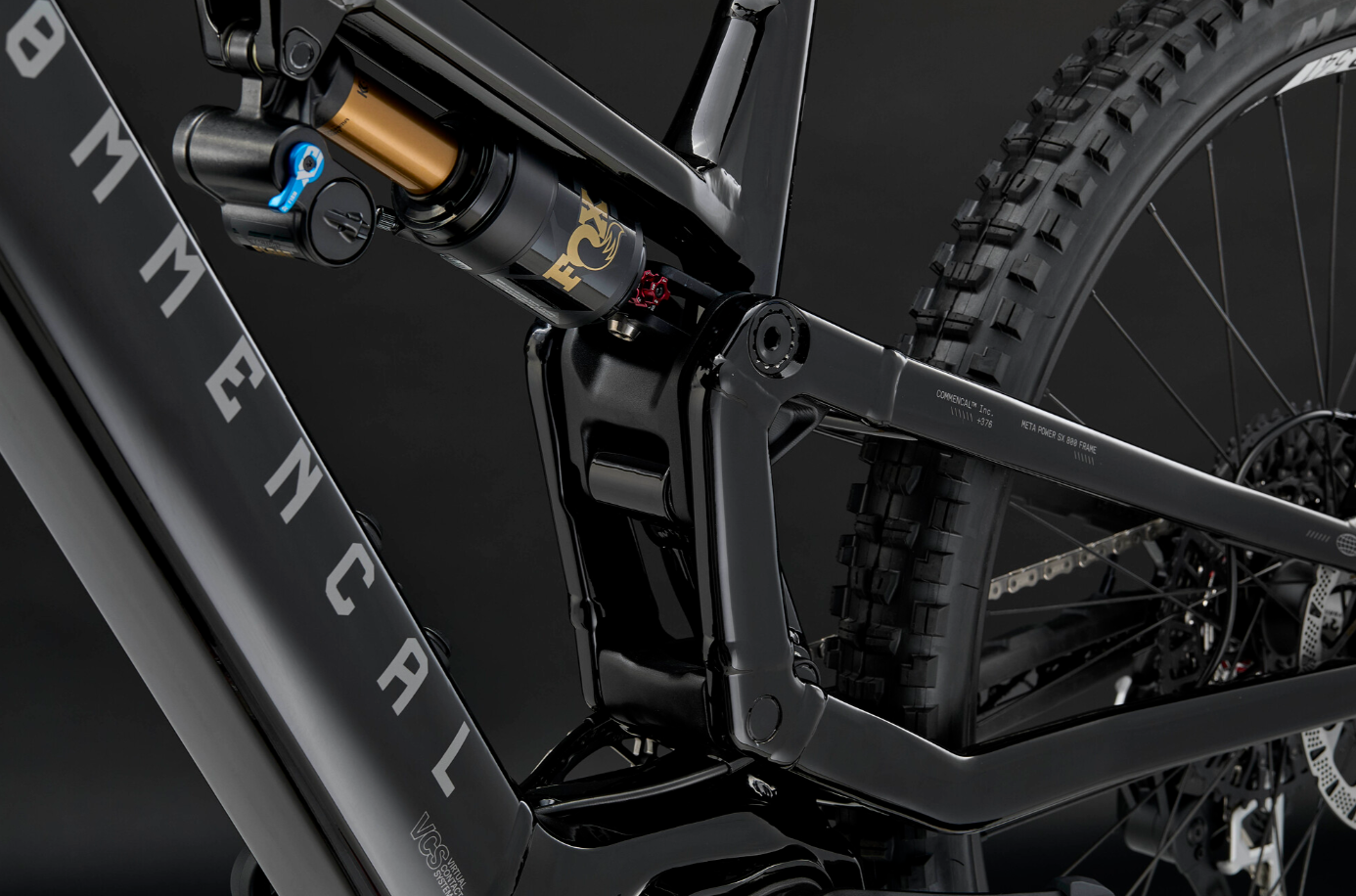

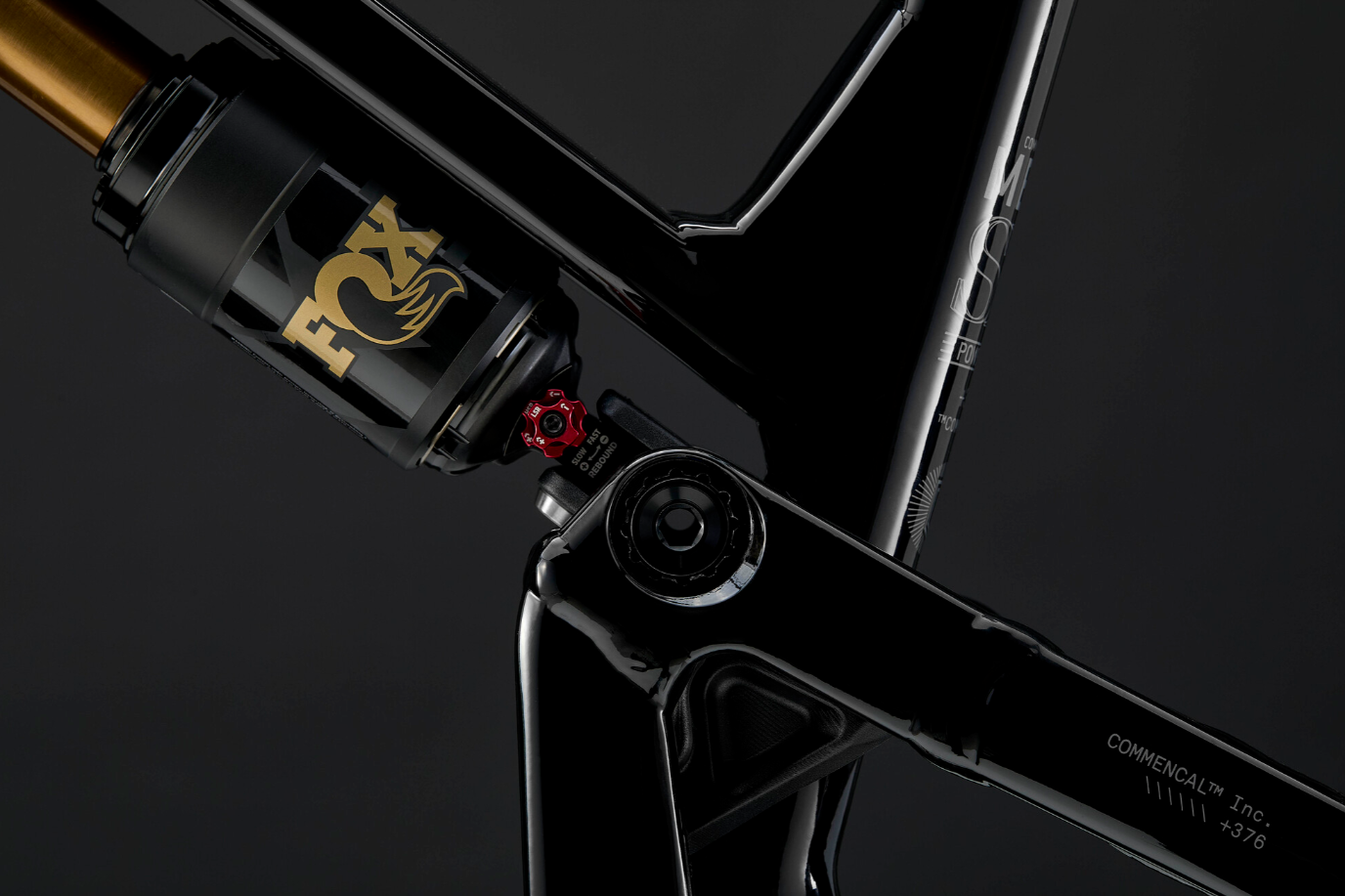

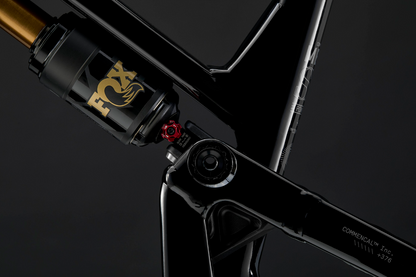

| Shock | FOX Float X2 Factory, 230x65mm, 2-position lever, HSC, LSC, HSR, LSR |

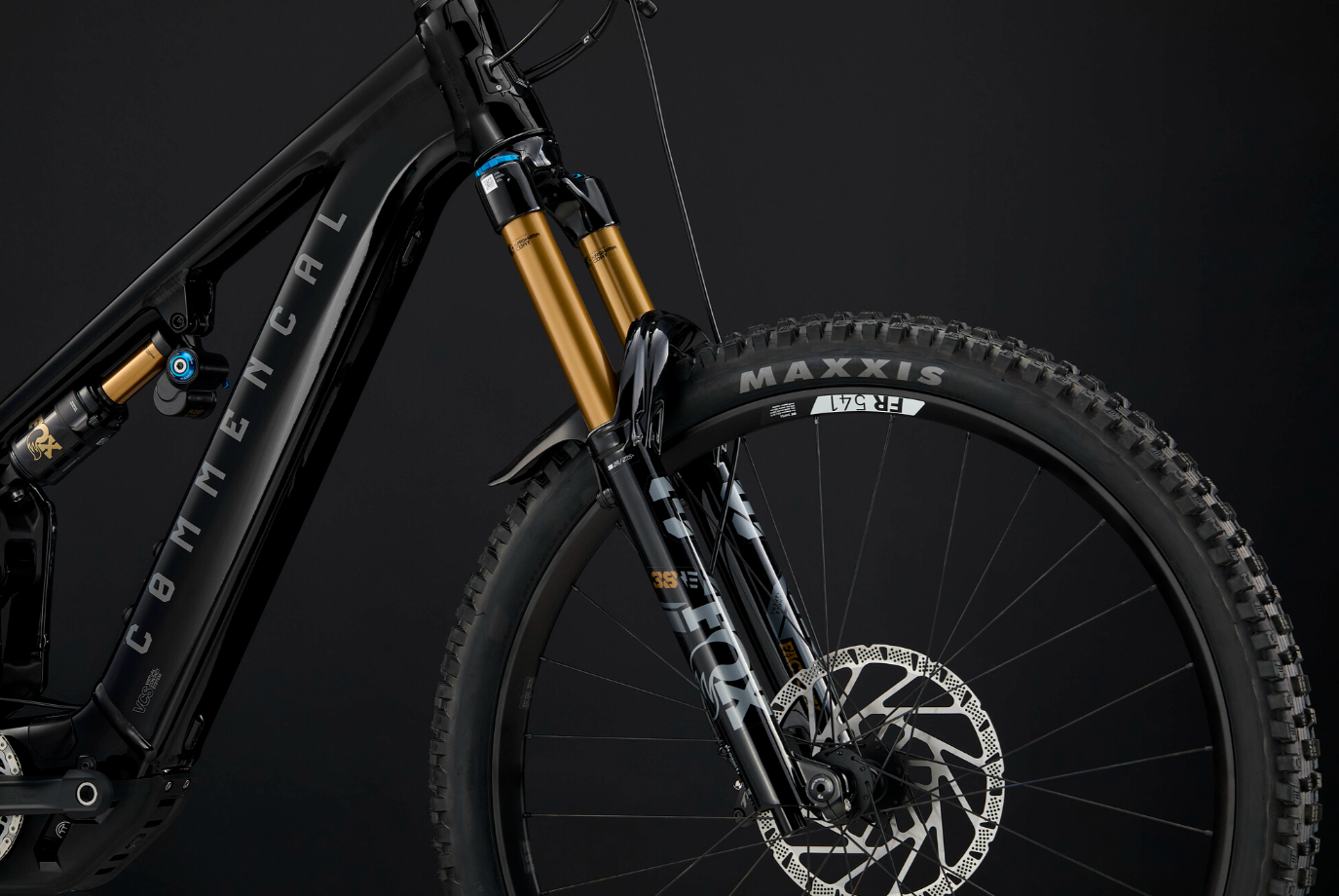

| Fork | FOX 38 Factory E-Bike, 180mm, 29", Grip X2 damper, Boost (15x110), 44mm offset, 3 spacers |
| Headset | ACROS ZS56/ZS66, alloy cups, sealed bearings |
| Stem | RIDE ALPHA 40, 40mm, 31.8mm |
| Handlebar | RIDE ALPHA R20/R27, 760-800mm, 20-27mm rise, Alloy 6061 |
| Grips | ODI Longneck 2.1, soft compound, black |
| Brakes | TRP DH-R EVO PRO, 4 pistons, resin pads, Rear 203mm, Front 220mm |
| Shifters | SRAM Eagle 12s |
| Chain Guide | RIDE ALPHA, 32-34t |
| Rear Derailleur | SRAM Eagle 12s |
| Crankset | E13 Helix Core E*Spec, 155mm, Bosch, 34t direct mount |
| Chain | SRAM GX T-Type, 12s, Flattop |
| Cassette | SRAM GX T-Type, 12s, 10-52t |
| Rims | DT SWISS FR541, Rear 27.5'', 28h, 30mm inner width; Front 29'', 28h, 30mm inner width |
| Hubs | Rear: DT SWISS 370 Hybrid, 28h, sealed bearings, 12x148mm, 24t, SRAM XD; Front: DT SWISS 370, 28h, sealed, 15x110mm |
| Spokes/Nipples | Included with wheelset |
| Tyres | Rear: MAXXIS Minion DHRII 27.5''; Front: MAXXIS ASSEGAI 29''; 27.5x2.50 WT, 3C MaxxTerra, Double Down, TR; 29x2.50 WT, 3C MaxxGrip, EXO+, TR |
| Seat Post | ONE UP V3, 31.6mm, 150mm (S), 180mm (M), 210mm (L/XL) |
| Saddle | FIZIK Terra Aidon X5, 145mm width, Kium Mobius rails |
| Weight | 25.5 kg / 56.22 lbs (approx.) |
| Pedals | CRANKBROTHERS Stamp 1 |
| Color & Finish | Pure Black, Shiny Finish |
| Accessories | RideWrap Lotus Pro, motor & chain stay protectors, FIDLOCK base, fork fender, pedals |
Additional Info
| Component | Details |
|---|---|
| Bicycle Type | E-bike - Enduro / Adventure |
| Frame Material | AL 6066 T6 |
| Frame Weight | 5.86 kg / 12.91 lb |
| Rear Travel | 180mm |
| Shock Length/Stroke | 230x65mm |
| Recommended SAG | 28-31% / 18-20mm |
| Piggy Back Shock Compatible | Yes |
| Shock Bushings | 20x10mm / no bushing needed on clevis |
| Recommended/Max Fork Height | 588mm / 598mm |
| Headset Type | ZS56 / ZS66 |
| ICR Compatibility | Yes |
| Wheels Size | 29’’ - 27.5’’ |
| Max Rear Tyre Dimension (ETRTO) | 65mm - Ø584mm |
| Rear Brake Mounting Type | Postmount 200mm |
| Rear Brake Rotor Max Size | 223mm |
| Seatpost / Clamp Diameter | 34.9mm / 38.5mm |
| Seatpost Max Insertion | S: 180mm / M: 220mm / L: 240mm / XL: 260mm |
| Motor Crankarms Interface | BOSCH CX Gen5 |
| Chain Guide | Custom upper guide |
| Recommended/Max Chainring Teeth | 34T / 34T |
| Chain Line | 55mm |
| Rear Hub Dimension | 148x12mm |
| Rear Axle Dimension | UDH standard, 180mm, M12, P1.0mm |
| UDH Hanger | Yes |
