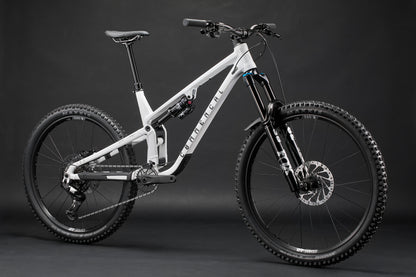

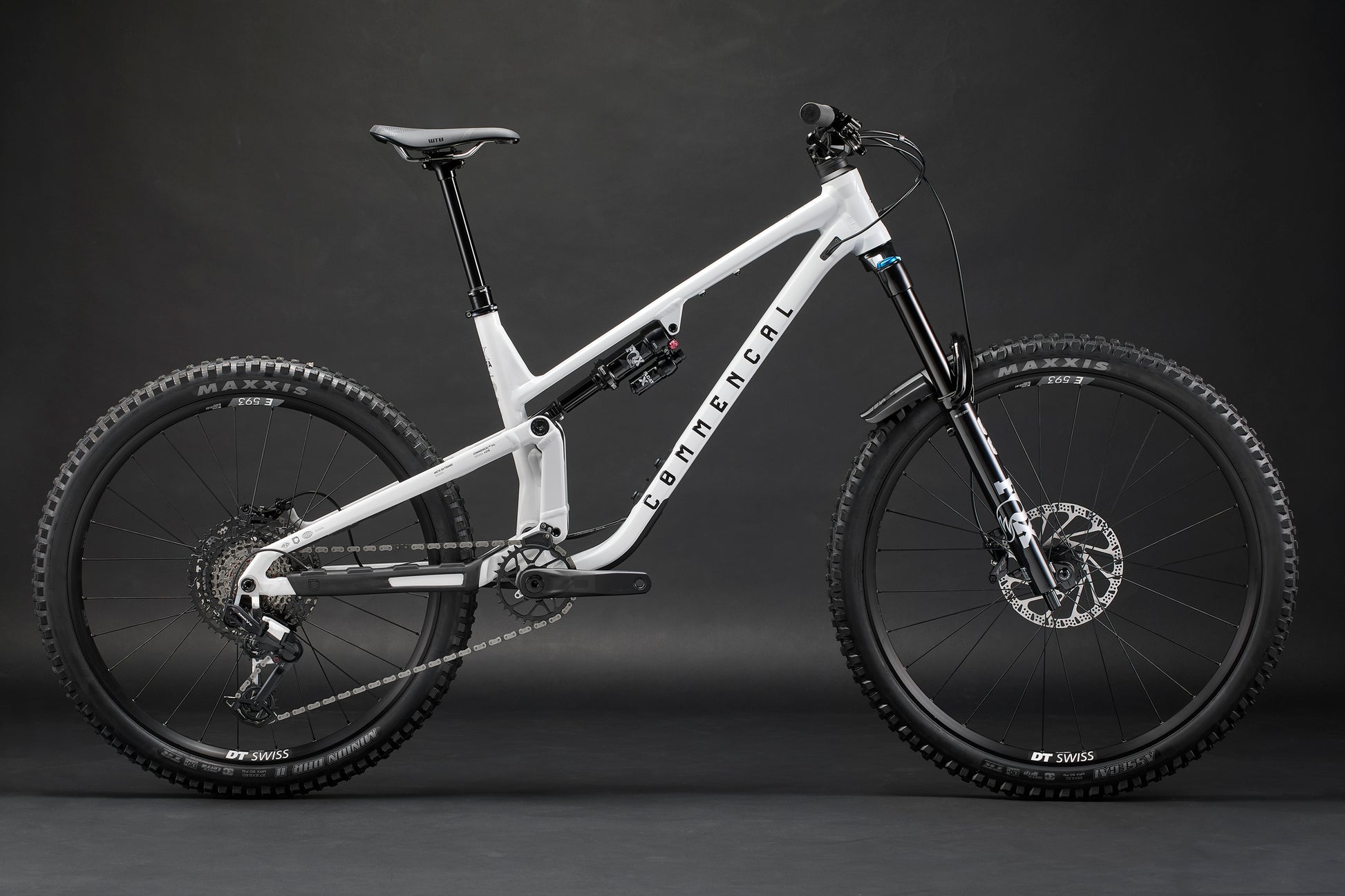

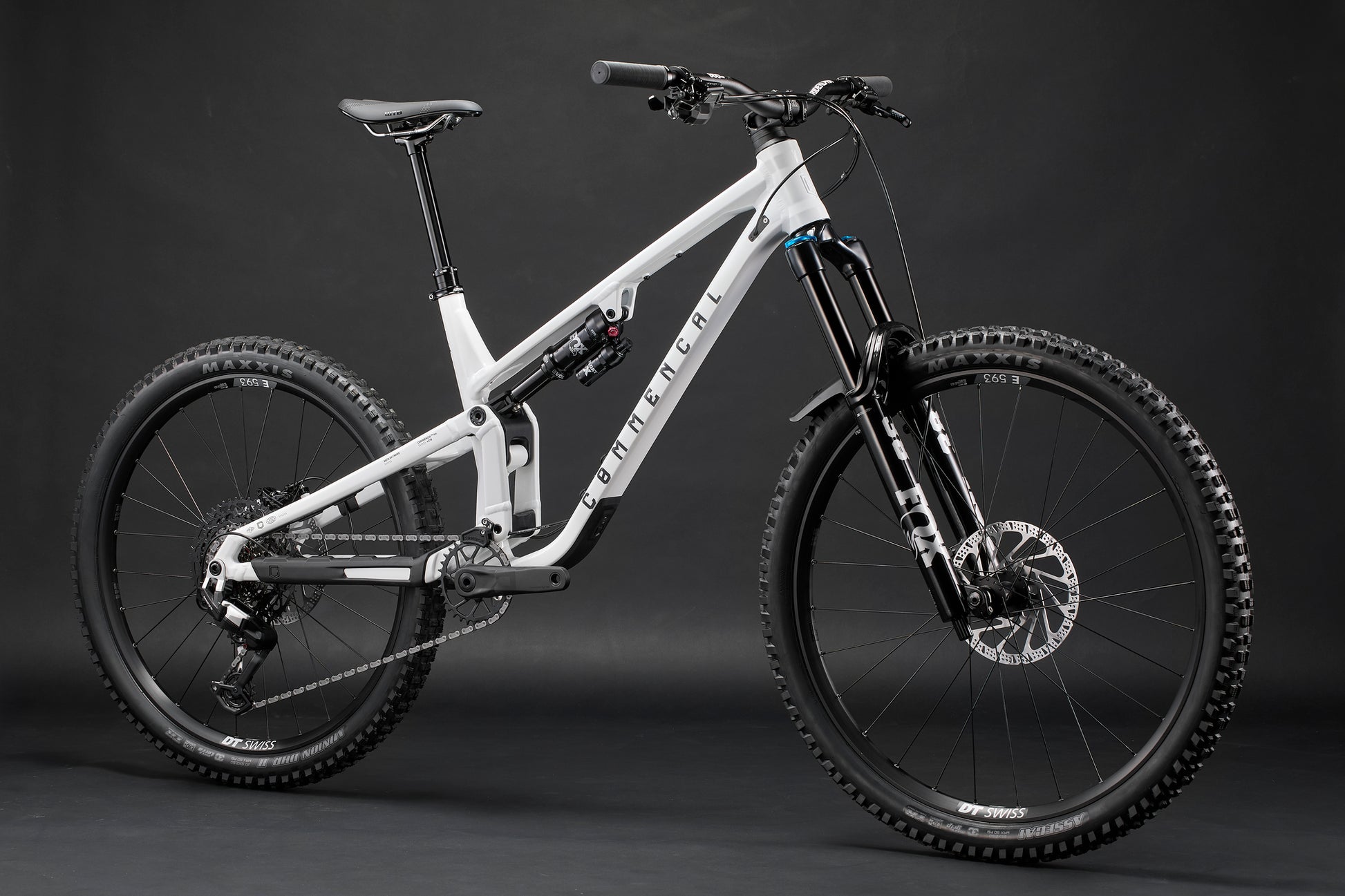

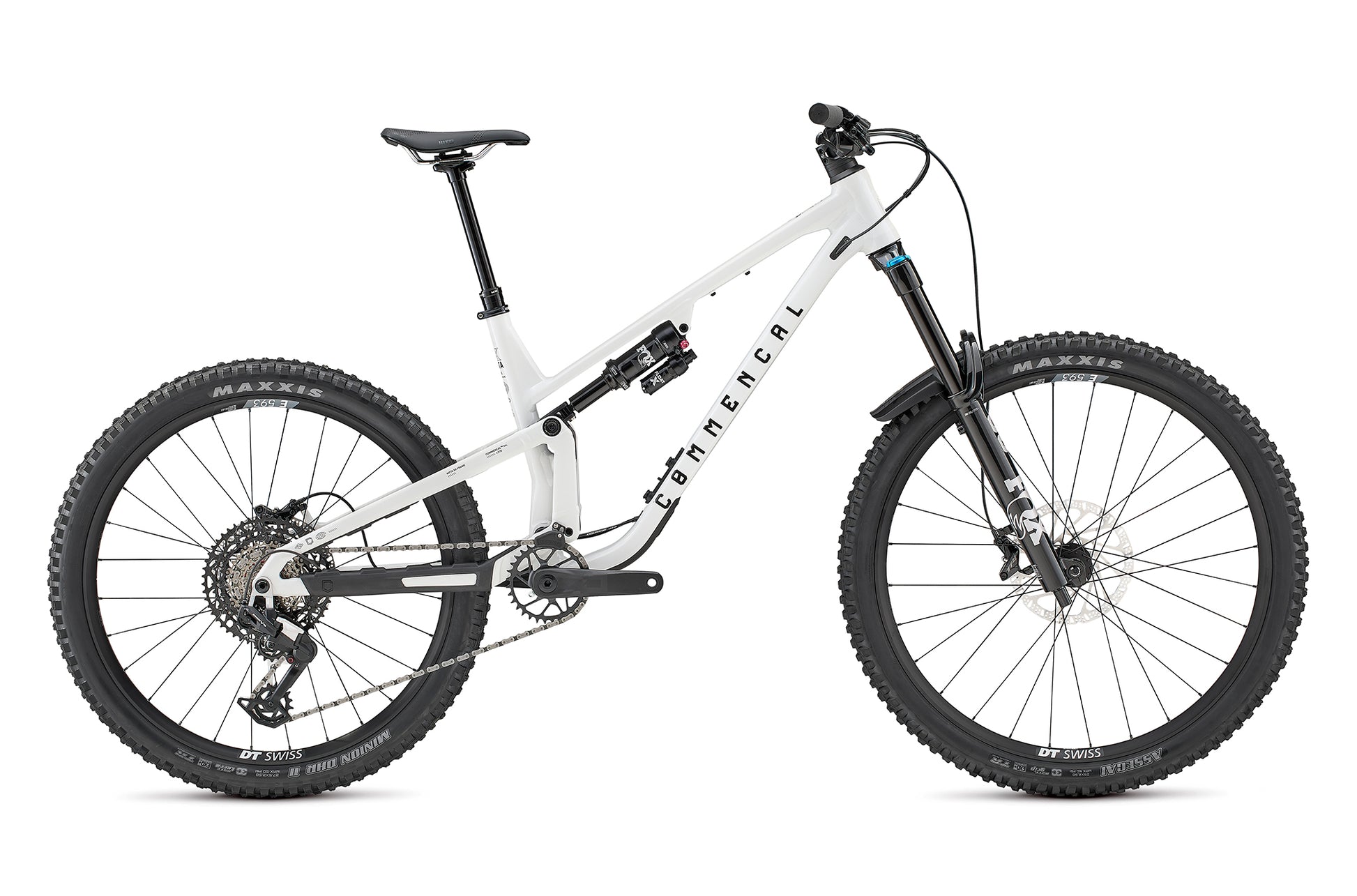

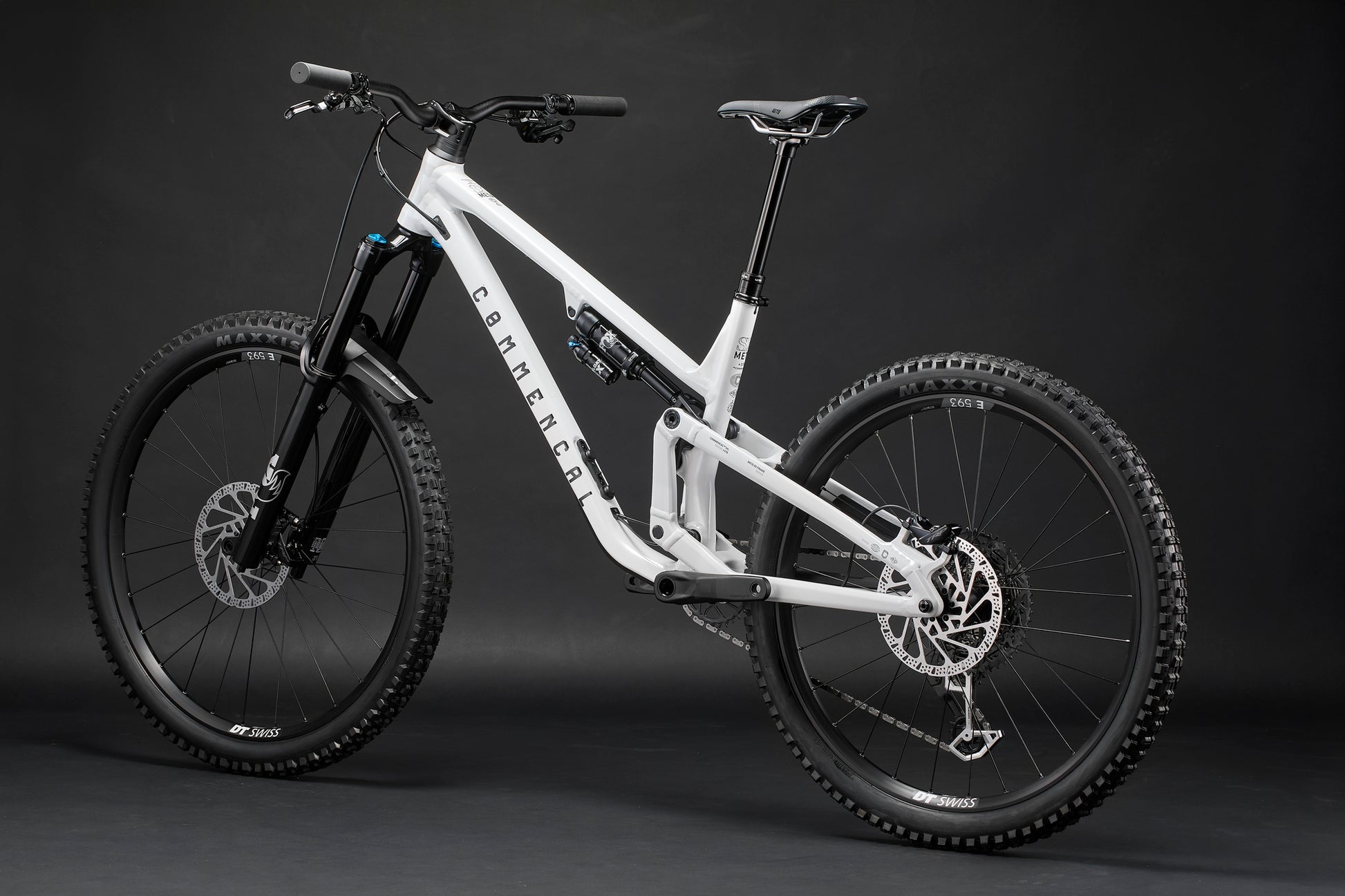

Commencal Meta SX V5 MX - Essential - Pure White
The META SX V5 is driven before its ridden. The 165mm of travel is combined with our VCS kinematics with virtual pivot point. Ready to be pinned and with monstrous grip, it is the ideal tool for riders looking for a mountain bike that feels like a mini-downhill rig in the bike park or on steep trails.
The META SX V5 ESSENTIAL offers an efficient and robust configuration to exploit the 165 mm of travel of the META SX V5 frame.
• The new FOX 38 Performance (170 mm) combined with the FOX Float X Performance shock absorber offers support and comfort for aggressive descents while maintaining pedaling dynamism.
• Braking is ensured by the new TRP DHR EVO PRO 4-piston with TRP 203/203 mm discs, guaranteeing power and consistency.
• DT SWISS E593 wheels mounted on DT SWISS 370 hubs provide robustness and reliability for intensive use.

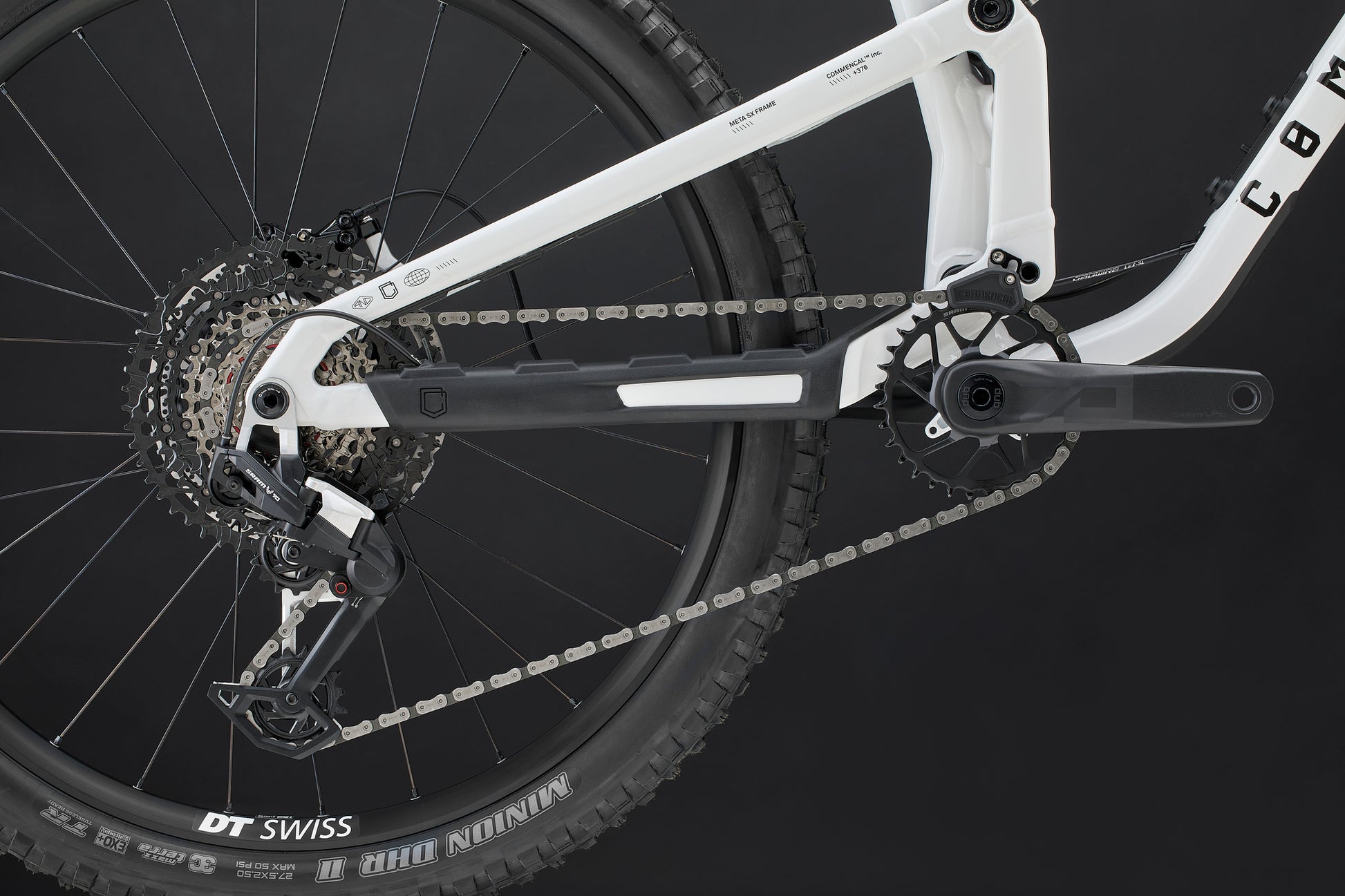

• The SRAM Eagle 90 12-speed drivetrain, combined with the SRAM Eagle 70 crankset and XS 1270 10-52t cassette, ensures versatility and efficiency on all terrains.
Specifications
| Frame | |
|---|---|
| Model | META SX, 165 mm travel |
| Wheel Compatibility | 29''-27.5'', Alloy 6066, triple butted tubes, T4, T6 |
| Suspension | |

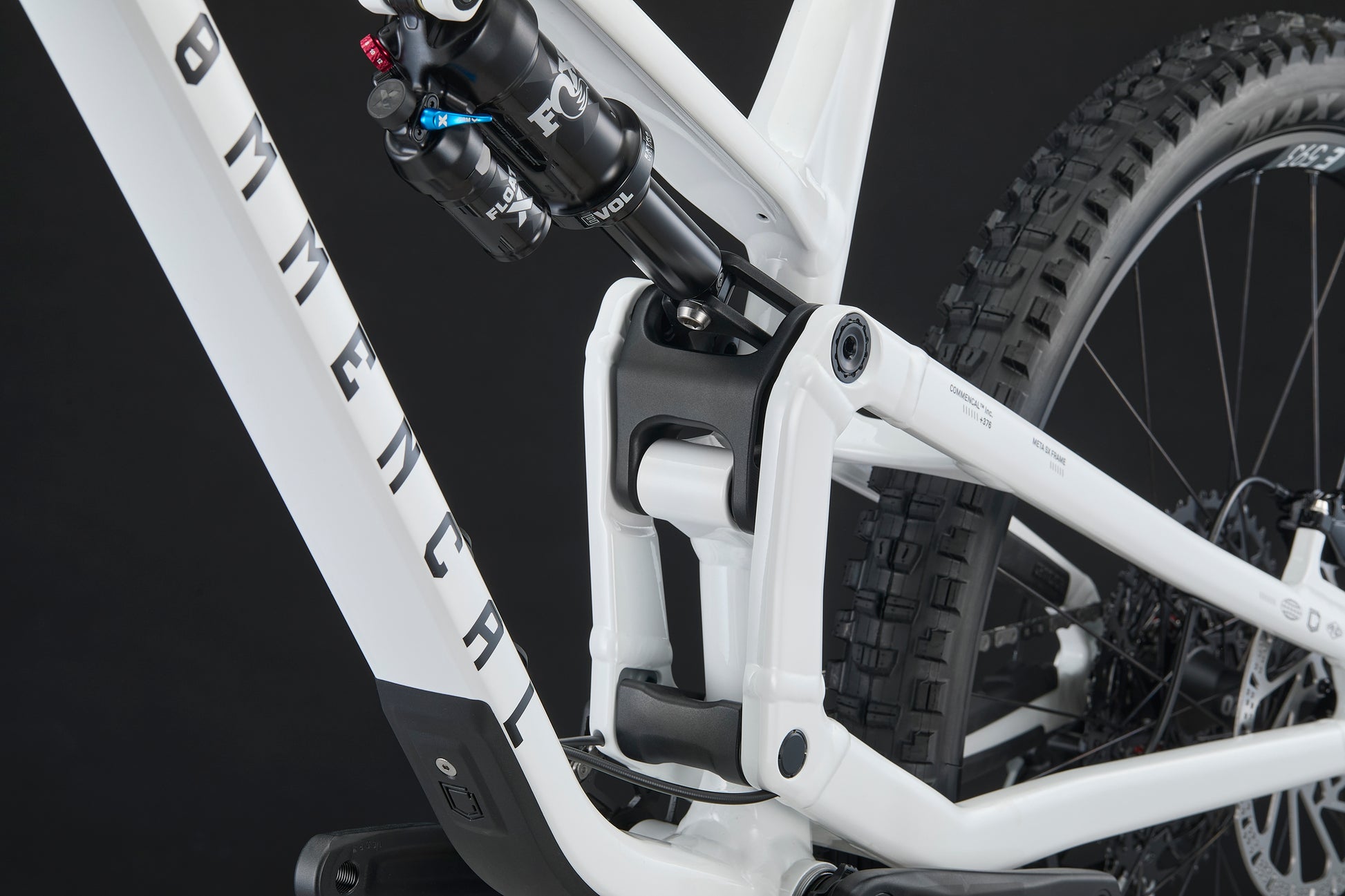

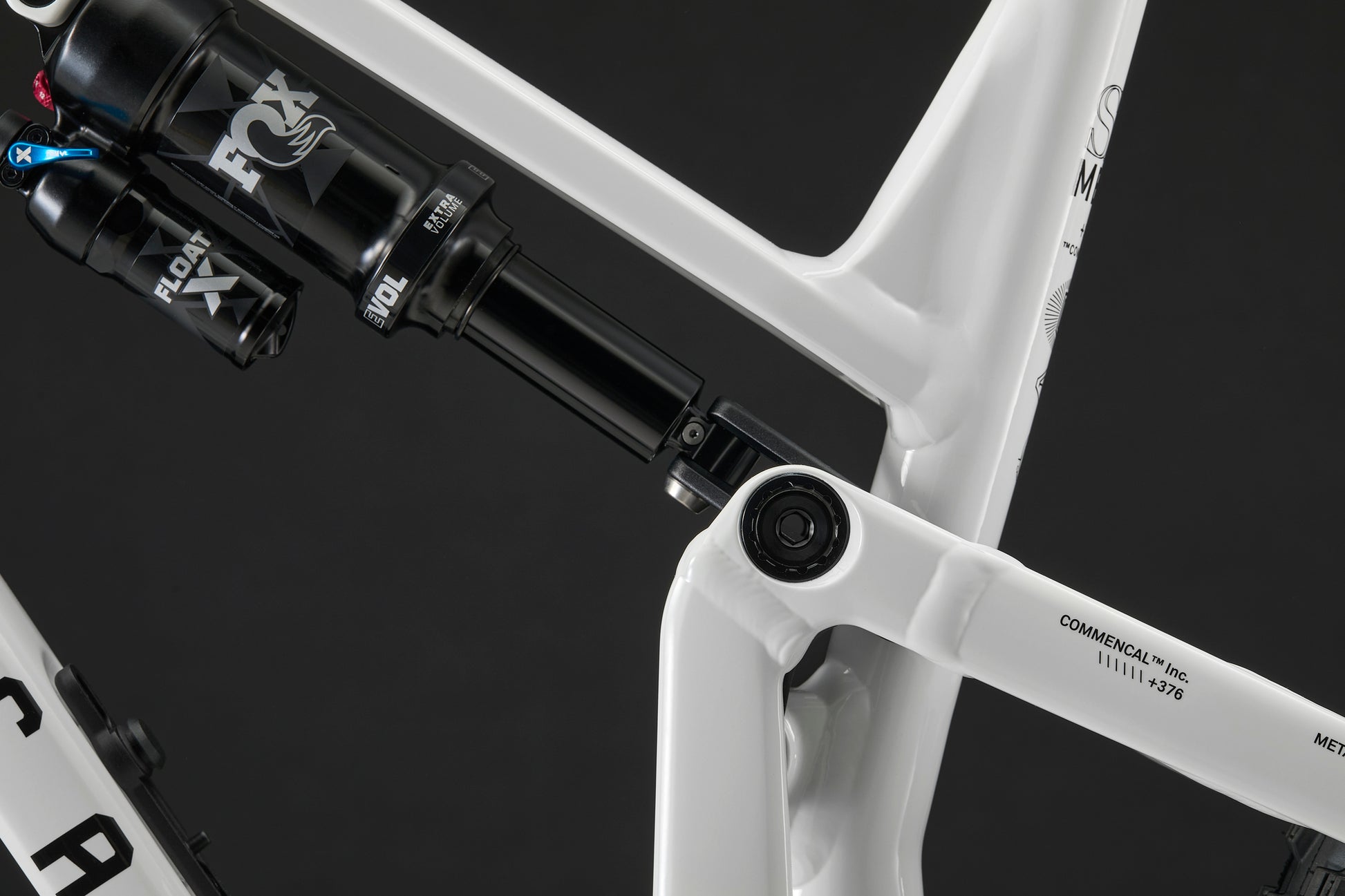

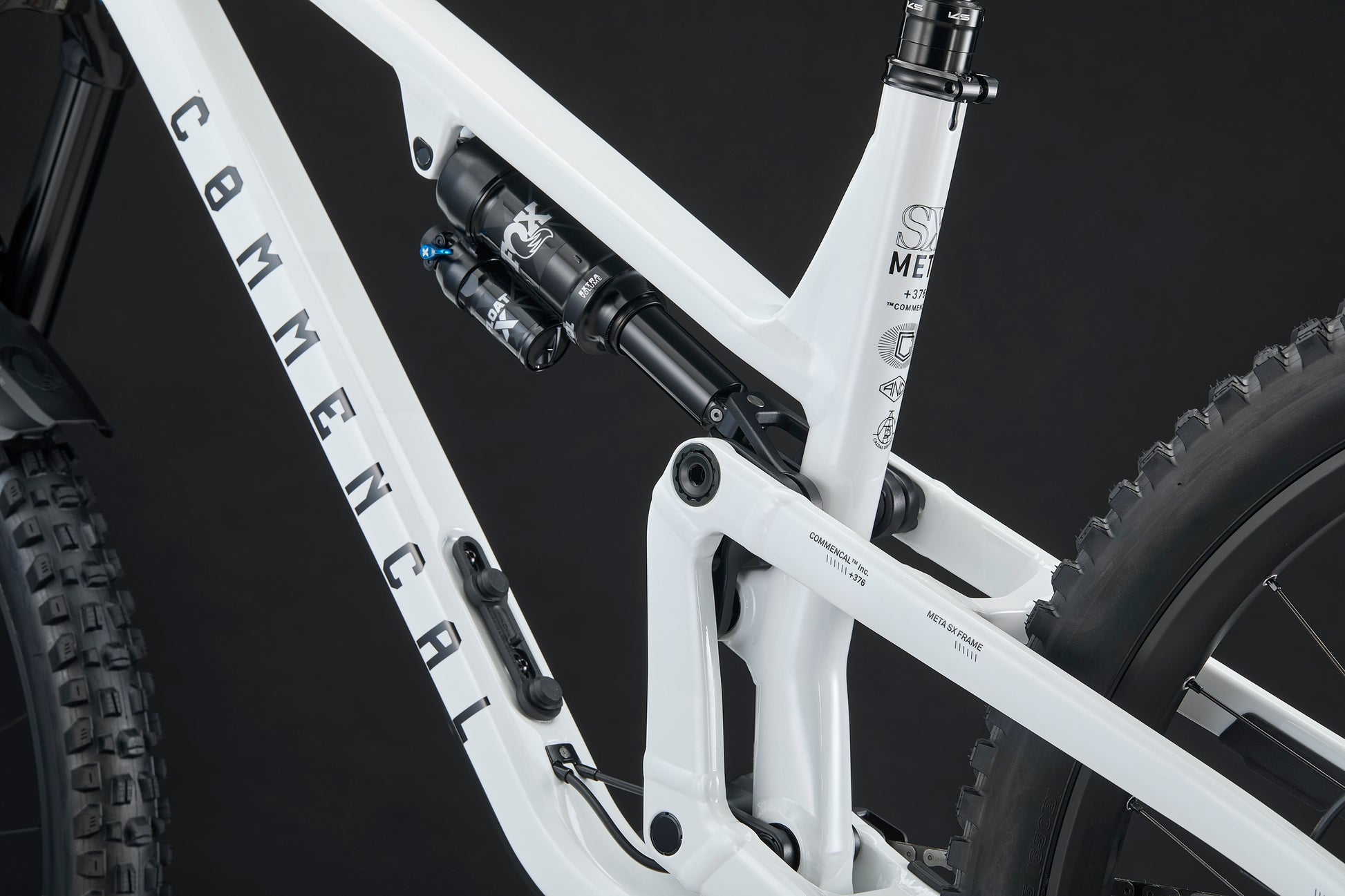

| Shock | FOX Float X Performance 2027, 230 x 65 mm, 2-pos lever, rebound, 0.6ci spacers |

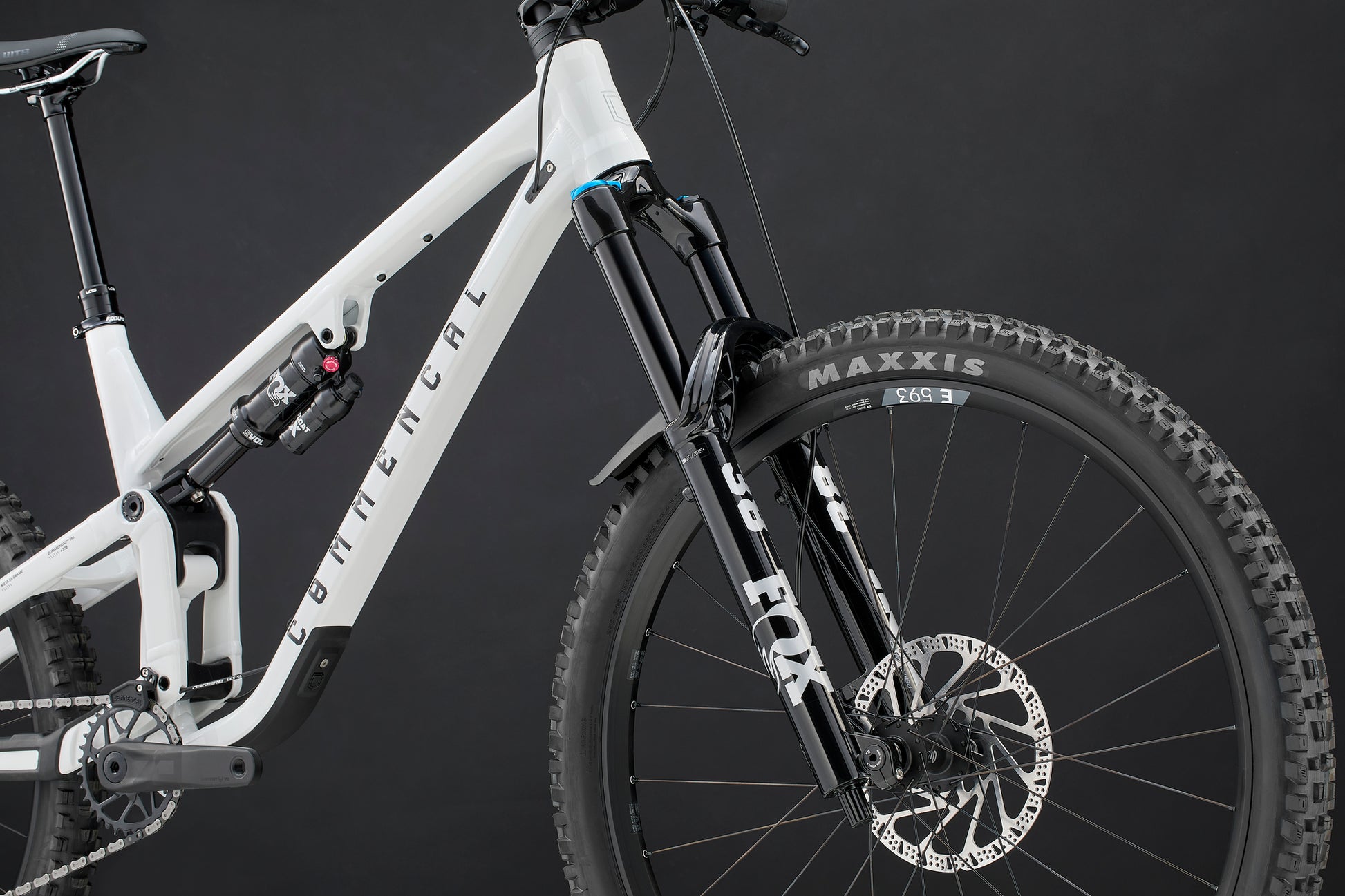

| Fork | FOX 38 Performance 2027, 170 mm travel, 29", Fit Grip damper, 3 positions, rebound, Boost (15 x 110 mm), 44 mm offset, 2 Tokens |
| Headset & Stem | |
| Headset | ACROS ZS56/ZS56, Alloy cups, sealed bearings |
| Stem | RIDE ALPHA 40, 40 mm extension, 31.8 mm |

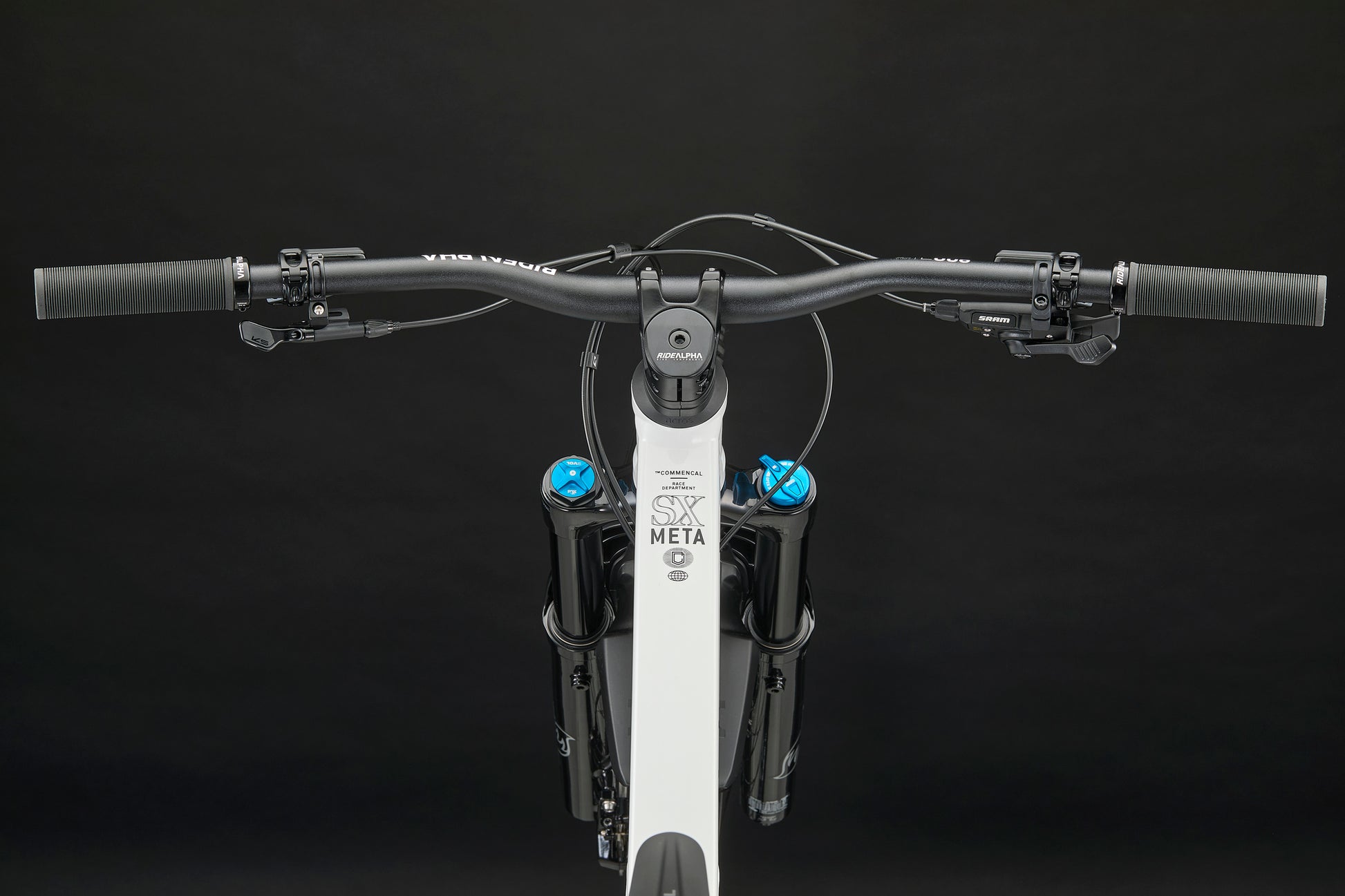

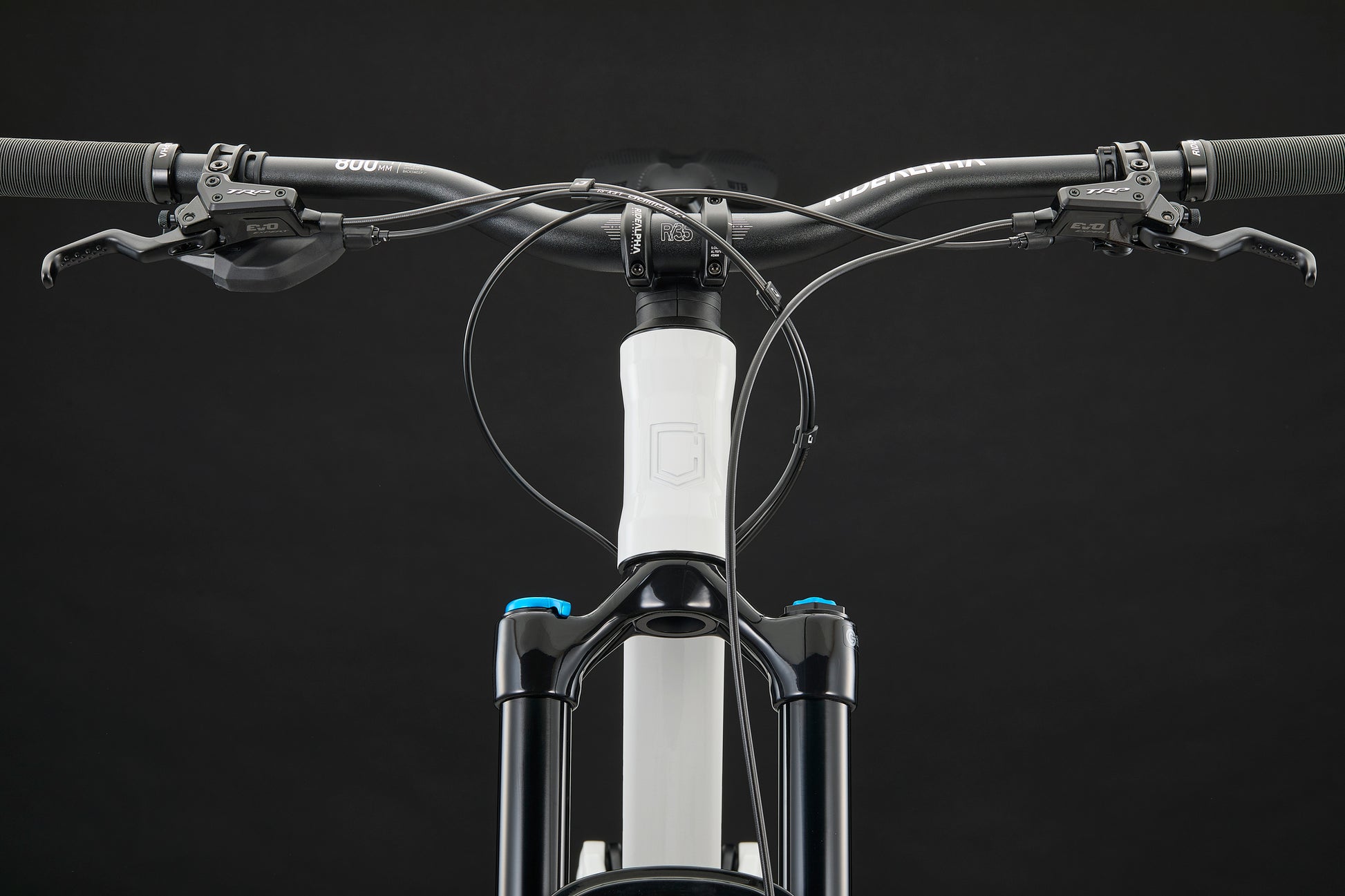

| Handlebar & Grips | |
| Handlebar | RIDE ALPHA R20 760 (S), R27 780 (M), R27 800 (L/XL); 31.8 mm, 760-800 mm width, 20-35 mm rise, Alloy 6061 |
| Grips | ODI Longneck V2.1, Black clamp |
| Brakes & Chain Guides | |
| Brakes | TRP EVO Expert, 4 pistons |
| Chainring | TRP RS06E 203 mm, 6 holes |
| Shifters | SRAM Eagle 90, 12s |
| Chain guide | RIDE ALPHA, 32t-34t |
| Rear Derailleur | SRAM Eagle 90, 12s |
| Bottom Bracket & Crankset | |
| Bottom Bracket | SRAM DUB92, MTB Wide, Pressfit |
| Crankset | SRAM Eagle 70, 165 mm crank arms, Boost, 32t Chainring with Dynamic Engagement Technology |
| Chain | SRAM Eagle 70, 12s |
| Cassette | SRAM XS1270, 12s, 10-52t |
| Wheels & Tires | |
| Rims | DT SWISS E 593; Rear: 27.5", 32h, 30 mm inner width; Front: 29", 32h, 30 mm inner width |
| Hubs | DT SWISS 370; Rear: 12 x 148 mm, sealed bearings; Front: 15 x 110 mm, sealed bearings |
| Spokes/Nipples | DT SWISS Competition, Black, double butted, stainless |
| Tyres | Rear: MAXXIS DHR II 27.5"x2.5" WT, 3C MaxxTerra, Tubeless Ready; Front: MAXXIS Assegai 29"x2.5" WT, 3C MaxxGrip, Tubeless Ready |
| Seat & Post | |
| Seat Post | KS Ragei, 34.9 mm, travel: 150 mm (S), 170 mm (M), 190 mm (L/XL), I-Spec EV SouthPaw remote |
| Saddle | WTB Solano, Crmo rails, 142 x 240 mm |
| Additional Info | |
| Weight | 16.7 kg / 36.81 lb (approx.) |
| Pedals | No |
| Color | Pure White, Shiny Finish |
| Accessories | Down tube protector, chainstay protector, seatstay protector, pick up pad, fork fender, FIDLOCK Base |
Additional Info
| Bicycle Type | Enduro / Freeride |
| Frame Material | AL 6066 T4, T6 |
| Frame Weight | 4.08 kg / 8.99 lb |
| Rear Travel | 165mm |
| Shock Length/Stroke | 230x65mm |
| Recommended SAG | 27-30% / 18-20mm |
| Piggy Back Shock Compatible | Yes |
| Shock Bushings | 20x10mm / no bushing needed on clevis |
| Recommended/Max. Fork Height | 586mm / 598mm |
| Headset Type | ZS56 / ZS56 |
| ICR Compatible | Yes |
| Wheels Size | 29’’ - 27.5’’ |
| Max Rear Tyre Dimension (ETRTO) | 65mm - Ø584mm |
| Rear Brake Mounting Type | Postmount 200mm |
| Rear Brake Rotor Max Size | 223mm |
| Seatpost/Seat Clamp Diameter | 34.9mm / 38.5mm |
| Seatpost Insertion Max | S: 230mm, M: 270mm, L: 290mm, XL: 310mm |
| Bottom Bracket Type | Press Fit BB 92mm |
| Chain Guide | ISCG 05 lower - Custom upper guide |
| Recommended/Max Chainring Teeth | 32T / 34T |
| Chain Line | 55 |
| Rear Hub Dimension | 148x12mm |
| Rear Axle Dimension | UDH standard, 180mm, M12, P1.0mm |
| UDH Hanger | Yes |
| Shock Anchor Adjustment | No |
