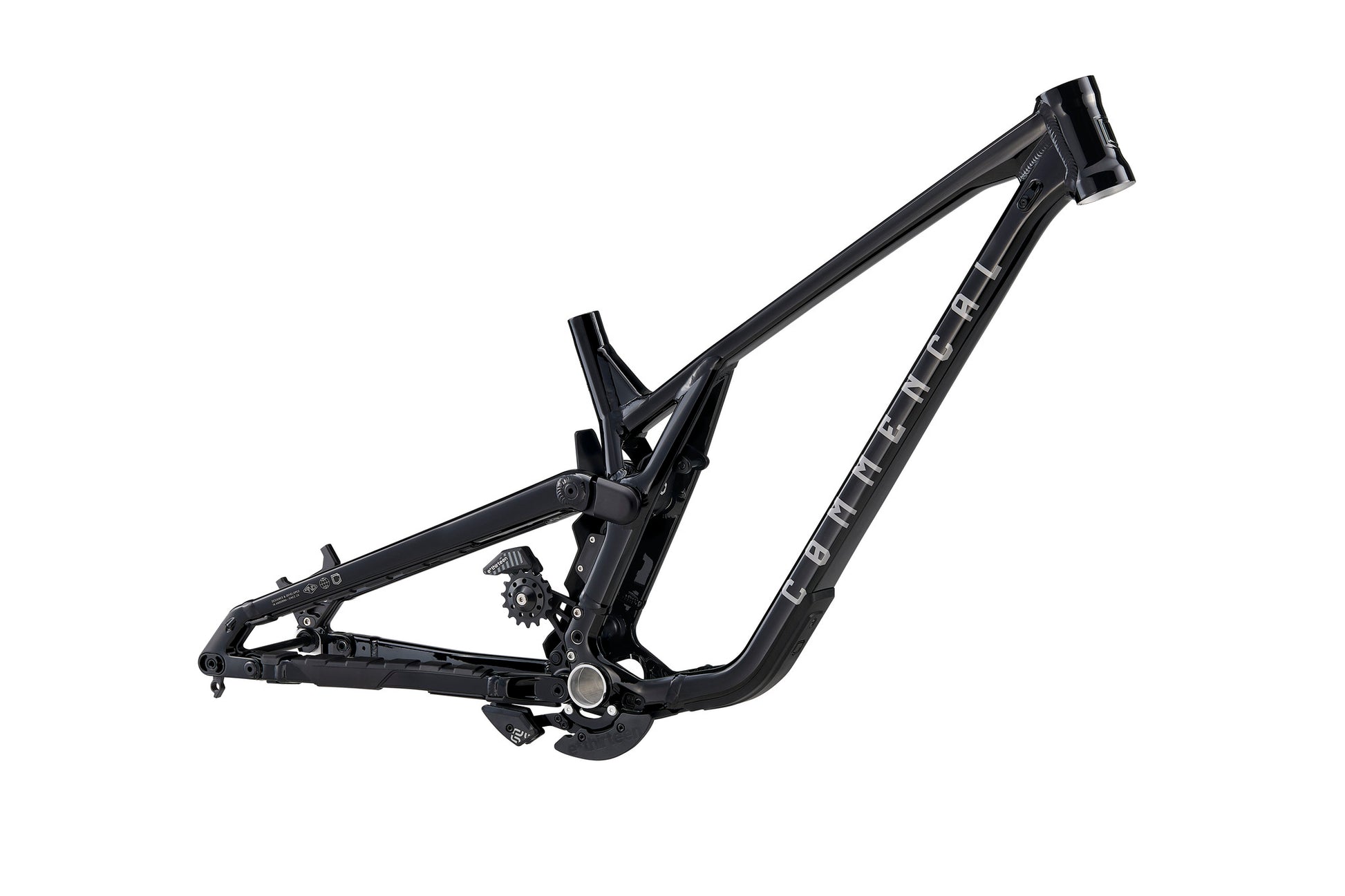

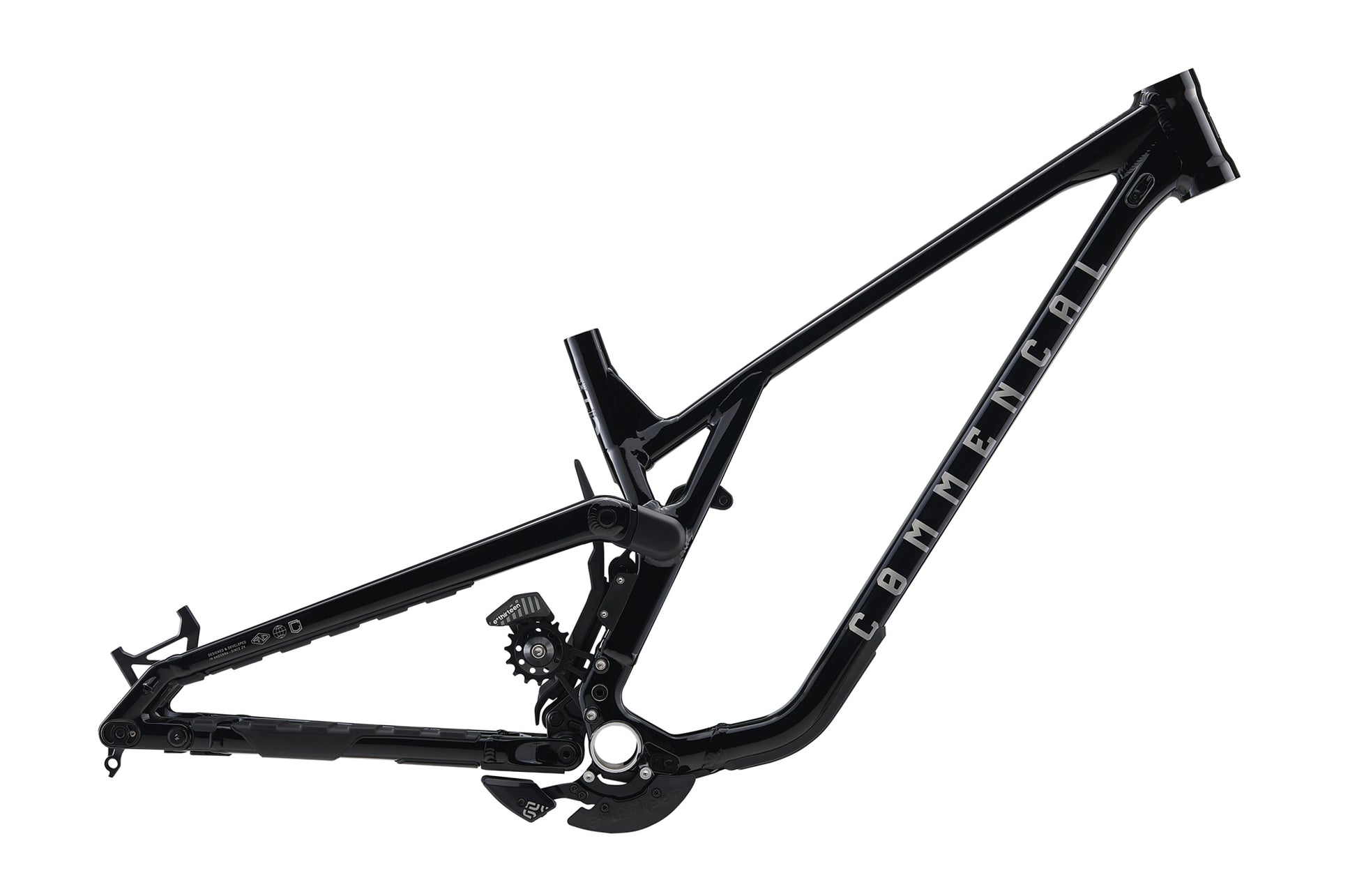

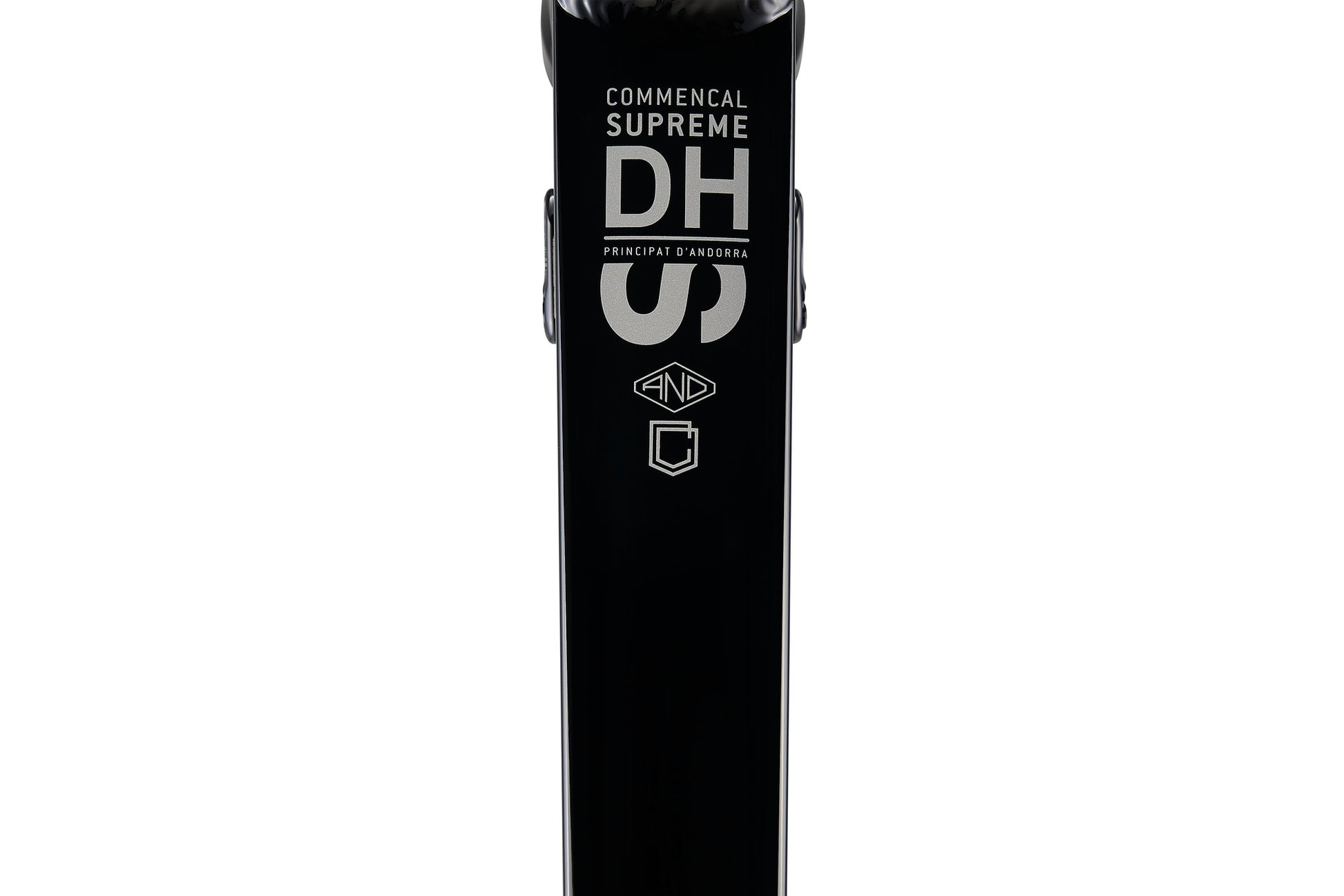

Commencal Supreme DH V5 Frame

The SUPREME DH V5 is much more than just a racing bike; it's a true machine designed for competitions. The result of three years of intensive collaboration between our research and development department and top athletes, this model has proven its worth from its very first World Cup season.

⚠️ Frame not compatible with the FOX Float X2 2026 shock

⚠️ Shock Not Included with Frame

Technical Info


Bike/Frame Type	Downhill Racing
Frame Material	AL 6066 T4, T6
Frame Weight	5.3 kg / 11.68 lb
Rear Travel	220mm
Shock Length/Stroke	250x75mm
Recommended SAG	20-25% / 15-19mm
Piggy Back Shock Compatible	Yes
Shock Bushings	30x8mm / 30x8mm
Recommended / Max. Fork Height	612mm / 620mm
Headset Type	ZS56 / ZS56
ICR Compatible	No
Wheels Size	29’’ - 27.5’’
Max Rear Tyre Dimension - ETRTO	65mm - Ø584mm
Rear Brake Mounting Type	Postmount 200mm
Rear Brake Rotor Max Size	223mm
Seatpost / Seat Clamp Diameter	31.6mm / 34.9mm
Seatpost Insertion Max	130mm
Bottom Bracket Type	Press Fit BB 107mm
Chain Guide	ISCG 05 lower - Custom upper idler guide
Recommended / Max. Chainring Teeth	34T / 36T
Chain Line	56.5
Rear Hub Dimension	157x12mm
Rear Axle Dimension	Custom, 200mm, M12, P1.0mm
UDH Hanger	No
Shock Anchor Adjustment	4 positions
Rear Wheel Base Length Adjustment	3 positions
Rear Triangle Stiffness Adjustment	3 thickness

⚠️ Shock Not Included with Frame - Below is a proven and tested Commencal recommendation for this Supreme DH V5 frame.

The FOX DHX2 Factory is the favorite option among riders on the most demanding trails.
Unlike air shocks, the DHX2 offers excellent sensitivity at the beginning of the stroke, increased support and dynamism at mid-stroke, and significantly better heat resistance, ensuring consistent performance throughout the laps.
Thanks to its lightweight steel SLS spring, the DHX2 weighs only 200g more than the FLOAT X2.

Technical specifications:
•  Compression settings: high and low speed
•  Rebound settings: high and low speed with Variable Valve Control
•  FOX Super Light Steel orange spring
•  Weight: 823g

Specifique to Supreme DH:
•  Length and stroke: 250x75mm
•  Bushings: 20x8mm / 30x10mm
•  Spring rate: 525 lbs
