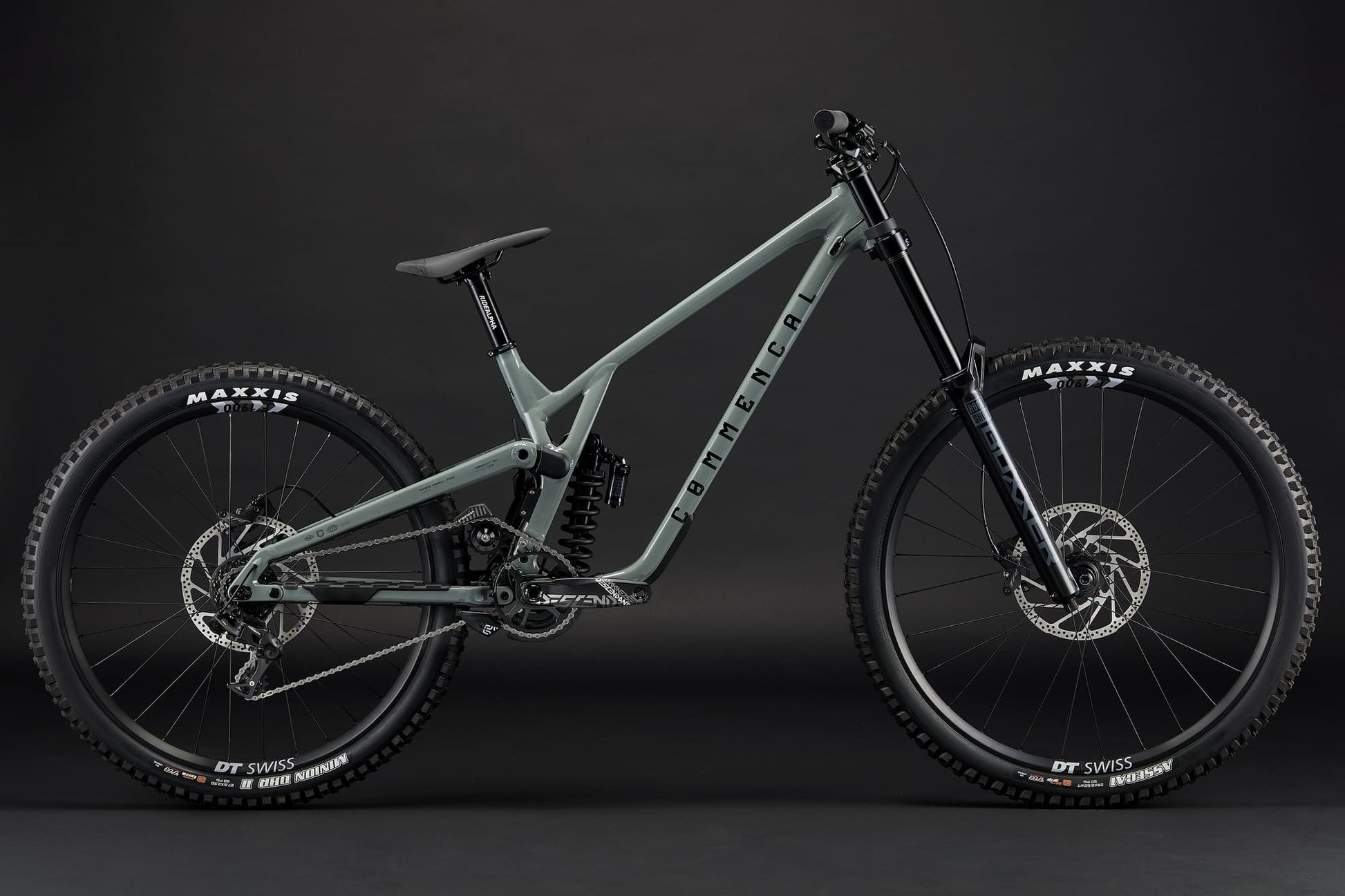

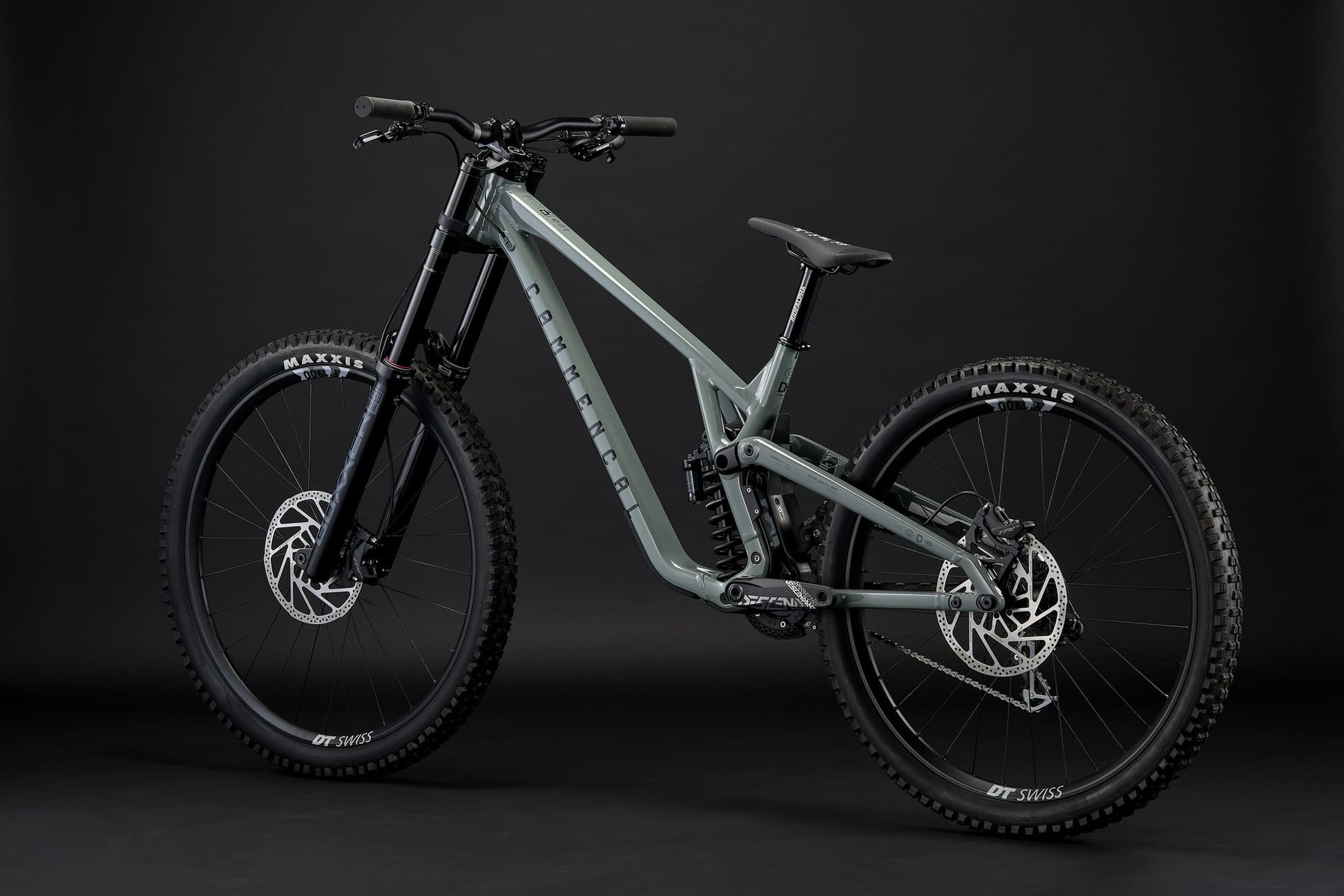

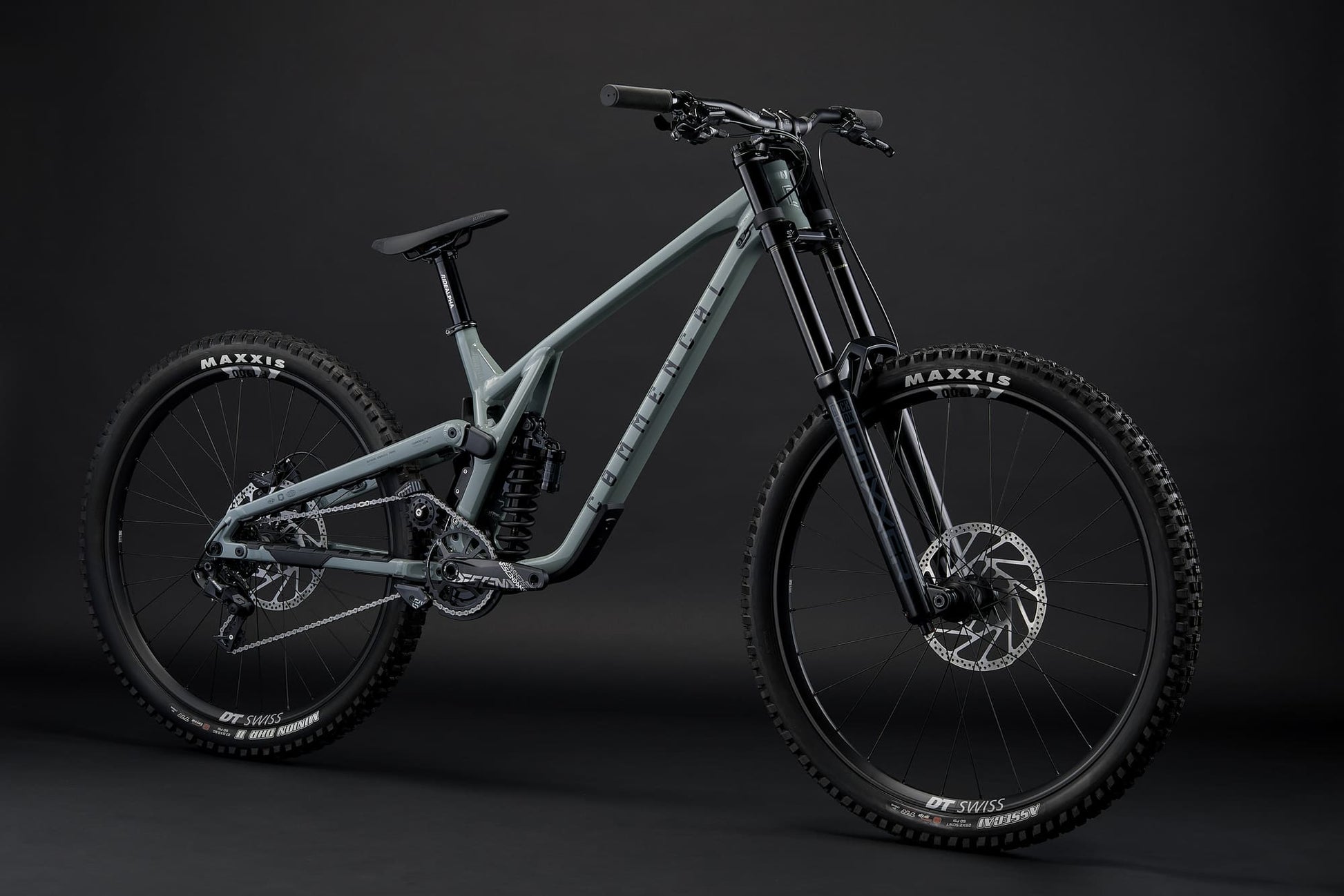

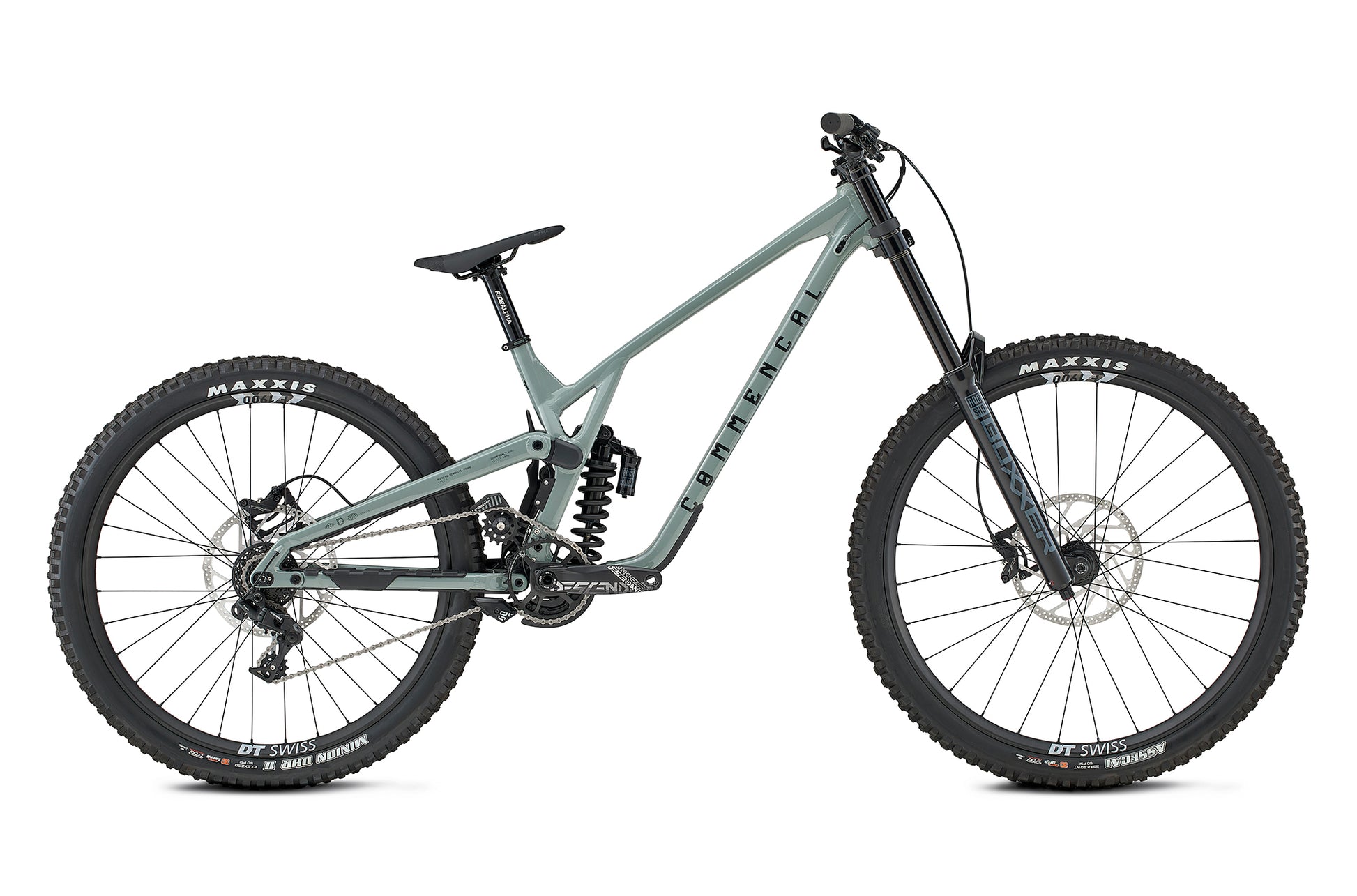

Commencal Supreme DH V5 MX - Ride
The SUPREME DH V5 is much more than just a racing bike; it's a true machine designed for competitions. The result of three years of intensive collaboration between our research and development department and top athletes, this model has proven its worth from its very first World Cup season.
The SUPREME DH V5 RIDE is built with high-performance SRAM components.

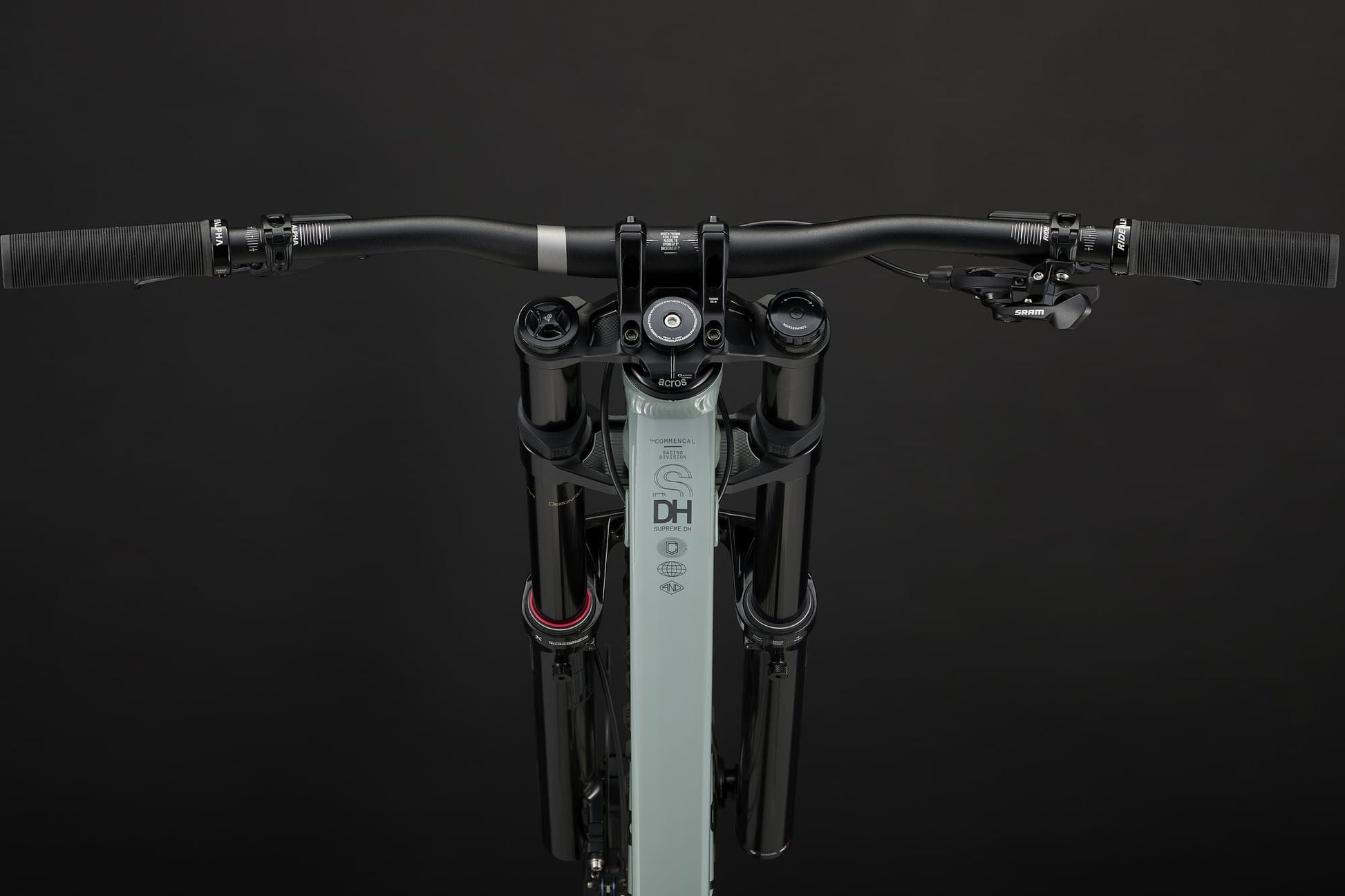

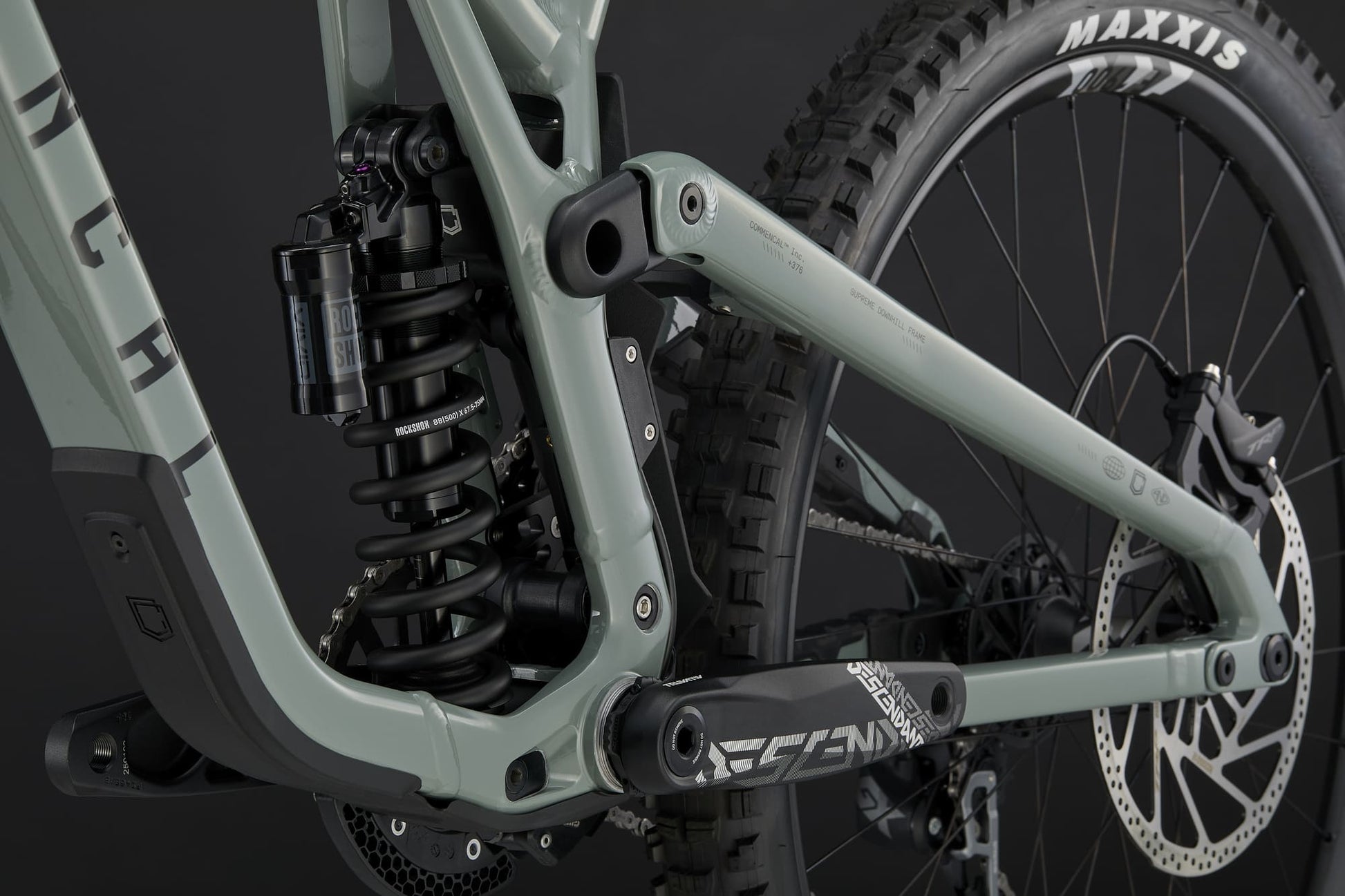

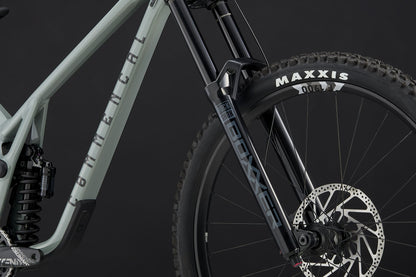

• A ROCKSHOX BoXXer Base fork is proven to be reliable. Equipped with the DebonAir + air spring and a Charger 3 RC cartridge, it offers simple and precise rebound and low-speed compression adjustments. The ROCKSHOX Vivid Coil Base shock combines impeccable sensitivity and excellent mid-stroke support thanks to its coil spring.

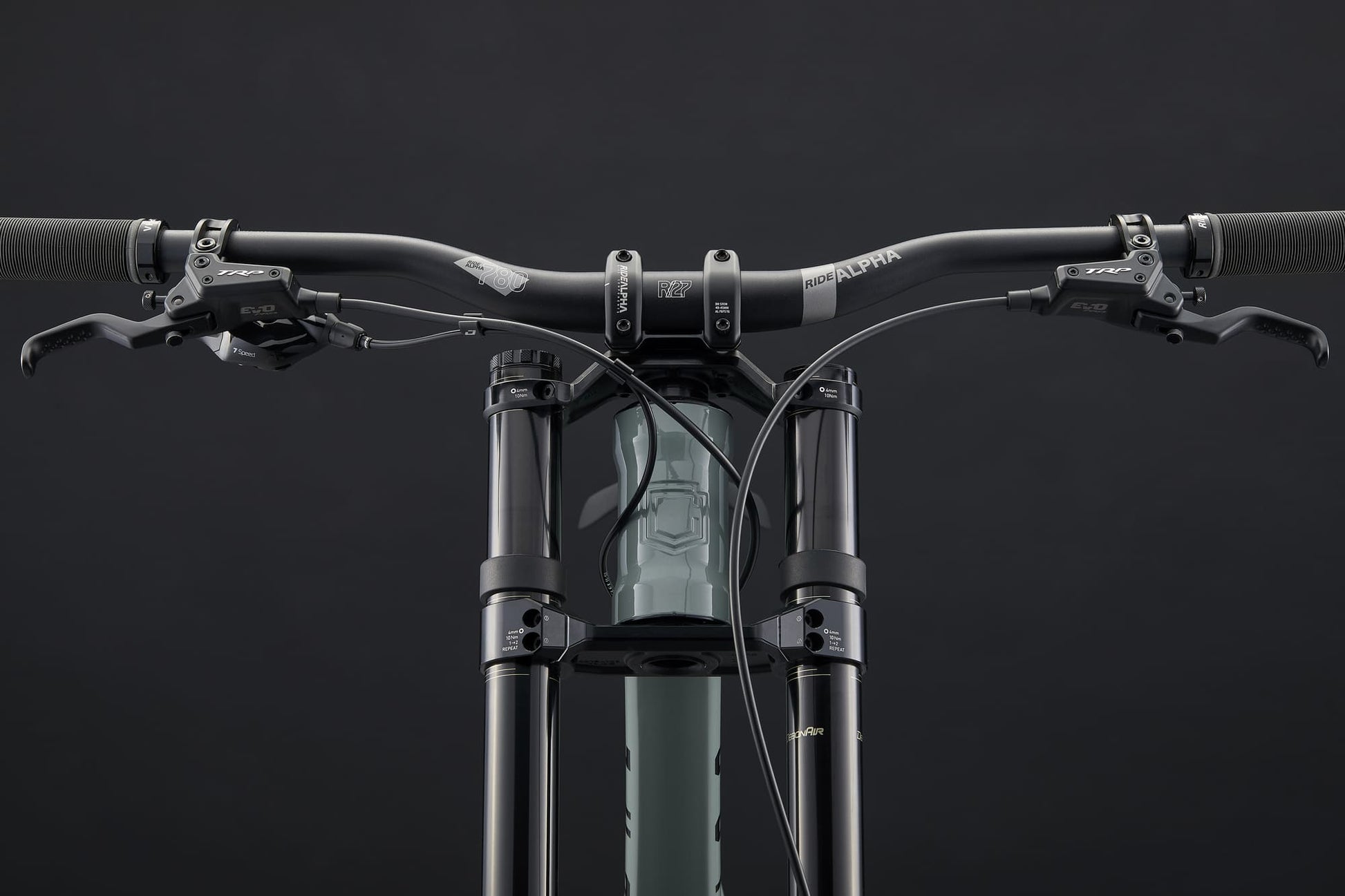

• TRP DH-R EVO PRO brakes are matched to the new discs with improved bite and heat dissipation. They are progressive, consistent, and easy to use.
• DT SWISS wheels with F1900 Classic rims and hubs provide dynamism and reliability.

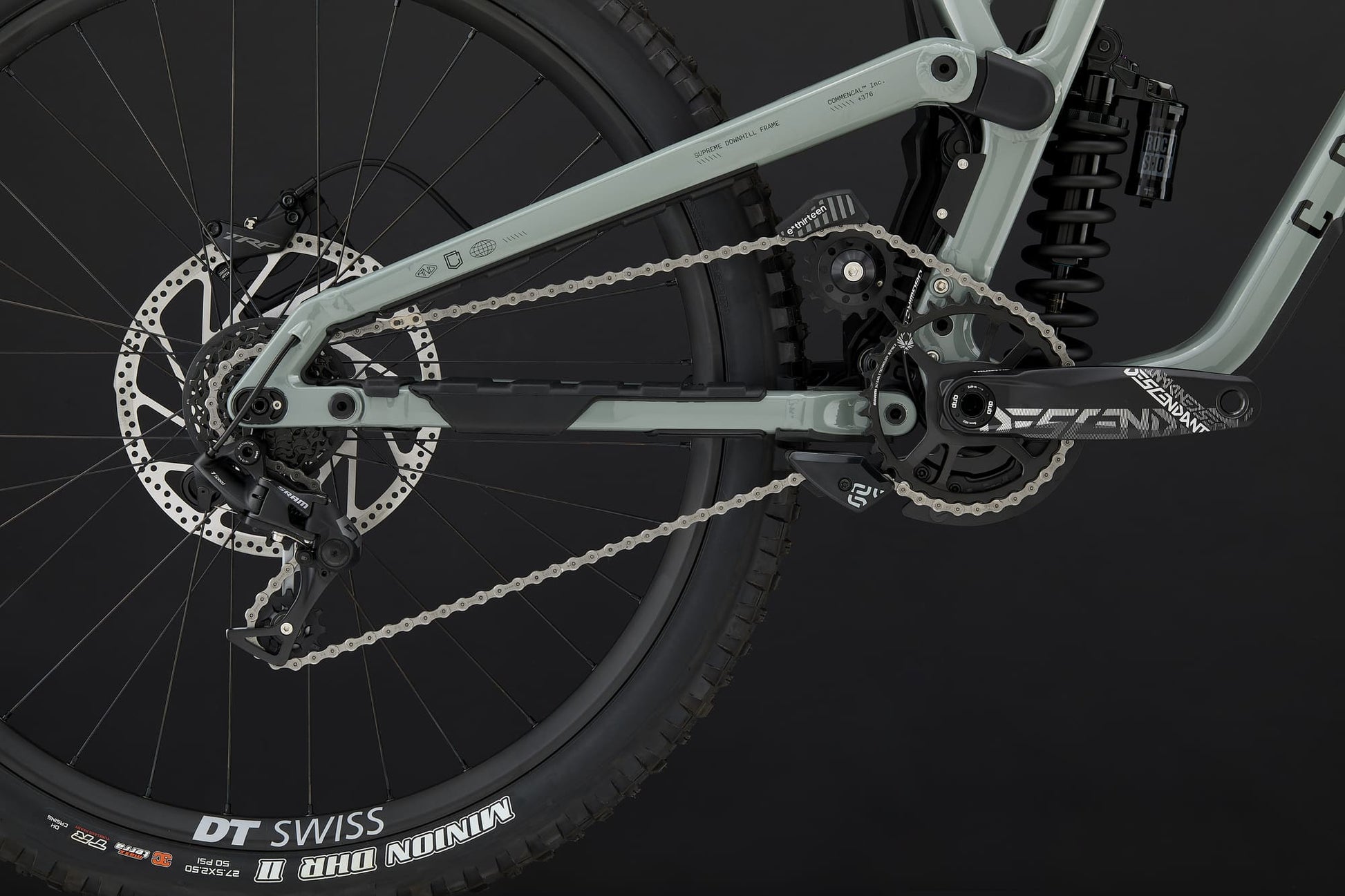

• The SRAM GX DH drivetrain has precise 7-speed shifting and is ideal for downhill riding.
Specifications
| Frame | |
|---|---|
| Model & Travel | SUPREME DH V5, 220mm, 29/27.5", Alloy 6066, triple butted, T4/T6 |
| Shock | |

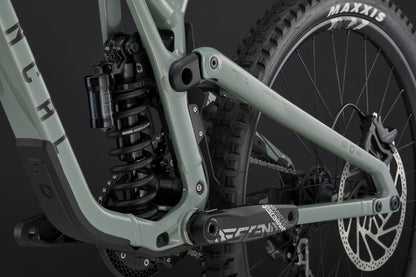

| Model & Size | ROCKSHOX VIVID Coil Base, 250x75mm, R damper, rebound, Spring rates: S-400 lbs, M-450 lbs, L-500 lbs, XL-550 lbs |
| Fork | |

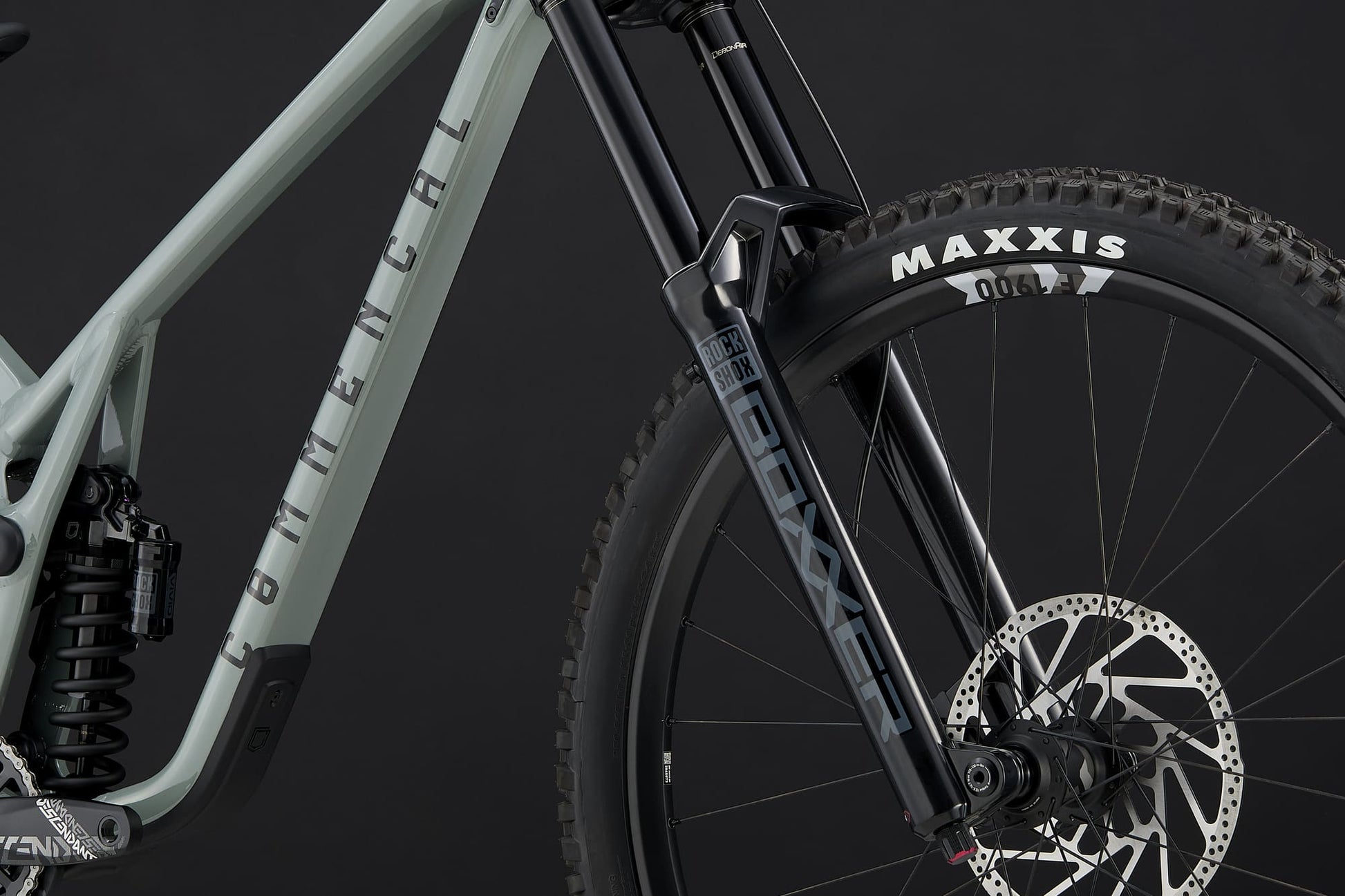

| Model & Travel | ROCKSHOX BOXXER Base, 200mm |
| Specs | Charger 3 RC damper, DebonAir +, rebound, LSC, Boost 20x110mm, 52mm offset, 0 Token |
| Headset & Stem | |
| Headset | ACROS ZS56 / ZS56, sealed bearings |

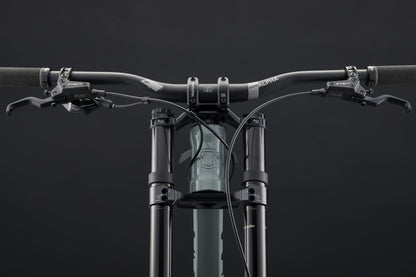

| Stem | RIDE ALPHA DH 40, 40mm, direct mount, 31.8mm |
| Handlebar & Grips | |

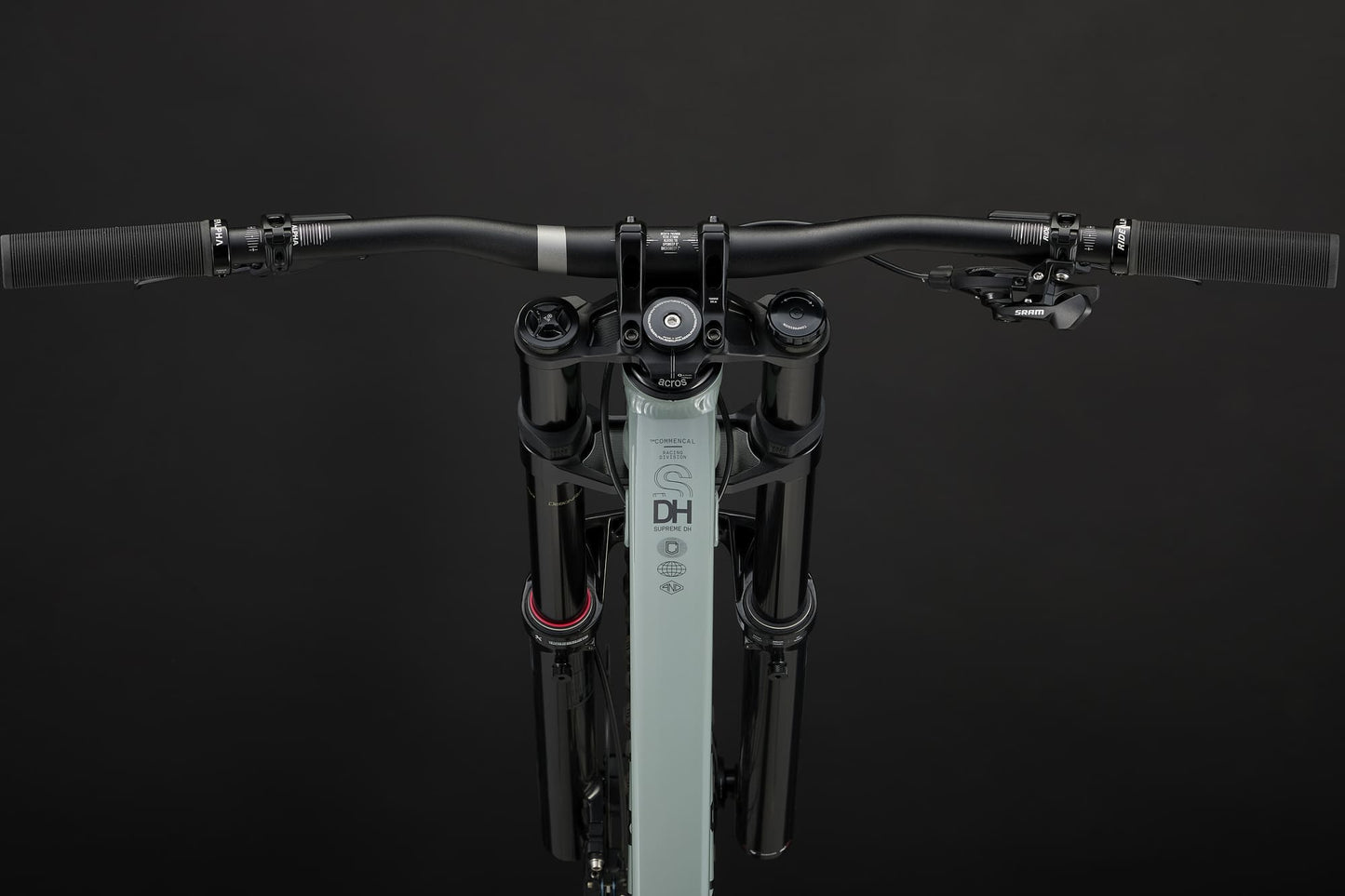

| Handlebar | RIDE ALPHA R27, 31.8mm, 780mm (S/M/L), 800mm (XL), 27mm rise, Alloy 6061 |
| Grips | RIDE ALPHA Mushroom, 132mm, Black clamp |
| Brakes & Rotors | |

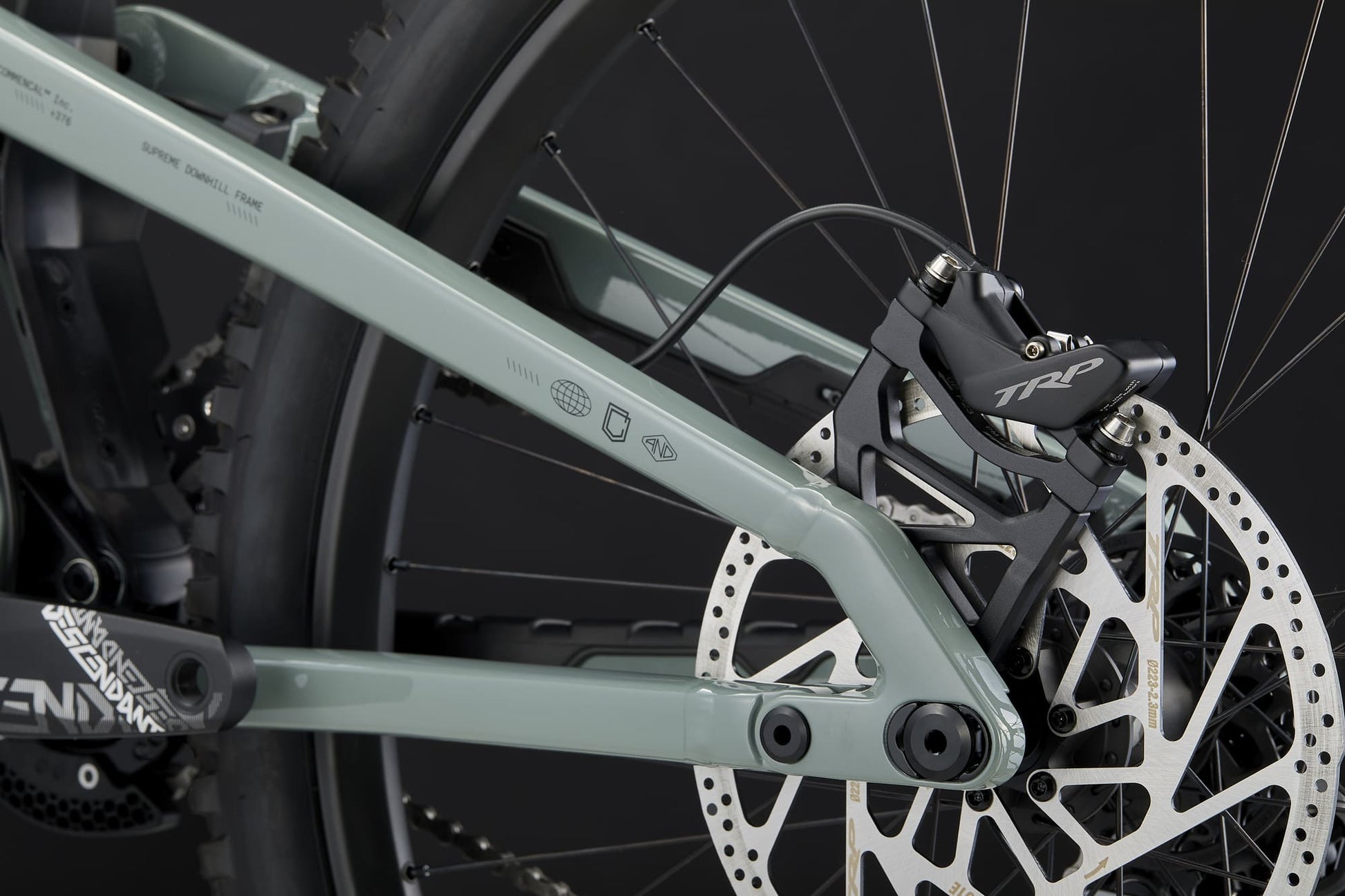

| Brakes | TRP DH-R EVO PRO, 4 pistons, resin pads |
| Rotors | TRP R2 223mm, 6-bolt, 2.3mm thickness |
| Shifters & Derailleurs | |
| Shifters | SRAM GX DH, 7s |
| Rear Derailleur | SRAM GX DH, 7s |

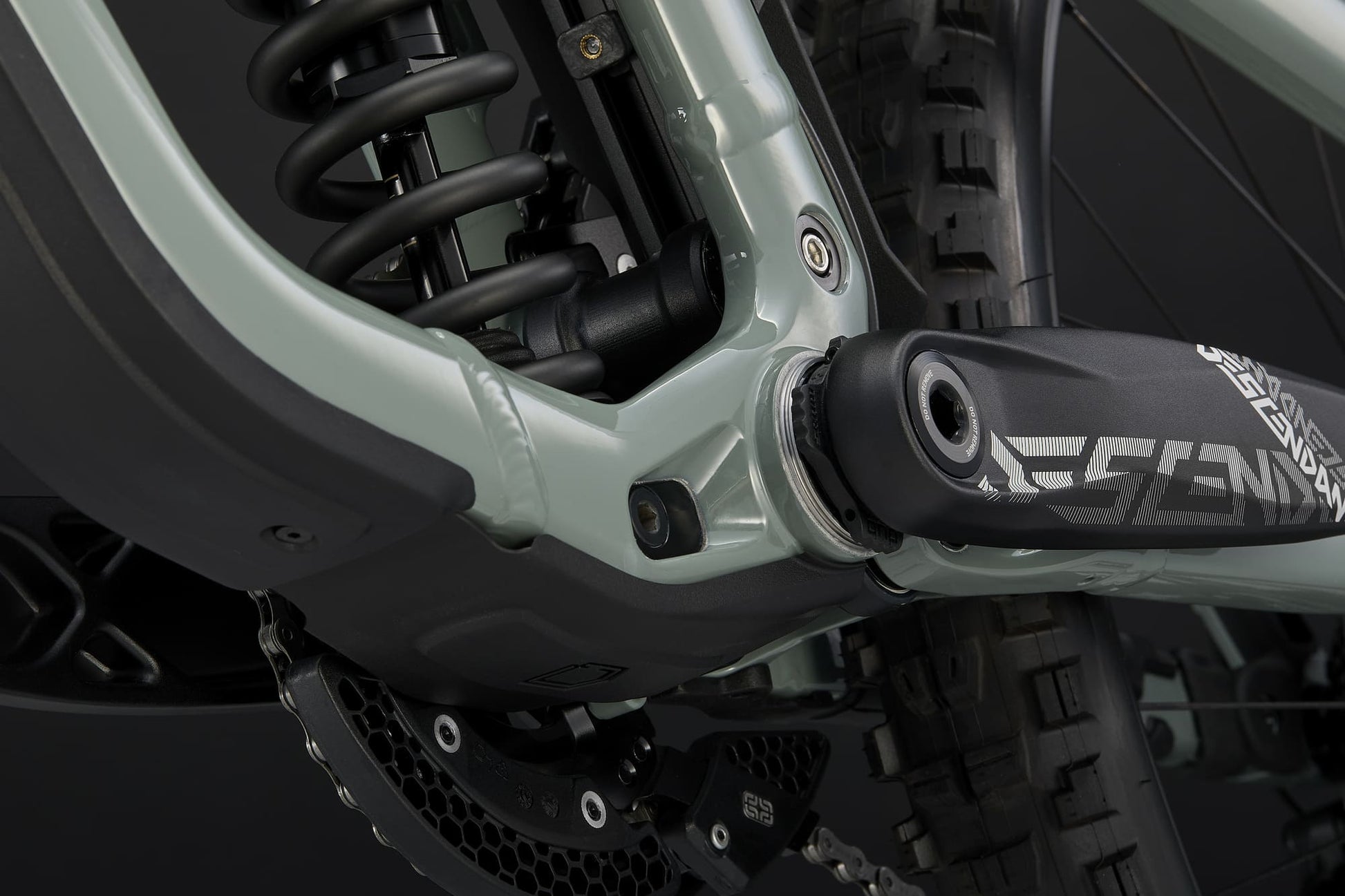

| Chain Guide | E13 LG1, 32-34t |
| Chain & Cassette | SRAM PC1110, 11s, Black; SRAM PG-720, 7s, 11-25t |
| Wheels & Tires | |
| Rims | DT SWISS F1900 Classic, Rear: 27.5", 32h, 30mm inner; Front: 29", 32h, 30mm inner |
| Hubs | DT SWISS 370 Classic LN, Rear: 12x157mm, sealed, 18t ratchet; Front: 20x110mm sealed |
| Spokes/Nipples | DT SWISS Competition, J-Bend, 2.0-1.8-2.0mm, stainless, with ProLock, black |
| Tyres | Rear: MAXXIS Minion DHR II 27.5" x 2.5", 3C MaxxTerra, DH Casing, Tubeless; Front: MAXXIS Assegai 27.5" x 2.5", 3C MaxxGrip, DH Casing, Tubeless |
| Seat & Pedals | |
| Seat Post | RIDE ALPHA, 31.6mm, 250mm length |
| Saddle | FIZIK Gravita Alpaca X5, 130mm, alloy rails, Team edition |
| Weight | 18.6kg / 41 lbs (approx.) |
| Pedals | Not included |
| Color & Accessories | |
| Color | Pyrite Grey, Shiny Finish |
| Accessories | Chainstay protector, seatstay protector, fork bumpers, downtube protector |
Technical Info
| Bike & Frame | |
|---|---|
| Type | Downhill Racing |
| Material | AL 6066 T4, T6 |
| Weight | 5.3 kg / 11.68 lb |
| Suspension & Travel | |
| Rear Travel | 220mm |
| Shock | 250x75mm, Piggyback compatible, Bushings 30x8mm |
| SAG | 20-25% / 15-19mm |
| Shock Bushings | 30x8mm / 30x8mm |
| Geometry & Compatibility | |
| Fork Height | 612mm / 620mm |
| Headset | ZS56 / ZS56, sealed bearings |
| ICR Compatibility | No |
| Wheel Size | 29" - 27.5" |
| Max Tyre (ETRTO) | 65mm - Ø584mm |
| Rear Brake Mount | Postmount 200mm |
| Max Rotor Size | 223mm |
| Components & Dimensions | |
| Seatpost/Clamp | 31.6mm / 34.9mm |
| Max Seatpost Insertion | 130mm |
| Bottom Bracket | Press Fit BB 107mm |
| Chain Guide | ISCG 05 lower, Custom upper idler guide |
| Max Chainring | 34T / 36T |
| Chain Line | 56.5mm |
| Rear Hub | 157x12mm |
| Rear Axle | Custom, 200mm, M12, P1.0mm |
| UDH Hanger | No |
| Shock Anchor Adjustment | 4 positions |
| Rear Wheel Base Length Adjustment | 3 positions |
| Rear Triangle Stiffness | 3 thickness levels |
Sizing & Geometry
Commencal

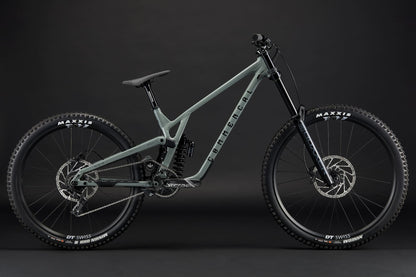

Commencal Supreme DH V5 MX - Ride - Pyrite Grey
