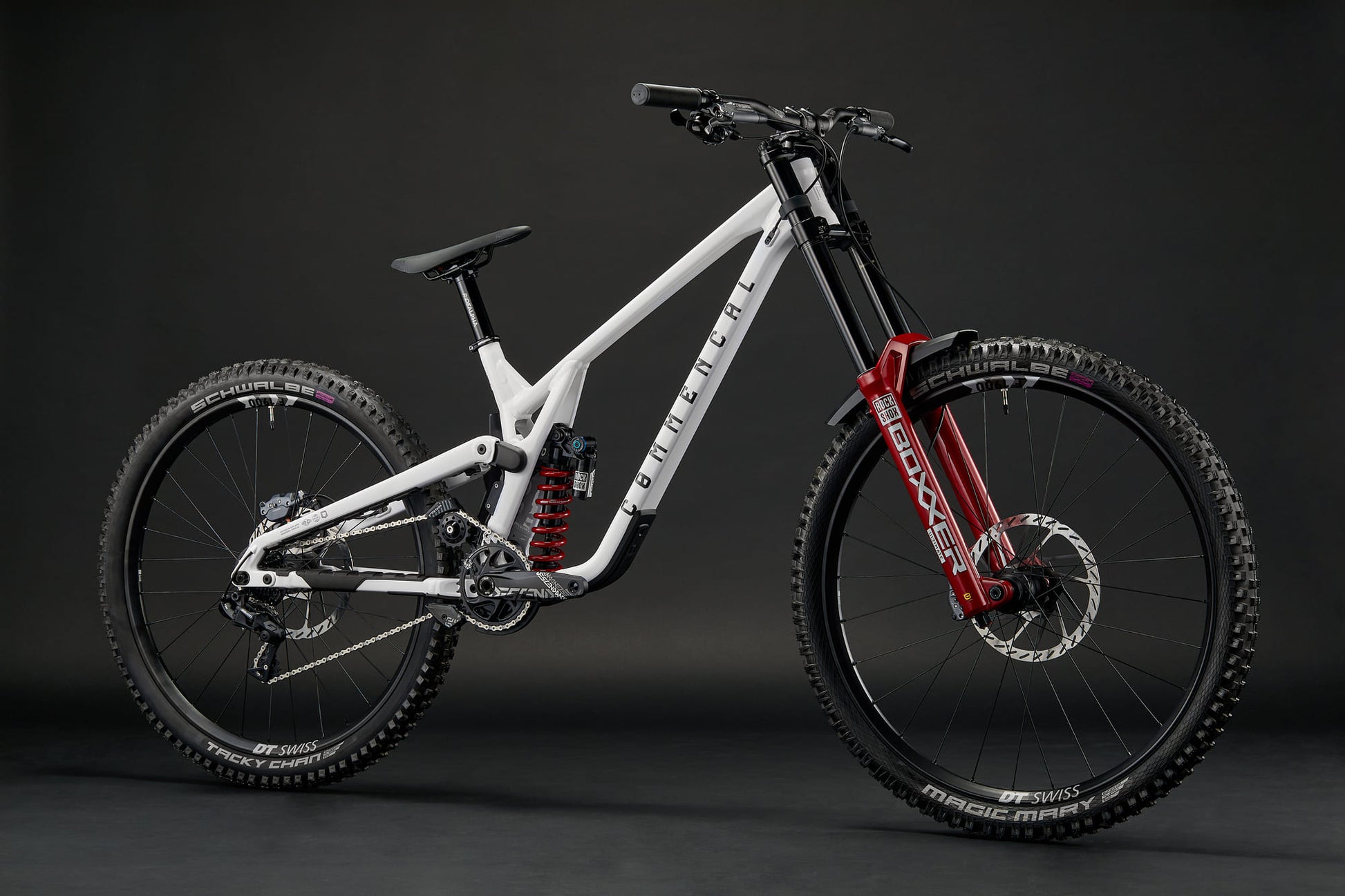

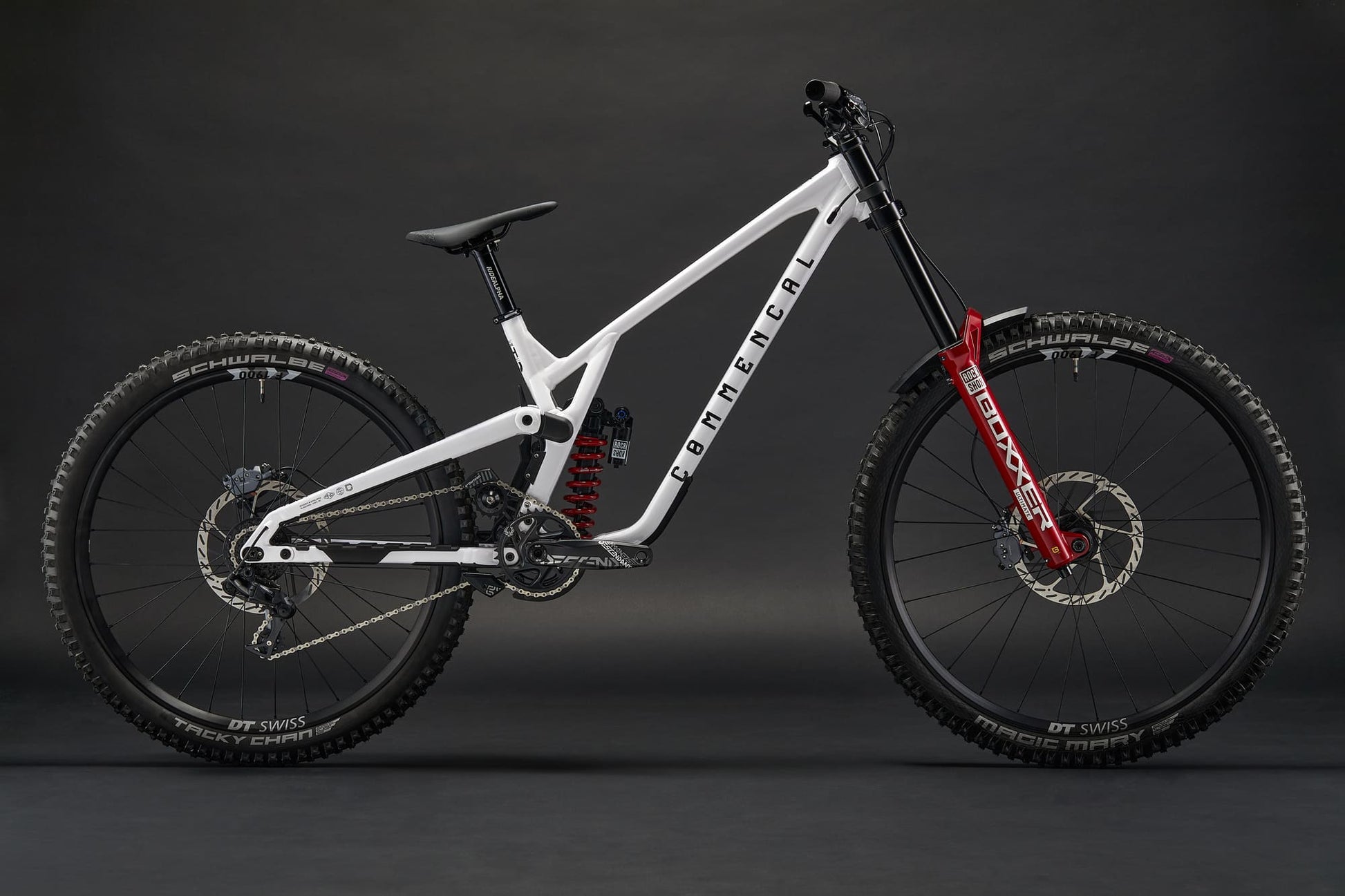

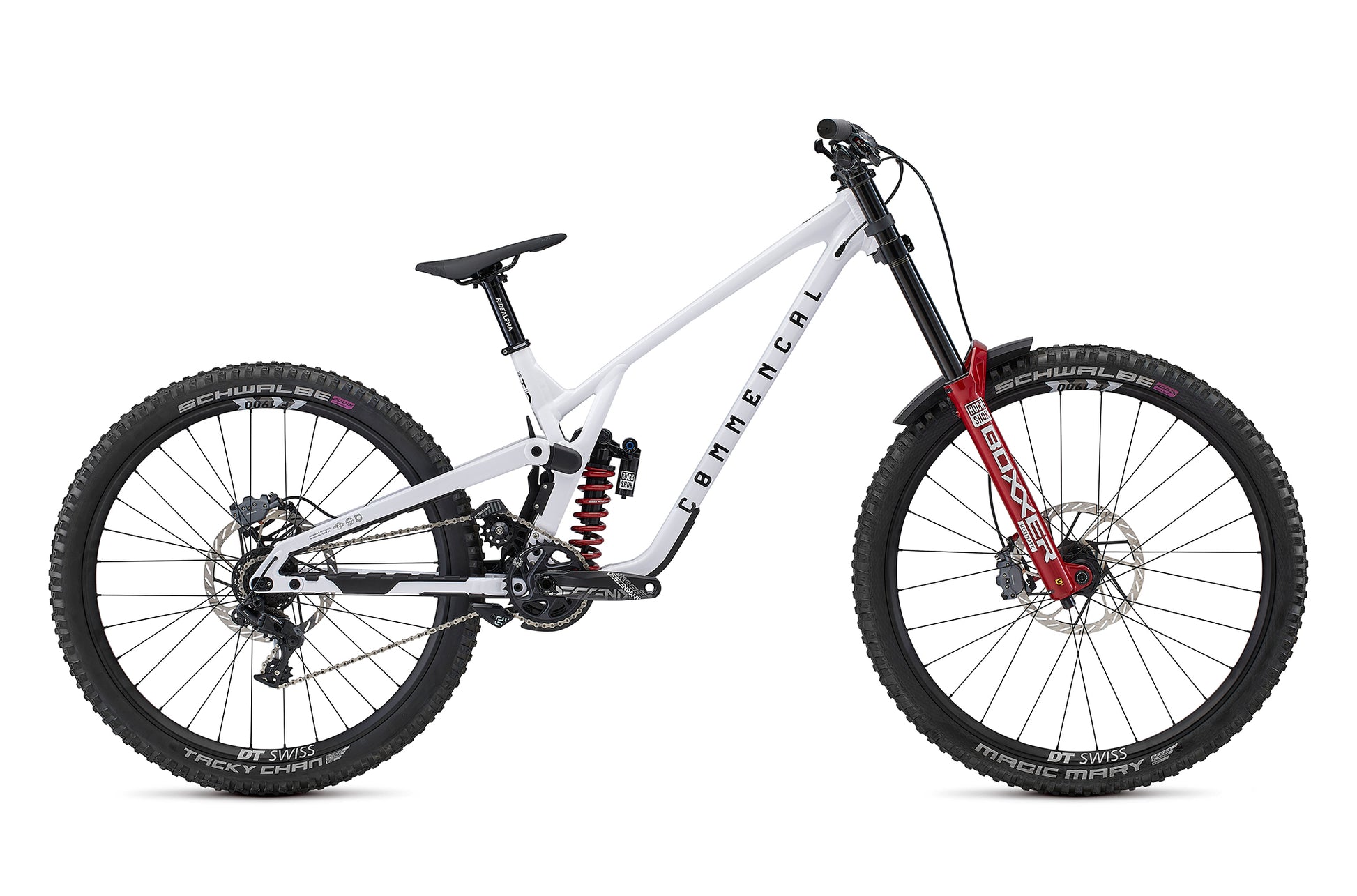

Commencal Supreme DH V5 MX - RockShox
The SUPREME DH V5 is much more than just a racing bike; it's a true machine designed for competitions. The result of three years of intensive collaboration between our research and development department and top athletes, this model has proven its worth from its very first World Cup season.
This SUPREME DH V5 is a high-end ROCKSHOX build designed for racing.

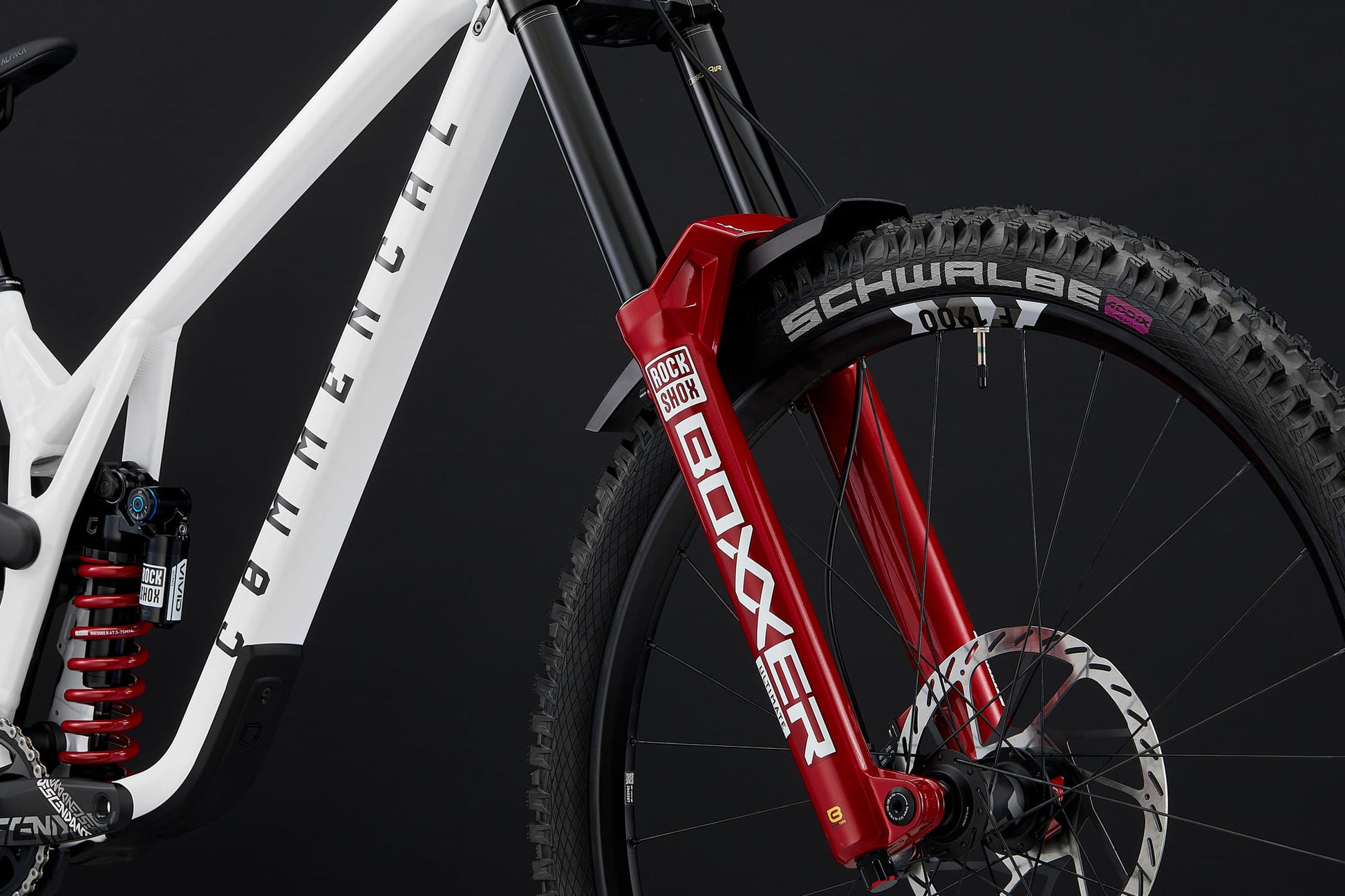

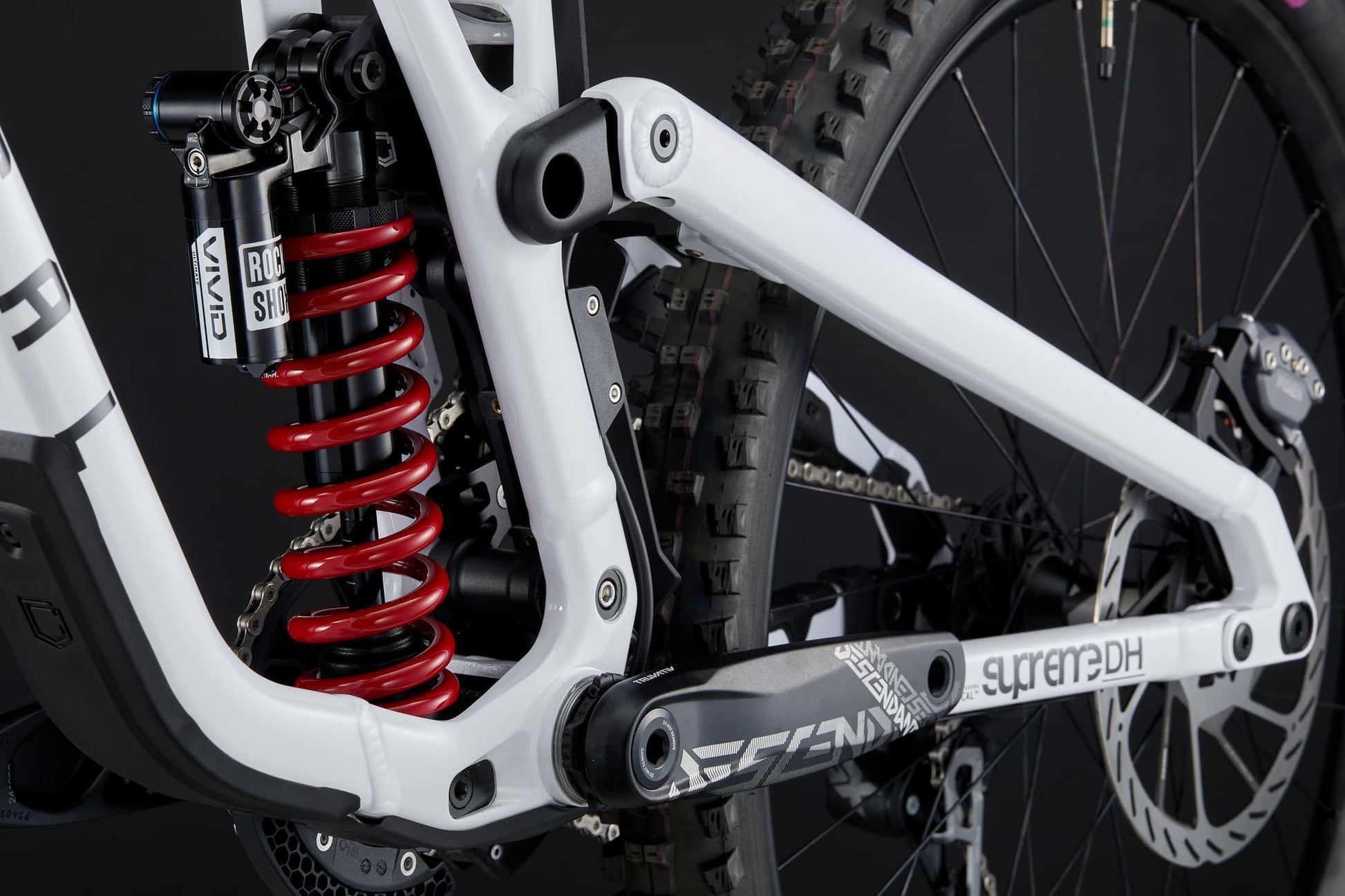

• A ROCKSHOX BoXXer Ultimate fork is equipped with the Charger 3 hydraulic cartridge for simple and precise adjustments. The Vivid Coil Ultimate DH shock provides increased sensitivity and optimal control on the most demanding terrain.

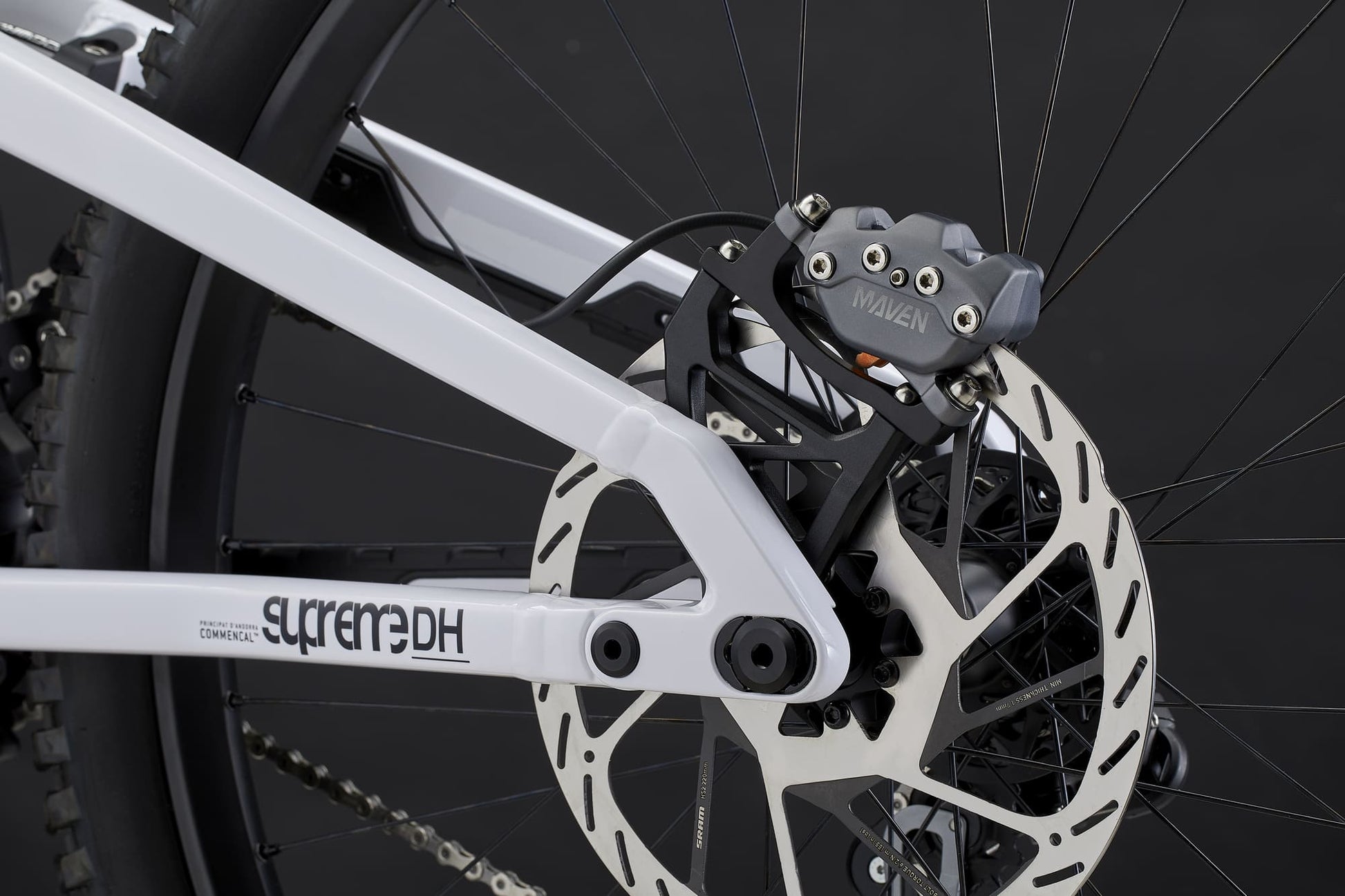

• SRAM Maven Bronze 4-piston brakes with 220mm rotors are extremely powerful and durable.
• DT SWISS F1900 Classic wheels are hand-assembled by the Swiss brand. They are durable and will keep you rolling on any terrain.

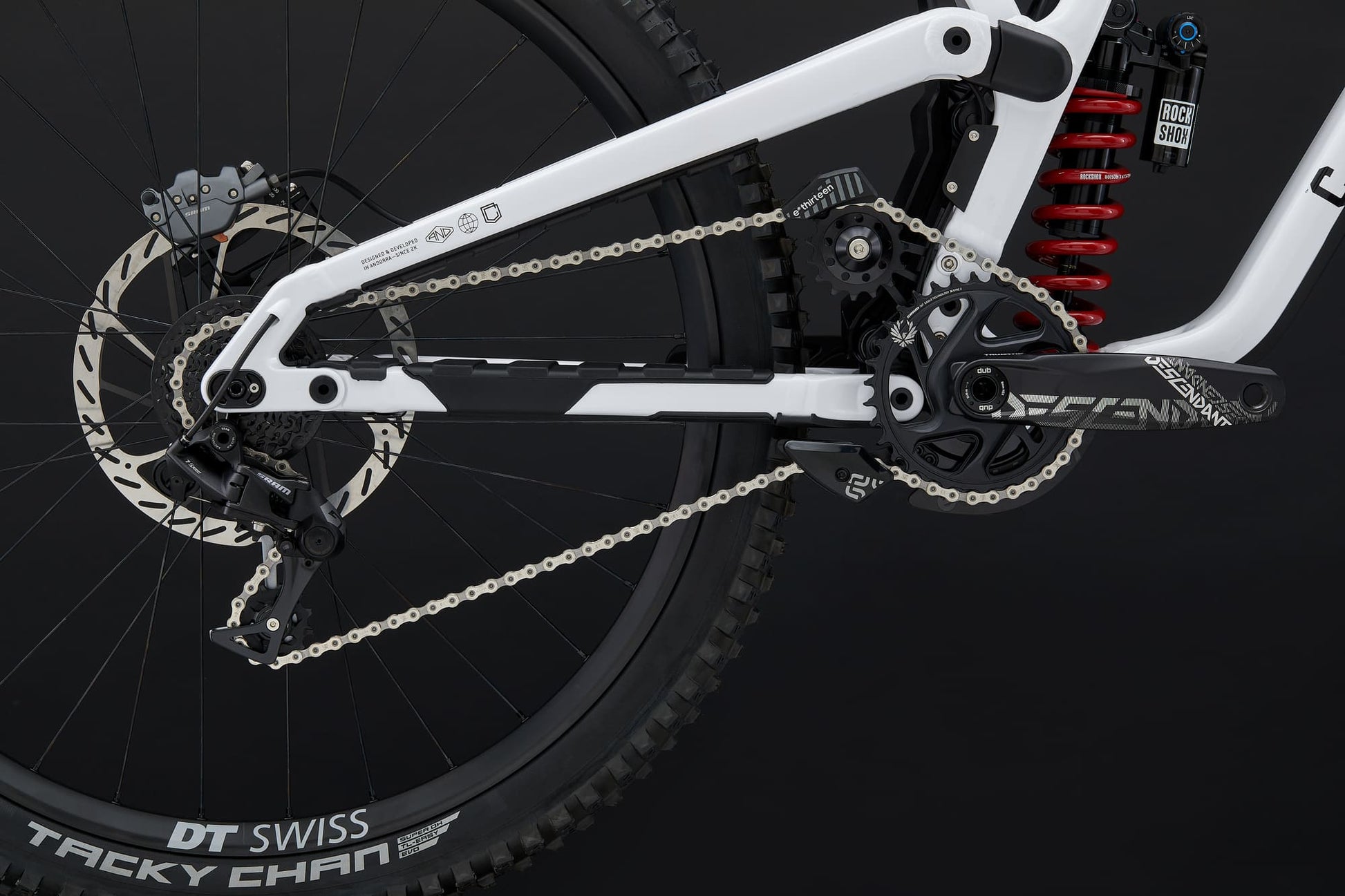

• The SRAM GX DH drivetrain has precise 7-speed shifting and is ideal for downhill riding.
Specifications
| Frame | |
|---|---|
| Model & Travel | SUPREME DH V5, 220mm |
| Size & Material | 29/27.5", Alloy 6066, triple butted, T4/T6 |
| Shock | |
| Model & Size | ROCKSHOX Vivid Coil Ultimate DH, 250x75mm |
| Features | HSC, LSC, LSR, rebound; Spring rates: S-400lbs, M-450lbs, L-500lbs, XL-550lbs |
| Fork | |
| Model & Travel | ROCKSHOX Boxxer Ultimate, 200mm |
| Specs | Charger 3 damper, 29", Boost 20x110mm, 52mm offset, HSC, LSC, HSR, LSR |
| Headset & Stem | |
| Headset | ACROS ZS56/ZS56, Alloy cups, sealed bearings |
| Stem | RIDE ALPHA DH, 40mm, 31.8mm |
| Handlebar & Grips | |

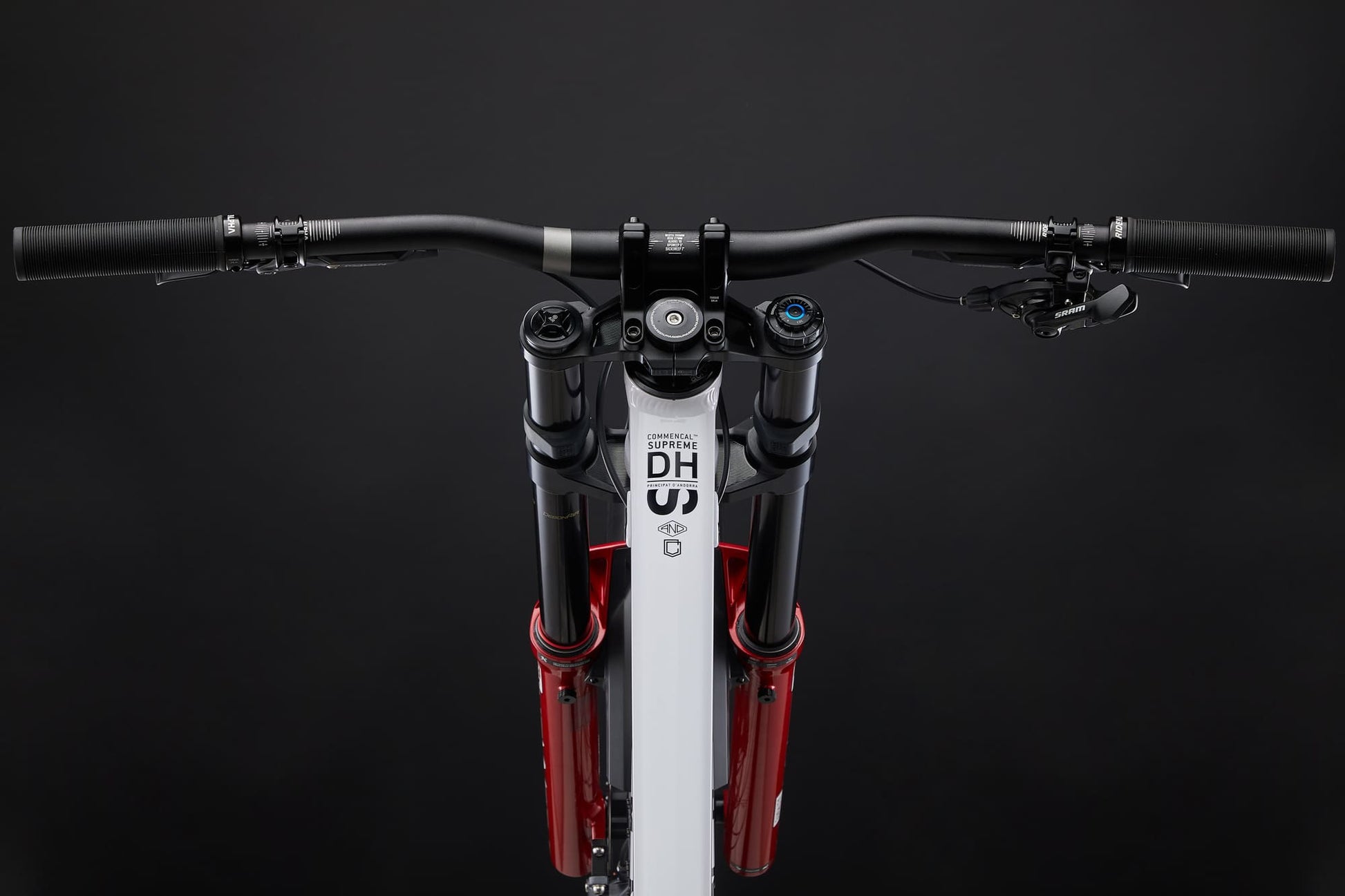

| Handlebar | RIDE ALPHA, 31.8mm, 780mm (S/M/L), 800mm (XL), Rise 27 |
| Grips | RIDE ALPHA Mushroom, 132mm, Black |
| Brakes & Rotors | |
| Brakes | SRAM Maven Bronze, 4-piston, Sintered pads |
| Rotors | SRAM HS2 220mm, 6-bolt, 2.0mm width |
| Shifters & Derailleurs | |
| Shifters | SRAM GX DH, 7-speed |
| Rear Derailleur | SRAM GX Eagle, 7-speed |
| Chain Guide | E13 LG1, 32-34t |
| Chain & Cassette | SRAM PC-1130, 11s; SRAM PG-720 DH, 7s, 11-25t |
| Wheels & Tires | |
| Rims | DT SWISS F1900 Classic, Rear 27.5", 32h, 30mm inner; Front 29", 32h, 30mm inner |
| Hubs & Spokes | Included with wheelset |
| Tyres | Rear: SCHWALBE Tacky Chan 27.5"x2.4" Super DH, Addix Ultra Soft, Tubeless Easy; Front: SCHWALBE Magic Mary 29"x2.4", Super DH, Addix Ultra Soft |
| Seat & Pedals | |
| Seat Post | RIDE ALPHA, 31.6mm, 250mm |
| Saddle | FIZIK Gravita Alpaca X5, 130mm, Team edition, Alloy rails |
| Weight | 18.7kg / 41.22 lbs (approx.) |
| Pedals | Not included |
| Color & Accessories | |
| Color | Pure White, Shiny Finish |
| Accessories | Chainstay/seatstay protectors, fork bumpers, downtube protector, Rockshox fender |
![]()
Technical Info
| Bike & Frame | |
|---|---|
| Type | Downhill Racing |
| Material | AL 6066 T4, T6 |
| Weight | 5.3 kg / 11.68 lb |
| Suspension & Travel | |
| Rear Travel | 220mm |
| Shock | 250x75mm, Piggyback compatible, Bushings 30x8mm |
| SAG | 20-25% / 15-19mm |
| Geometry & Compatibility | |
| Fork Height | 612mm / 620mm |
| Headset | ZS56 / ZS56 |
| ICR Compatibility | No |
| Wheel Size | 29" - 27.5" |
| Max Rear Tyre (ETRTO) | 65mm - Ø584mm |
| Rear Brake Mount | Postmount 200mm |
| Max Rotor Size | 223mm |
| Components & Dimensions | |
| Seatpost/Clamp | 31.6mm / 34.9mm |
| Max Seatpost Insertion | 130mm |

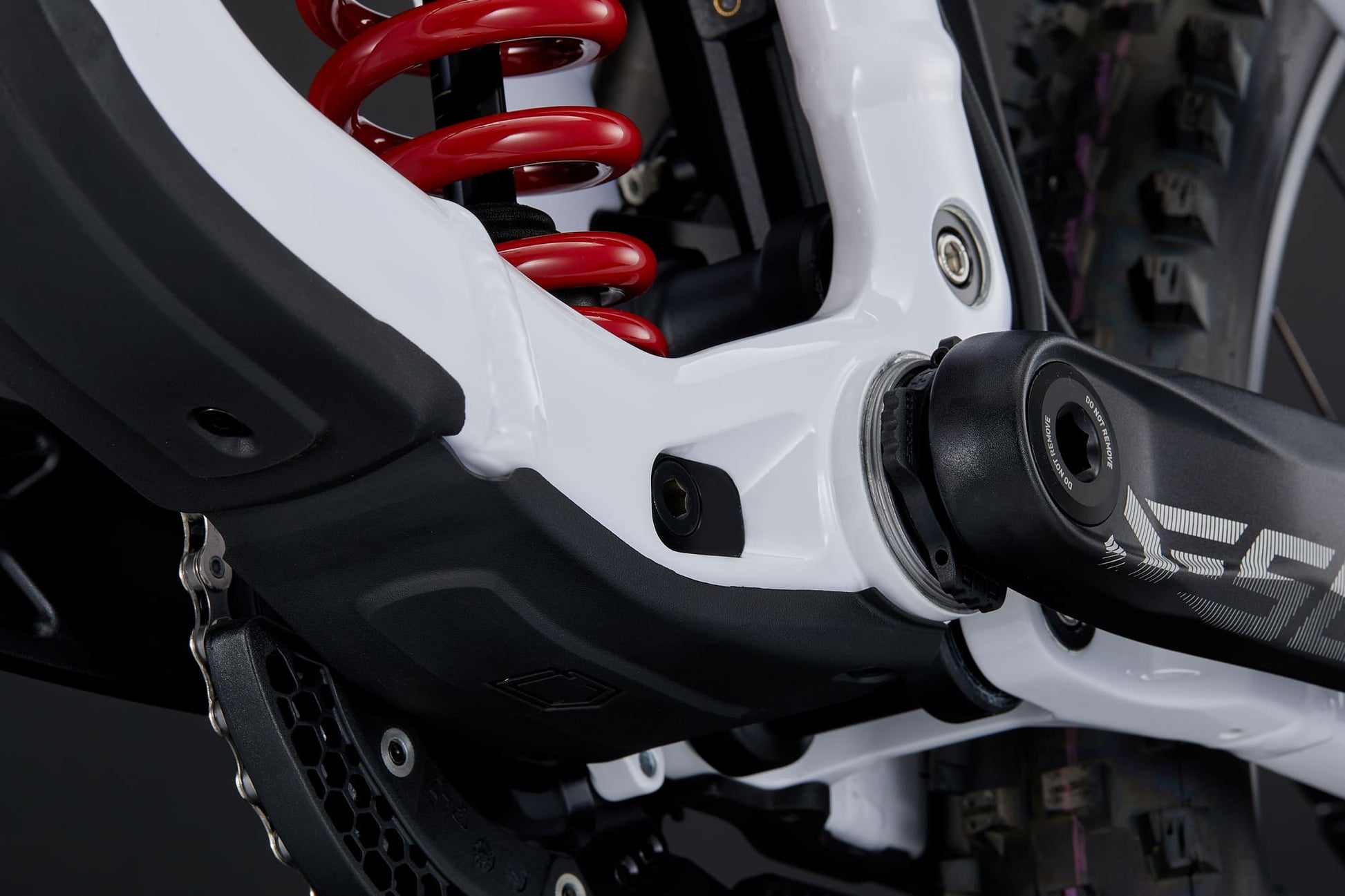

| Bottom Bracket | Press Fit BB 107mm |
| Chain Guide | ISCG 05 lower, Upper idler guide |
| Max Chainring | 34T / 36T |
| Chain Line | 56.5mm |
| Rear Hub | 157x12mm |
| Rear Axle | Custom, 200mm, M12, P1.0mm |
| UDH Hanger | No |
| Shock Adjustment | 4 positions |
| Wheel Base Adjustment | 3 positions |
| Triangle Stiffness | 3 thickness levels |
