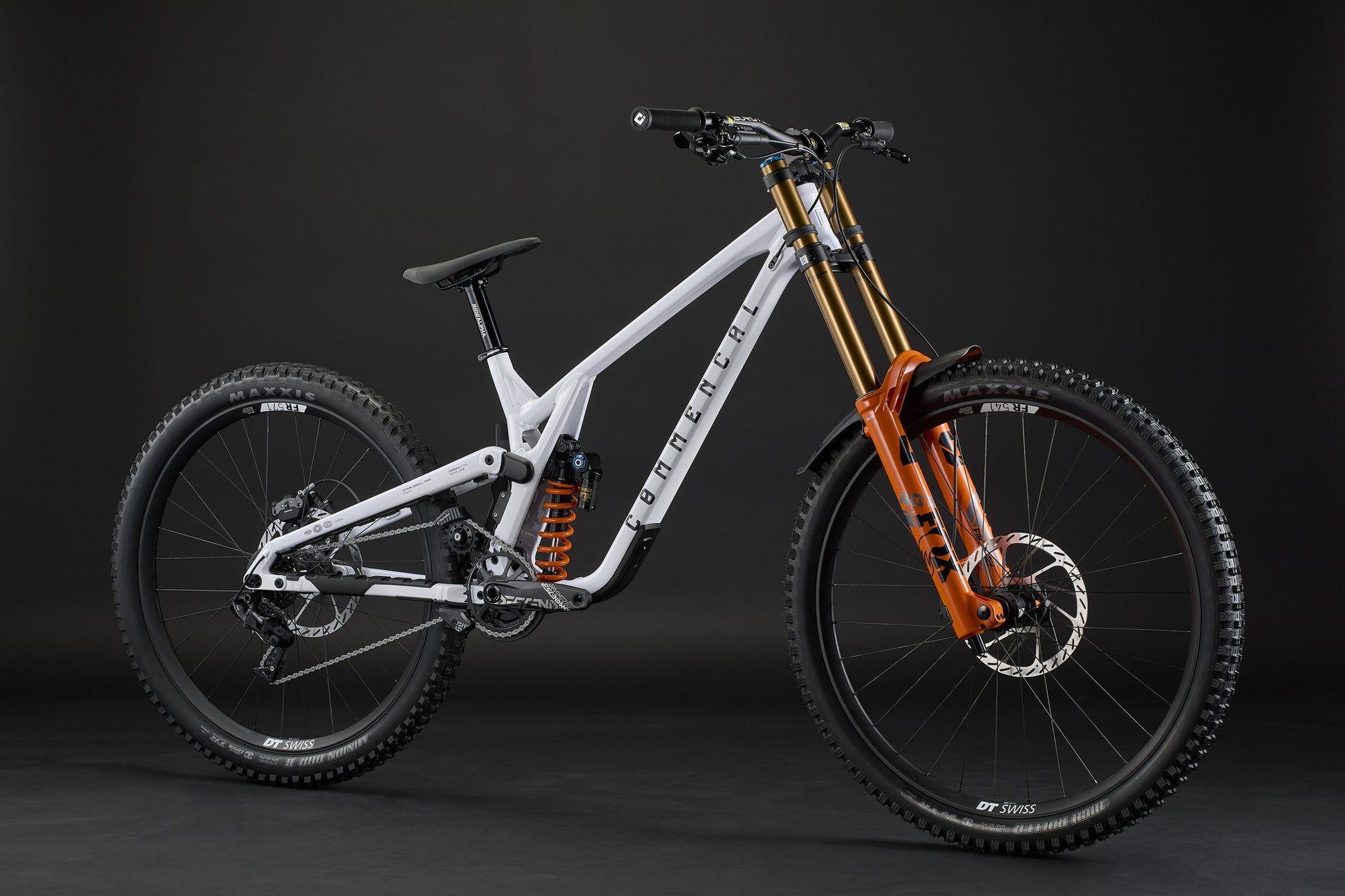

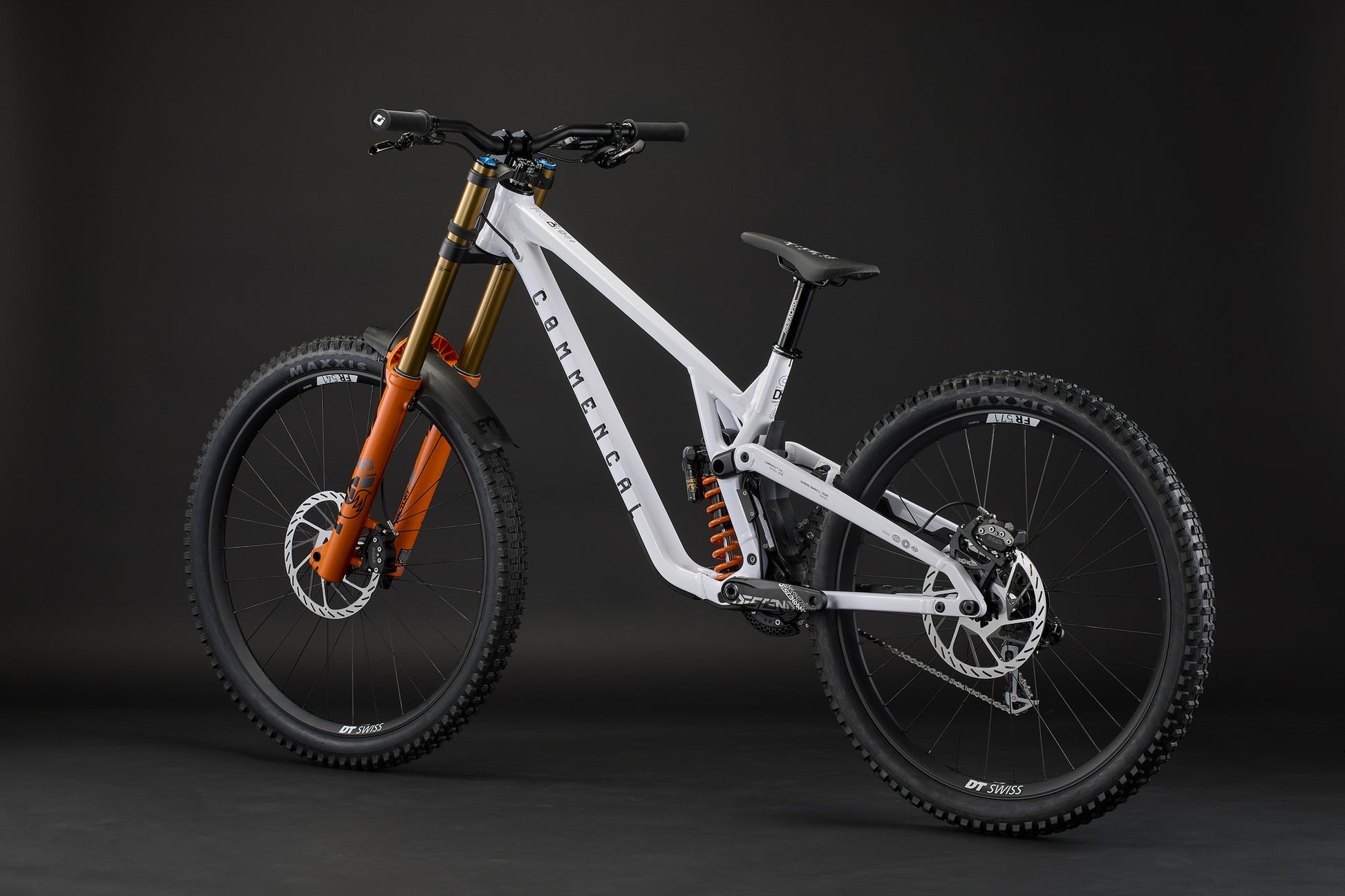

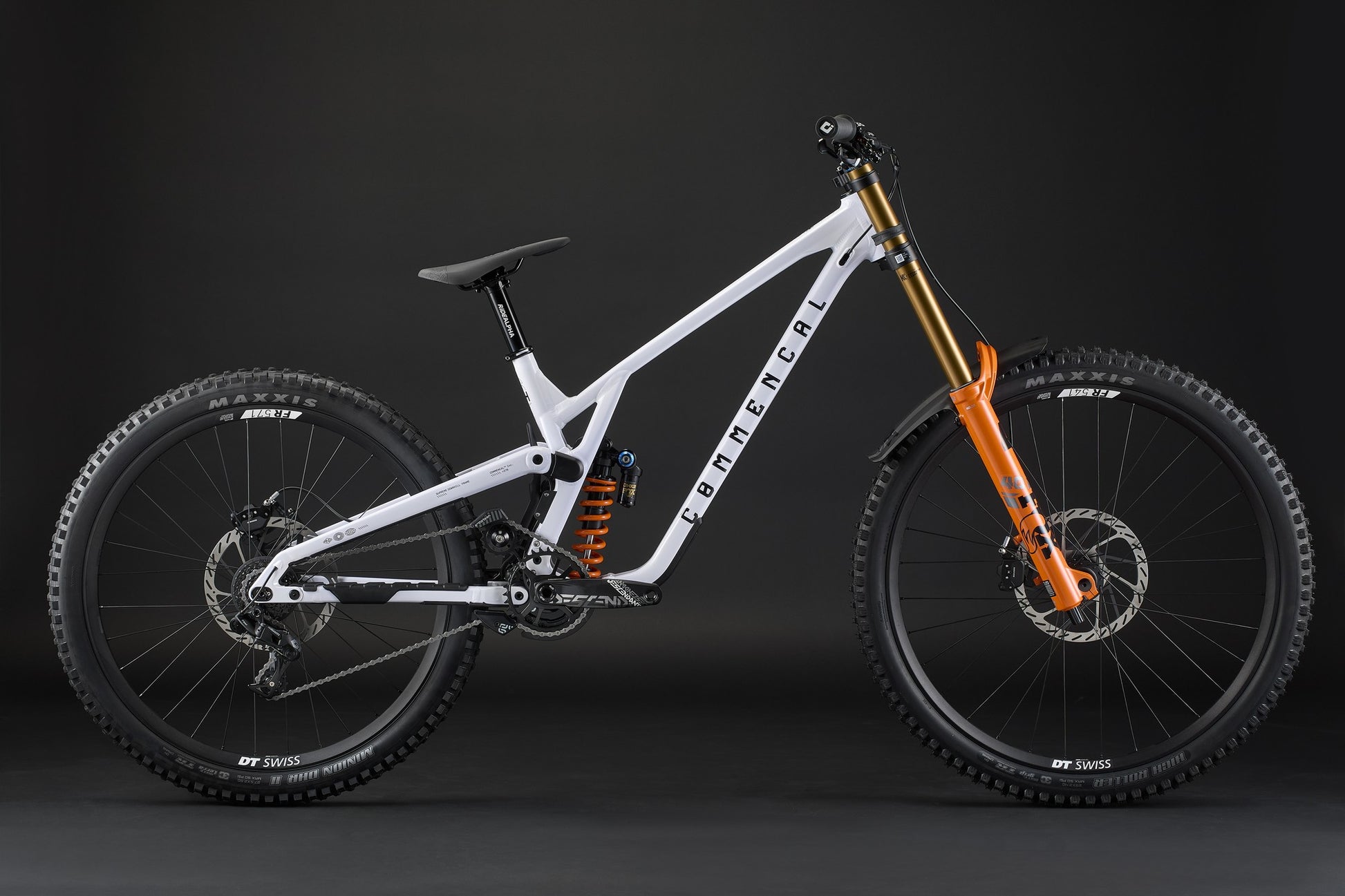

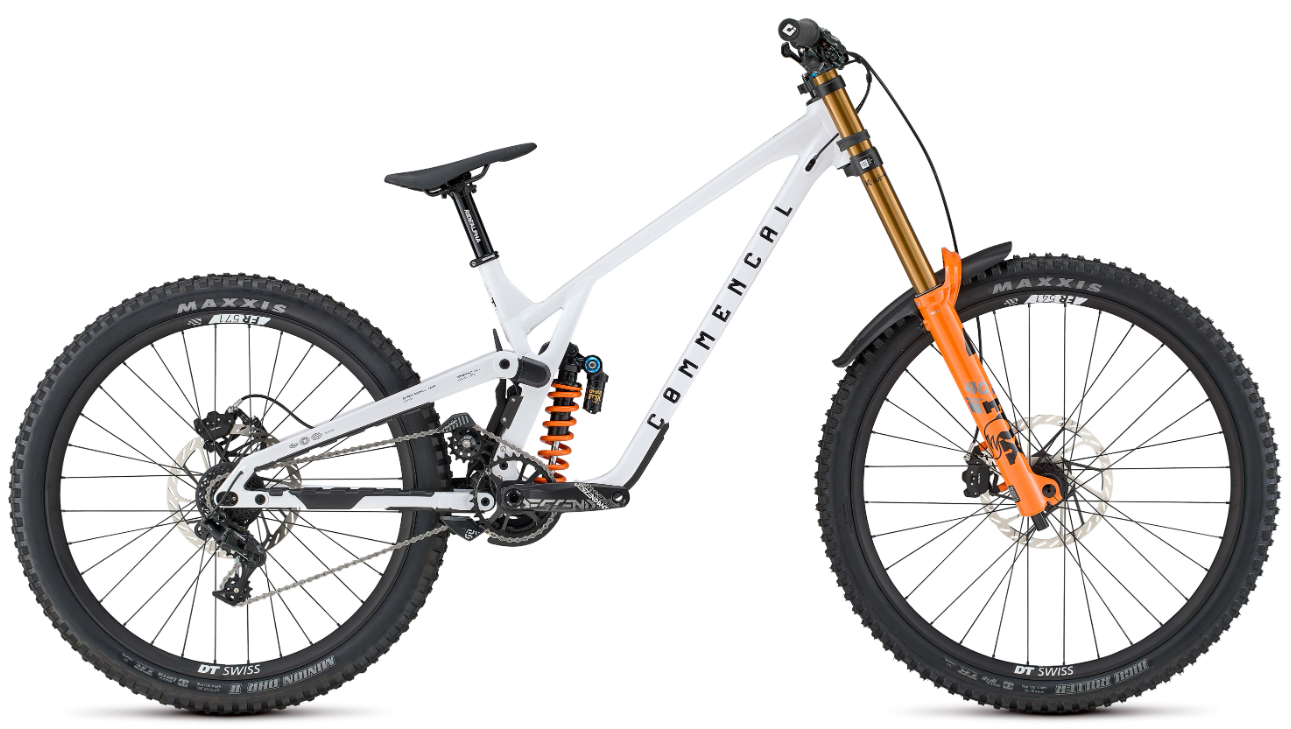

Commencal Supreme DH V5 MX - Signature
The SUPREME DH V5 is much more than just a racing bike; it's a true machine designed for competitions. The result of three years of intensive collaboration between our research and development department and top athletes, this model has proven its worth from its very first World Cup season.
The SUPREME DH V5 SIGNATURE is a high-end build featuring FOX Factory suspension.

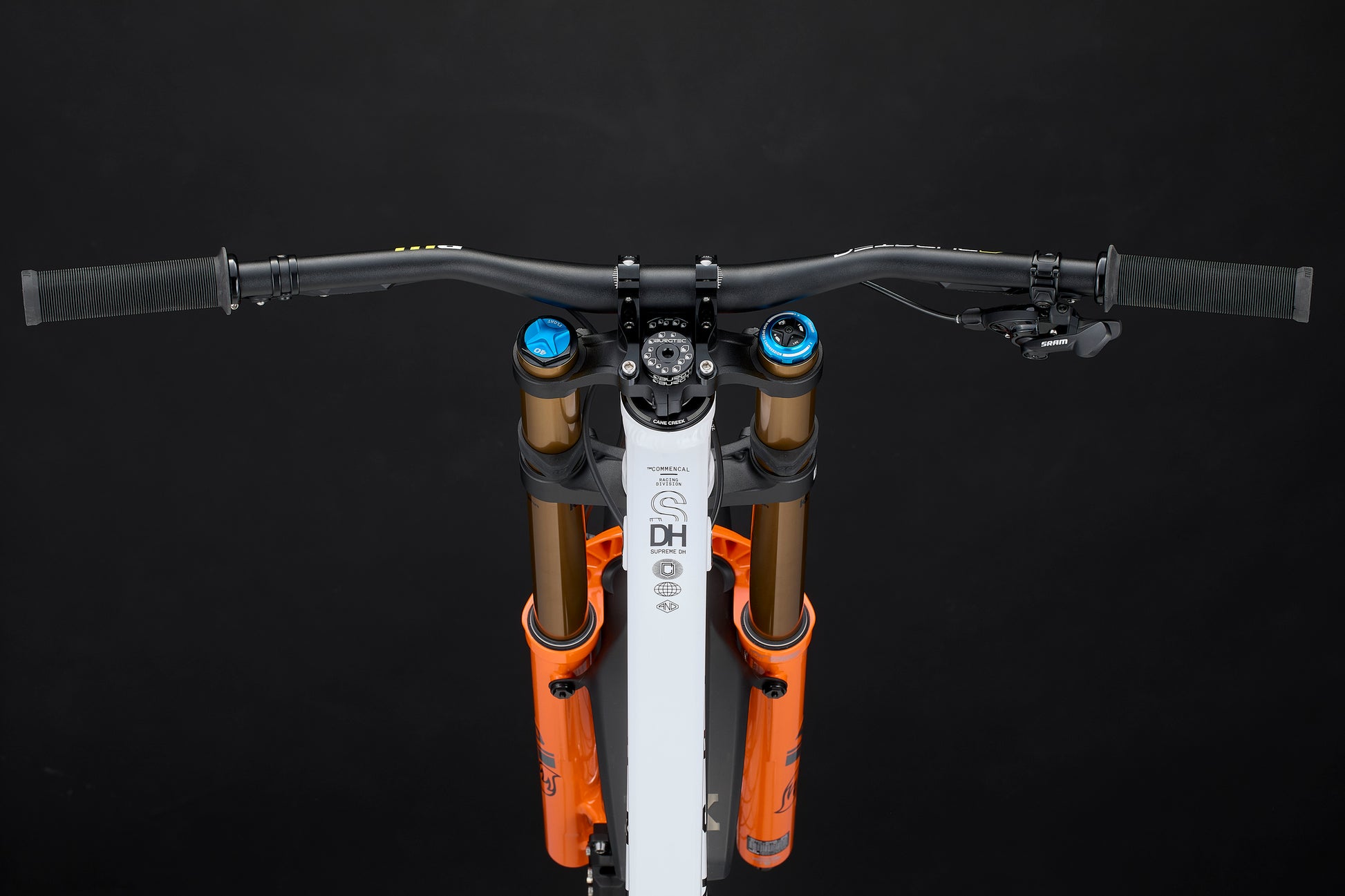

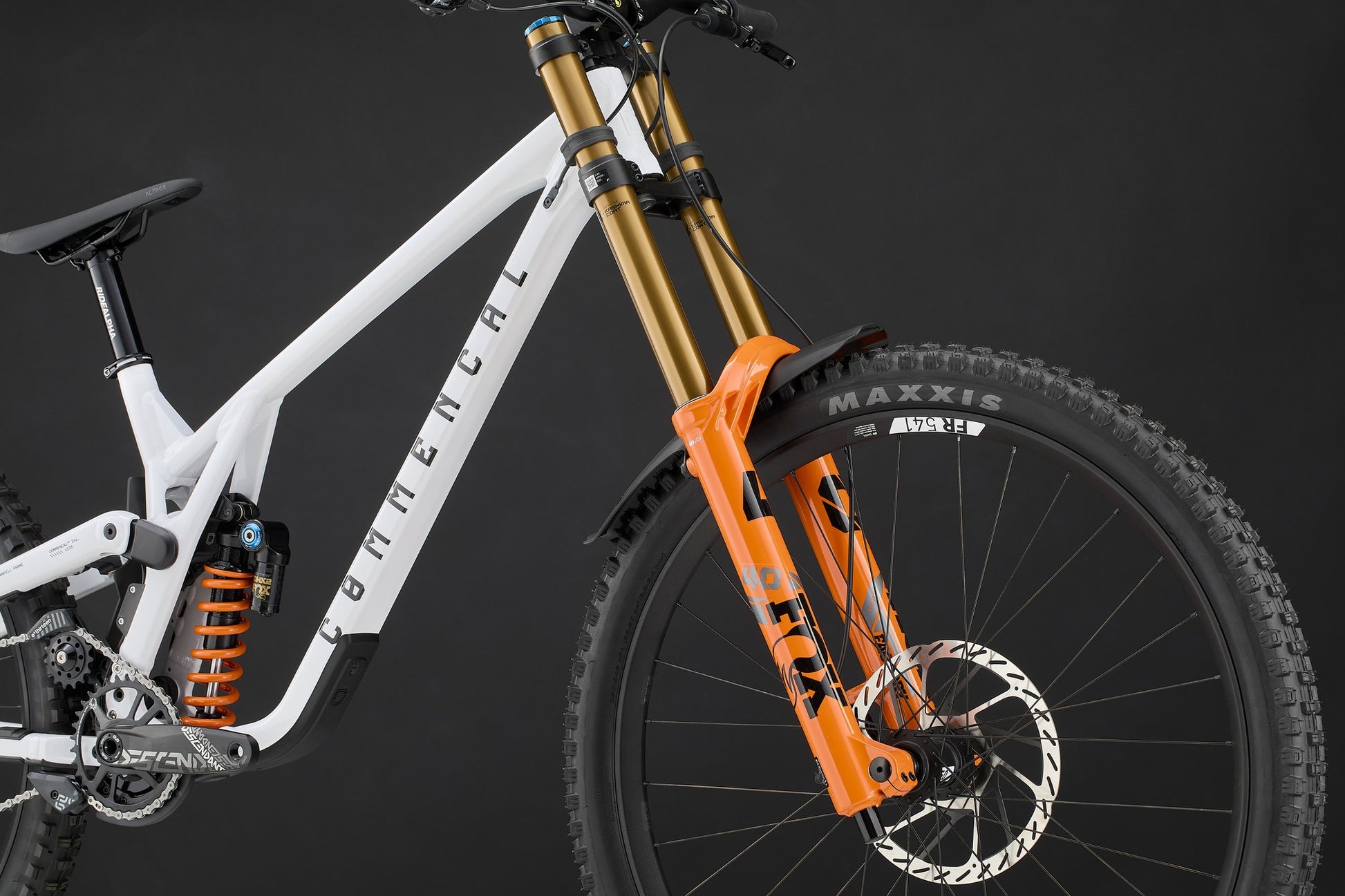

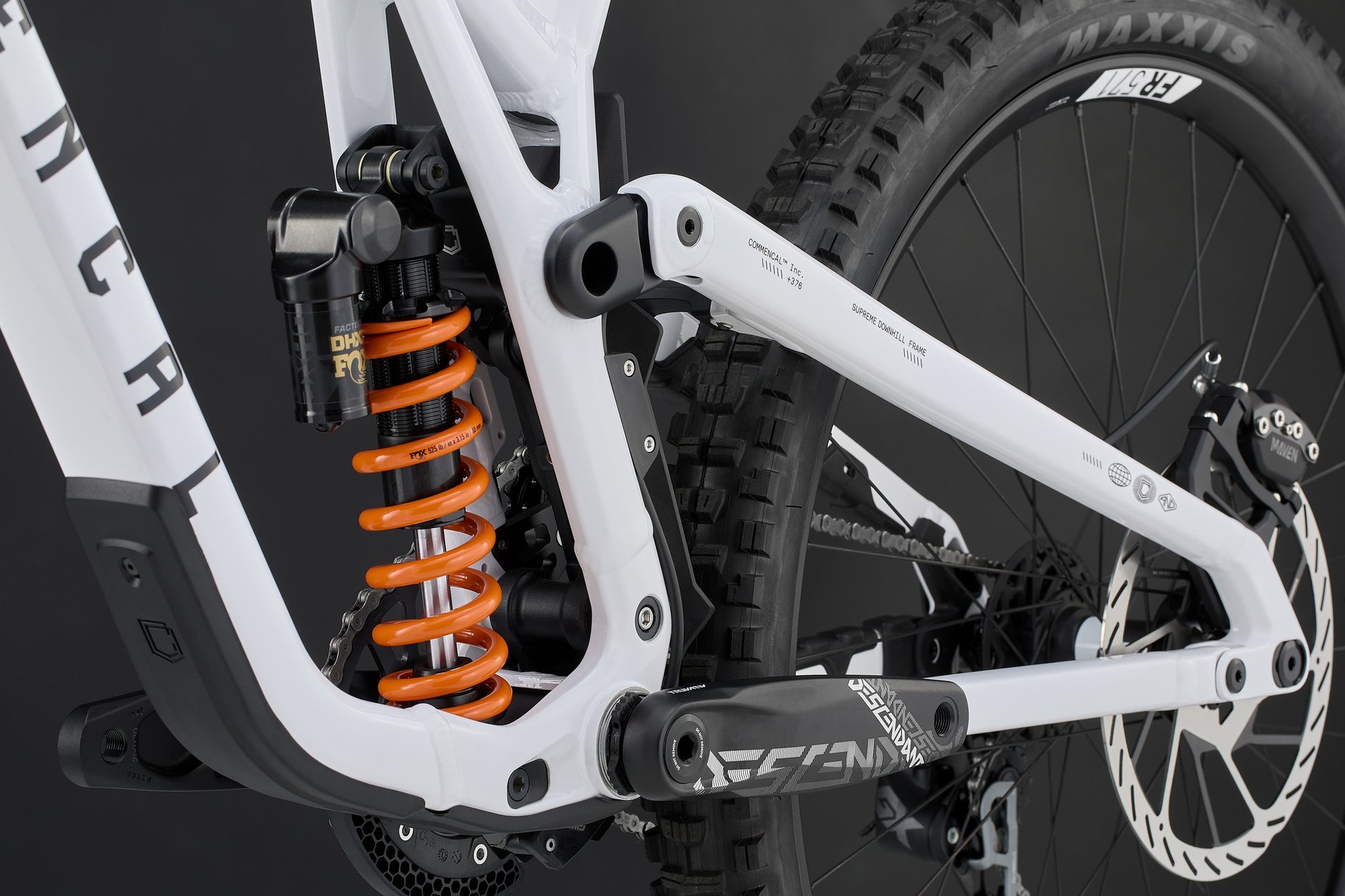

• The FOX 40 Factory fork and its Grip X2 cartridge offer a wide range of adjustments that allow you to adapt and overcome all trails. The FOX DHX2 shock absorber in Factory version, which includes 4 adjustment circuits, provides optimal support and shock filtration for maximum comfort.
• Braking is handled by the proven SRAM Maven Silver 4-piston brakes with 223mm discs. They guarantee power and crisp feel in all circumstances.
• The rims are a combination of DT SWISS FR541 front and FR571 rear, hand-built on 350 hubs, they are ideal for Gravity use.

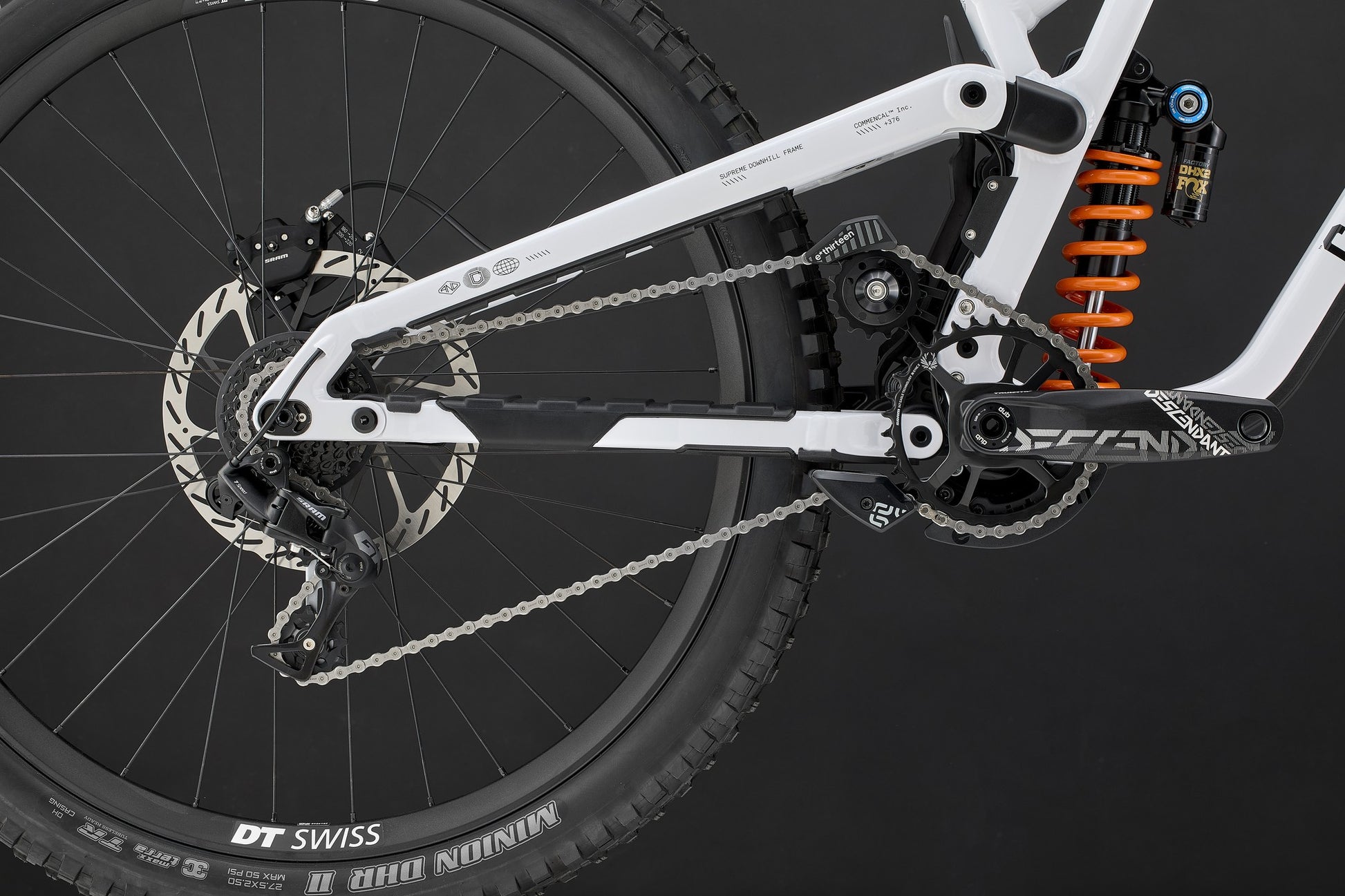

• The transmission is provided by SRAM with the GX DH group. 7-speed shifting is precise and ideal for downhill riding.
Specifications
| Component | Details |
|---|---|
| Frame | SUPREME DH V5, 220mm travel, 29/27.5", Alloy 6066, triple butted tubes, T4/T6, Bolu bearings |
| Shock | FOX DHX2 Factory, 250x75mm, HSC, LSC, HSR, LSR, lbs: S-425, M-475, L-525, XL-575 |
| Fork | FOX 40 Factory, 200mm, 29", Grip X2, HSR, LSR, HSC, LSC, Boost (20x110mm), 52mm offset |
| Headset | CANECREEK SERIE 40, alloy cups, sealed bearings |

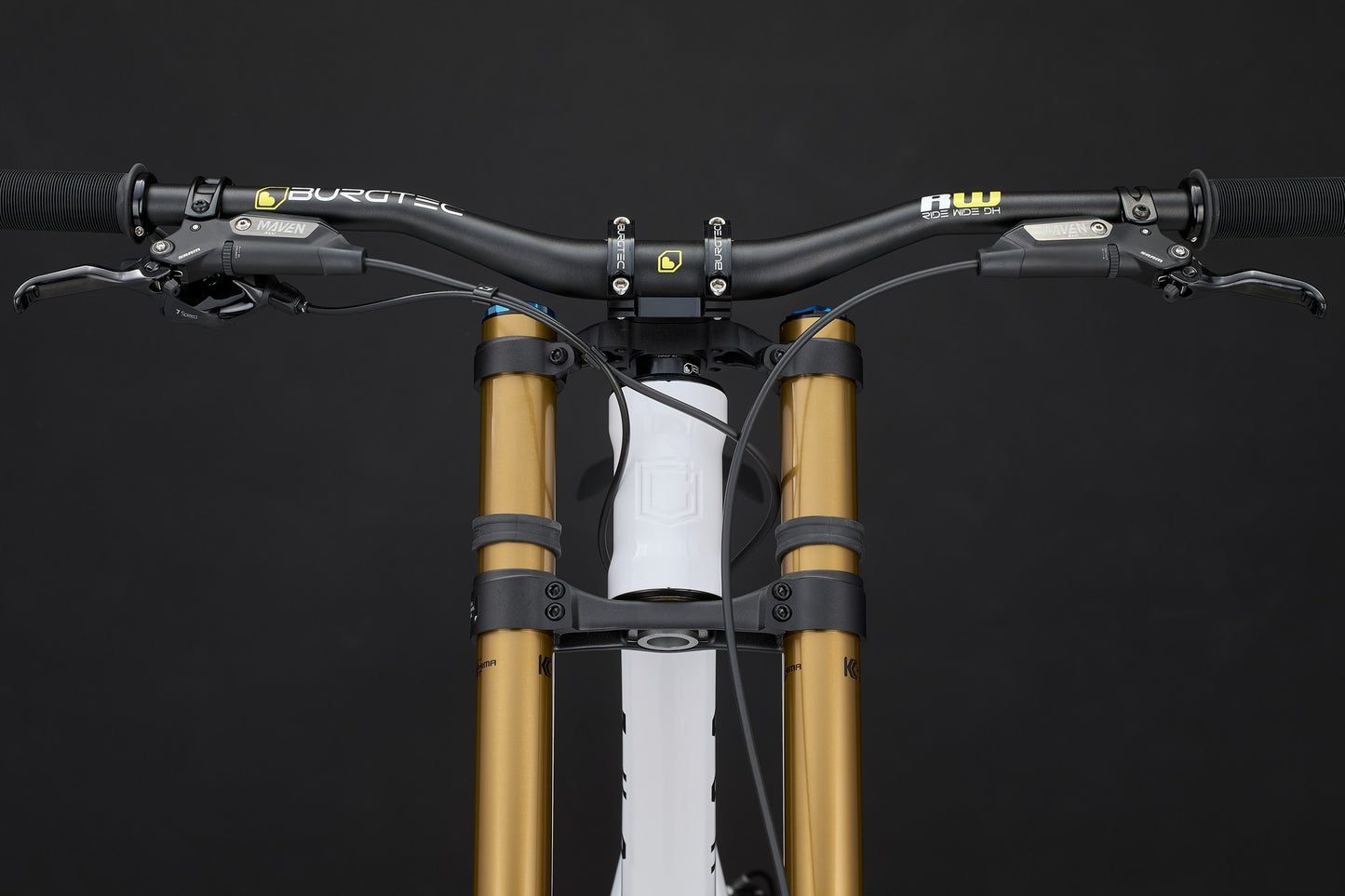

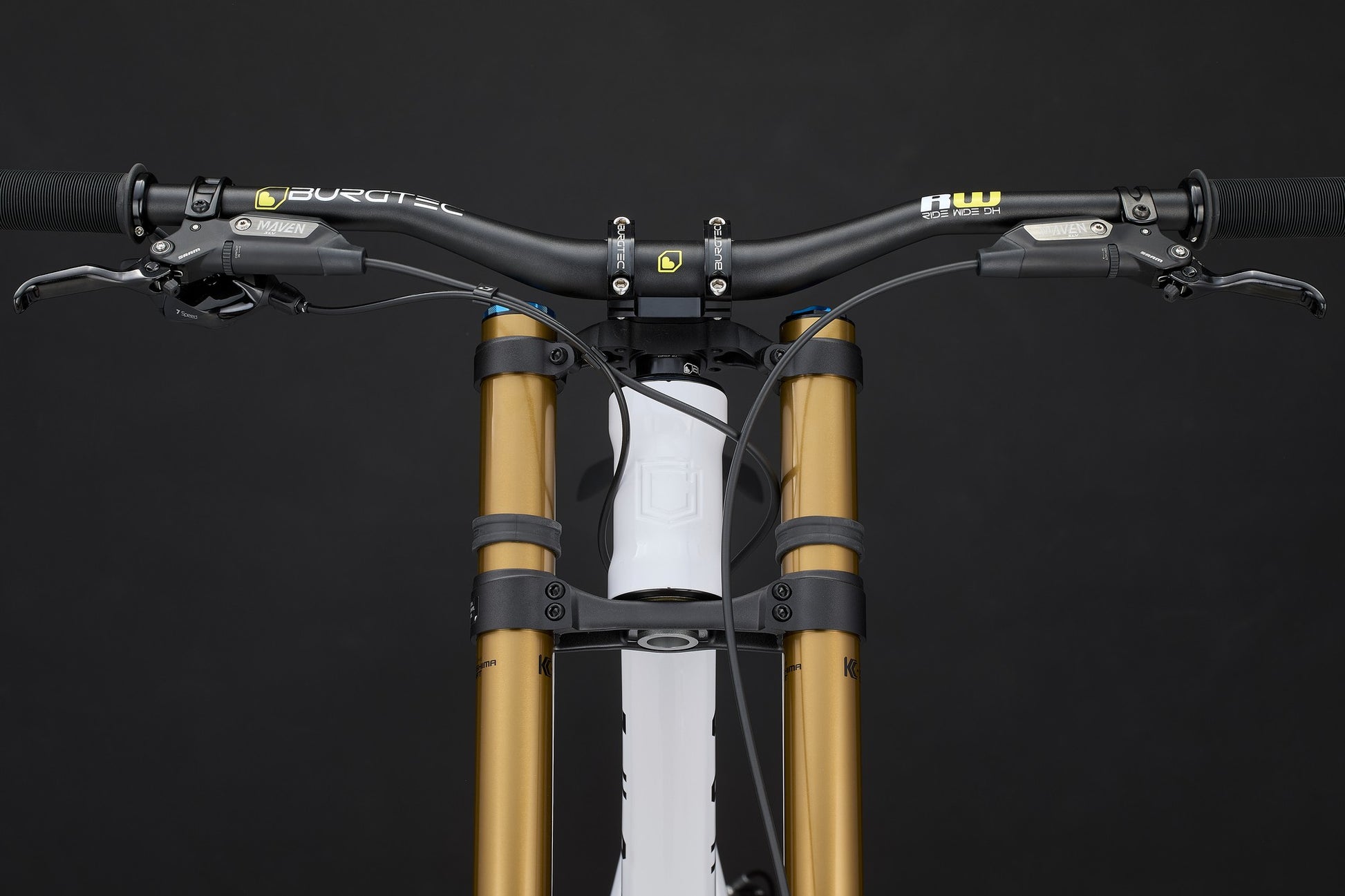

| Stem | BURGTEC MK3 DH, 45mm, direct mount, 31.8mm |
| Handlebar | BURGTEC Ride Wide, 800mm, 30mm rise, 31.8mm |
| Grips | ODI Longneck V2.1, black, single clamp |
| Brakes | SRAM Maven Silver, 4 pistons, resin pads, 220mm SRAM HS2 rotors (6-bolt, 2.0mm) |
| Shifters | SRAM GX DH, 7-speed |

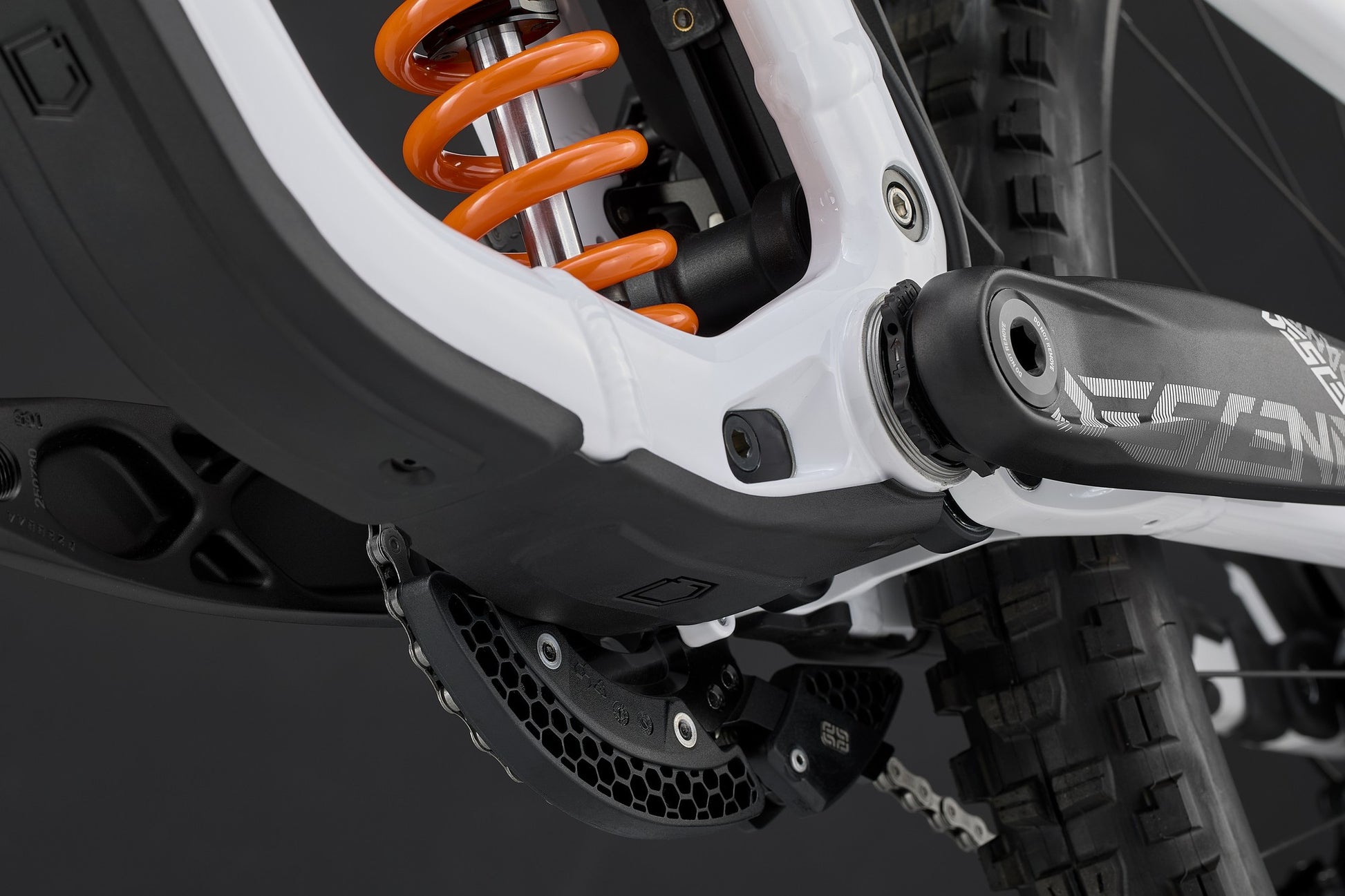

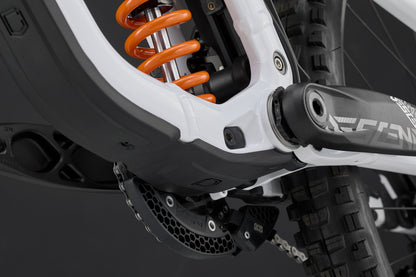

| Chain Guide | E13 LG1, 32-34t |
| Rear Derailleur | SRAM GX DH, 7s |
| Bottom Bracket | SRAM DUB, Pressfit |
| Crankset | SRAM Descendant DH, 165mm, 34t chainring, DUB |
| Chain | SRAM PC-1110, 11s |
| Cassette | SRAM PG-720 DH, 11-25t, 7s |
| Rims | Rear: DT SWISS FR571 (27.5", 32h, 30mm) / Front: DT SWISS FR541 (29", 32h, 30mm) |
| Hubs | DT SWISS 350, Rear: 12x157mm, sealed, 32h; Front: 20x110mm, sealed, 32h |
| Spokes/Nipples | DT SWISS Competition, straightpull |
| Tyres | Rear: MAXXIS Minion DHR II 27.5x2.50WT, MaxxTerra, DH Casing; Front: MAXXIS High Roller III 29x2.50WT, MaxxGrip, DH Casing |
| Seat Post | RIDE ALPHA, 31.6mm, 250mm length |
| Saddle | FIZIK Gravita Alpaca X5, alloy rails, Team edition |
| Weight | Average S size, without pedals. Weight varies slightly. |
| Pedals | Not included |
| Colour | Pure White, shiny finish |
| Accessories | Down tube protector, chainstay, seatstay protectors, shuttle pad, fork bumpers, FOX 40 fender |
Additional Info
| Component | Details |
|---|---|
| Bicycle Type | Downhill Racing |
| Frame Material | AL 6066 T4, T6 |
| Frame Weight | 5.3 kg / 11.68 lb |
| Rear Travel | 220mm |
| Shock Length/Stroke | 250x75mm |
| Recommended SAG | 20-25% / 15-19mm |
| Piggy Back Shock Compatible | Yes |
| Shock Bushings | 30x8mm / 30x8mm |
| Recommended/Max Fork Height | 612mm / 620mm |
| Headset Type | ZS56 / ZS56 |
| ICR Compatibility | No |
| Wheels Size | 29” - 27.5” |
| Max Rear Tyre Dimension (ETRTO) | 65mm - Ø584mm |
| Rear Brake Mounting Type | Postmount 200mm |
| Rear Brake Rotor Max Size | 223mm |
| Seatpost/Clamp Diameter | 31.6mm / 34.9mm |
| Seatpost Max Insertion | 130mm |
| Bottom Bracket Type | Press Fit BB 107mm |
| Chain Guide | ISCG 05 lower, Custom upper idler |
| Max Chainring Teeth | 34T / 36T |
| Chain Line | 56.5mm |
| Rear Hub Dimension | 157x12mm |
| Rear Axle Dimension | Custom, 200mm, M12, P1.0mm |
| UDH Hanger | No |
| Shock Anchor Adjustment | 4 positions |
| Rear Wheel Base Length Adjustment | 3 positions |
| Rear Triangle Stiffness Adjustment | 3 thickness options |
Sizing & Geometry
Commencal
Commencal Supreme DH V5 MX - Signature - Pure White
