Description

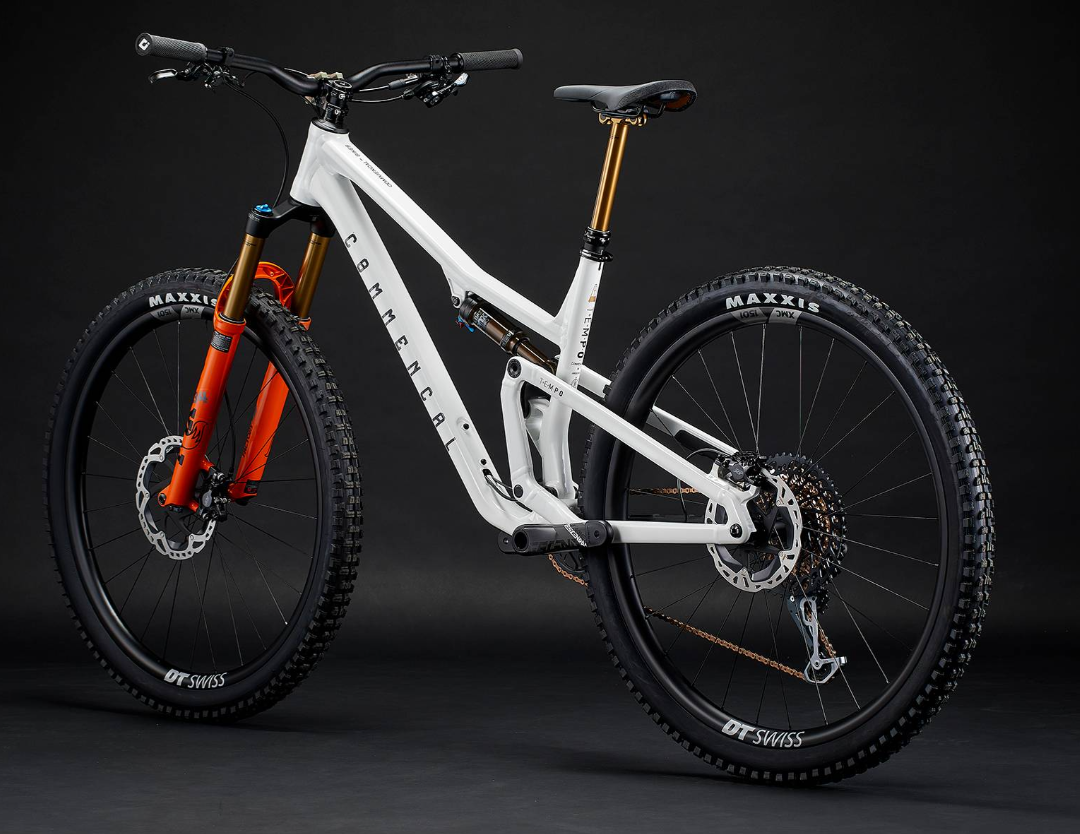

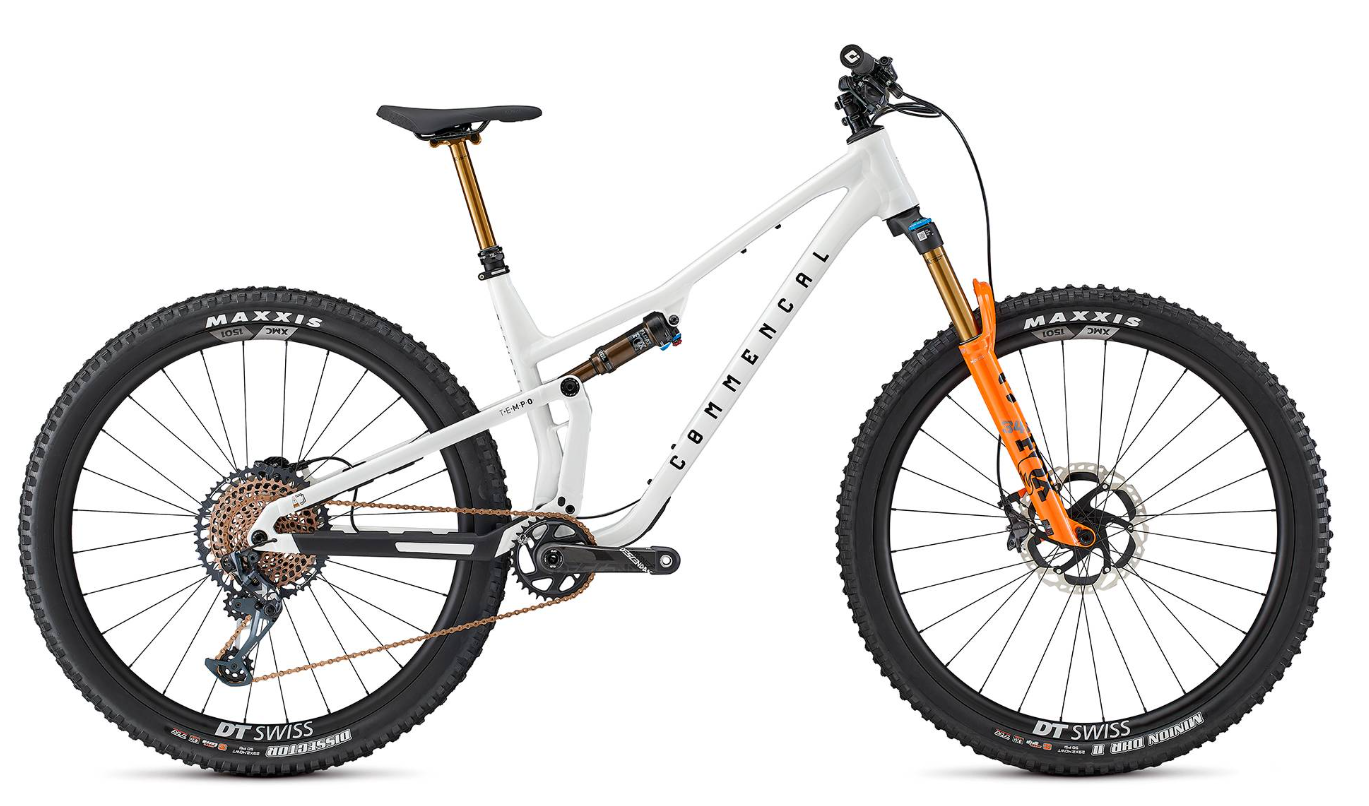

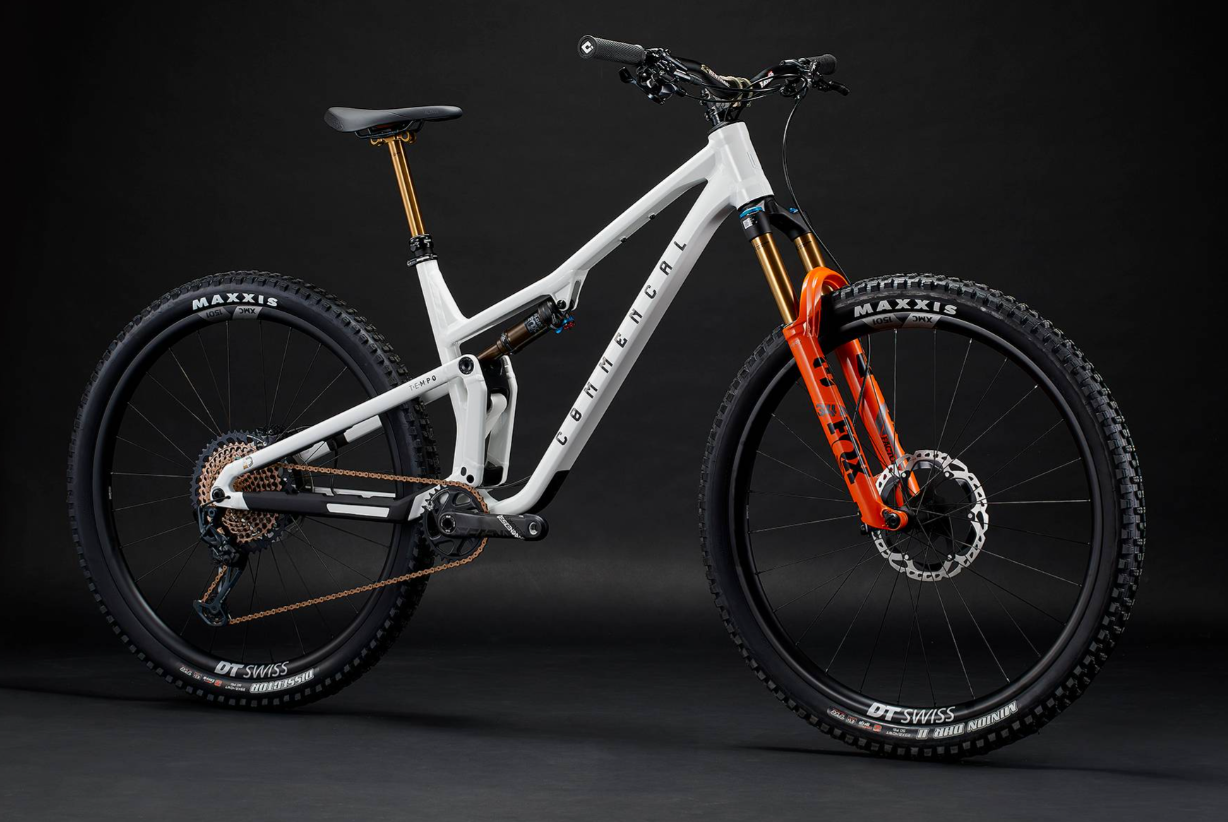

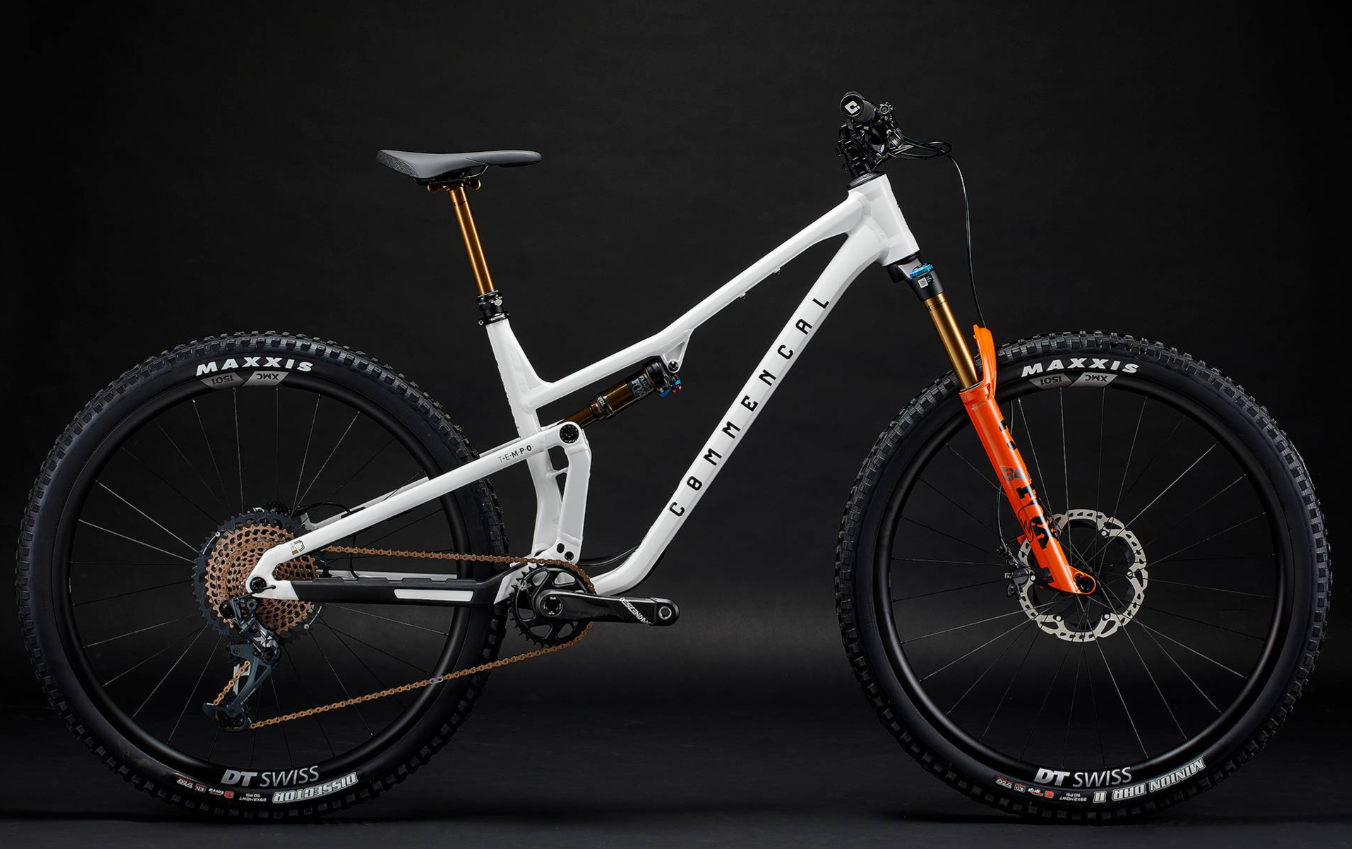

Commencal Tempo 29 - LTD

The T.E.M.P.O. is our trail bike. It’s also the go-to training bike for our riders. Agile and responsive, it encourages you to play with the terrain, building speed, launching and landing with precision on every feature.

With the exceptional wheelset from DT SWISS and an ultra-precise drivetrain, this T.E.M.P.O. LTD is completely unleashed, revealing its devastating character from the very first pedal stroke.

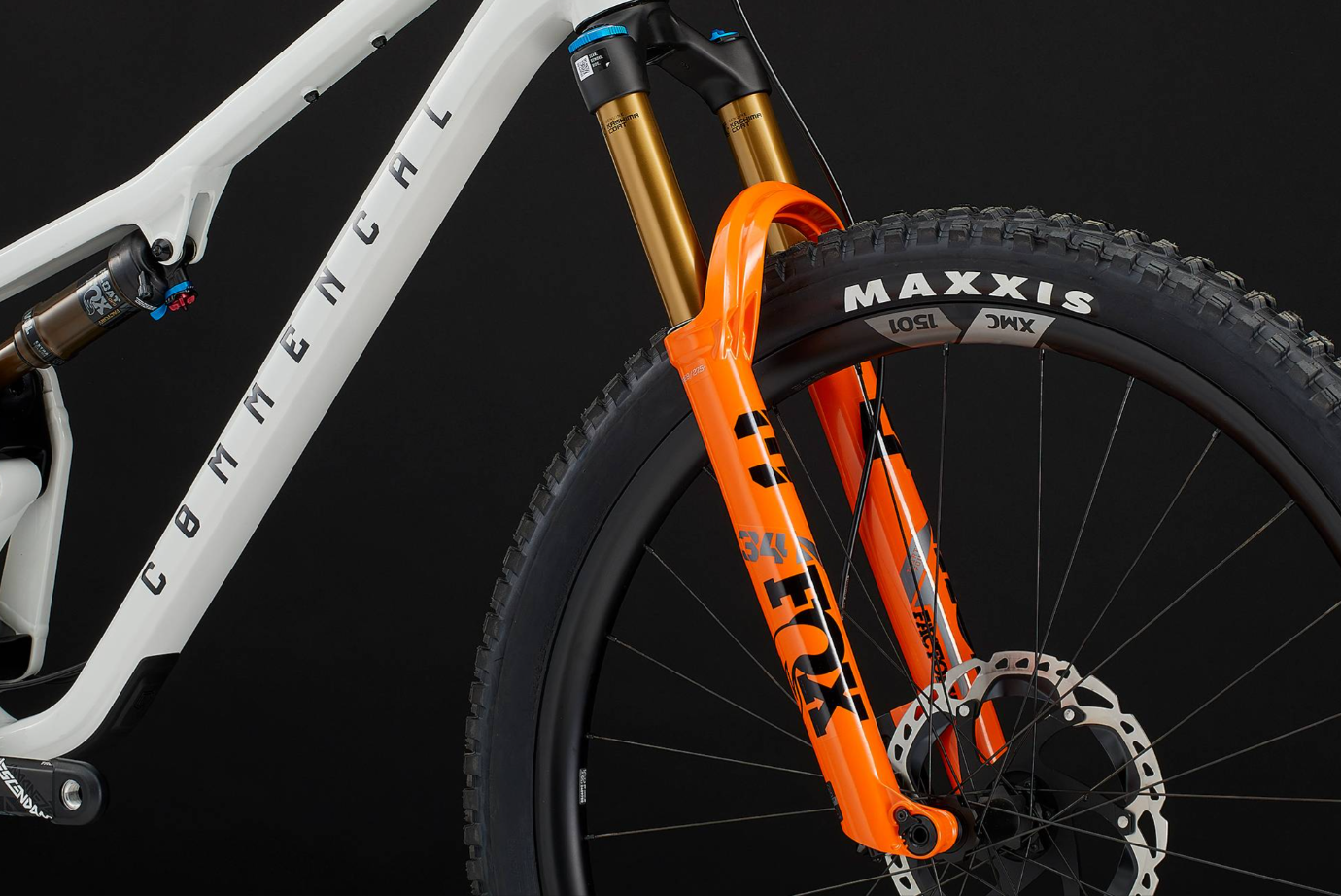

• The FOX 34 Factory offers an excellent weight/stiffness ratio. The Grip 2 cartridge is ideal with its four hydraulic adjustments. The internal characteristics of the Float DPS Factory shock have been worked by FOX according to our wishes. In turn, the suspension works in harmony with the T.E.M.P.O. kinematics. Compression can be adjusted across three firmness levels and fine-tune the sensitivity in the fully open position.
• SHIMANO Deore XT M8100 two-piston brakes with 203 / 180mm discs with Ice Tech Freeza aluminium pads.
• DT SWISS XMC 1501 Spline One wheels offer an unmatched weight, performance, and comfort ratio.

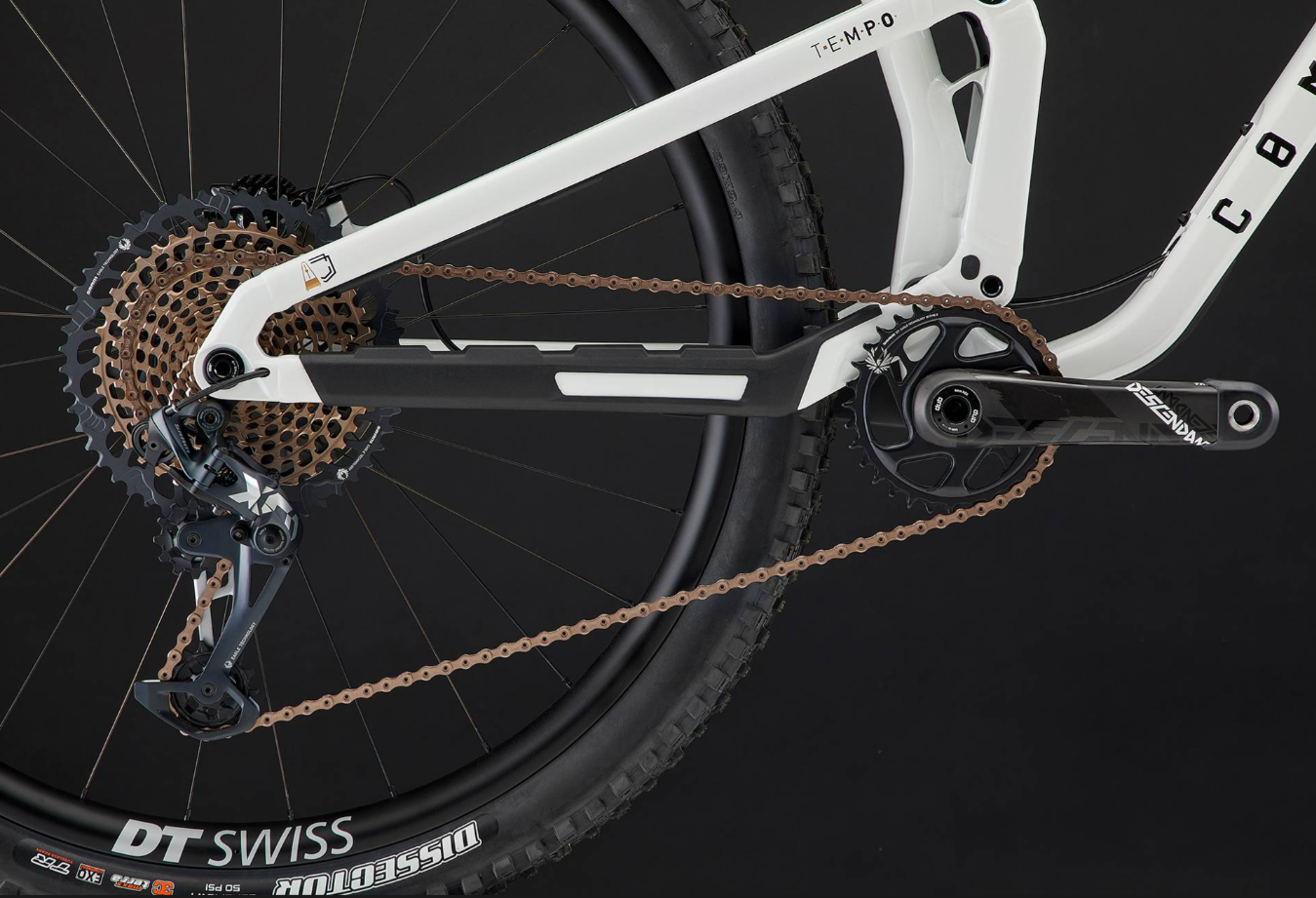

• Transmission comes in the form of the SRAM X01 Eagle with Copper finish.

Specifications

Component	Details

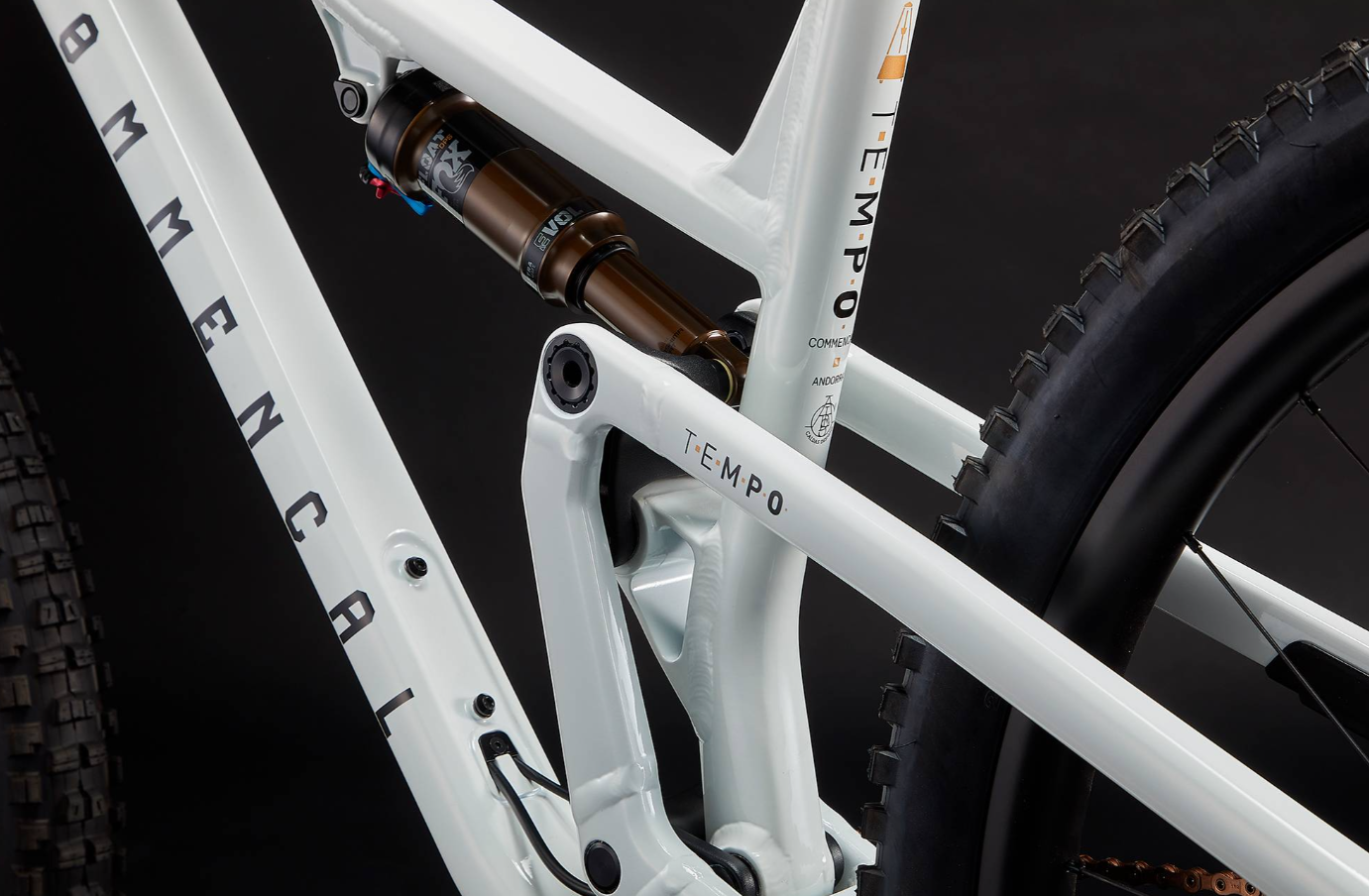

Frame	T.E.M.P.O, 125mm travel, 29", Alloy 6069, triple butted tubes, T4/T6, Enduro bearings

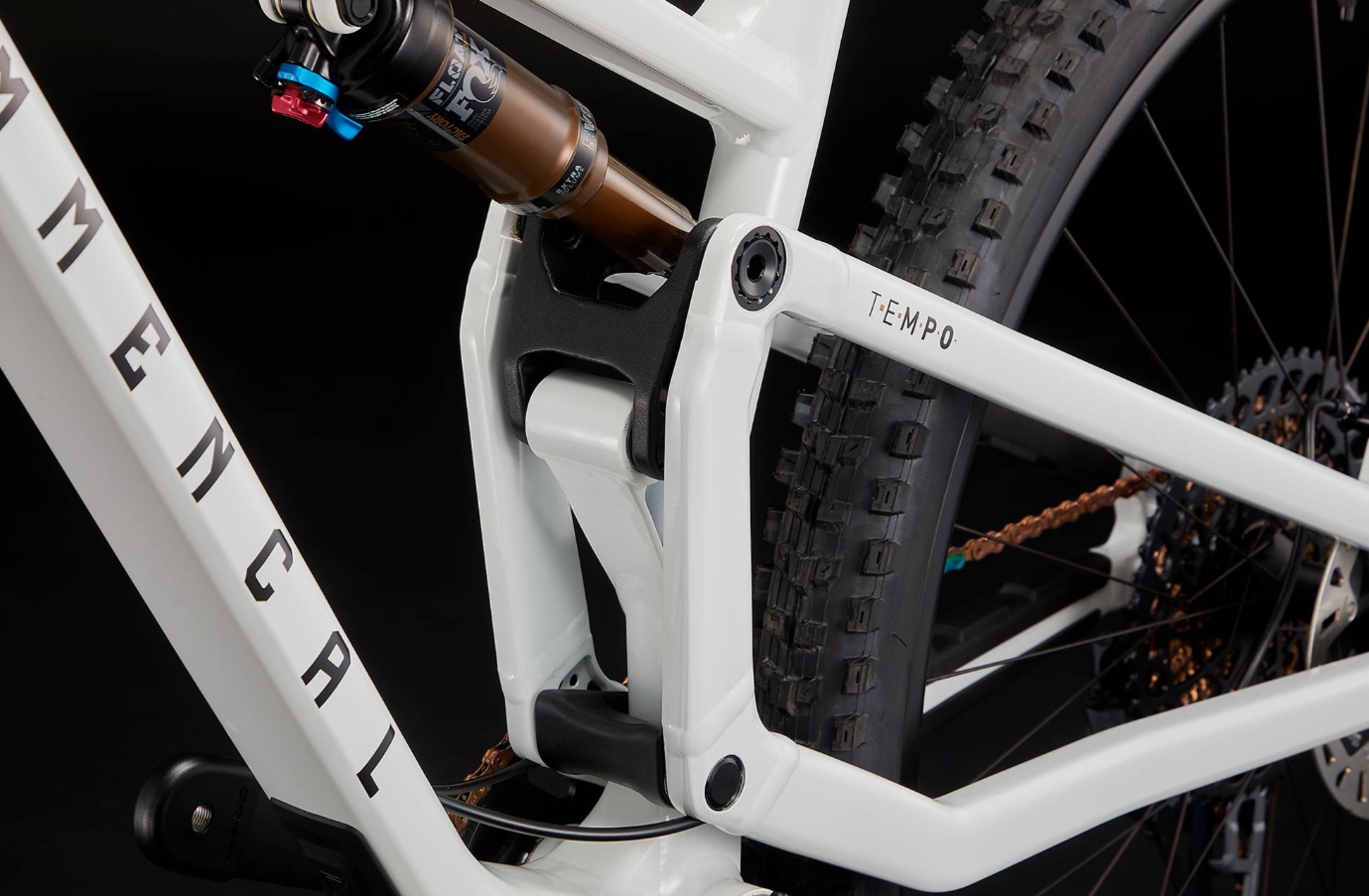

Shock	FOX FLOAT DPS FACTORY, 210x50mm, 2 positions compression, Rebound, Evol LV
Fork	FOX 34 Factory, 140mm travel, 29", Float, Grip 2 damper, HSR/LSR, HSC/LSC, Boost (15x110mm), 51mm offset, 1 spacer

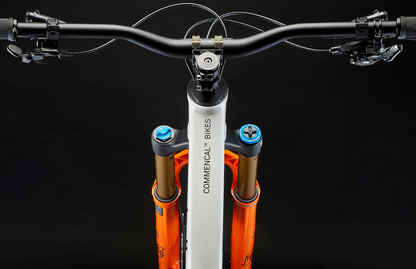

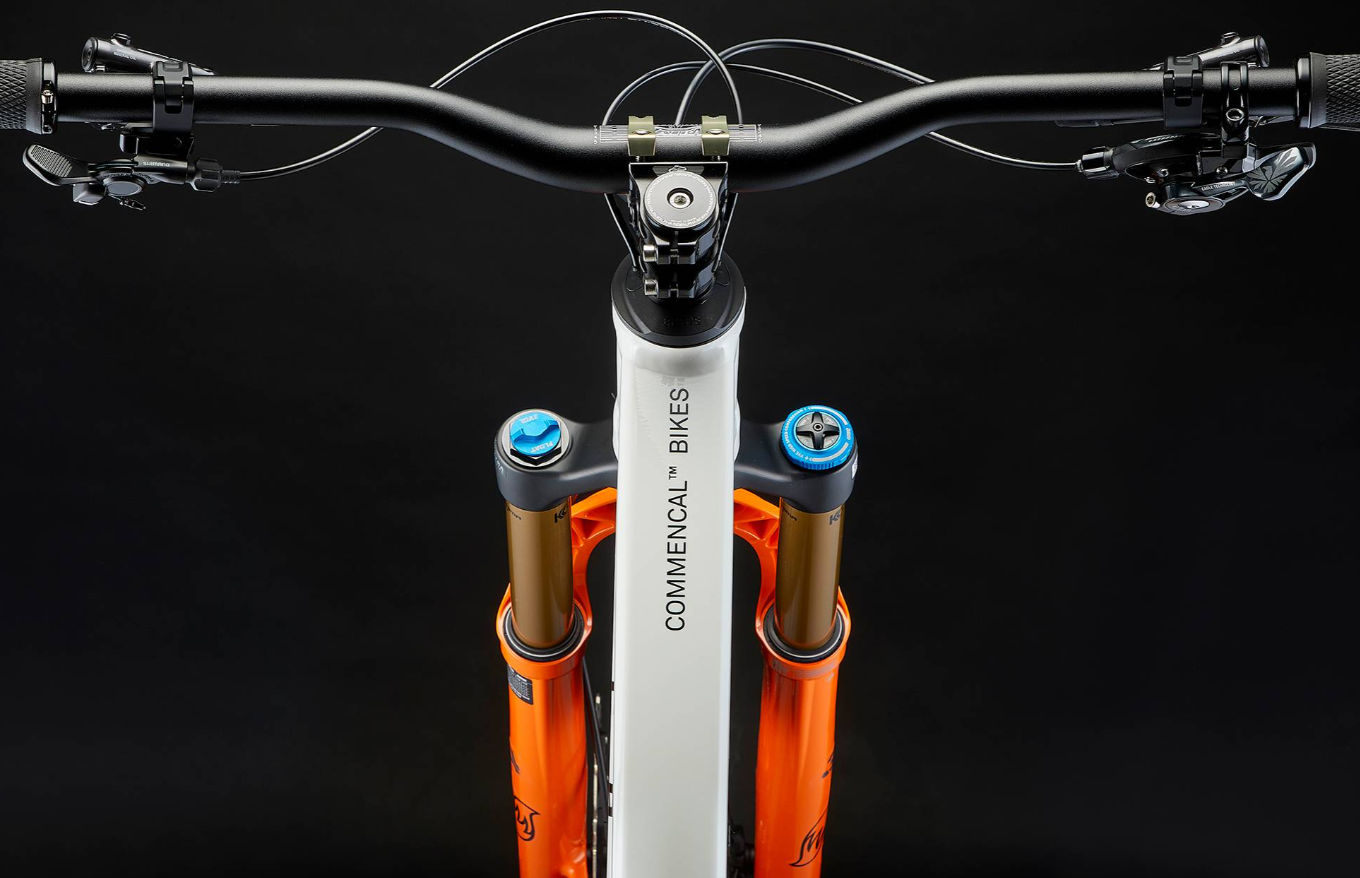

Headset	ACROS ZS56 / ZS56, alloy cups, sealed bearings, integrated cable routing
Stem	RENTHAL Apex, 40mm extension, 31.8mm

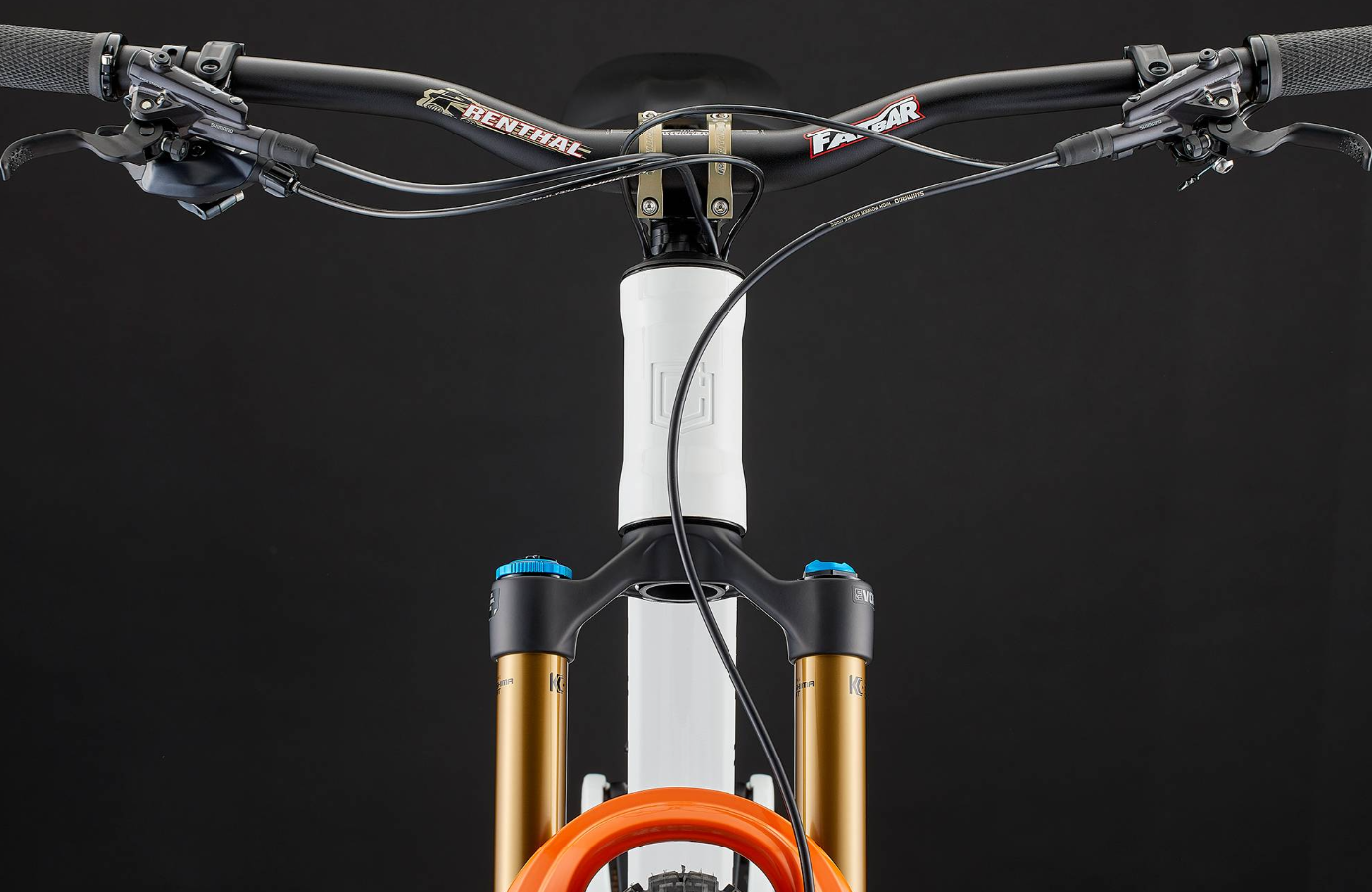

Handlebar	RENTHAL Fatbar Lite on S/M, 31.8mm, 760mm width, 30mm rise, Alloy 6061; RENTHAL Fatbar on L/XL, 31.8mm, 800mm width, 30mm rise, Alloy 6061
Grips	ODI Elite Motion, soft compound, single clamp, black
Brakes	SHIMANO XT, 2 pistons, I-Spec EV, resin pads, Rotors: SHIMANO RT-MT905 203 / 180mm, 6-bolt
Shifters	SRAM X01 Eagle, 12s
Rear Derailleur	SRAM X01 Eagle, 12s
Bottom Bracket	SRAM DUB, Pressfit
Crankset	SRAM Descendant Carbon, 170mm, Boost, with crank boots, 32t Narrow-Wide
Chain	SRAM XX1 Eagle, Copper, 12s
Cassette	SRAM XG-1299 Eagle, 12s, 10-52t, Copper
Rims	DT SWISS XMC 1501, 29", 28h, 30mm inner width
Hubs	Rear: DT SWISS 240, 28h, 12x148mm, Ratchet EXP, Sram XD; Front: DT SWISS 240, 28h, 15x110mm
Spokes/Nipples	DT SWISS Competition Race, straightpull, 2.0/1.6-2.0mm, double butted, stainless, ProLock, black
Tyres	Rear: MAXXIS Dissector 29x2.4, 3C MaxxTerra, EXO, Tubeless; Front: MAXXIS DHR II 29x2.4, 3C MaxxGrip, EXO, Tubeless
Seat Post	FOX Transfer Factory, 31.6mm, 150mm (S), 175mm (M), 200mm (L/XL)
Saddle	FIZIK Terra Alpaca X5, 145mm width, S-alloy rails
Weight	14 kg / 30.86 lb
Pedals	No
Color	Pure White, Shiny Finish
Accessories	Down tube protector, chainstay protector, seatstay protector

Technical Info

Component	Details
Bicycle Type	Trail
Frame Material	AL 6069 T4, T6
Frame Weight	3.44 kg / 7.58 lb
Rear Travel	125mm
Shock Length/Stroke	210x50mm
Recommended SAG	28-30% / 14-15mm
Piggyback Shock Compatible	Yes
Shock Bushings	20x10mm / 30x10mm
Recommended / Max Fork Height	551mm / 561mm
Headset Type	ZS56 / ZS56
ICR Compatible	Yes
Wheels Size	29’’ - 29’’
Max Rear Tyre Dimension - ETRTO	64mm - Ø622mm
Rear Brake Mounting Type	Postmount 180mm
Rear Brake Rotor Max Size	200mm
Seatpost / Seat Clamp Diameter	31.6mm / 34.9mm
Seatpost Max Insertion	S: 225mm / M: 265mm / L: 285mm / XL: 305mm
Bottom Bracket Type	Press Fit BB 92mm
Chain Guide	ISCG 05 lower - Custom upper guide
Recommended / Max Chainring Teeth	32T / 34T
Chain Line	55mm
Rear Hub Dimension	148x12mm
Rear Axle Dimension	UDH standard, 180mm, M12, P1.0mm
UDH Hanger	Yes
