Description

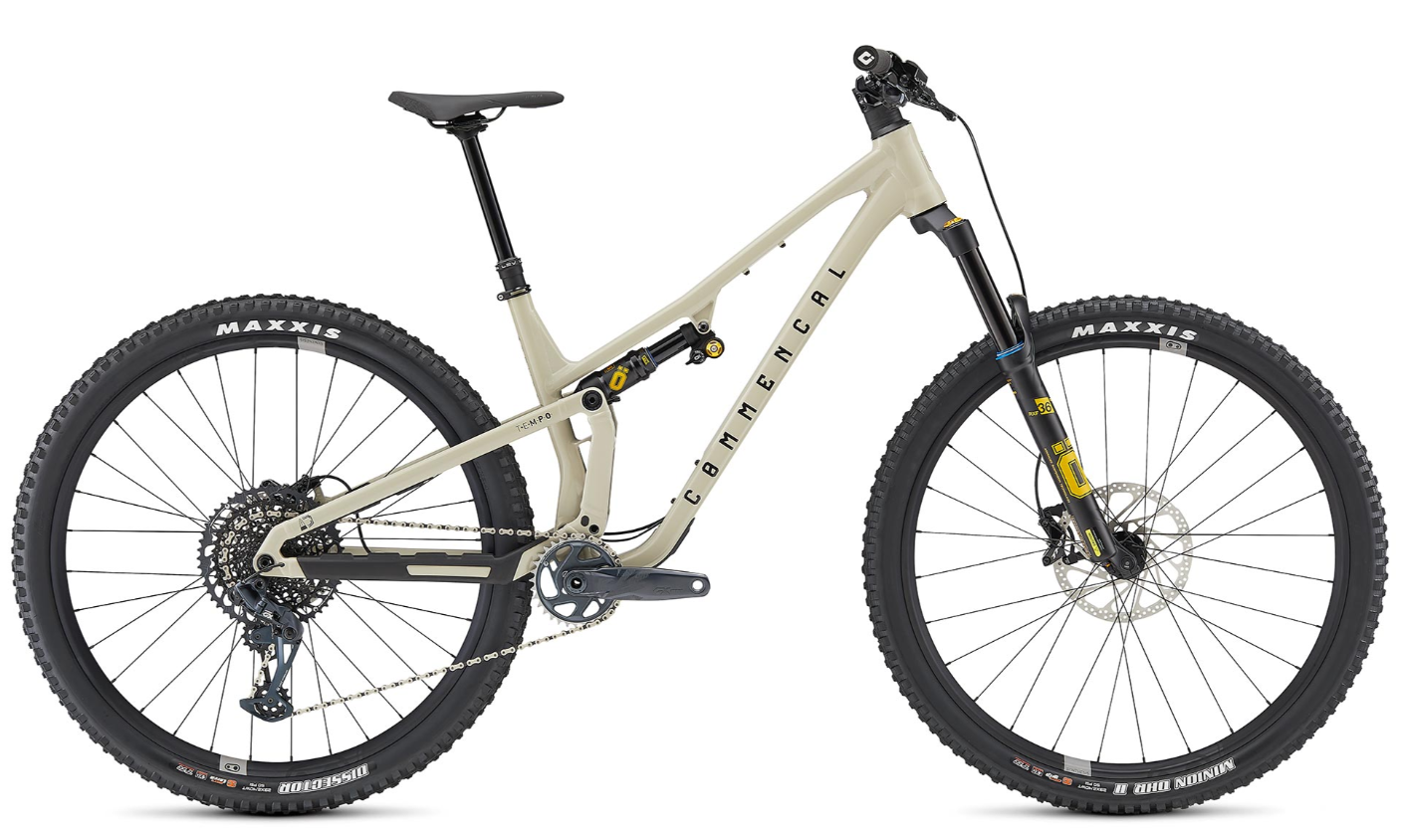

Commencal Tempo 29 - Ohlins Edition

The T.E.M.P.O. is our trail bike. It’s also the go-to training bike for our riders. Agile and responsive, it encourages you to play with the terrain, building speed, launching and landing with precision on every feature.

Featuring highly sought after Ohlins Ride Setup

Fork - OHLINS RXF 36 m.2 Air, 140 mm travel
29", TTX 18 damper, climb mode, LSC, HSC, LSR, Boost (15 x 110 mm), 51 mm offset
Shock - OHLINS TTX1 Air
210 x 50 mm, climb mode, 3 positions HSC, LSC, LSR

Specifications

Component	Details
Frame	T.E.M.P.O., 125mm travel, 29", Alloy 6069, triple butted tubes, T4/T6, Enduro bearings
Shock	OHLINS TTX1 Air, 210x50mm, climb mode, 3 positions HSC, LSC, LSR
Fork	OHLINS RXF 36 m.2 Air, 140mm travel, 29", TTX 18 damper, climb mode, LSC, HSC, LSR, Boost (15x110mm), 51mm offset
Headset	ACROS ZS56 / ZS56, alloy cups, sealed bearings, integrated cable routing
Stem	RIDE ALPHA 40, 40mm extension, 31.8mm
Handlebar	RIDE ALPHA R20 760 on S, RIDE ALPHA R27 780 on M / L, RIDE ALPHA R27 800 on XL, 31.8mm, 760/780/800mm width, 20/27mm rise, Alloy 6061
Grips	ODI Elite Motion, Soft Pro Compound, single clamp, black
Brakes	TRP Trail EVO, 4 pistons, resin pads, Rotors: TRP R1 203 / 180mm, 6-bolt, 2.3mm thickness
Shifters	SRAM GX Eagle, 12s
Rear Derailleur	SRAM GX Eagle, 12s
Bottom Bracket	SRAM DUB, Pressfit
Crankset	SRAM GX Eagle, 170mm crank arms, Boost, 32t Narrow-Wide
Chain	SRAM GX Eagle, 12s
Cassette	SRAM XG-1275 Eagle, 12s, 10-52t
Rims	CRANKBROTHERS Synthesis Enduro Alloy, Front: 29", 28h, 31.5mm inner width; Rear: 29", 32h, 29.5mm inner width
Hubs	Rear: INDUSTRY NINE 1/1, 32 holes, sealed bearings, 12x148mm, 6 pawls, 4° engagement, Sram XD; Front: INDUSTRY NINE 1/1, 28 holes, sealed bearings, 15x110mm
Spokes/Nipples	SAPIM D-Light, J-Bend, 2.0-1.65-2.0mm, double butted, stainless, Nylok, black
Tyres	Rear: MAXXIS Dissector 29x2.4, 3C MaxxTerra, EXO, Tubeless; Front: MAXXIS DHR II 29x2.4, 3C MaxxGrip, EXO, Tubeless
Seat Post	KINDHSOCK Lev Integra, 31.6mm, 150mm on S, 175mm on M, 200mm on L/XL
Saddle	FIZIK Terra Alpaca X5, 145mm width, S-alloy rails
Weight	14.7 kg / 32.4 lbs
Pedals	No
Color	Chalk, Shiny Finish
Accessories	Down tube protector, chainstay protector, seatstay protector

Technical Info

Component	Details
Bicycle Type	Trail
Frame Material	AL 6069 T4, T6
Frame Weight	3.44 kg / 7.58 lb
Rear Travel	125mm
Shock Length/Stroke	210x50mm
Recommended SAG	28-30% / 14-15mm
Piggyback Shock Compatible	Yes
Shock Bushings	20x10mm / 30x10mm
Recommended / Max Fork Height	551mm / 561mm
Headset Type	ZS56 / ZS56
ICR Compatible	Yes

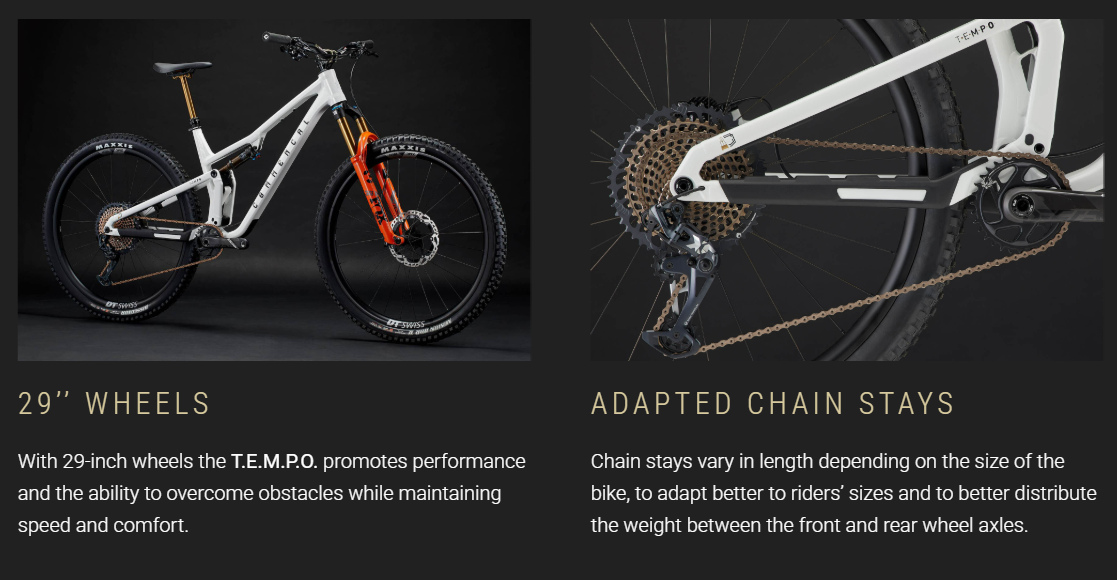

Wheels Size	29’’ - 29’’
Max Rear Tyre Dimension - ETRTO	64mm - Ø622mm
Rear Brake Mounting Type	Postmount 180mm
Rear Brake Rotor Max Size	200mm
Seatpost / Seat Clamp Diameter	31.6mm / 34.9mm
Seatpost Max Insertion	S: 225mm / M: 265mm / L: 285mm / XL: 305mm
Bottom Bracket Type	Press Fit BB 92mm
Chain Guide	ISCG 05 lower - Custom upper guide
Recommended / Max Chainring Teeth	32T / 34T
Chain Line	55mm
Rear Hub Dimension	148x12mm
Rear Axle Dimension	UDH standard, 180mm, M12, P1.0mm
UDH Hanger	Yes
