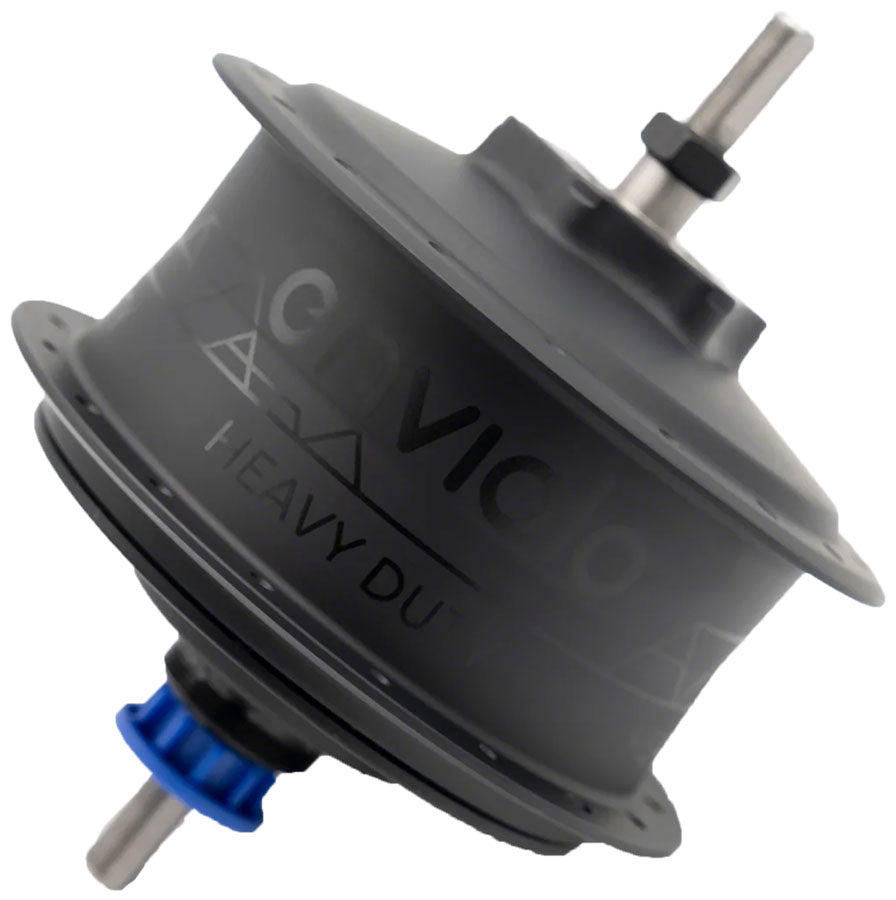

    CVP Heavy Duty Hub - HU1527.jpg

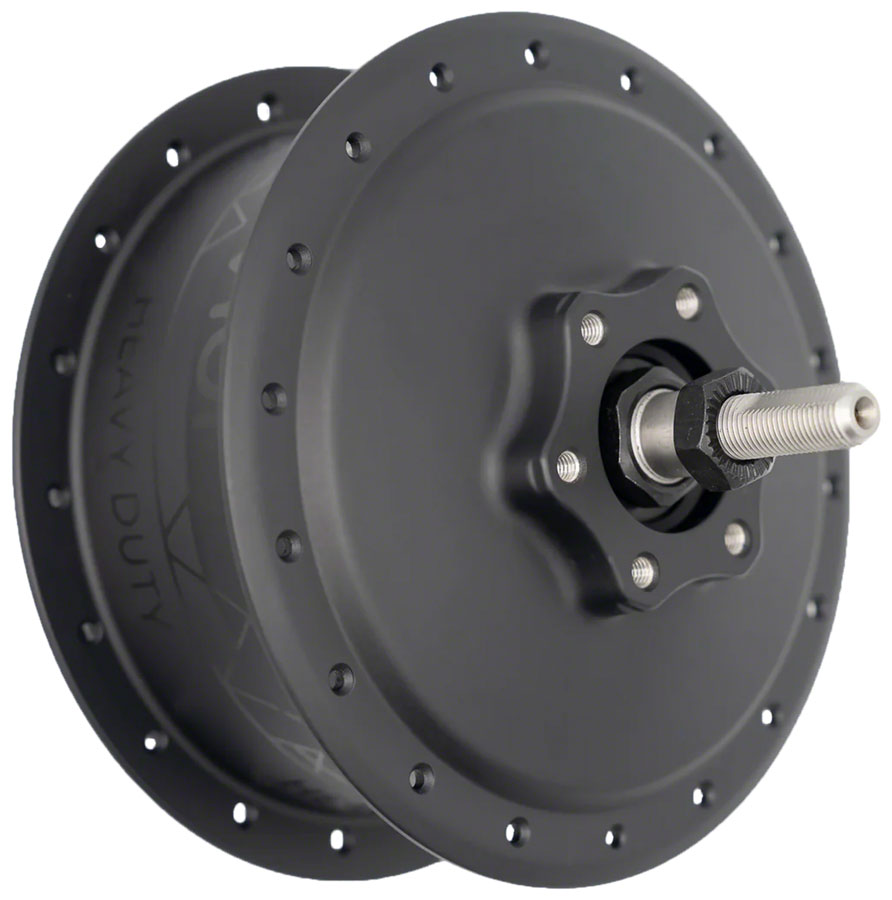

    CVP Heavy Duty Hub - HU1527-01.jpg

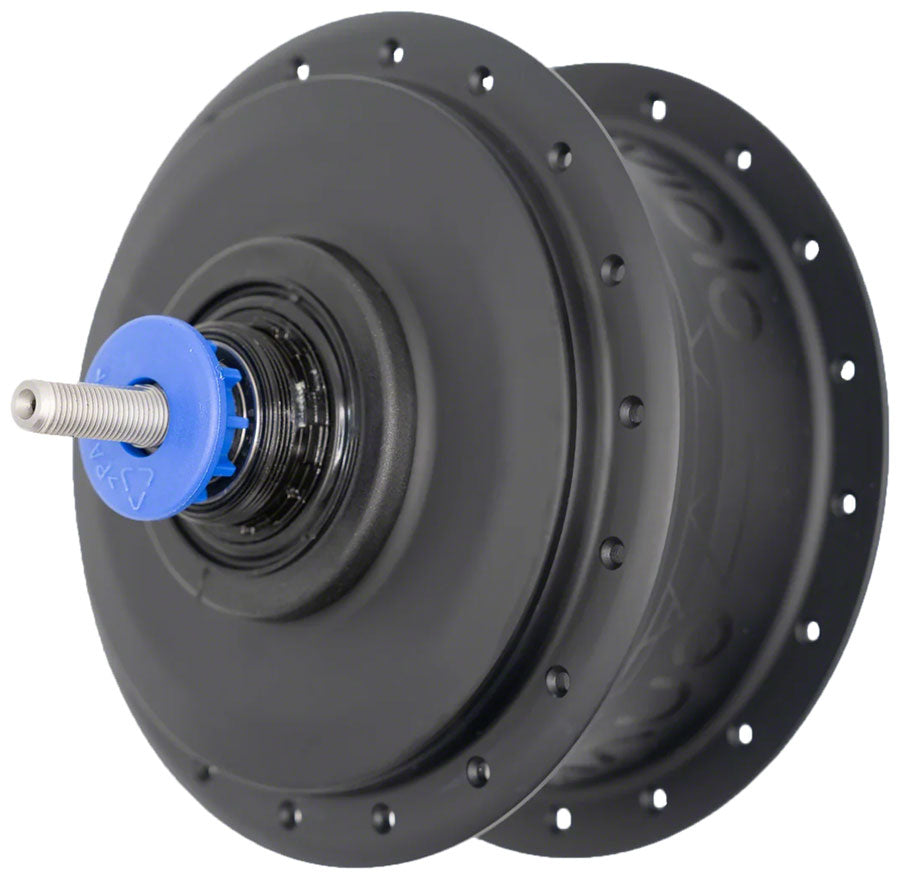

    CVP Heavy Duty Hub - HU1527-02.jpg
Skip to product information
    CVP Heavy Duty Hub - HU1527.jpg
    CVP Heavy Duty Hub - HU1527-01.jpg
    CVP Heavy Duty Hub - HU1527-02.jpg

Description

Enviolo hubs use the NuVinci planetary transmission to provide stepless shifting and near silent operation. Shift at any time- while pedaling, coasting or while stopped. Enviolo hubs are designed to withstand the high torque of an eBike while being visually maintenance-free. The Heavy Duty hub is engineered for heavier loads over shorter distances with or without Ebike motors. Rated for up to 250 kg permissible vehicle weight and 100Nm nominal torque.

  • Die-Cast & machined housing
  • 380% gear ratio range
  • Accepts up to 80 Nm continuous torque
  • Can be used with Ebike motors up to 500w
  • Suitable for up to 280kg gross weight

Specifications

These are the specifications for Item ID: HU1527

Color: Black
Hub drilling: 32
Rear axle: 10x1 Threaded x 135mm
Spoke interface: J-Bend

Enviolo

Enviolo CVP Internally Geared Hub - Heavy Duty, CY24, 40t Spline, 32 Hole, 135mm Bolt-On Axle, 6-Bolt Disc, Black

Enviolo CVP Internally Geared Hub - Heavy Duty, CY24, 40t Spline, 32 Hole, 135mm Bolt-On Axle, 6-Bolt Disc, Black

Regular price $525.00
Regular price $525.00 Sale price $525.00

Item ID: HU1527

In stock - Ready to ship.
