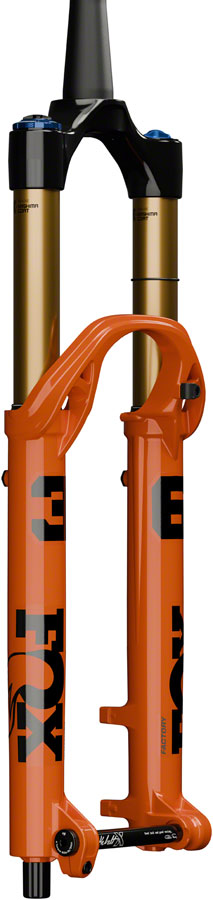

    36 Factory GRIP X/X2 Suspension Fork - FK2782.jpg

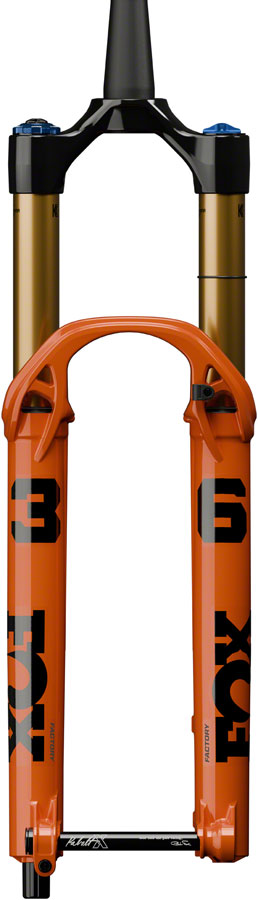

    36 Factory GRIP X/X2 Suspension Fork - FK2782-01.jpg
    36 Factory GRIP X/X2 Suspension Fork - FK2782-02.jpg
    36 Factory GRIP X/X2 Suspension Fork - FK2782-03.jpg
    36 Factory GRIP X/X2 Suspension Fork - FK2782-04.jpg

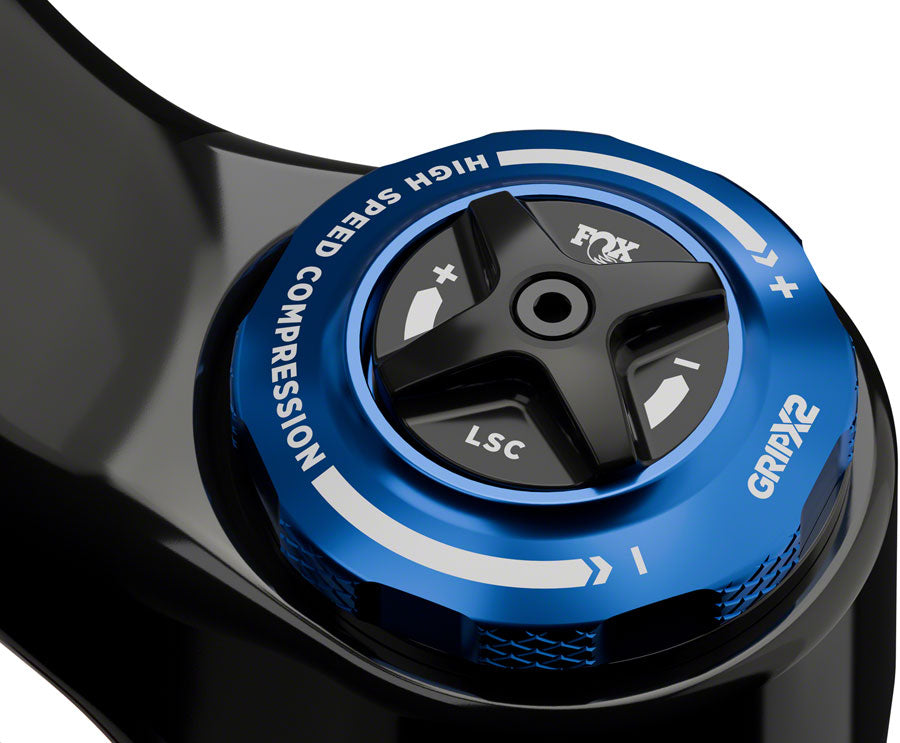

    36 Factory GRIP X/X2 Suspension Fork - FK2782-05.jpg
Skip to product information
    36 Factory GRIP X/X2 Suspension Fork - FK2782.jpg
    36 Factory GRIP X/X2 Suspension Fork - FK2782-01.jpg
    36 Factory GRIP X/X2 Suspension Fork - FK2782-02.jpg
    36 Factory GRIP X/X2 Suspension Fork - FK2782-03.jpg
    36 Factory GRIP X/X2 Suspension Fork - FK2782-04.jpg
    36 Factory GRIP X/X2 Suspension Fork - FK2782-05.jpg

Description

Packed with features to dominate the descents, the 36 answers the call from aggressive all-mountain riders. Available in both trail-focused GRIP X and gravity-focused GRIP X2 damper options.

  • GRIP X2 is the most tunable, supportive and smoothest descent-focused damper FOX has created so riders reap the benefits of sitting higher in the travel while tires stay glued to the ground, cornering with increased traction and experience reduced fatigue
  • Generative design-assisted lower leg arch shape increases torsional stiffness by 20%, while reducing overall material
  • Additional 30mm bushing overlap than the prior model 36, reduces chassis friction, increasing stiffness and boosting performance
  • New compliant FLOAT EVOL air spring design allows for a slight misalignment under load, reducing chassis friction noticeably
  • Lower leg bypass channels were relocated 90° inboard to a lower stress area, reducing dynamic friction under bending forces
  • Double-butted stanchion (on damper side) shaves weight, helping us achieve goal of zero weight increase
  • New air spring top cap for easier air volume adjustments, removable with cassette tool (Sold separately)
  • Redesigned bleeders are sleeker and easier to operate
  • Kabolt X

Specifications

These are the specifications for Item ID: FK2782

Color: Shiny Orange
Keyword search: FOX Model Year 26 , FOX MY26
Crown race: 40
Steerer type: Tapered
Brake type: Post Mount 200
Steerer tube length mm: 264
Axle to crown length: 576
Lockout switch: Crown
External adjustments: High Speed Compression Damping","Low Speed Compression Damping","Rebound Damping
Positive spring: Air
Negative spring: Air
Stanchion diameter: 36

FOX

FOX 36 Factory Suspension Fork - 29", 160 mm, 15 x 110 mm, Kabolt-X, 44mm Offset, GRIP X2 Damper, 58HT, Shiny Orange

FOX 36 Factory Suspension Fork - 29", 160 mm, 15 x 110 mm, Kabolt-X, 44mm Offset, GRIP X2 Damper, 58HT, Shiny Orange

Regular price $1,070.15
Regular price $1,070.15 Sale price $1,070.15

Item ID: FK2782

In stock - Ready to ship.
