Description

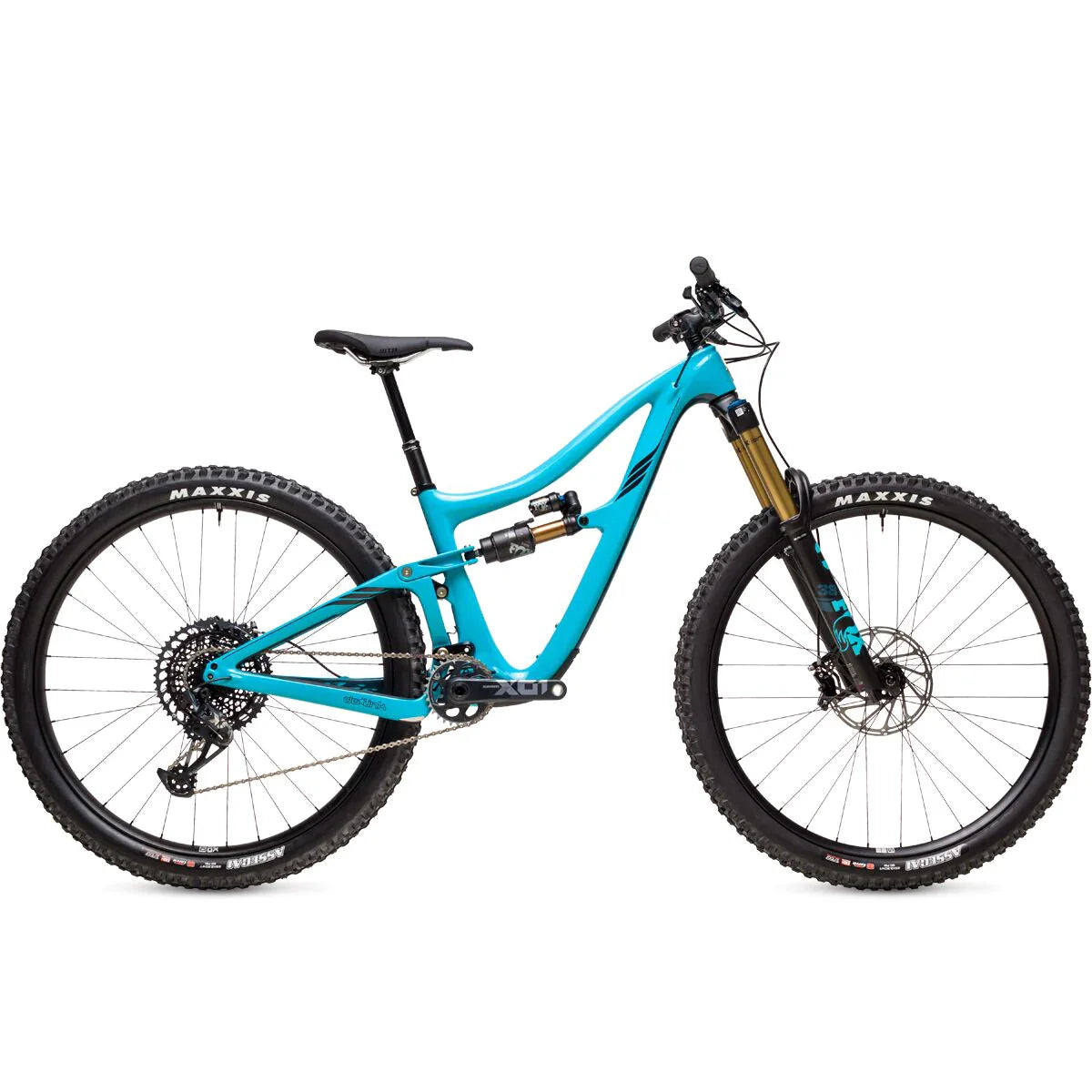

Ibis Ripmo 29 - X01 Eagle - Bug Zapper Blue

Ibis took everybody’s favorite bike and made it a little slacker, a little longer, and even more progressive! Plus they added coil compatibility to wrap it all up in the Rimpo V2.

Note: The Stem and handlebar have been upgraded, Images are for Illustration purposes only.

Key Details:

GEOMETRY

The Ripmo and Ripmo AF share the same steep, 76-degree seat tube angle and a rangy but not stratospheric reach, which places you centrally over the pedals. It makes for an efficient position that can go the long haul. The slack 64.9 headtube angle and 44mm reduced-off set fork doesn’t wander while climbing, and doesn’t hold you back descending. It works — all day up, all day down, all day in between.

TRACTION TUNE

Ibis custom tuned the front and rear suspension to feature extra light, high-speed compression and rebound damping, delivering unparalleled traction for any trail. This allows the wheels to flutter through terrain while maintaining momentum.

COIL COMPATIBLE

The Ripmo V2 is compatible with both coil and air shocks due to a more progressive leverage rate. On the trail, it gives the suspension a supple feel throughout the entirety of the stroke, enhancing traction no matter how deep you dig.

DROPPER POST CLEARANCE

Mo’ dropper, mo’ better. On small frames, you can run 125 – 150mm, pending your preference and inseam length. On medium, large and extra large, a 160mm — or, why not run a 185mm? Our shorter seat-tube lengths and low standovers allow you to choose your size based on your reach preference.

TIRE CLEARANCE

You can run overbuilt, chunky tires; you can run light, big volume fast tires, but whatever you run, know that you’re not limited by width.

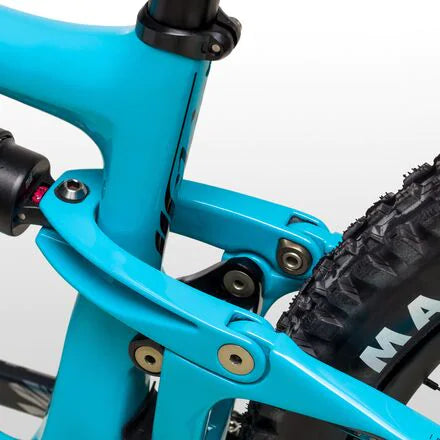

BUSHINGS

If you’re tired of hitting “purchase” on another set of bearings each season, you’ll understand exactly why Ibis chooses to use bushings where they make sense, and bearings where they don’t. The IGUS bushings in the Ripmo V2’s lower link are lighter, stiffer, and virtually maintenance free. Ibis backs this choice with a free lifetime replacement in case you have doubts.

LIGHTWEIGHT PREMIUM CARBON FOR EVERYONE

All Ibis bikes are built from the highest grade materials and optimized for the best strength, weight, stiff ness, and ride performance.The Ripmo V2 weighs a svelte 6.25 lbs with a DPX2 shock and complete builds start in at 28 lbs.

INTERNAL CABLE ROUTING

Bikes that look pretty on the outside, should look pretty on the inside. Ibis uses carbon fiber tubes molded within each frame. Push the cable in, watch it pop out, a beautiful moment indeed.

REMOVABLE ISCG MOUNT

So, you’re too fast for narrow-wide chain retention on its own? Challenge accepted. The removable ISCG tabs allow shredders to bolt on a chain guide, while the rest of us can shave grams.

PROTECT YOUR INVESTMENT

A polycarbonate downtube protector deflects debris, while molded rubber swing arm protectors keep things quiet and clean. The simple-yet-elegant linkage protectors stop mud and rocks thrown by the tire, keeping your beautiful bike beautiful.

Specifications:

Frame Model: Ibis Ripmo 2 (Ibis Hanger)
Frame Size: Medium
Frame Color: Bug Zapper Blue
Frame Year: 2022

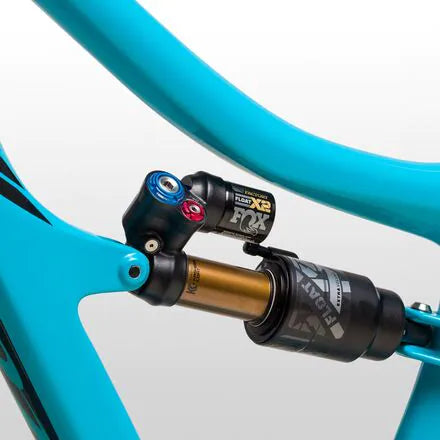

Rear Shock :Fox Float Factory Series, X2 with EVOL, 210 x 55
Headset: Cane Creek Forty
Spacers: (yes/no / xxmm) yes( 5 x 5mm)

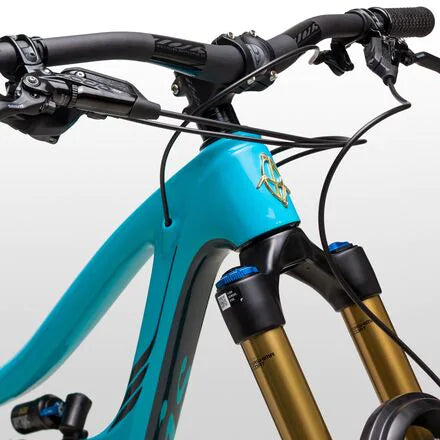

Fork Model: Fox Factory Series, Float 38, GRIP2, 160mm, 44mm offset, 29”, 110x15mm
Fork Travel: 160mm
Front Axle: 15mm
Front Axle Spacing: 110mm Boost
Front Wheel Diameter: 29"
Front Hub: Ibis Logo
Spoke Holes: 32
Front Spokes: Sapim Black
Front Nipples: Sapim Black
Front Rim: Ibis Send 1 Aluminum
Front Tire: Maxxis Assegai 29 x 2.5WT 3C MaxTerra EXO+ TR
Front Tube: Tubeless
Front Brake: Model SRAM Code RSC
Disc Rotor Interface: 6 Bolt
Disc Rotor Model: SRAM Centerline
Disc Rotor Diameter: 200mm
Stem Model: Ibis BlackBird - Black - (Not Pictured)
Stem Length: 35mm
Stem Steer Tube Diameter: 1 1/8"
Stem Bar Clamp Diameter: 35mm
Handlebar: Ibis BlackBird 800mm 35mm Carbon; Hi-Fi 30mm rise, 9º back sweep, 5º up sweep (Not Pictured)
Shifters: SRAM X01 Eagle
Brake Levers: SRAM Code RSC
Grips Lizard: Skin Charger Black w/Ibis Logo clamps
Brake Cables: Hydraulic
Shift Cables: Jagwire
Seatpost: Bike Yoke Revive Dropper 160mm
Dropper Routing: Internal
Saddle: WTB Silverado Medium Cromoly
Bottom Bracket: SRAM DUB BSA

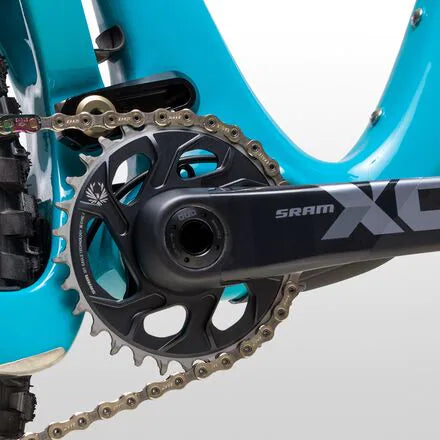

Crankset: SRAM X01 Carbon, DUB Spindle, 170mm
Chainrings: SRAM Eagle X-Sync 3mm Boost, 30T
Pedals: Not Included
Chain: SRAM X01 Eagle
Cassette: SRAM Eagle XG-1295, 10-52T

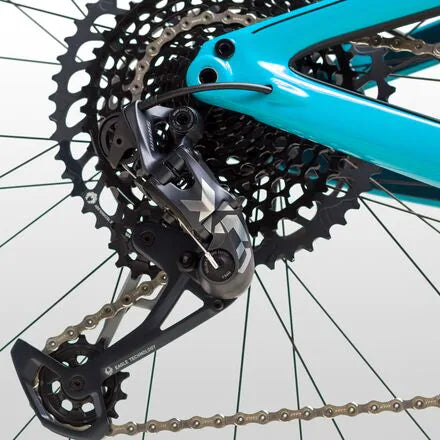

Rear Derailleur: SRAM X01 Eagle
Derailleur Mount Type: Standard
Rear Axle: 12mm through axle
Rear Axle Spacing: 148mm
Rear Wheel Diameter: 29"
Rear Hub: Ibis Logo XD
Spoke Holes: 32
Rear Spokes: Sapim Black
Rear Nipples: Sapim Black
Rear Rim: Ibis Send 2 Aluminum
Rear Tire: Maxxis Assegai 29 x 2.5WT 3C MaxTerra EXO+ TR
Rear Tube: Tubeless
Rear Brake Model: SRAM Code RSC
Disc Rotor Interface: 6 Bolt
Disc Rotor Model: SRAM Centerline
Disc Rotor Diameter: 180mm

Sizing & Geometry:
