Description

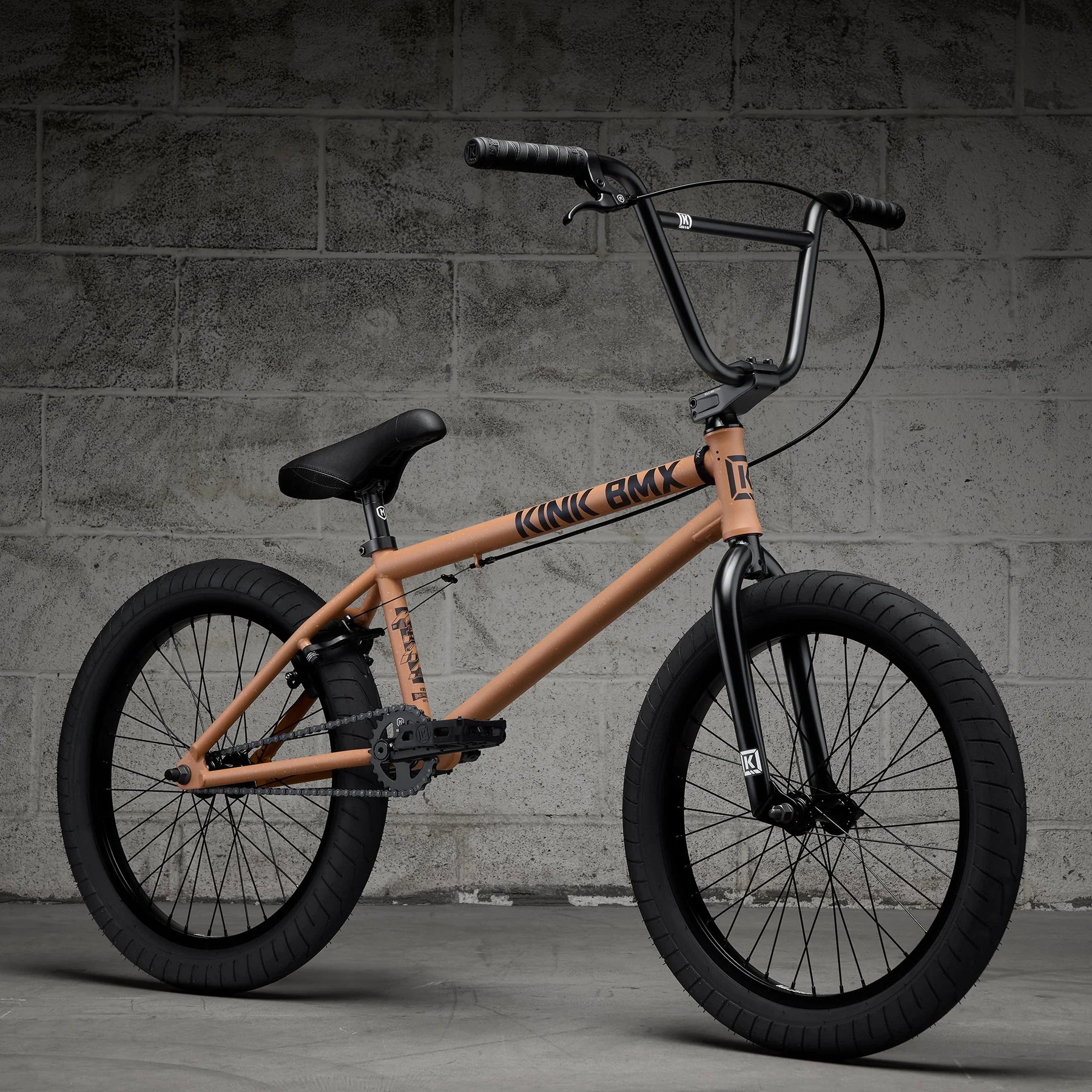

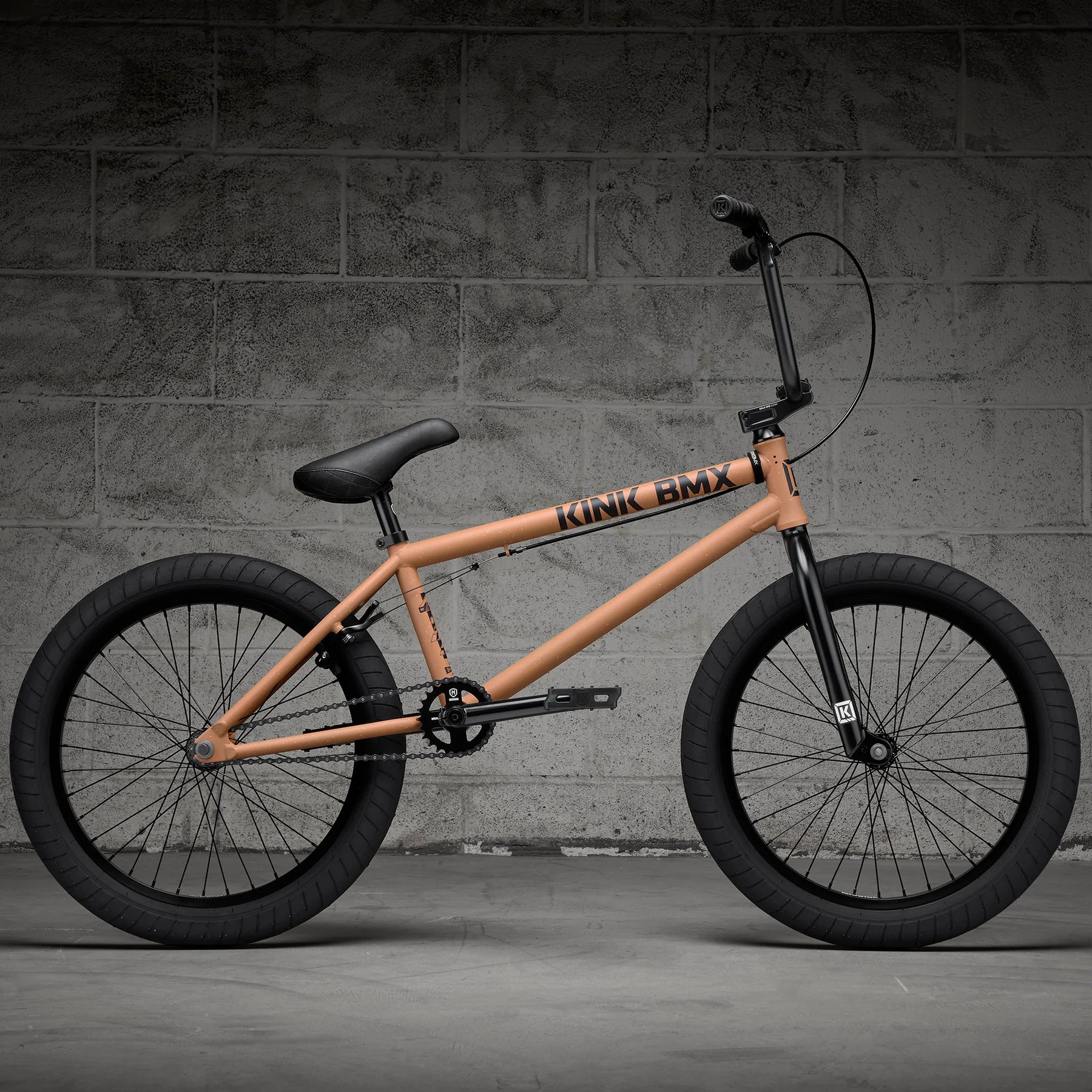

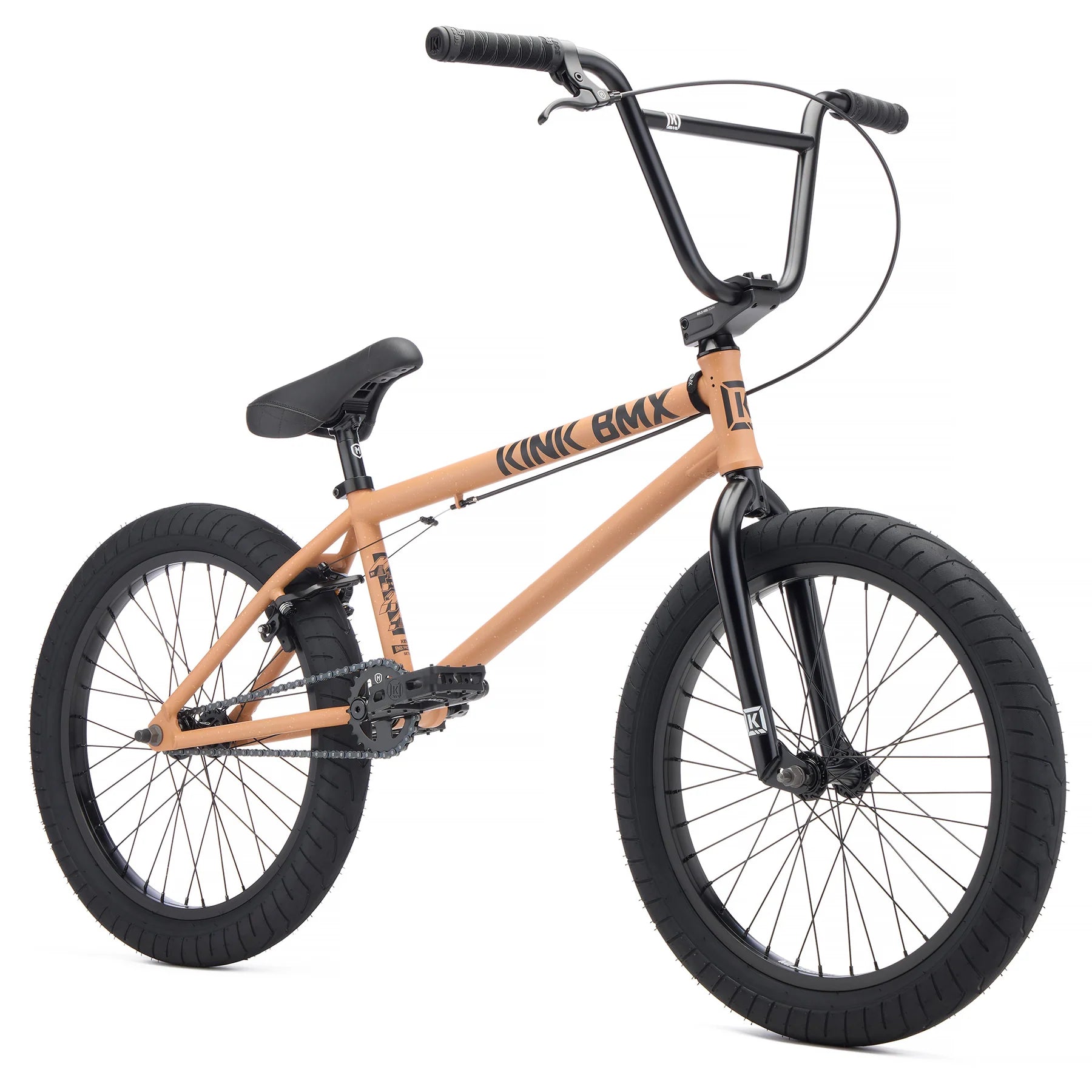

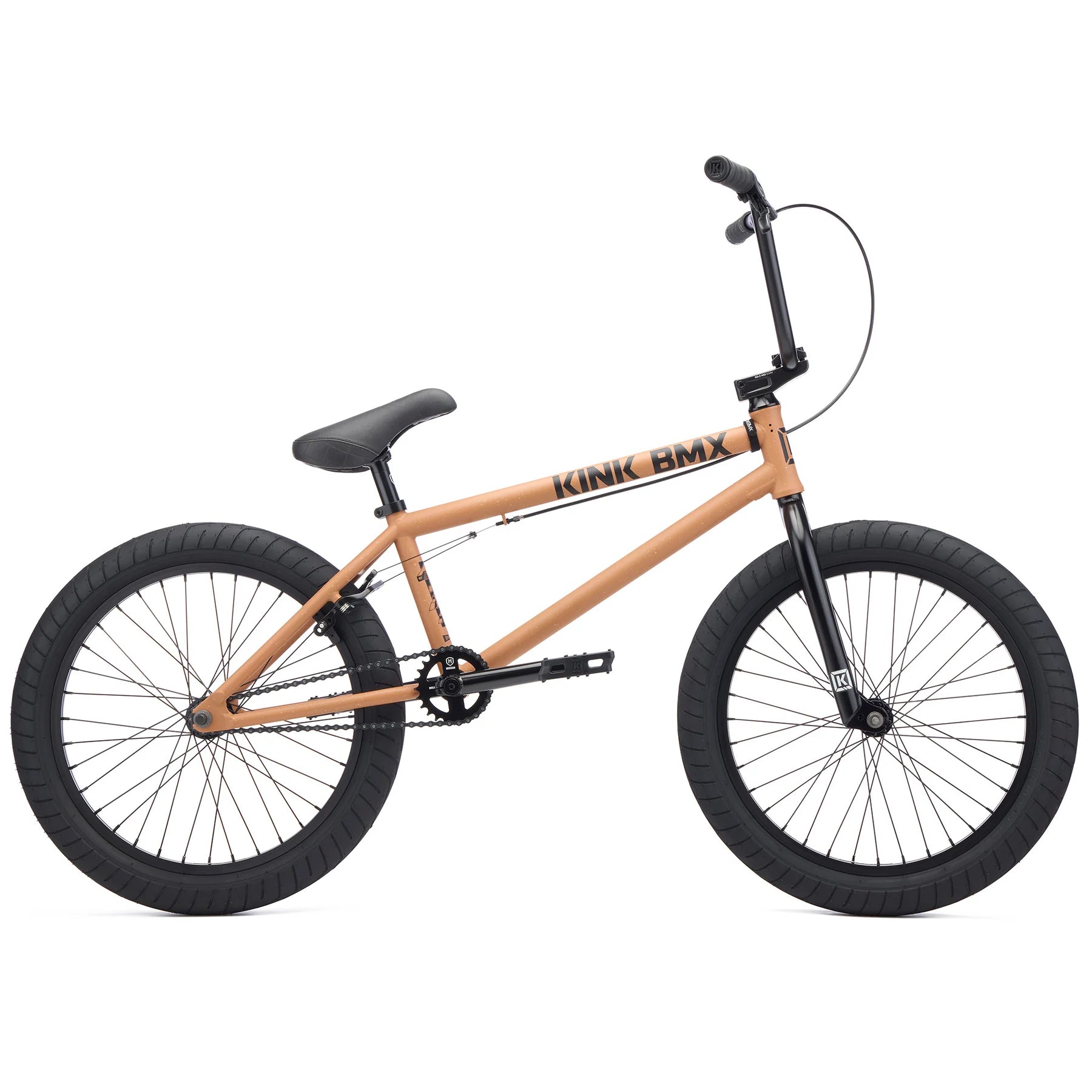

Kink BMX Setup 20"

The all-new Kink Setup is a super versatile bike ready to handle more serious riding. This model features a 4130 chromoly frame front triangle, forks, and handlebars, improving the overall strength and longevity of the bike. Additional upgrades, such as the Stealth seat system, offer more adjustability and modern compatibility. Its moderate-to-modern geometry is also great for all types of riding. The Setup is available in Iridescent Black and Oxide Orange colorways and is also offered in an XL size for taller riders.

Technical Info

FRAME Kink Setup 4130 Chromoly Front Triangle	PEDALS Kink Hemlock
FORK Kink Circuit 4130 Chromoly Steerer, Tapered Fork Legs	CHAIN Mission 410
BARS Kink T900 9" 100% 4130 Chromoly	SPROCKET Mission Breach 25T
GRIPS Kink Ace Flangeless	SEAT Kink Plymouth Stealth
STEM Kink Bold HRD 50mm	SEAT POST Mission Stealth
HEADSET Mission Sealed Integrated (41.8 x 45)	SEAT CLAMP Mission Slim Clamp
BRAKE LEVER Mission Token	FRONT HUB Mission Covert Unsealed 3/8″ Axle
BRAKE CABLE Mission L3 Linear	REAR HUB Mission Engage Sealed Cassette 14mm
BRAKES Mission Cease V2	DRIVER 9T
CRANKS Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline	RIMS Mission X7
BOTTOM BRACKET Sealed Mid 19mm	TIRES Kink Sever 2.4"
PEGS N/A	WEIGHT 26lb 14oz

Sizing & Geometry

Kink BMX
