Description

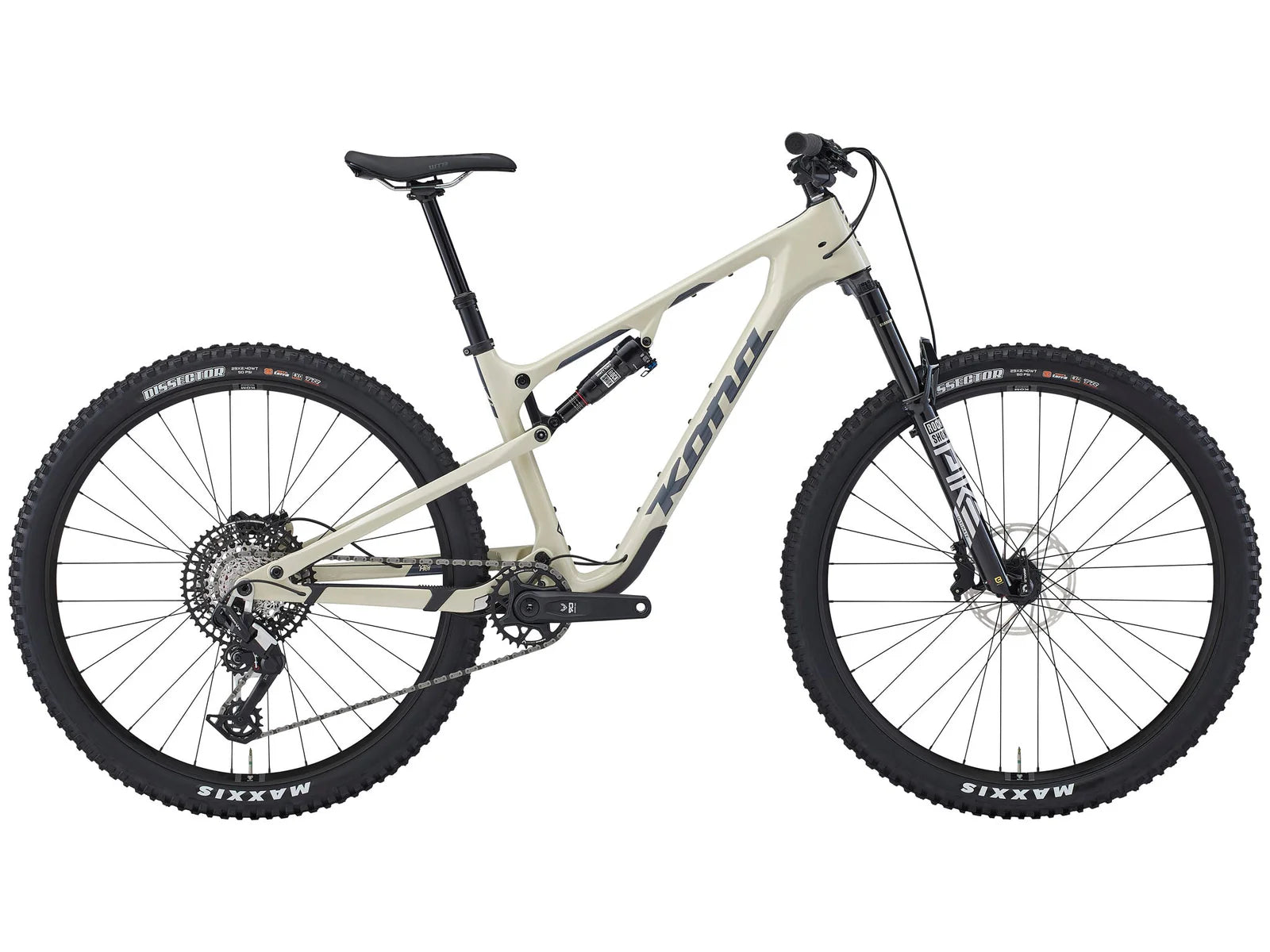

Kona Hei Hei CR 29 - SRAM

Our intent with this bike was to position it as something “more” than just a race bike, because the Hei Hei embodies this incredible blend of sharpness and speed in a broadly capable, trail-friendly package that makes even the gnarliest climbs fun again. But then Cory Wallace went out and won ANOTHER 24 Hour World Championship aboard it, so, yeah. It does just fine as a race bike too. But the new Hei Hei CR is so much more than that. It couples Kona’s trademark long and low geometry with a feathery light but beautifully composed carbon fiber frame, then gets dressed up in a fitting ensemble of SRAM’s finest. Whether you are harvesting KOMs or singletrack saturated smiles, the Hei Hei CR is gonna stack them up fast.

Key Details:

Advanced carbon fiber frame
Swinger rear suspension design, 120mm travel
Super deep dropper post insertion depth
Full tube-in-tube internal cable routing
Nine bottle/accessory mount options inside front triangle
RockShox PIKE Ultimate 130mm fork
RockShox Deluxe Ultimate rear shock
New SRAM Motive Bronze 4-piston brakes
New SRAM Eagle 90 Transmission
TransX +RAD dropper post in 125-200mm travel
DT Swiss 370 hubs with torque cap
WTB KOM i30 TSC rims
Maxxis Dissector 29x2.4” WT tires

Specifications:

Frame Material	Kona Carbon
Sizes	S, M, L, XL
Rear Shock	RockShox Deluxe Ultimate
Fork	RockShox Pike Ultimate Charger 3.1 RC2 130mm Tapered 110mm Spacing
Crankarms	SRAM Eagle 90 DUB
Chainrings	SRAM Eagle 90 32t
B/B	SRAM DUB PF92
Pedals	n/a
Chain	SRAM Eagle 70
Cassette	SRAM Eagle 90 Transmission 10-52t 12spd
Chainguide	n/a
F/D	n/a
R/D	SRAM Eagle 90 Transmission
Shifters	SRAM Eagle 90 Transmission
Brake Calipers	SRAM Motive Bronze 4-Piston Brakes
Front Brake Rotor	SRAM Centerline 180mm
Rear Brake Rotor	SRAM Centerline 180mm
Brake Levers	SRAM Motive Bronze
Headset	FSA No.57E
Handlebar	Kona XC/BC 35
Stem	Kona XC/BC 35
Seatpost	TranzX Dropper +RAD Internal 31.6mm
Seat Clamp	Kona Clamp
Grips	Kona Key Grip
Saddle	WTB Volt
Front Hub	DT Swiss 370 110x15mm
Rear Hub	DT Swiss 370 148x12mm
Spokes	Sandvik Stainless Black 2.0/1.8 Butted
Rims	WTB KOM Team i30 TCS 2.0
Front Tire	Maxxis Dissector EXO TR 29x2.4WT"
Rear Tire	Maxxis Dissector EXO TR 29x2.4WT"
Paint Color	Gloss Bone w/ Charcoal Decals

All specifications are subject to change without notice.

Sizing & Geometry:

Video:

Kona
