Description

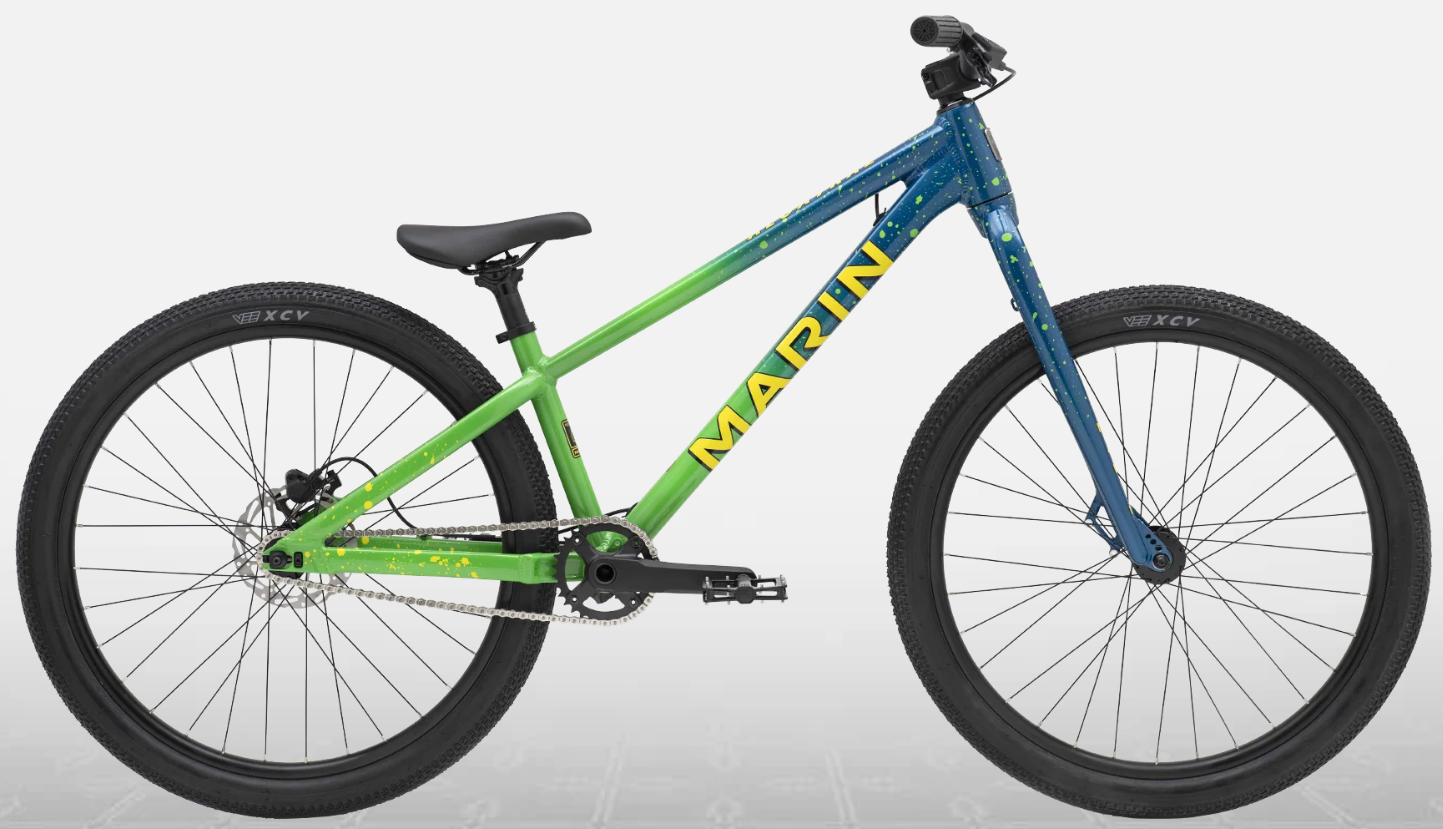

Marin Alcatraz 1 26

Enter the Matt Jones matrix on the Alcatraz 1 without busting your credit rating.

Decked out with no-nonsense ready-to-ride and ready-to-progress parts – including a Tektro hydraulic rear disc brake to boost control. Its Series 3 Aluminum frame is big-line tough and spin-it light. Dialed with short chainstays for poppy manuals and a low, short frame so it won’t cramp your style – its geometry lets you level up without limits.

Pump lips to get the ultimate boost with Alcatraz 1’s suspension-corrected CrMo rigid fork and fast-rolling Vee Tire XCV rubber. Tektro’s hydraulic rear disc brake amps up the stopping power and our ready-to-ride Marin parts will take a beating, so your bike is never out of action. Whether you’re finding the rhythm at your local six-pack, flowing at the pump track or sessioning your favorite park, the Alcatraz 1 takes care of business so you can focus on fun.

Built from 6061 aluminum, the Alcatraz’s Series 3 frame has carefully crafted tubes designed to handle the rough and tumble of your airborne antics.

Lightweight and tough, the frame has got what matters and none of the clutter that doesn’t. Internal cable routing keeps it looking sleek and cuts the rattle. Spend less time wrenching and more time sending with a 73mm BSA bottom bracket and horizontal dropouts, built with our custom chain tensioning device. ISCG 05 chain guide tabs are retention device ready – perfect for the wildest tricks.

Dial up or tone down the party vibes with two frame sizes – long or short. The short frame keeps you connected to your BMX roots, while the long frame offers a calmer ride and fits riders 5ft 11in or taller.

Specifications:

Marin Alcatraz 1 26
Component	Description
Fork	Marin Series 2 Cro-Mo 26" Fork, Suspension Corrected, 100x9mm Drop Outs
Frame	Series 3 6061 Aluminum, 26” Wheels, 135x10mm Horizontal Dropouts, 73mm Threaded BB, ISCG 05 Tabs
Rim	Marin Custom Extrusion, 27mm Inner, Pinned Joint
Hub Rear	Forged Alloy, 135x1mm, Bolt-On, Quad Sealed Bearings, Disc, 32H
Hub Front	Forged Alloy, Bolt On 3/8" Axle, 100mm Spacing
Spokes	14g Black Stainless Steel
Tires	Vee Tire, XCV 26x2.25”, LSG Compound, Wire Bead
Crankset	Marin Forged Alloy, Alloy 32T Chainring, 104mm BCD, 170mm Crank Length
Bottom Bracket	External Sealed Cartridge Bearings
Chain	KMC HL-1
Cassette	14T Single Speed Cog
Brakes Rear	Tektro HD-M280, Hydraulic Disc, 160mm Rotor
Brake Levers	Tektro HD-M280
Handlebar	Marin Riser, 6061 Double Butted Aluminum, 30mm Rise, 700mm Width, 4º Up, 9º Back
Stem	Marin 3D Forged Alloy, 35mm
Grips	Marin MTN, Closed End
Headset	FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2”
Seatpost	Marin Alloy, 30.9mm
Saddle	Marin DJ Saddle
Pedals	Alloy Platform
Extras	All New Marin Chain Tension Device

Sizing & Geometry:
