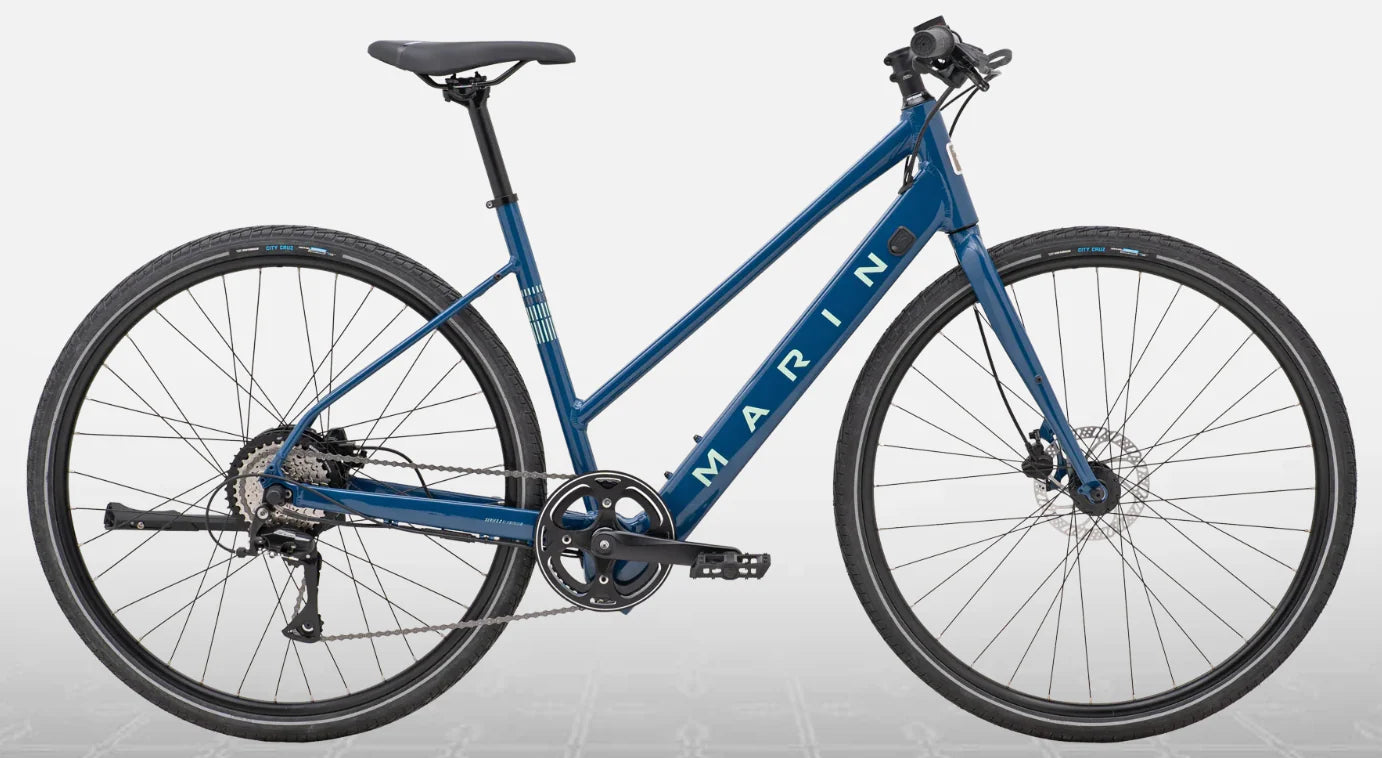

Marin Fairfax E ST 700c

Our critically acclaimed and best-selling Fairfax bike has gone electric. The all-new Fairfax E bike collection brings the power to scoot you along with 40Nm of torque from the rear hub, quietly and seamlessly adding a boost to your pedaling. The 340Wh battery is cleanly integrated into the Series 2 aluminum frame's downtube, while a Shimano 8-speed Altus drivetrain provides plenty of gearing range. Finally, hydraulic disc brakes from Tektro allow for controlled and comfortable stopping power in all conditions.

The Fairfax E ST allows for easier mounting and dismounting, thanks to the dropped top tube

Key Details:

Bafang 40nm Rear Hub Motor
340 Wh Battery
Shimano 8 Speed Drivetrain

Specifications:

Component	Specifications

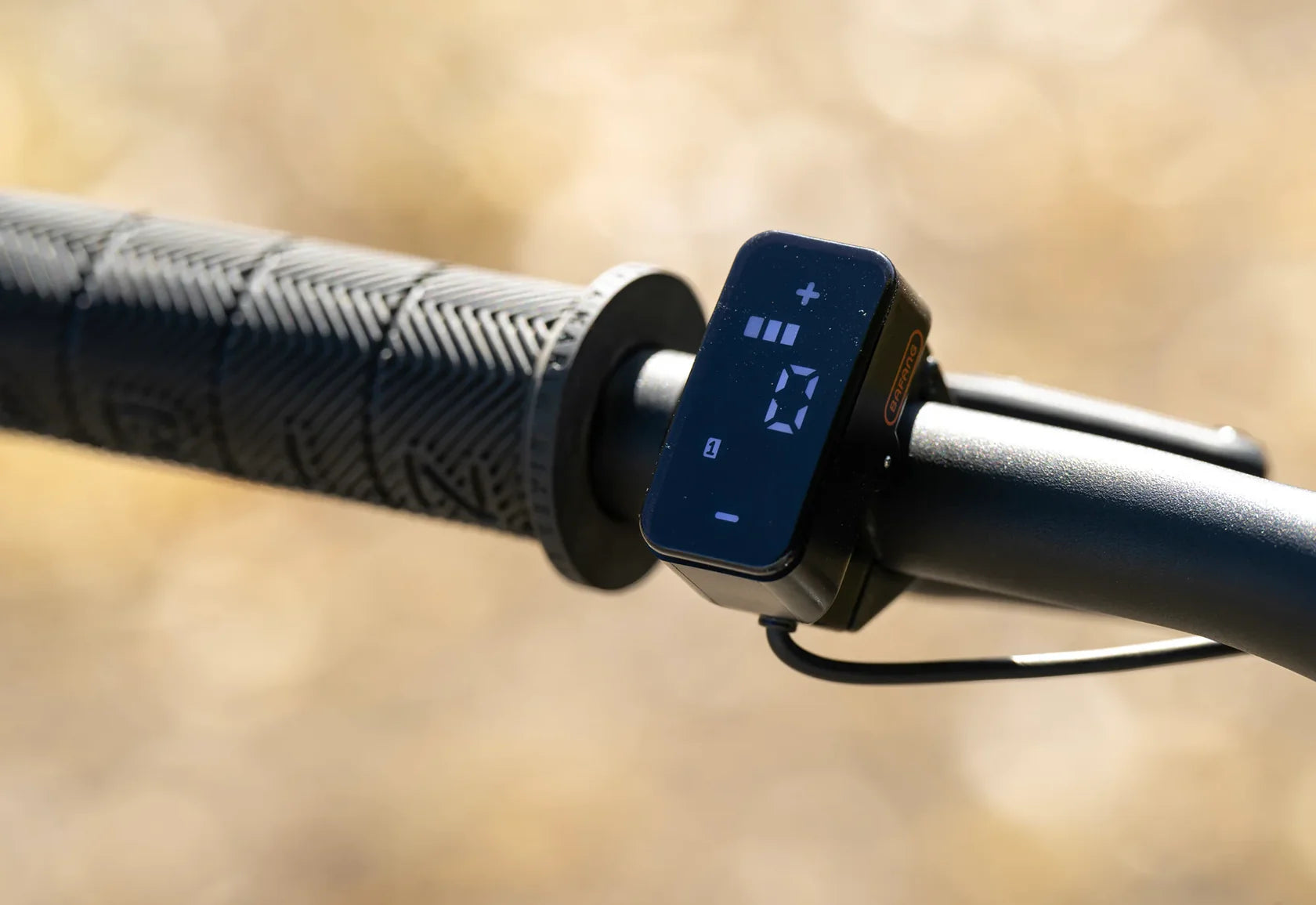

App	Bafang Go App
Range	15-62 miles/25-100km

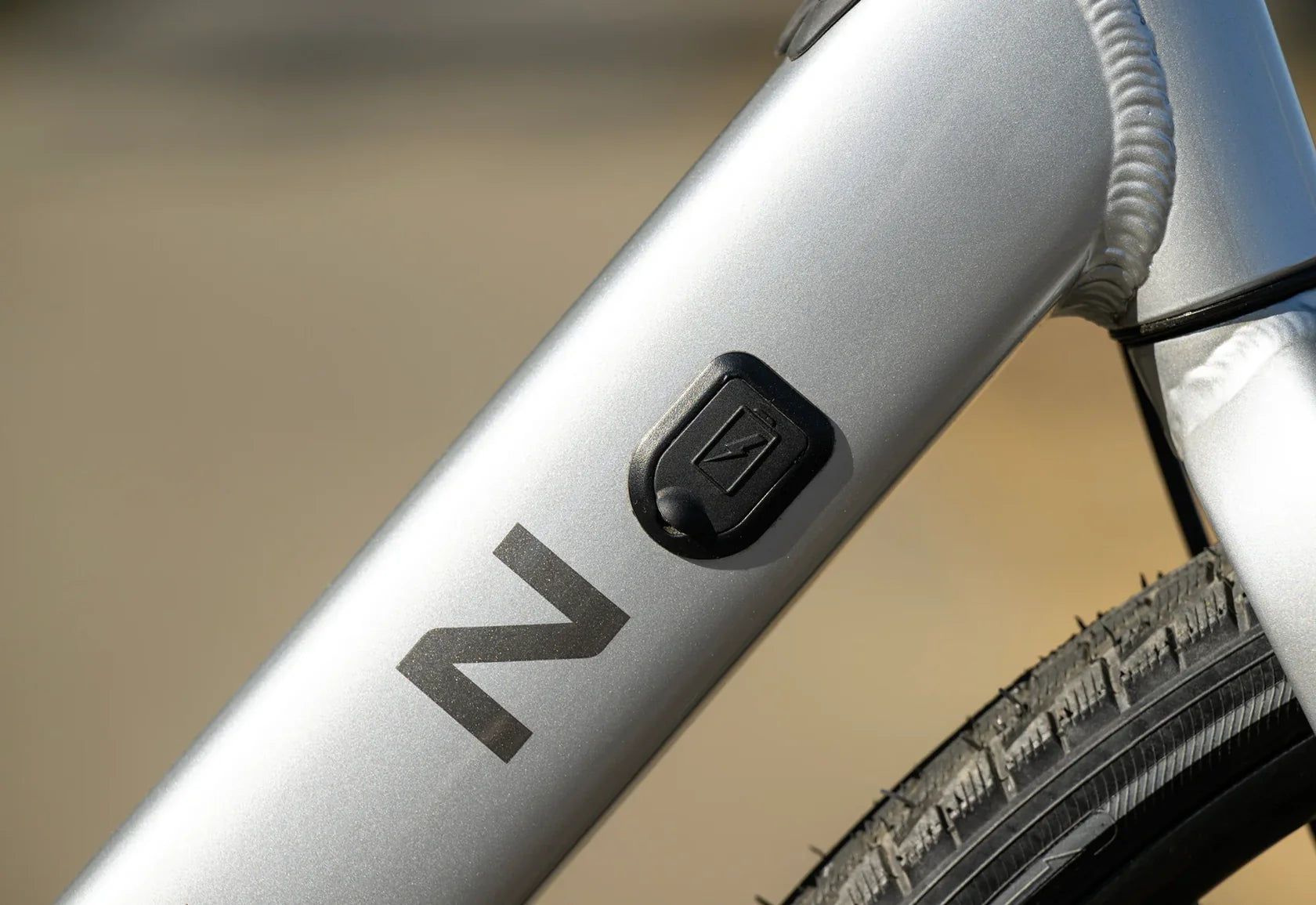

Battery	Bafang 360Wh, 36V, In-tube
Motor	Bafang 250 Watt Hub Motor, 36H
Fork	6061 Aluminum, Straight-Blade, Disc Mount, Fender and Rack Eyelets

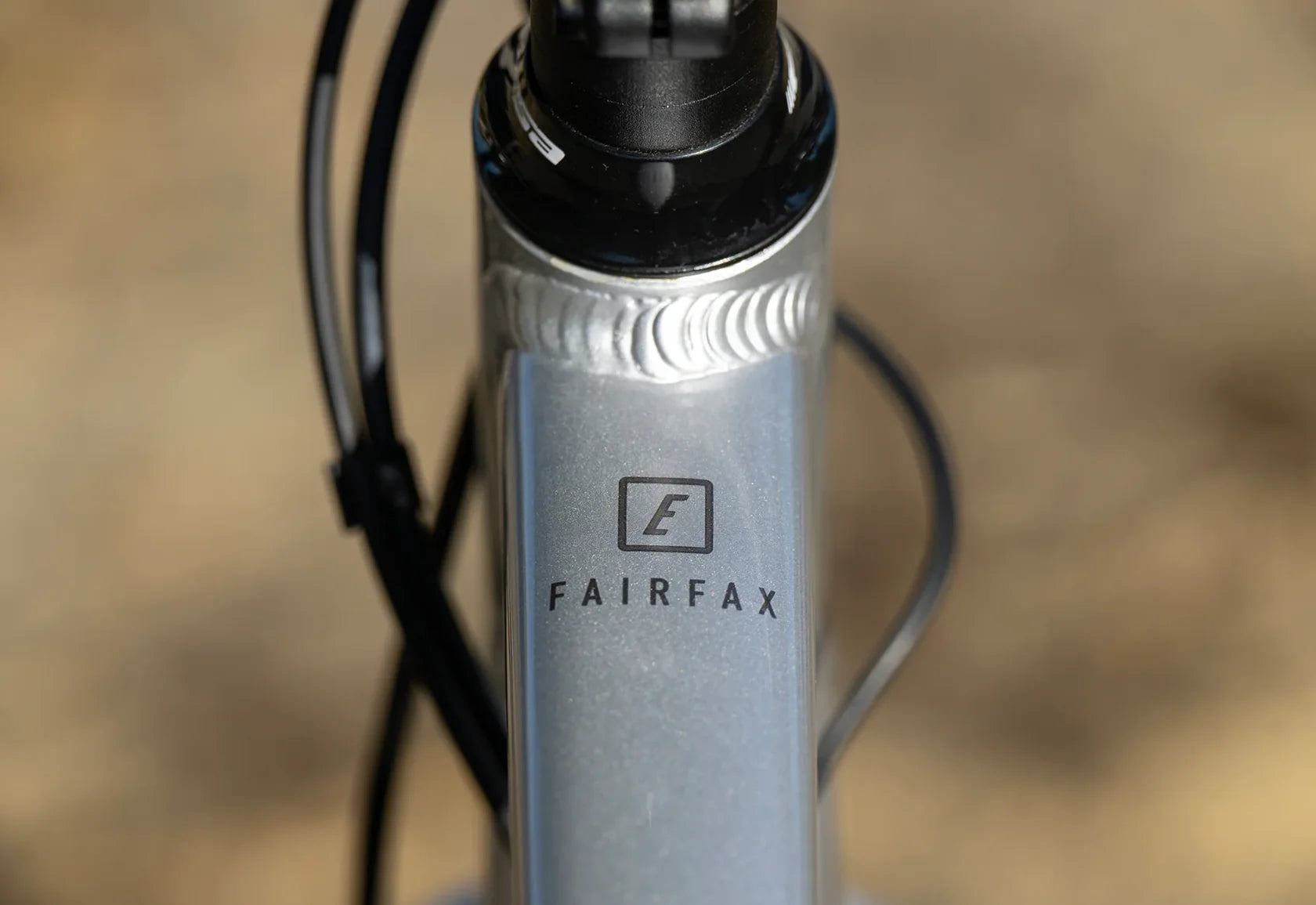

Frame	Series 2 Fitness, E-Bike Specific, 6061 Aluminum, 700c Wheels, Disc Specific, Fitness Geometry, Step-Thru Top Tube, Kickstand Mount, Fender and Rack Mounts
Rim	Marin Aluminum Double Wall, Disc Specific
Hub Rear	Bafang 250 Watt Hub Motor, 40Nm, 36H
Hub Front	Forged Aluminum Alloy, 32H
Spokes	14g Black Stainless Steel
Tires	Vee Tire, City Cruz, 700Cx40mm, Puncture Protection, Reflective Sidewall, Wire Bead
Derailleur Rear	Shimano Acera, 8-Speed, Wide Range
Shift Lever	Shimano Altus 8-Speed RapidFire
Crankset	Alloy Crank, Steel 42T Chainring, Ring Guard
Bottom Bracket	Integrated Torque Sensing, Sealed Cartridge Bearings, Square Taper
Chain	KMC X8
Cassette	Shimano HG-400, 8-Speed, 11-40T

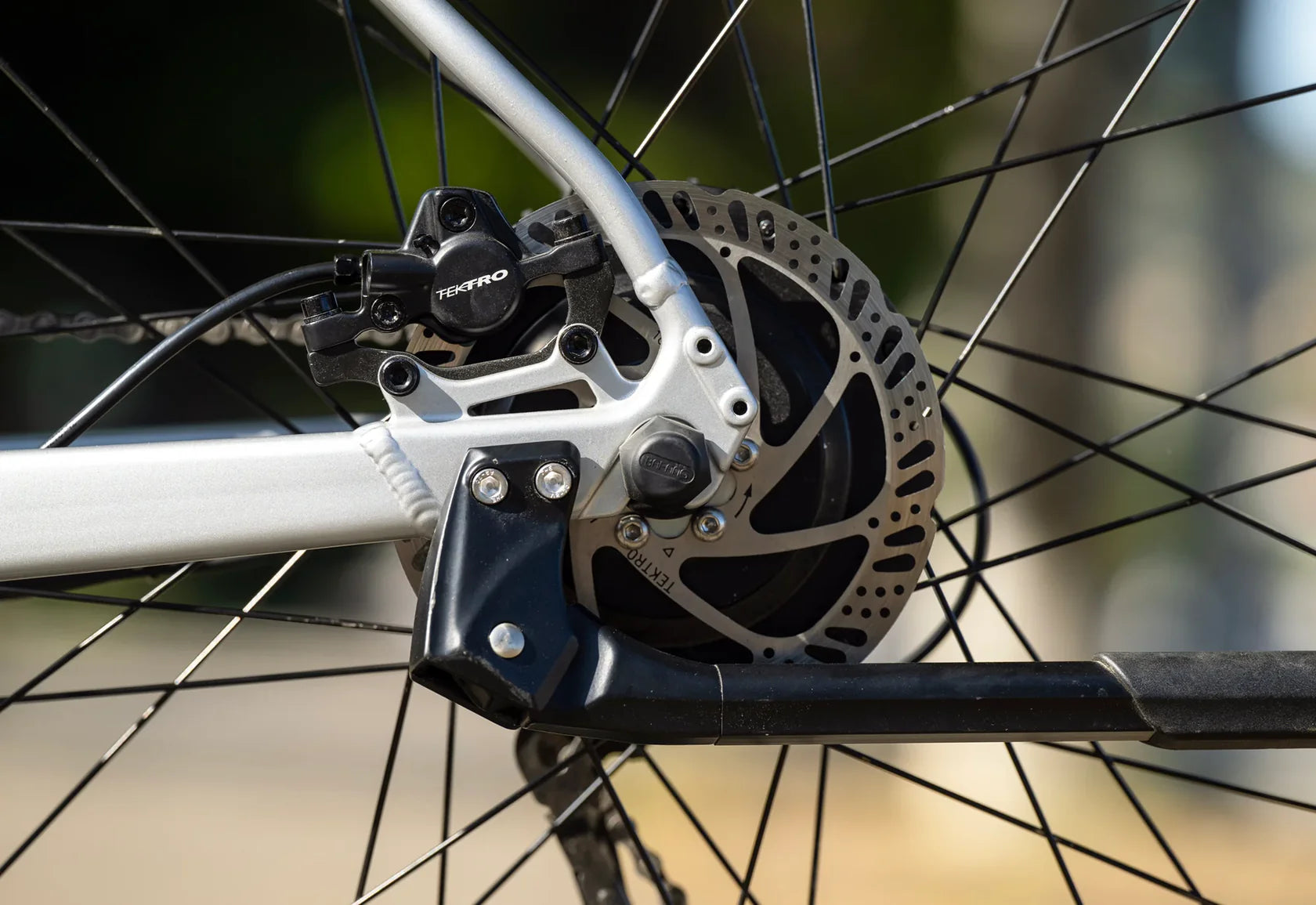

Brakes Front	Tektro HDM-275 Hydraulic Disc, 160mm Rotor
Brakes Rear	Tektro HDM-275 Hydraulic Disc, 160mm Rotor
Brake Levers	Tektro Hydraulic
Handlebar	Marin Alloy Flat
Stem	Marin Alloy
Grips	Marin County
Headset	FSA, Orbit CE No.8B
Seatpost	Marin Alloy, 27.2mm
Saddle	Marin Fitness
Pedals	Nylon Platform

Geometry:

SIZING -

S: 5'1" to 5'5"
M: 5'5" to 5'9"
L: 5'9" to 6'1"
XL: 6'1" to 6'5"
