Description

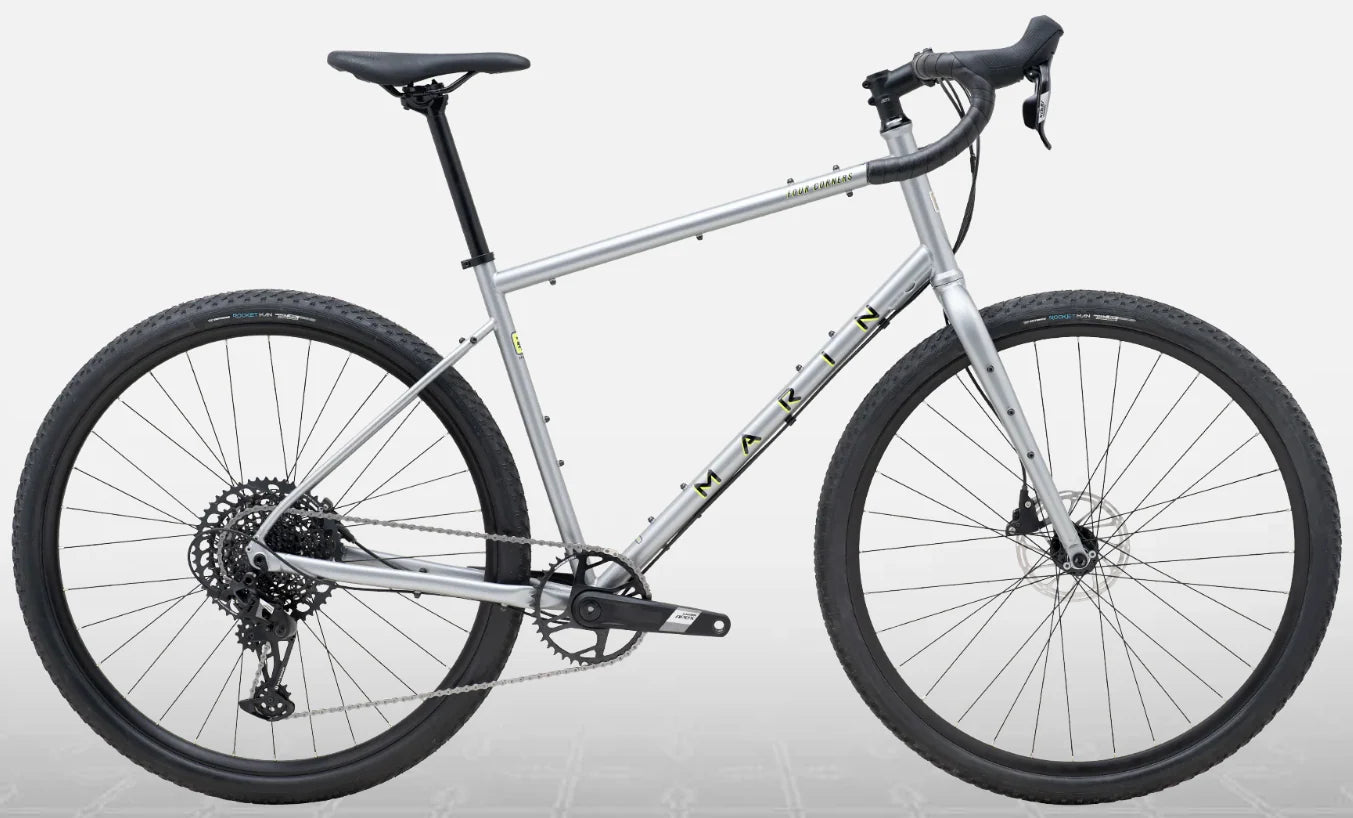

Marin Four Corners 2 650b

The Four Corners 2 takes all the elements that make the Four Corners fantastic and adds a Series 3 double-butted CrMo frameset, a simpler, wide-range SRAM 1x12 speed Apex drivetrain, and matching, powerful Apex 1 hydraulic disc brakes.

The rubber meets the road/path/trail with wider, 44mm Vee Tire Quickstyx tubeless-compatible tires, and the frame can accept tires up to 50mm wide.

Whatever you choose is no problem for the Marin Four Corners, our steel-framed explorer that’s as comfortable on the asphalt as it is in the dirt.

Key Details:

1 x 12 Sram Apex Transmission
Series 3 Double Butted 4130 CrMo Steel Frame
Bottle, Rack and Fender Mounts
Sram Apex Hydraulic Disc Brakes

Specifications:

Component	Specifications
Fork	Series 3 CrMo, Thru-Axle, Flat Mount 160 Disc Mount, Fender, Rack, and Bottle Cage Eyelets
Frame	Series 3 Double Butted CrMo, Size-Specific Wheels (XS, S = 650B, M, L, XL = 700C), Biometric Geometry, Fender and Rack Mounts, Thru-Axle, Flat Mount 160 Disc Mount
Rim	Marin Aluminum Double Wall, 25mm Inner, Disc Specific, Tubeless-Compatible
Hub Rear	Forged Aluminum Alloy, Disc, 32H
Hub Front	Forged Aluminum Alloy, Disc, 32H
Spokes	14g Black Stainless Steel
Tires	Vee Tire Co., QuikStyk, 700x45, Folding Bead, Tubeless Compatible
Derailleur Rear	SRAM Apex 1 12-Speed
Shift Lever	SRAM Apex 1 1x12-Speed
Crankset	SRAM Apex 1, 40T
Bottom Bracket	SRAM DUB BSA
Chain	SRAM NX
Cassette	SRAM CS-XG-1275, 10-52T
Brakes Front	SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor
Brakes Rear	SRAM Apex 1 Flat-Mount Hydraulic Disc, 160mm Rotor
Brake Levers	SRAM Apex 1 w/ Integrated Shifter
Handlebar	Marin Butted Alloy, Compact 16º Flared Drop
Stem	Marin 3D Forged Alloy
Grips	Marin Comfort Tape
Headset	FSA No.8B
Seatpost	Marin Alloy, 27.2mm
Saddle	Marin Beyond Road Concept
Pedals	Nylon Platform
Extras	Bolt-On Thru-Axles F & R

Geometry:
