Description

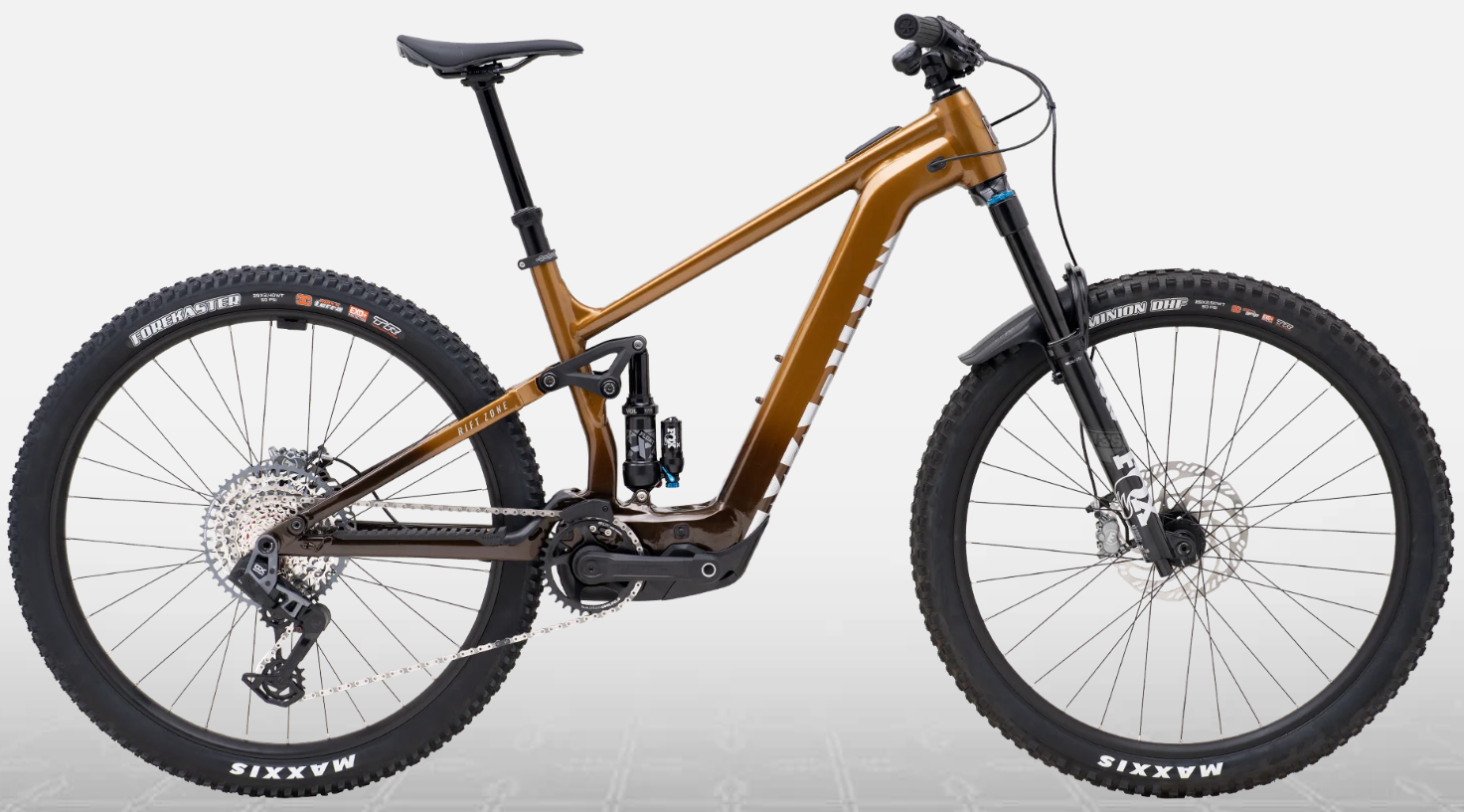

Marin Rift Zone EL XR 29

The all-new Rift Zone EL ("Electric Light") trail eMTBs take everything you love about the Rift Zone and repurposes it into bikes that share the capability of the full-powered versions but in lighter packages.

Made possible in part by Bosch's new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride with a power delivery so natural you might forget it's an ebike. With all the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don't require the full range and power output of more traditional eMTBs.

The flagship Rift Zone EL XR is decked out with a gamut of high performance components, including the impressive Fox 36/Float X Performance Elite suspension combo, SRAM's GX AXS wireless T-type transmission drivetrain and Magura MT-7 4-piston brakes.

Key Features and Benefits:

Sram GX AXS 12 Speed Transmission
PNW Dropper Post

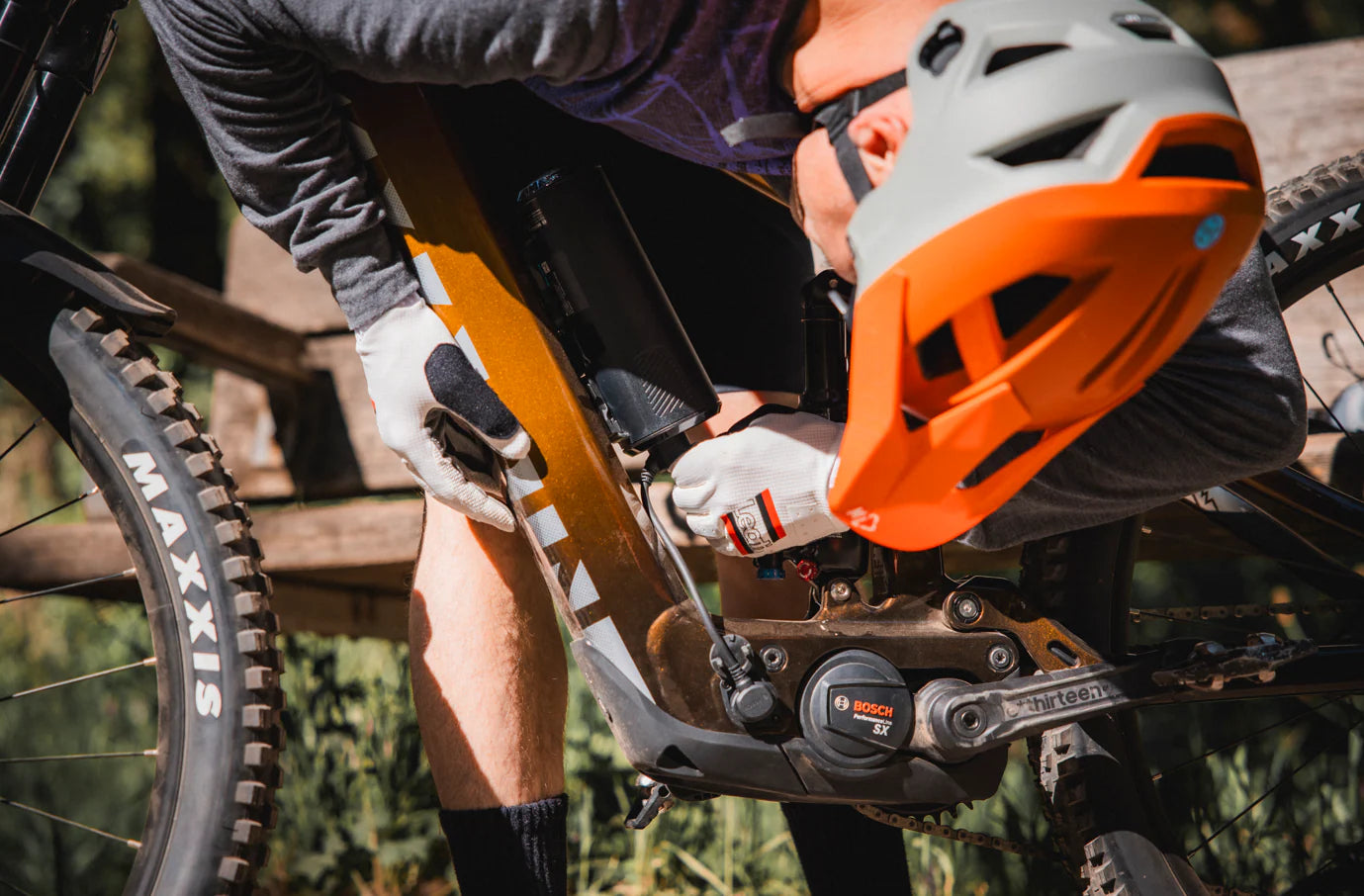

Bosch Performance Line SX Drive Unit
Fox 36 Performance Elite Fork

Specifications:

Specification	Details
App	Bosch eBike Flow App
Range	15-55 miles / 25-90 km
Display	Bosch BRC3100 Systems Controller

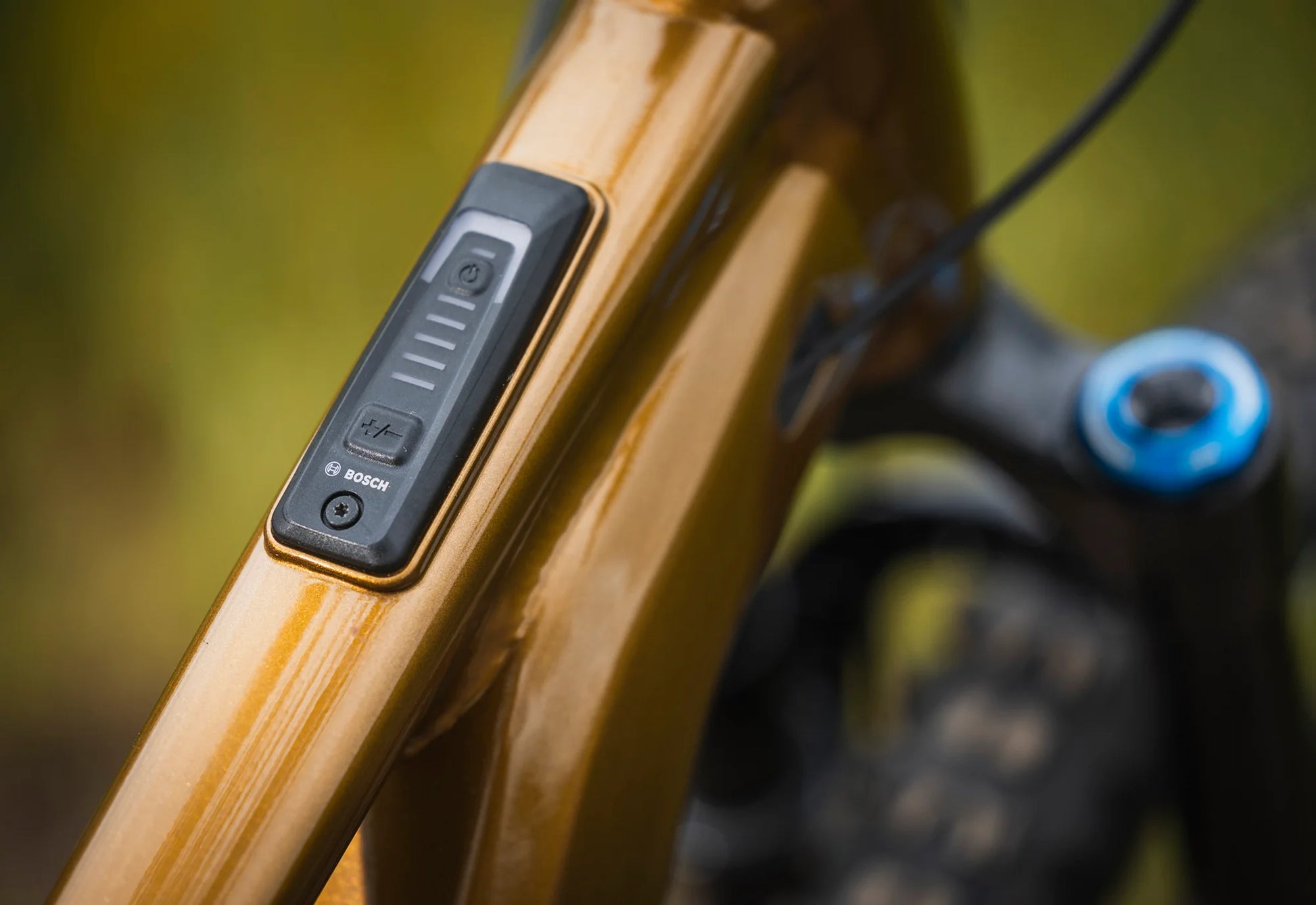

Switch	Bosch BRC3300 Bluetooth Remote 22.2mm Clamp

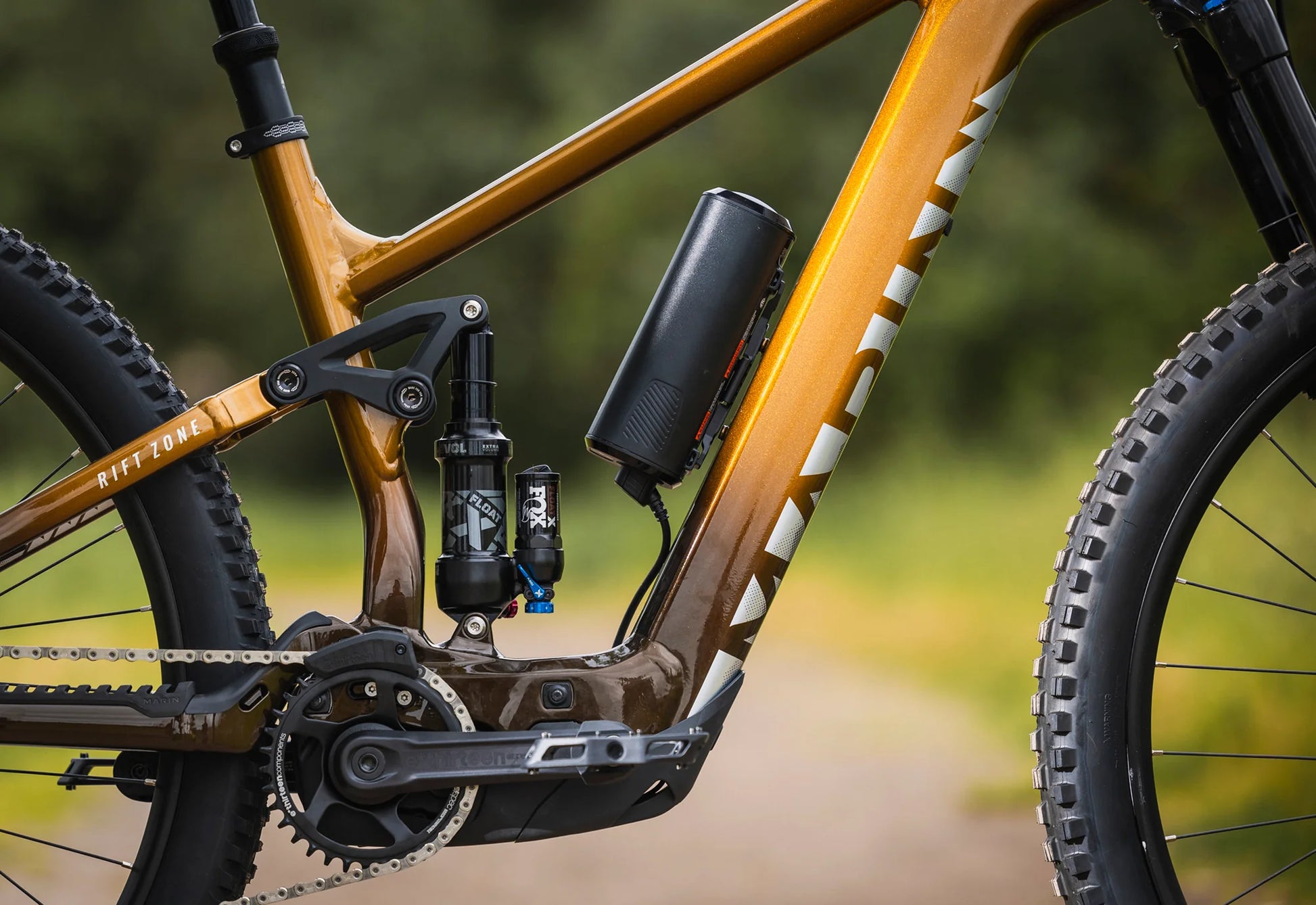

Battery	Bosch 400 Wh Internal (Optional PowerMore 250wh external battery using PowerMore 150mm cable EB12.120.036)
Motor	Bosch Performance Line SX, 600W, 55Nm
Frame	All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle
Front Suspension	Fox 36 Performance Elite, 150mm Travel, 29", 110x15 Kabolt, 44mm Offset
Rear Suspension	Fox Float X, Performance Elite, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, 25xM8 Upper & Lower Mount
Rim	Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Welded Joint, Disc Specific, Tubeless Compatible
Hub Rear	Formula DC-711, 110x15, 6-Bolt, 32H
Hub Front	Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H
Spokes	14g Black Stainless Steel
Tires	Front: Maxxis Minion DHF, 29x2.5" MAXXGRIP, Tubeless ready, EXO+ Rear: Maxxis Forekaster 29x2.4", Tubeless Ready MAXX TERRA EXO+
Chainguide	ethirteen eSpec Chainguide
Derailleur Rear	SRAM GX AXS T-Type
Shift Lever	SRAM AXS Pod Infinity Mount
Crankset	ethirteen espec Plus Carbon, 160mm Length, 34T
Chain	SRAM GX T-Type
Cassette	SRAM CS-XS-1275 T-Type, 10-52T
Brakes Front	Magura MT7 with HC3 Lever, 4 Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor
Brakes Rear	Magura MT7 with HC3 Lever, 4 Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor
Brake Levers	Magura MT7 with HC3 Lever
Handlebar	Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5° Up, 8° Back
Stem	Marin CNC, 35mm Length, 35mm Bar Bore
Grips	Marin Grizzly Lock-On
Headset	FSA Custom Headset, Adjustable HTA Design
Seatpost	PNW Loam Post with Range Lever, Size S 150mm Travel, Size M-L 170mm Travel, Size XL 200mm Travel, 34.9mm
Saddle	Marin Speed Concept
Pedals	Marin MTB Plastic

Geometry:
