Description

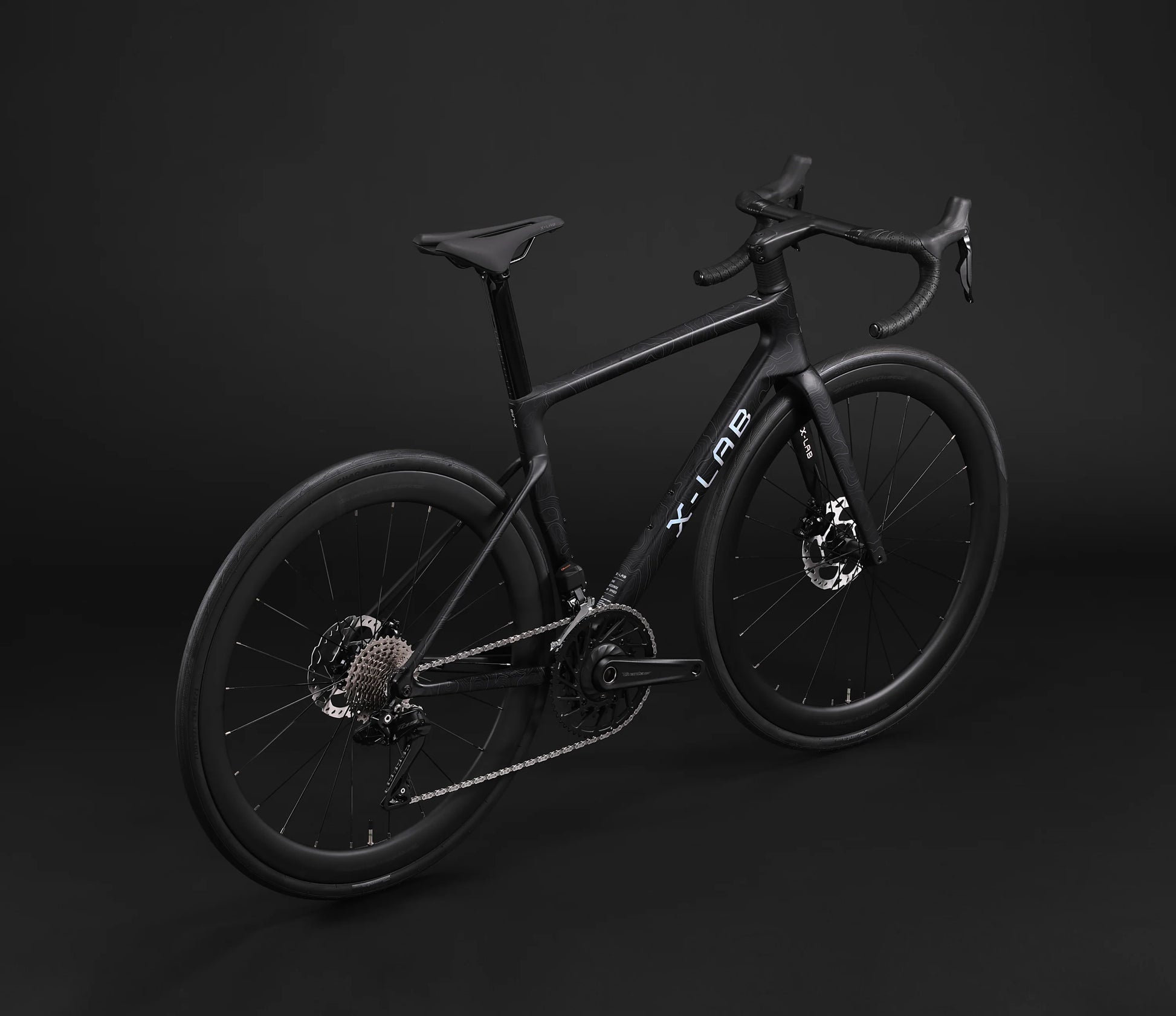

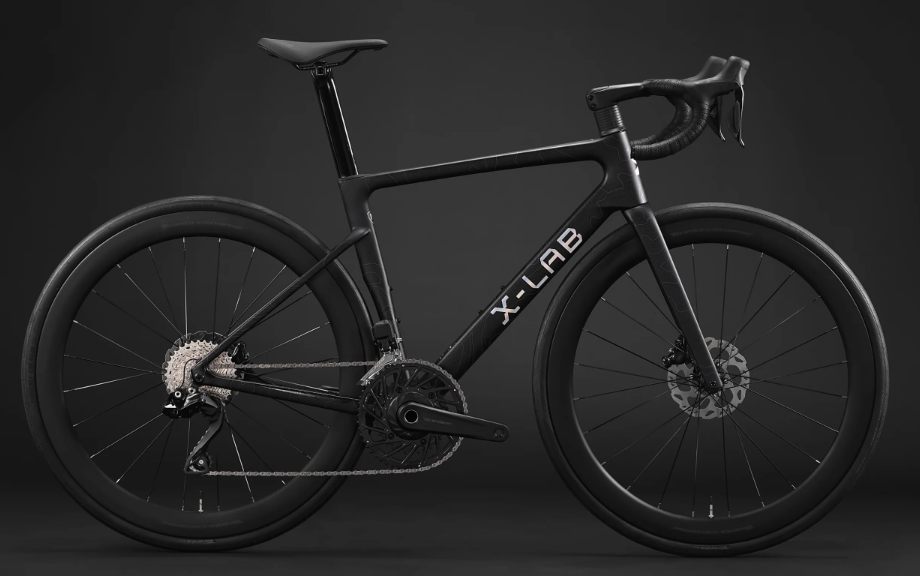

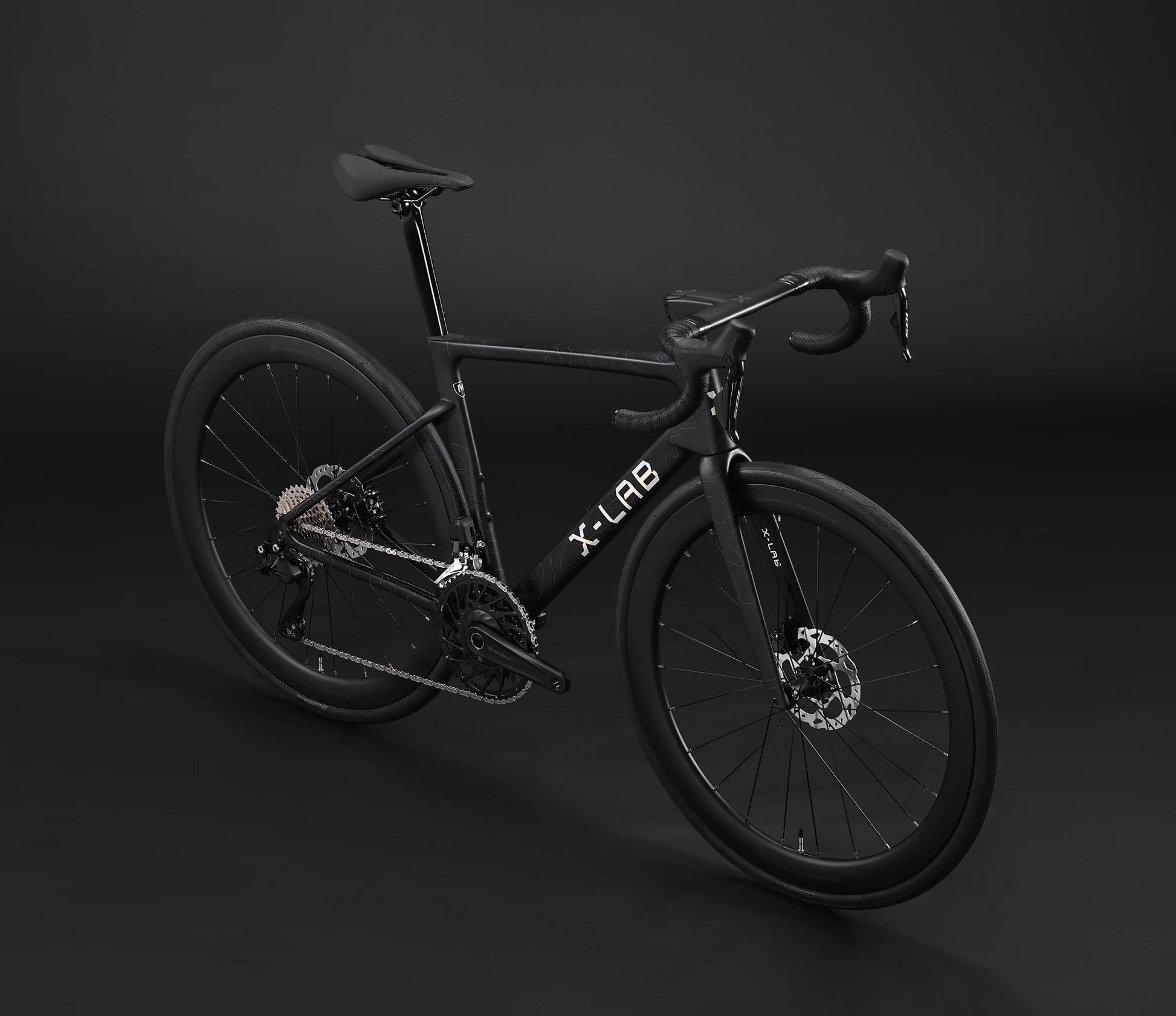

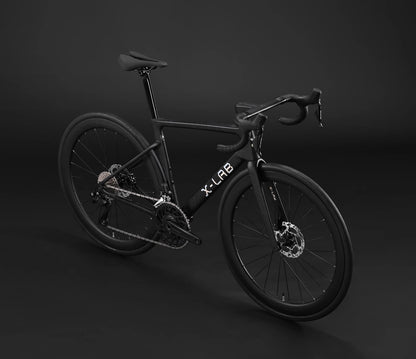

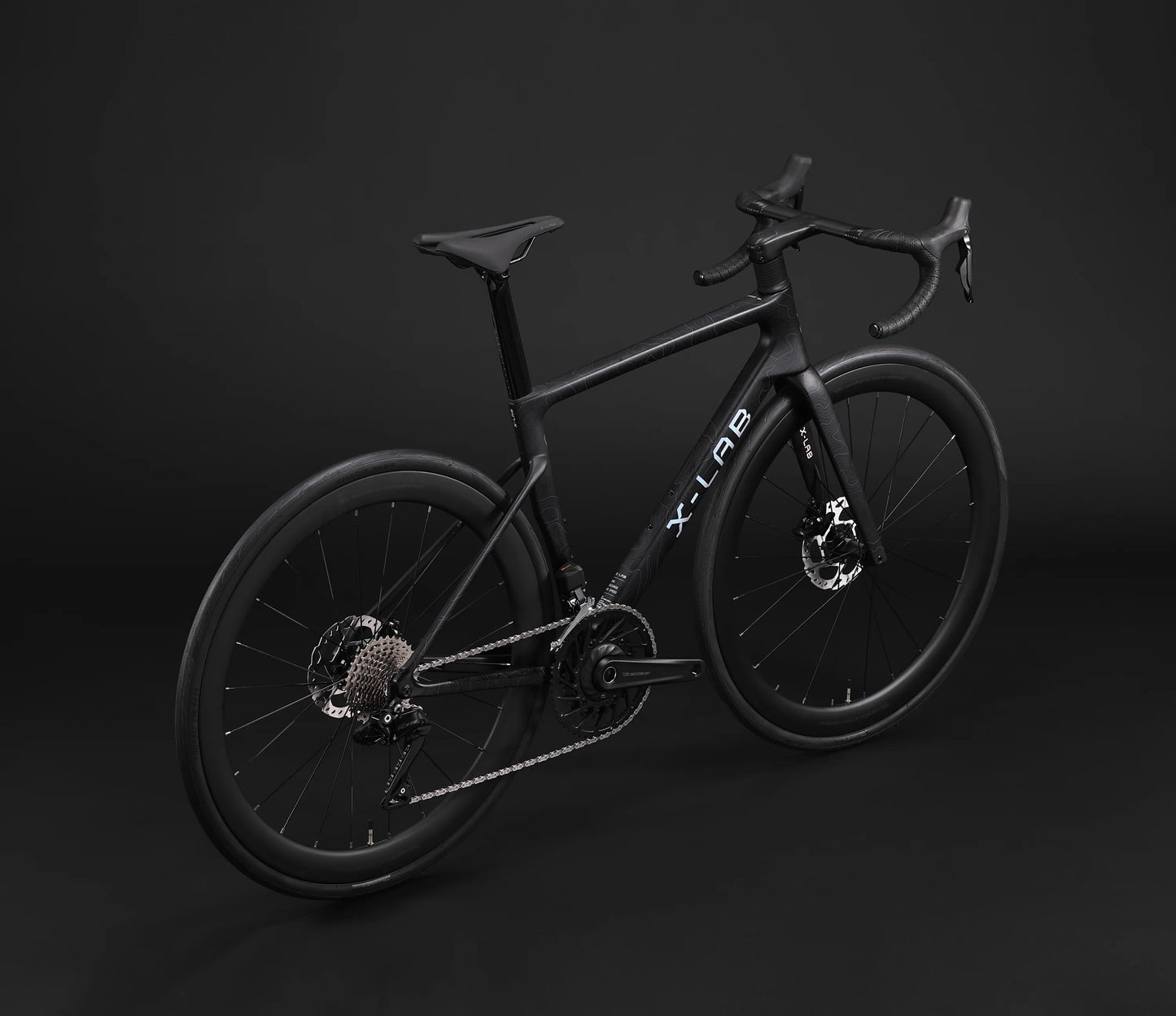

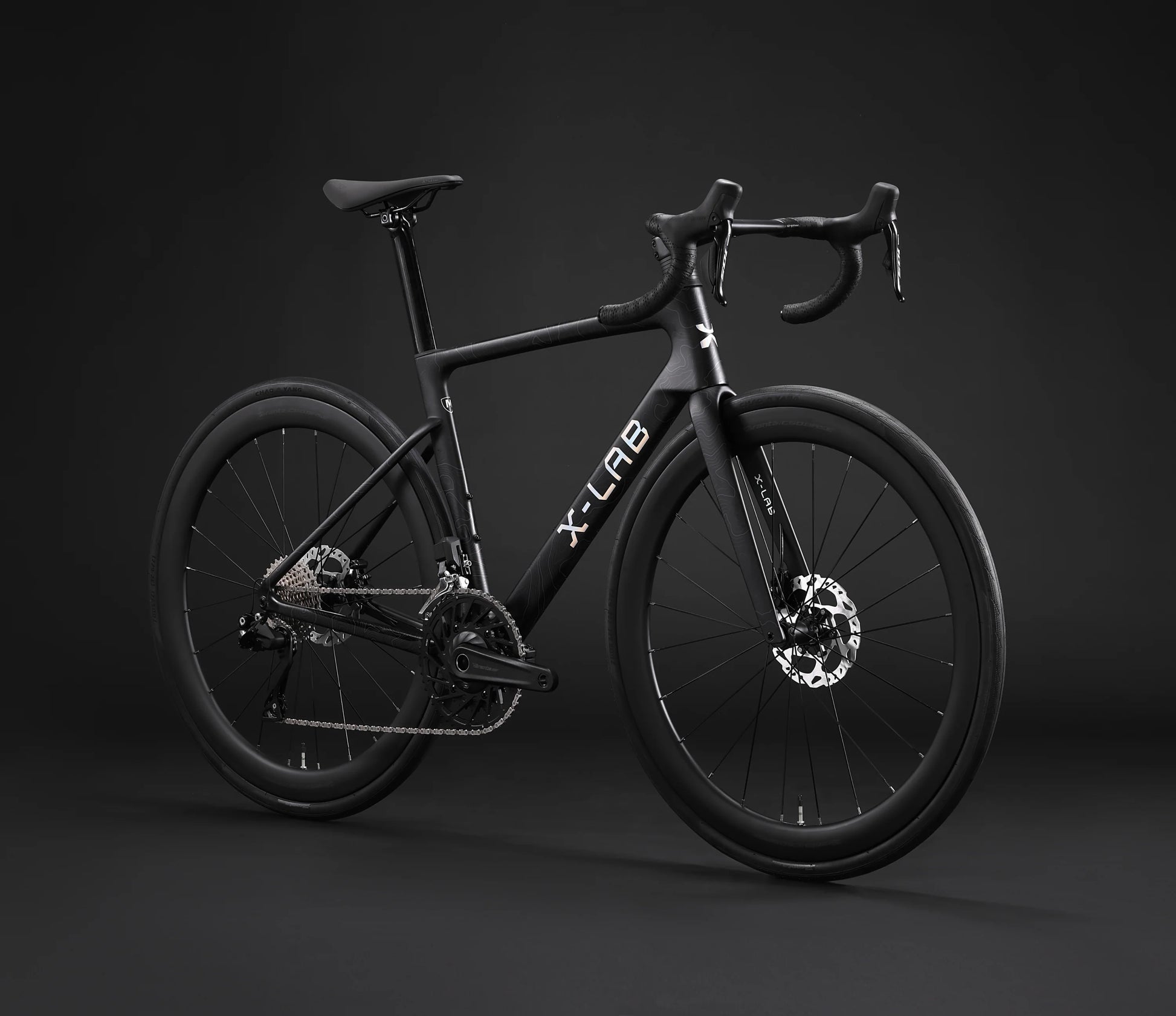

X-Lab RS7 Di2 700c

The RS7 blends aerodynamic efficiency with everyday rideability.

Its performance-oriented geometry and refined carbon construction deliver speed when you push, while maintaining the comfort and stability needed for longer rides.

Equally at home on weekend training routes or daily commutes, the RS7 offers a balanced performance platform that riders return to again and again.

Key Features

Full Carbon Frameset

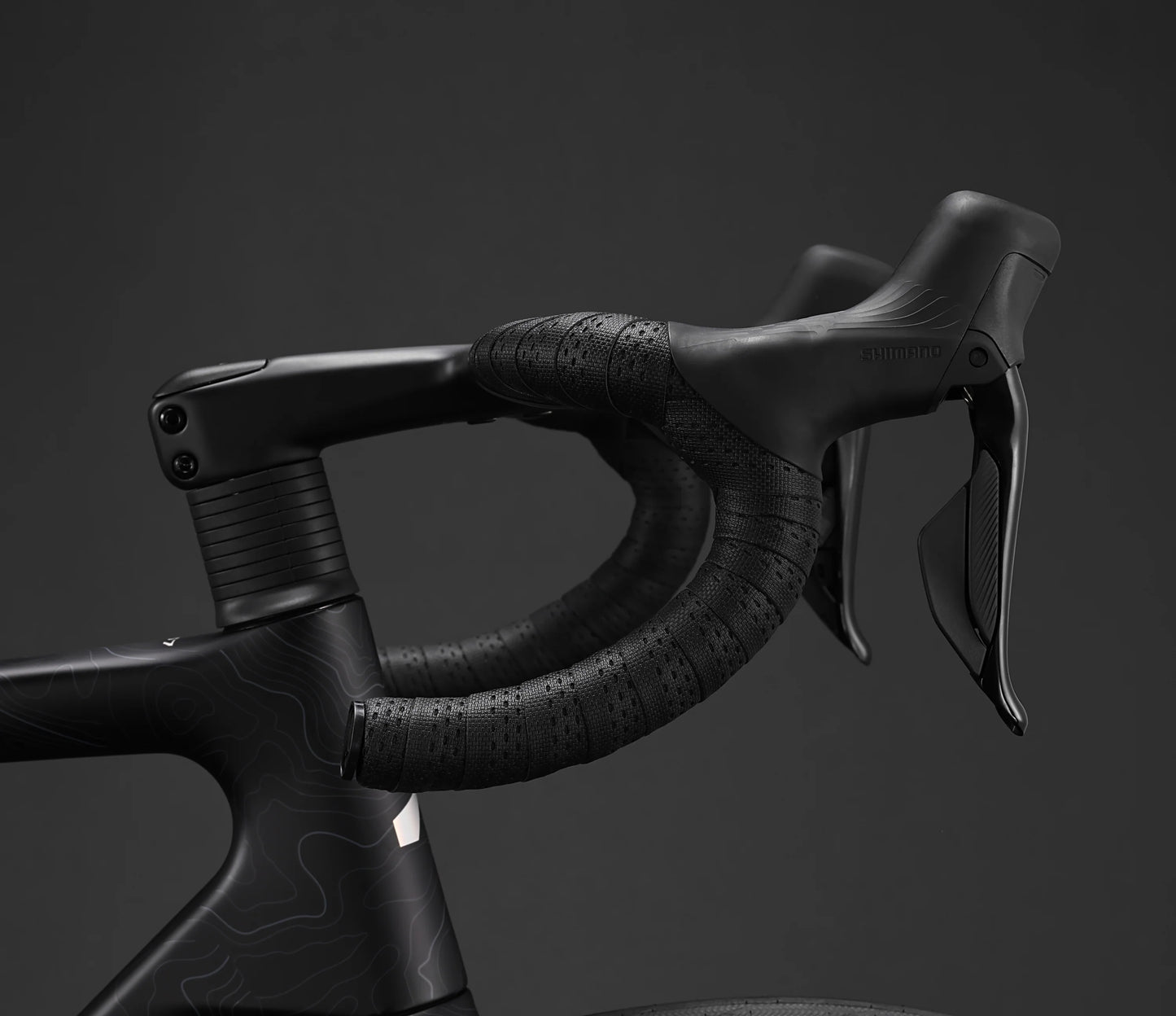

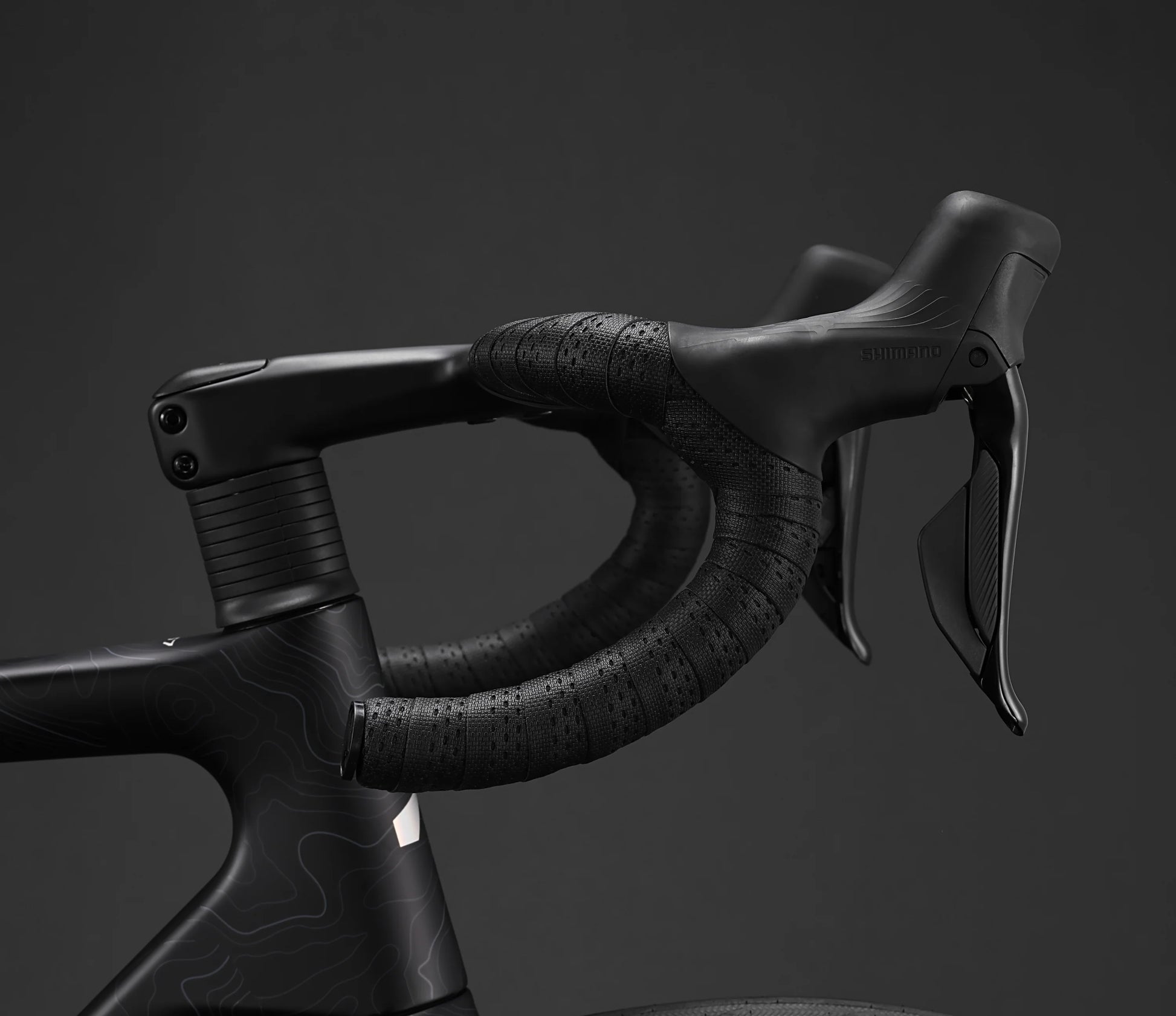

Integrated Carbon Cockpit
Branta Carbon Wheelset

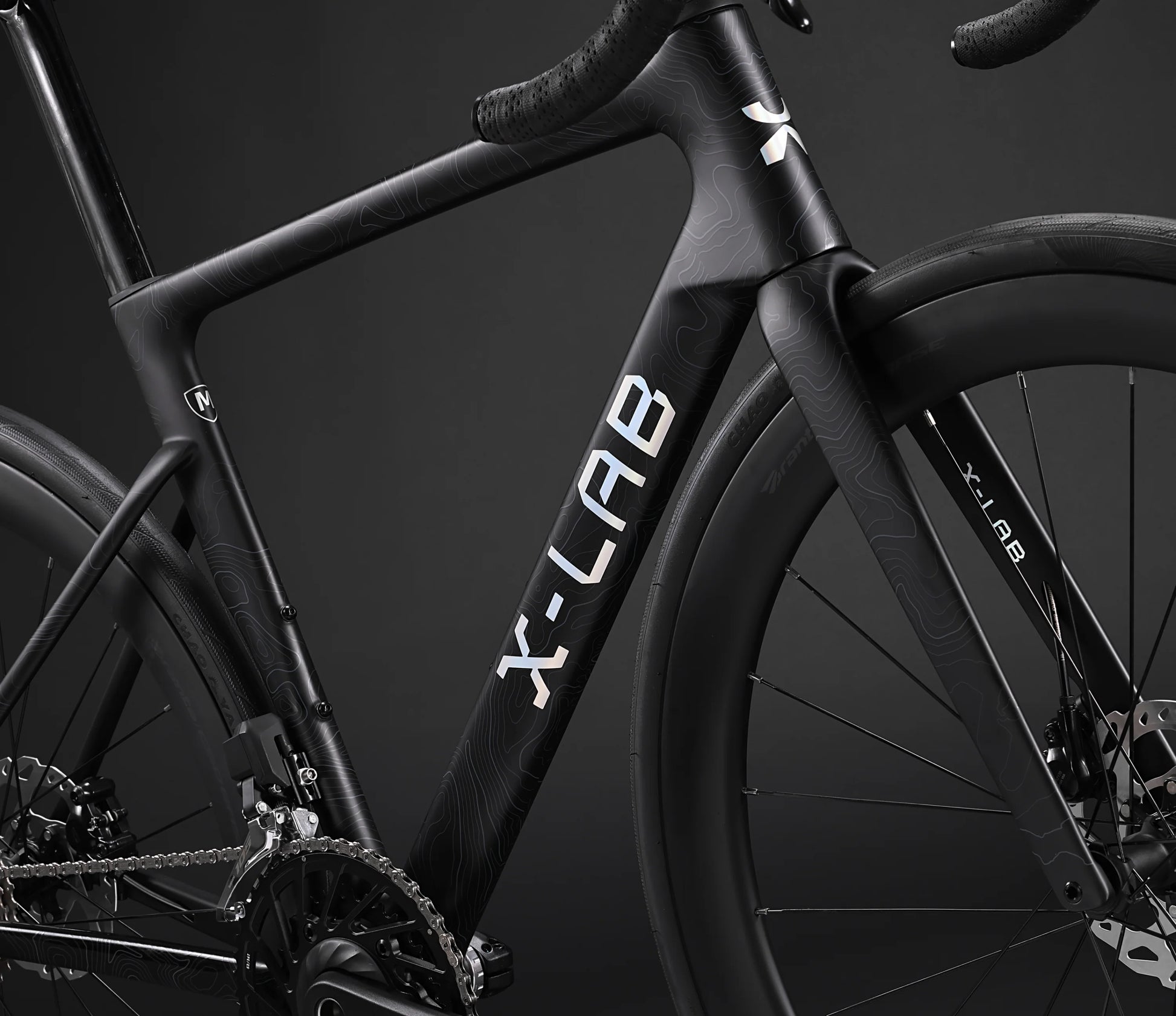

Topography-Inspired Colorways

Inspired by the contours of iconic mountain terrains, RS7’s finishes aren’t just paint; they’re a nod to the roads that shape riders and the climbs that define seasons.

Making Upgrades Simply Standard

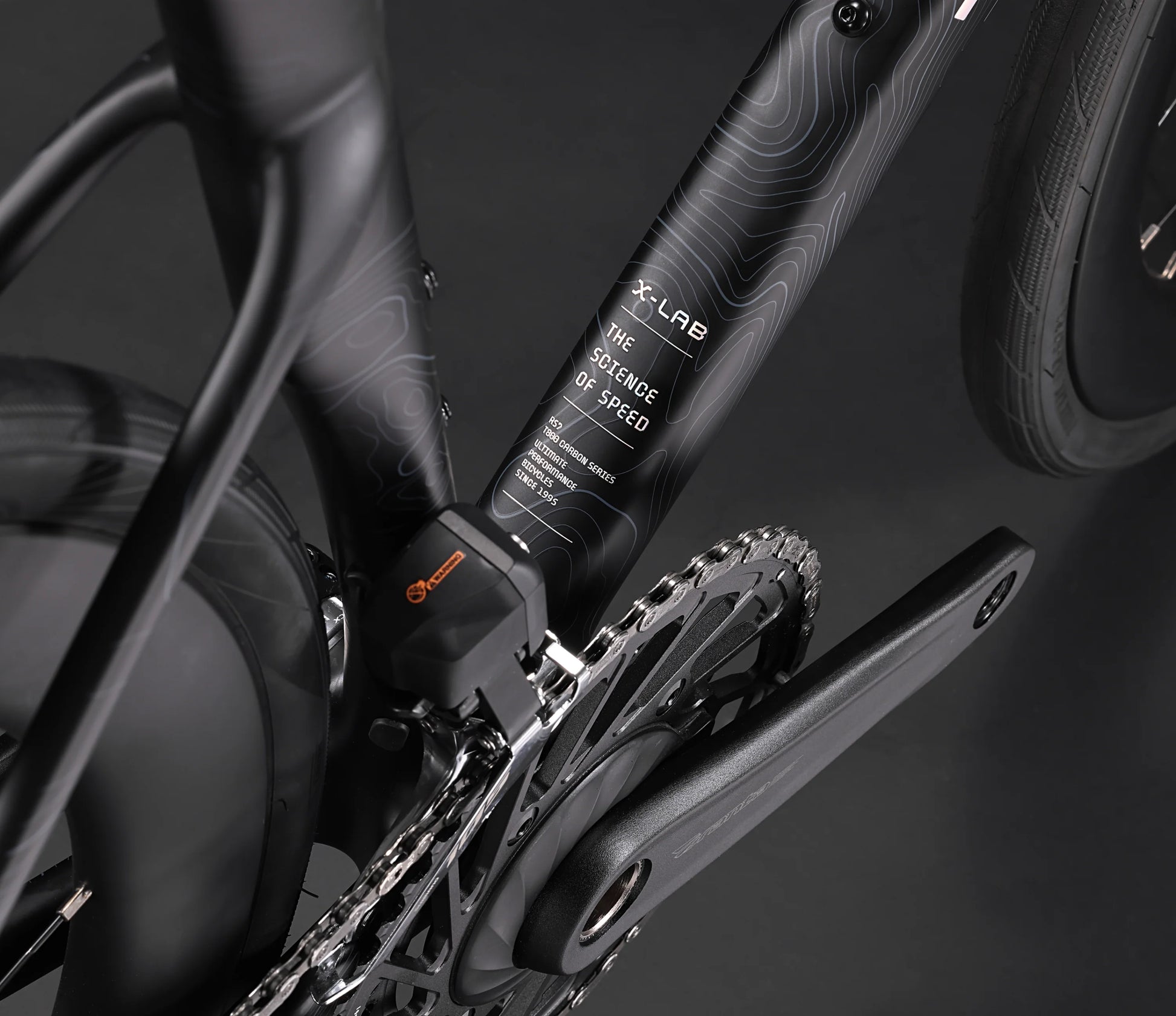

With a Branta alloy crankset featuring a built-in power meter and Find My connectivity, RS7 delivers the upgrades riders usually pay extra for, all baked in from day one.

Specifications

FRAME

XDS Carbon Frame, Toray T-700

FORK

XDS Carbon Fork, Toray T-700, 100x12mm Thru-axle

HANDLEBAR / STEM

Branta Carbon Integrated

SEATPOST

XDS Carbon Seatpost, Aero Profile

REAR DERAILLEUR

Shimano 105 Di2 RD-R7150

FRONT DERAILLEUR

Shimano 105 Di2 FD-R7150

SHIFTERS

Shimano 105 Di2 ST-R7170

BRAKES

Shimano 105 BR-R7170

CASSETTE

Shimano 105 CS-R7101, 11-34T

CRANKSET

Branta Aluminum Power Meter Crankset, 52-36T,

24mm Steel Spindle, w/Apple Find My Anti-Theft Technology

BOTTOM BRACKET

BSA 24mm

ROTORS

Shimano SM-RT70, F:160mm R:140mm

CHAIN

Shimano CN-M7100

WHEELSET

Branta C50 Base, Stainless Steel Spokes

TIRES

Branta R332, 700x32C, 60TPI

Max Tire Clearance: 32C

SADDLE

Branta R302, Steel Rails

WEIGHT

8.49 kg / 18.67 lbs (Size L)

SIZE OPTIONS

XS / S / M / L / XL / XXL

Sizing & Geometry

Basic geometry

title	XS	S	M	L	XL	XXL
A — Seat Tube Length	420mm	440mm	470mm	490mm	510mm	530mm
B — Top Tube Length	500mm	515mm	531mm	550mm	570mm	590mm
C — Head Tube Length	130mm	135mm	145mm	160mm	175mm	200mm
D — Seat Tube Angle	75°	75°	75°	74°	74°	74°
E — Head Tube Angle	70°	72°	73°	73°	73°	74°
F — Chainstay	410mm	410mm	410mm	410mm	410mm	410mm
G — Wheelbase	973mm	976mm	982mm	993mm	1006mm	1016mm
H — Bottom Bracket Drop	72mm	72mm	70mm	70mm	68mm	68mm
I — Stack	526mm	535mm	546mm	561mm	574mm	602mm
J — Reach	360mm	370mm	380mm	390mm	400mm	412mm
K — Front Center	574mm	577mm	581mm	593mm	606mm	616mm
O — Stand Over	737mm	752mm	772mm	789mm	807mm	830mm
